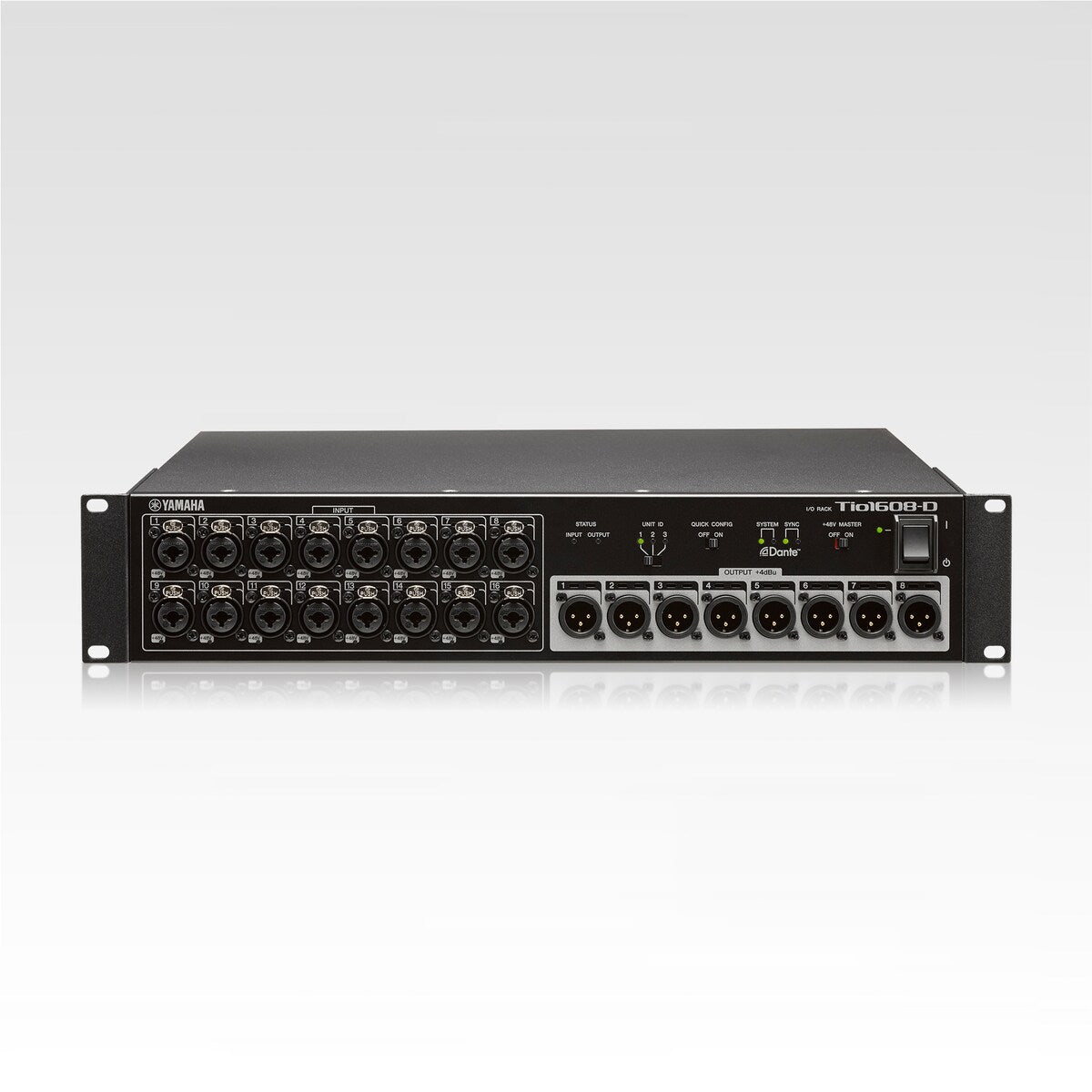

Yamaha Tio1608-D: 16-In 8-Out Dante I/O Rack
Model Tio1608-D
Request a Quote
Availability: Out of Stock
- Sampling frequency rate External: 44.1kHz or 48kHz
- Dynamic range: 108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
- Hum & noise level Equivalent input noise: -128dBu, Gain=+66dB *Measured with A-weighting filter
- Hum & noise level Residual output noise: -88dBu, ST master off *Measured with A-weighting filter
Product Overview
Overview
The Yamaha Tio1608-D is a 16-In 8-Out Dante I/O rack.
Corporate AV supplies, installs and supports the Yamaha Tio1608-D across India. Request a quote for supply, installation and commissioning. Yamaha lists the Tio1608-D as a discontinued model; Corporate AV supports installed units and can advise on the current Yamaha range.
Key features
- Sampling frequency rate External: 44.1kHz or 48kHz
- Dynamic range: 108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
- Hum & noise level Equivalent input noise: -128dBu, Gain=+66dB *Measured with A-weighting filter
Why choose the Tio1608-D
it is a 16-In 8-Out Dante I/O rack from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the Tio1608-D is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Sampling frequency rate External: 44.1kHz or 48kHz
Dynamic range: 108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
Hum & noise level Equivalent input noise: -128dBu, Gain=+66dB *Measured with A-weighting filter
Hum & noise level Residual output noise: -88dBu, ST master off *Measured with A-weighting filter
Heat dissipation: 100-240V, 50/60Hz, 43.5kcal/h
Use Cases
Ideal Applications
Stage and rack I/O for digital consoles
Dante audio networks
Auditoriums and event venues
Broadcast and installed systems
Technical Details
Technical Specifications
Specifications
Sampling frequency rate External
44.1kHz or 48kHz
Signal delay
Less than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortion
Less than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18dB/octave filter @80kHz
Frequency response
+0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHz
Dynamic range
108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
Hum & noise level Equivalent input noise
-128dBu, Gain=+66dB *Measured with A-weighting filter
Hum & noise level Residual output noise
-88dBu, ST master off *Measured with A-weighting filter
Crosstalk
-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHz
Heat dissipation
100-240V, 50/60Hz, 43.5kcal/h
Power requirements
100-240V, 50/60Hz
Power consumption
50W
Dimensions W
480mm (18-7/8")
Dimensions H
88mm (3-4/8")
Dimensions D
364mm (14-3/8")
Net weight
5.7kg (12.6lbs)
Accessories
Owner's Manual, Power Cord(2.5m), Rubber stoppers(4)
Others
Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The Tio1608-D From Corporate AV?
- Genuine Yamaha stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Yamaha Tio1608-D?
The Yamaha Tio1608-D is a 16-In 8-Out Dante I/O rack.
Who is the Yamaha Tio1608-D best suited for?
The Tio1608-D suits stage and rack i/o for digital consoles, dante audio networks and auditoriums and event venues. Corporate AV can advise whether it is the right fit for your venue or room.
What are the key specifications of the Yamaha Tio1608-D?
Yamaha lists these key specifications for the Tio1608-D. Sampling frequency rate External: 44.1kHz or 48kHz. Dynamic range: 108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter. Hum & noise level Equivalent input noise: -128dBu, Gain=+66dB *Measured with A-weighting filter. Hum & noise level Residual output noise: -88dBu, ST master off *Measured with A-weighting filter.
Is the Yamaha Tio1608-D still a current model?
Yamaha lists the Tio1608-D as discontinued. Corporate AV supports installed Tio1608-D units and can advise on the current Yamaha equivalent for a new project.
Can Corporate AV supply multiple Yamaha Tio1608-D units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha Tio1608-D in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha Tio1608-D in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
