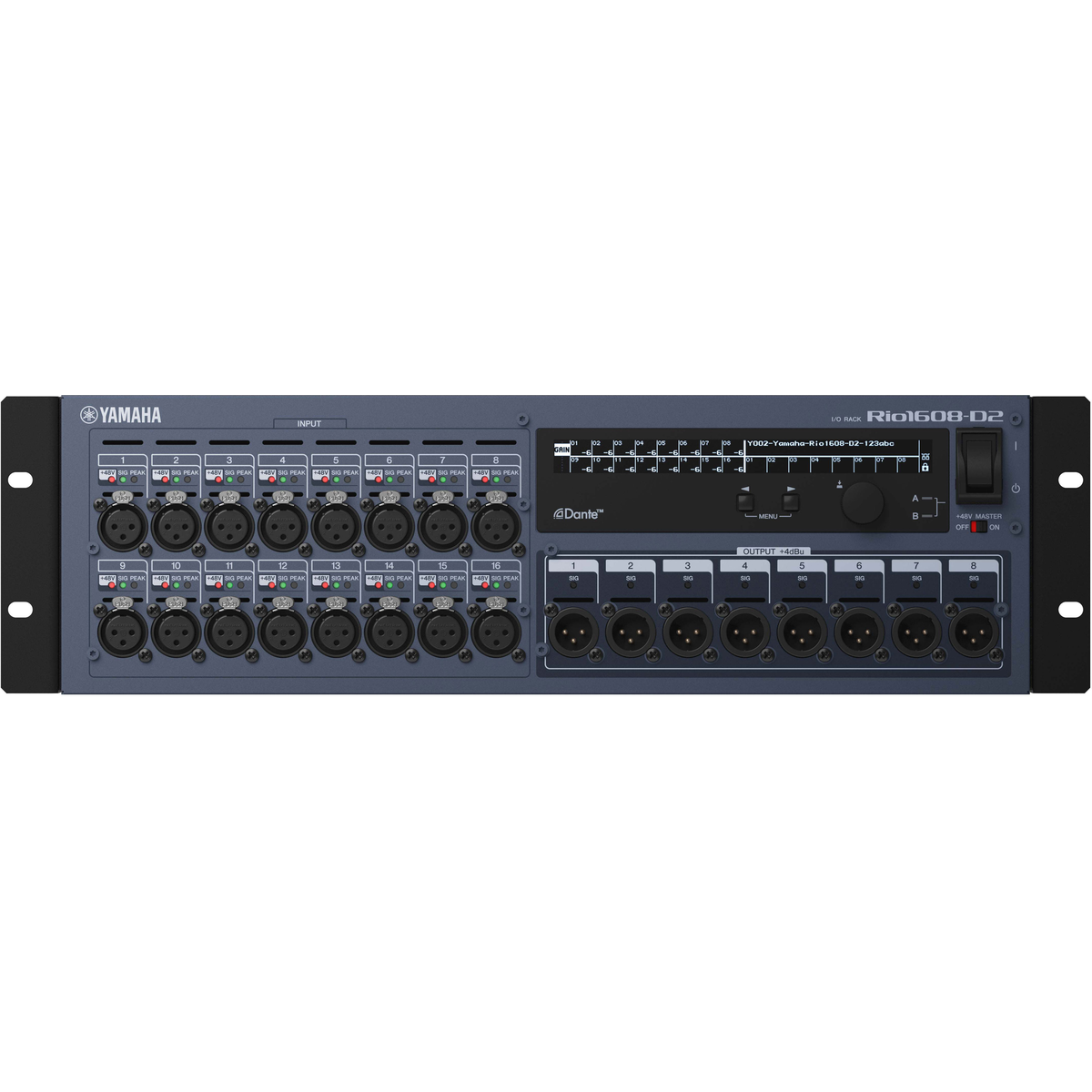

  • Yamaha Rio1608-D2 16-In 8-Out Dante I/O Rack - front view
1 1

Yamaha Rio1608-D2: 16-In 8-Out Dante I/O Rack

Model Rio1608-D2

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Yamaha Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 16 analog inputs and 8 outputs.
  • Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
  • Comprehensive display and local control of gain and other parameters.
  • Power consumption: 72W
Installed Audio Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Yamaha Rio1608-D2 is a 16-In 8-Out Dante I/O rack. This high-performance I/O rack features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

Corporate AV supplies, installs and supports the Yamaha Rio1608-D2 across India. Request a quote for supply, installation and commissioning.

Key features

  • 16 analog inputs and 8 outputs.
  • Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
  • Comprehensive display and local control of gain and other parameters.
  • Power consumption: 72W
  • Dimensions (WxHxD): 480 x 132 x 368mm (18.9" x 5.2" x 14.5")
  • Net Weight: 9.6 kg (21.2 lbs)
Why choose the Rio1608-D2
it is a 16-In 8-Out Dante I/O rack from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the Rio1608-D2 is specified and set up for your space and not just shipped.
Product Highlights

Key Benefits

16 analog inputs and 8 outputs.

Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.

Comprehensive display and local control of gain and other parameters.

Power consumption: 72W

Dimensions (WxHxD): 480 x 132 x 368mm (18.9" x 5.2" x 14.5")

Use Cases

Ideal Applications

Stage and rack I/O for digital consoles

Dante audio networks

Auditoriums and event venues

Broadcast and installed systems

Technical Details

Technical Specifications

General specifications
Sampling frequency rate External 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)
Signal delay Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec
Total harmonic distortion Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600Ω, Fs= 48 kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600Ω, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min.
Frequency response +0.5, –1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz / +0.5, –1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
Dynamic range 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
Hum & noise level Equivalent input noise –128 dBu typ., Input Gain= Max.
Hum & noise level Residual output noise –88 dBu, ST master off
Crosstalk -100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz *Measured with a 30dB/octave filter @22kHz
Power requirements 100-240V, 50/60Hz
Power consumption 72W
Dimensions W 480 mm (18.9")
Dimensions H 132 mm (5.2")
Dimensions D 368 mm (14.5")
Net weight 9.6 kg (21.2 lbs)
Accessories Owner's Manual, AC power cord (250cm)
Others NC Value: FAN MODE LOW: NC=15 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: –20 - 60°C

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The Rio1608-D2 From Corporate AV?
  • Genuine Yamaha stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the Yamaha Rio1608-D2?
The Yamaha Rio1608-D2 is a 16-In 8-Out Dante I/O rack. This high-performance I/O rack features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.
Who is the Yamaha Rio1608-D2 best suited for?
The Rio1608-D2 suits stage and rack i/o for digital consoles, dante audio networks and auditoriums and event venues. Corporate AV can advise whether it is the right fit for your venue or room.
What are the key specifications of the Yamaha Rio1608-D2?
Yamaha lists these key specifications for the Rio1608-D2. Hum & noise level Equivalent input noise: –128 dBu typ., Input Gain= Max.. Hum & noise level Residual output noise: –88 dBu, ST master off. Power requirements: 100-240V, 50/60Hz. Power consumption: 72W.
Can Corporate AV supply multiple Yamaha Rio1608-D2 units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha Rio1608-D2 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha Rio1608-D2 in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
