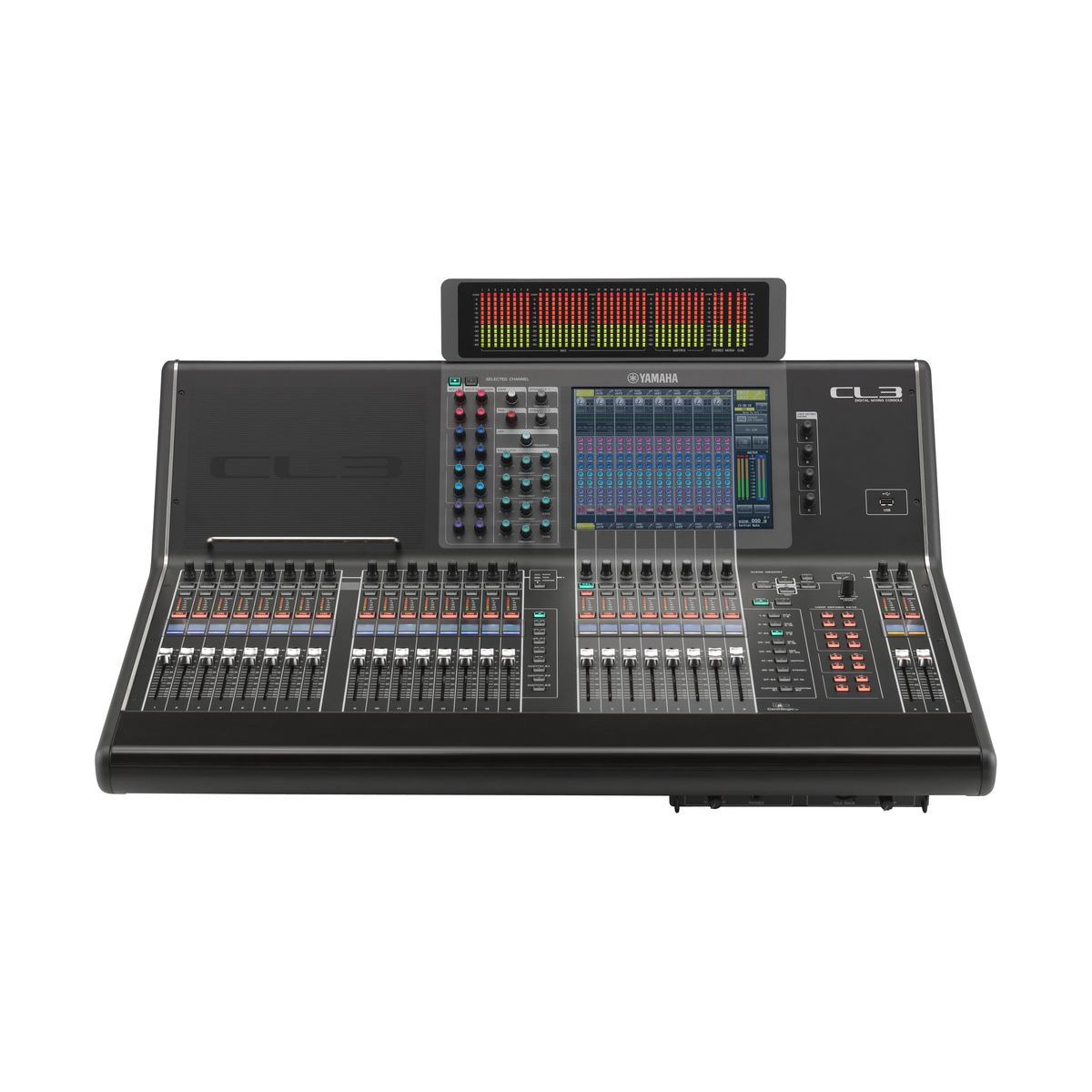

Yamaha CL3: 64-Channel Digital Mixing Console
Model CL3
Request a Quote
Availability: Out of Stock
- Input channels: 64 mono, 8 stereo.
- Fader configuration: 16-fader left section, 8-fader Centralogic section, 2-fader master section .
- Stainless steel stay for iPad support.
- Meter bridge optional.
Product Overview
Overview
The Yamaha CL3 is a 64-channel digital mixing console. An ideal blend of compact size and channel capacity for a variety of live and installed applications.
Corporate AV supplies, installs and supports the Yamaha CL3 across India. Request a quote for supply, installation and commissioning. Yamaha lists the CL3 as a discontinued model; Corporate AV supports installed units and can advise on the current Yamaha range.
Key features
- Input channels: 64 mono, 8 stereo.
- Fader configuration: 16-fader left section, 8-fader Centralogic section, 2-fader master section .
- Stainless steel stay for iPad support.
- Meter bridge optional.
Why choose the CL3
it is a 64-channel digital mixing console from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the CL3 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Input channels: 64 mono, 8 stereo.
Fader configuration: 16-fader left section, 8-fader Centralogic section, 2-fader master section .
Stainless steel stay for iPad support.
Meter bridge optional.
Use Cases
Ideal Applications
Live sound and event production
Houses of worship
Auditoriums and conference halls
Broadcast, theatre and studios
Technical Details
Technical Specifications
General specifications
Sampling frequency rate Internal
44.1kHz / 48kHz
Sampling frequency rate External
44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
Signal delay
Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz
Total harmonic distortion
Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min.
Frequency response
+0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT
Dynamic range
112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min.
Hum & noise level Equivalent input noise
-128dBu typ., Equivalent Input Noise, Input Gain=Max
Hum & noise level Residual output noise
-88dBu, Residual output noise, ST master off
Crosstalk
-100dB, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min.
Power requirements
US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power consumption
170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W
Dimensions W
839mm (33 1/8in)
Dimensions H
299mm (11 3/4in)
Dimensions D
667mm (26 1/4in)
Net weight
29kg (63.9lb)
Others
Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
Specifications
Mixing Capacity Input Mixing Channels
64 mono + 8 stereo
Mixing Capacity Mix Buses
24
Mixing Capacity Matrices
8 (Input to Matrix supported)
Mixing Capacity Stereo Bus
1
Mixing Capacity Mono
1
Mixing Capacity Cue
1 (Second Cue Bus supported in CL V4.0 or later)
Local Connectors Analog Inputs
8
Local Connectors Analog Outputs
8
Local Connectors MY Slots
3
Local Connectors Dante I/O
Primary / Secondary
Local Connectors Digital Out
1 (AES/EBU)
Local Connectors GPI
5 in / 5 out (CL V1.11 or later)
Local Connectors Word Clock I/O
Yes
Local Connectors MIDI I/O
In / Out
Local Connectors External Redundant PSU
Optional PW800W
Local Connectors Meter Bridge
Optional MBCL
Local Connectors Ethernet
Yes
Local Connectors AC Inlet
V-Lock Type
Scene Memory Number of Scenes
300
Scene Memory Recall Safe
Yes
Scene Memory Focus Recall
Yes
Scene Memory Fade Time
Yes (0s ~ 60s)
Scene Memory Preview
Yes (CL V1.51 or later)
Scene Memory Selective Load / Save
Yes (CL V1.7 or later)
Scene Memory Tactile Control Keys
Yes
Input Channel Functions Gain Compensation
Yes
Input Channel Functions Digital Gain
Yes (-96dB ~ +24dB)
Input Channel Functions ATT
-96dB ~ 0dB
Input Channel Functions HPF
20Hz ~ 600Hz, -6 or -12dB/oct Selectable (CL V1.51 or later)
Input Channel Functions PEQ
4 Band Full PEQ / (RTA overlay support in CL V3.0 or later, New EQ Algorithms support in CL V4.0 or later)
Input Channel Functions Dynamics 1
Gate / Ducking / Compressor / Expander (Key-in Filter on the Compressor and Expander in CL V4.0 or later)
Input Channel Functions Dynamics 2
Compressor / Compander-H / Compander-S / De-esser
Input Channel Functions Input Delay
Yes (0ms ~ 1000ms, frame delay support in CL V3.0 or later)
Input Channel Functions Pan
CENTER NOMINAL or LR NOMINAL for monaural input channels in CL V3.1 or later / L-MONO, R-MONO or LR-MONO for stereo input channels in CL V3.1 or later
Input Channel Functions DCA Group
16 (Output DCA and DCA Roll-Out support in CL V2.0 or later, Scrollable DCA Roll-Out support in CL V4.0 or later)
Input Channel Functions MUTE Group
8
Input Channel Functions Number of Inserts
2 (CL V2.0 or later)
Input Channel Functions Direct Out
Yes
Output Channel Functions PEQ
4 Band Full PEQ / (RTA overlay support in CL V3.0 or later, New EQ Algorithms support in CL V4.0 or later)
Output Channel Functions Dynamics 1
Compressor / Expander / Compander-H / Compander-S
Output Channel Functions MUTE Group
8
Output Channel Functions Number of Inserts
2 (CL V2.0 or later)
Premium Rack Number of Premium Racks
8
Premium Rack Mountable Device
RND Portico5033 / RND Portico5043 / U76 / Opt-2A / EQ-1A / Dynamic EQ / Buss Comp 369 (CL V3.0 or later) / MBC4 (CL V4.0 or later)
Effect Rack Number of Effect Racks
8
Effect Rack Number of Effect Programs
54
Effect Rack Mountable Device
Effect / 31BandGEQ / Flex15GEQ / 8Band PEQ (CL V3.0 or later)
GEQ Rack Number of GEQ Racks
16
GEQ Rack Mountable Device
31BandGEQ / Flex15GEQ / Dugan Automixer (CL V3.0 or later) / 8Band PEQ (CL V3.0 or later) / (RTA overlay support in CL V3.0 or later, GEQ gain control from the TOUCH AND TURN knob in CL V4.0 or later)
Dante Number of I/O Channels
64 in / 64 out
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The CL3 From Corporate AV?
- Genuine Yamaha stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Yamaha CL3?
The Yamaha CL3 is a 64-channel digital mixing console. An ideal blend of compact size and channel capacity for a variety of live and installed applications.
Who is the Yamaha CL3 best suited for?
The CL3 suits live sound and event production, houses of worship and auditoriums and conference halls. Corporate AV can advise whether it is the right fit for your venue or room.
What are the key specifications of the Yamaha CL3?
Yamaha lists these key specifications for the CL3. Sampling frequency rate Internal: 44.1kHz / 48kHz. Signal delay: Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz. Hum & noise level Equivalent input noise: -128dBu typ., Equivalent Input Noise, Input Gain=Max. Hum & noise level Residual output noise: -88dBu, Residual output noise, ST master off.
Is the Yamaha CL3 still a current model?
Yamaha lists the CL3 as discontinued. Corporate AV supports installed CL3 units and can advise on the current Yamaha equivalent for a new project.
Can Corporate AV supply multiple Yamaha CL3 units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha CL3 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha CL3 in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
