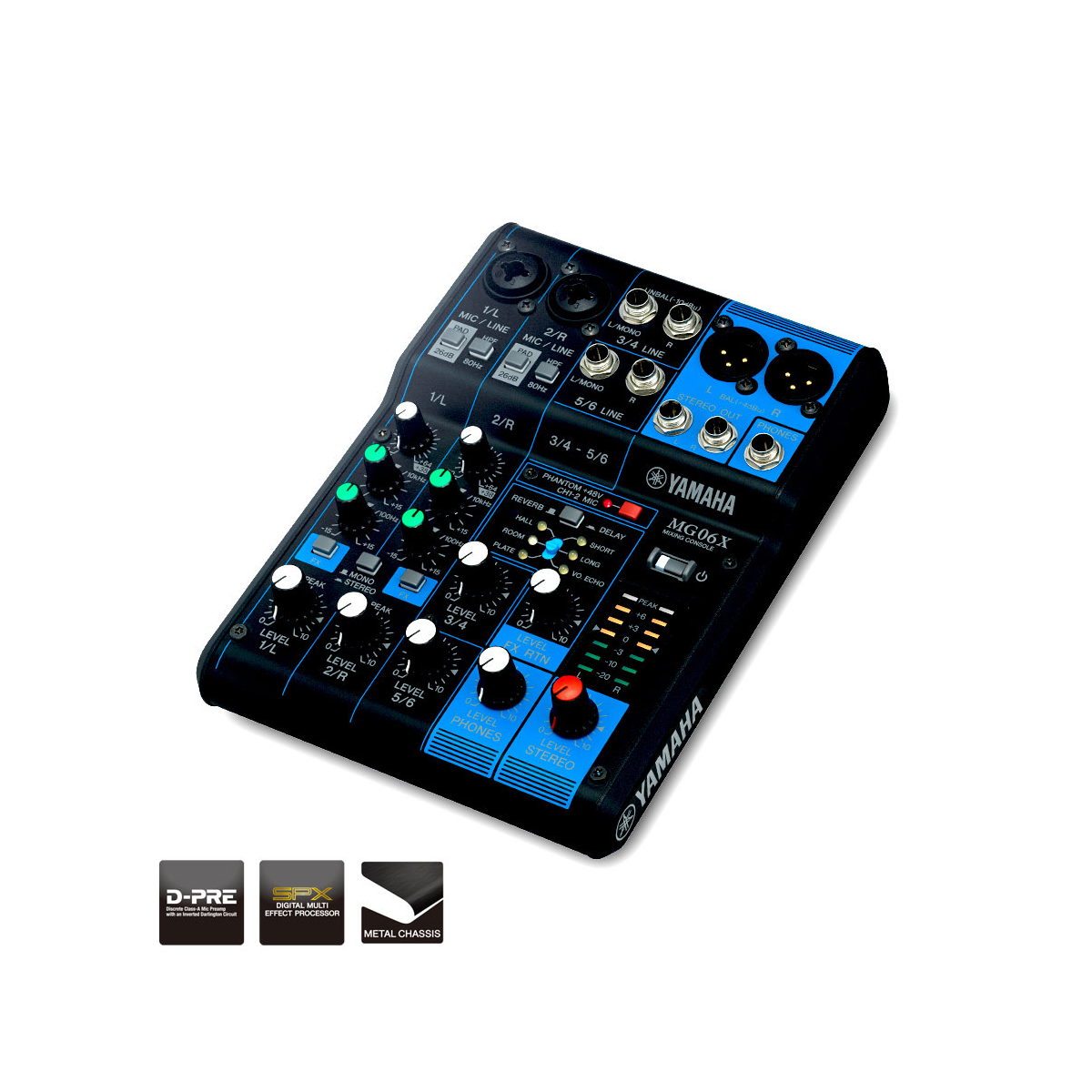

Yamaha MG06X: 6-Channel Mixing Console with SPX Effects
Model MG06X
Request a Quote
Availability: Out of Stock
- "D-PRE" mic preamps with an inverted Darlington circuit
- High-grade effects: SPX with 6 programs
- XLR balanced outputs
- PAD switch on mono inputs
Product Overview
Overview
The Yamaha MG06X is a 6-channel mixing console with SPX effects. 6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus.
Corporate AV supplies, installs and supports the Yamaha MG06X across India. Request a quote for supply, installation and commissioning.
Key features
- "D-PRE" mic preamps with an inverted Darlington circuit
- High-grade effects: SPX with 6 programs
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
- Net Weight: 0.9 kg (1.98 lbs.)
Why choose the MG06X
it is a 6-channel mixing console with SPX effects from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the MG06X is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
"D-PRE" mic preamps with an inverted Darlington circuit
High-grade effects: SPX with 6 programs
XLR balanced outputs
PAD switch on mono inputs
+48V phantom power
Use Cases
Ideal Applications
Small venues and rehearsal rooms
Meeting rooms and training rooms
Houses of worship
Podcasting and recording
Technical Details
Technical Specifications
Outline
Mixing capability On-board processors
SPX algorithm: 6 programs
I/O Phantom power
+48 V
Input Channels Mono[MIC/LINE]
2
Input Channels Stereo[LINE]
2
Output Channels STEREO OUT
2
Output Channels PHONES
1
Bus
Stereo: 1
Input Channel Function PAD
26 dB (Mono)
Input Channel Function HPF
80 Hz, 12 dB/oct (Mono)
Input Channel Function EQ HIGH
(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
Input Channel Function EQ LOW
(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
Input Channel Function PEAK LED
LED turns on when post EQ signal reaches 3 dB below clipping
Input Channel Function Level Meter
2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
General specifications
Total harmonic distortion
0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response
+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level Residual output noise
-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk
-88 dB
Power requirements
PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power consumption
12 W
Dimensions W
149 mm (5.9")
Dimensions H
62 mm (2.4")
Dimensions D
202 mm (7.9")
Net weight
0.9 kg (1.98 lbs.)
Accessories
Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others
Operating Temperature: 0 to +40˚C
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The MG06X From Corporate AV?
- Genuine Yamaha stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Yamaha MG06X?
The Yamaha MG06X is a 6-channel mixing console with SPX effects. 6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus.
Who is the Yamaha MG06X best suited for?
The MG06X suits small venues and rehearsal rooms, meeting rooms and training rooms and houses of worship. Corporate AV can advise whether it is the right fit for your venue or room.
What are the key specifications of the Yamaha MG06X?
Yamaha lists these key specifications for the MG06X. Mixing capability On-board processors: SPX algorithm: 6 programs. I/O Phantom power: +48 V. Input Channels Mono[MIC/LINE]: 2. Input Channels Stereo[LINE]: 2.
Can Corporate AV supply multiple Yamaha MG06X units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha MG06X in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha MG06X in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
