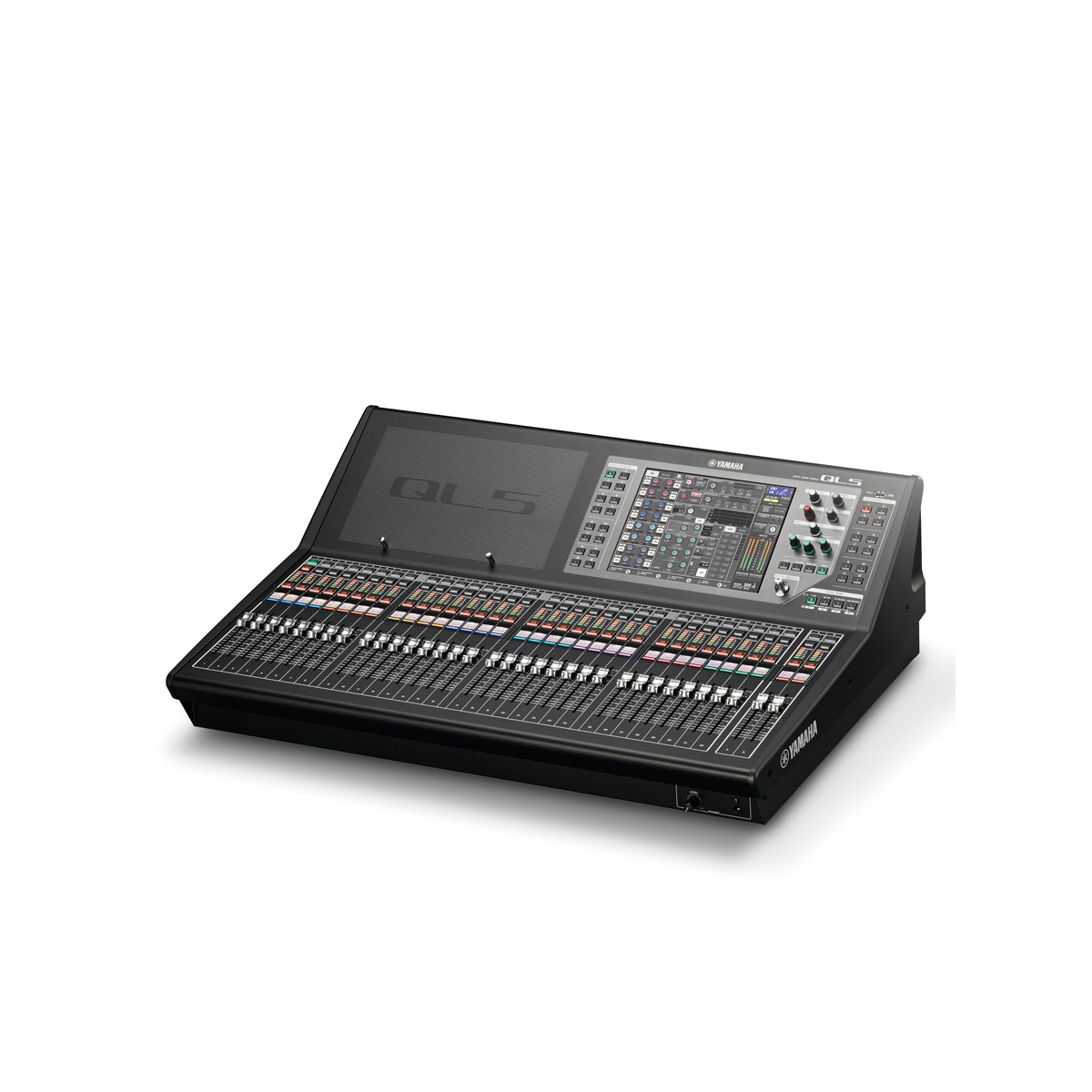

Yamaha QL5: 64-Channel Digital Mixing Console
Model QL5
Request a Quote
Availability: Out of Stock
- Mix channels: 64 mono, 8 stereo.
- Busses: 16 mix, 8 matrix (Input to Matrix supported).
- Local I/O: 32 in, 16 out.
- Fader configuration: 32 + 2 (Master).
Product Overview
Overview
The Yamaha QL5 is a 64-channel digital mixing console. 32 + 2 fader configuration adapts to a wide range of channel layouts. The QL5 is a compact console with large-scale capabilities.
Corporate AV supplies, installs and supports the Yamaha QL5 across India. Request a quote for supply, installation and commissioning. Yamaha lists the QL5 as a discontinued model; Corporate AV supports installed units and can advise on the current Yamaha range.
Key features
- Mix channels: 64 mono, 8 stereo.
- Busses: 16 mix, 8 matrix (Input to Matrix supported).
- Local I/O: 32 in, 16 out.
- Fader configuration: 32 + 2 (Master).
- Stainless steel iPad support stays.
Why choose the QL5
it is a 64-channel digital mixing console from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the QL5 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Mix channels: 64 mono, 8 stereo.
Busses: 16 mix, 8 matrix (Input to Matrix supported).
Local I/O: 32 in, 16 out.
Fader configuration: 32 + 2 (Master).
Stainless steel iPad support stays.
Use Cases
Ideal Applications
Live sound and event production
Houses of worship
Auditoriums and conference halls
Broadcast, theatre and studios
Technical Details
Technical Specifications
General specifications
Sampling frequency rate Internal
44.1kHz / 48kHz
Sampling frequency rate External
44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
Signal delay
Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz
Fader
100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders
Total harmonic distortion
Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min.
Frequency response
+0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT
Dynamic range
112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min.
Hum & noise level Equivalent input noise
-128dBu typ., Equivalent Input Noise, Input Gain=Max
Hum & noise level Residual output noise
-88dBu, Residual output noise, ST master off
Crosstalk
-100dB, adjacent INPUT/OMNI OUT channels, Input Gain = Min.
Power requirements
100-240V 50/60Hz
Power consumption
200W
Dimensions W
828mm(32.6in)
Dimensions H
272mm(10.7in)
Dimensions D
563mm(22.2in)
Net weight
21.8kg(48.1lb)
Accessories
Owner's Manual, dust cover, power cord, DVS license sheet, Nuendo Live
Options
Mini-YGDAI cards , Gooseneck Lamp LA1L
Others
Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
Specifications
Mixing Capacity Input Mixing Channels
64 mono + 8 stereo
Mixing Capacity Mix Buses
16
Mixing Capacity Matrices
8 (Input to Matrix supported)
Mixing Capacity Stereo Bus
1
Mixing Capacity Mono
1
Mixing Capacity Cue
1 (Second Cue Bus supported in QL V4.0 or later)
Local Connectors Analog Inputs
32
Local Connectors Analog Outputs
16
Local Connectors MY Slots
2
Local Connectors Dante I/O
Primary / Secondary
Local Connectors Digital Out
1 (AES/EBU)
Local Connectors GPI
5 in / 5 out
Local Connectors Word Clock I/O
Yes
Local Connectors MIDI I/O
In / Out
Local Connectors External Redundant PSU
No
Local Connectors Meter Bridge
No
Local Connectors Ethernet
Yes
Local Connectors AC Inlet
V-Lock Type
Scene Memory Number of Scenes
300
Scene Memory Recall Safe
Yes
Scene Memory Focus Recall
Yes
Scene Memory Fade Time
Yes (0s ~ 60s)
Scene Memory Preview
Yes
Scene Memory Selective Load / Save
Yes
Scene Memory Tactile Control Keys
No (on-screen)
Input Channel Functions Gain Compensation
Yes
Input Channel Functions Digital Gain
Yes (-96dB ~ +24dB)
Input Channel Functions ATT
-96dB ~ 0dB
Input Channel Functions HPF
20Hz ~ 600Hz, -6 or -12dB/oct Selectable
Input Channel Functions PEQ
4 Band Full PEQ / (RTA overlay support in QL V3.0 or later, New EQ Algorithms support in QL V4.0 or later)
Input Channel Functions Dynamics 1
Gate / Ducking / Compressor / Expander (Key-in Filter on the Compressor and Expander in QL V4.0 or later)
Input Channel Functions Dynamics 2
Compressor / Compander-H / Compander-S / De-esser
Input Channel Functions Input Delay
Yes (0ms ~ 1000ms, frame delay support in QL V3.0 or later)
Input Channel Functions Pan
CENTER NOMINAL or LR NOMINAL for monaural input channels in QL V3.1 or later / L-MONO, R-MONO or LR-MONO for stereo input channels in QL V3.1 or later
Input Channel Functions DCA Group
16 (Output DCA support in QL V3.0 or later)
Input Channel Functions MUTE Group
8
Input Channel Functions Number of Inserts
2
Input Channel Functions Direct Out
Yes
Output Channel Functions PEQ
4 Band Full PEQ / (RTA overlay support in QL V3.0 or later, New EQ Algorithms support in QL V4.0 or later)
Output Channel Functions Dynamics 1
Compressor / Expander / Compander-H / Compander-S
Output Channel Functions MUTE Group
8
Output Channel Functions Number of Inserts
2
Premium Rack Number of Premium Racks
8
Premium Rack Mountable Device
RND Portico5033 / RND Portico5043 / U76 / Opt-2A / EQ-1A / Dynamic EQ / Buss Comp 369 (QL V3.0 or later) / MBC4 (QL V4.0 or later)
Effect Rack Number of Effect Racks
8
Effect Rack Number of Effect Programs
54
Effect Rack Mountable Device
Effect / 31BandGEQ / Flex15GEQ / 8Band PEQ (QL V3.0 or later)
GEQ Rack Number of GEQ Racks
8
GEQ Rack Mountable Device
31BandGEQ / Flex15GEQ / Dugan Automixer / 8Band PEQ (CL V3.0 or later) / (RTA overlay support in QL V3.0 or later, GEQ gain control from the TOUCH AND TURN knob in QL V4.0 or later)
Dante Number of I/O Channels
64 in / 64 out
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The QL5 From Corporate AV?
- Genuine Yamaha stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Yamaha QL5?
The Yamaha QL5 is a 64-channel digital mixing console. 32 + 2 fader configuration adapts to a wide range of channel layouts. The QL5 is a compact console with large-scale capabilities.
Who is the Yamaha QL5 best suited for?
The QL5 suits live sound and event production, houses of worship and auditoriums and conference halls. Corporate AV can advise whether it is the right fit for your venue or room.
What are the key specifications of the Yamaha QL5?
Yamaha lists these key specifications for the QL5. Sampling frequency rate Internal: 44.1kHz / 48kHz. Signal delay: Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz. Hum & noise level Equivalent input noise: -128dBu typ., Equivalent Input Noise, Input Gain=Max. Hum & noise level Residual output noise: -88dBu, Residual output noise, ST master off.
Is the Yamaha QL5 still a current model?
Yamaha lists the QL5 as discontinued. Corporate AV supports installed QL5 units and can advise on the current Yamaha equivalent for a new project.
Can Corporate AV supply multiple Yamaha QL5 units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha QL5 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha QL5 in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
