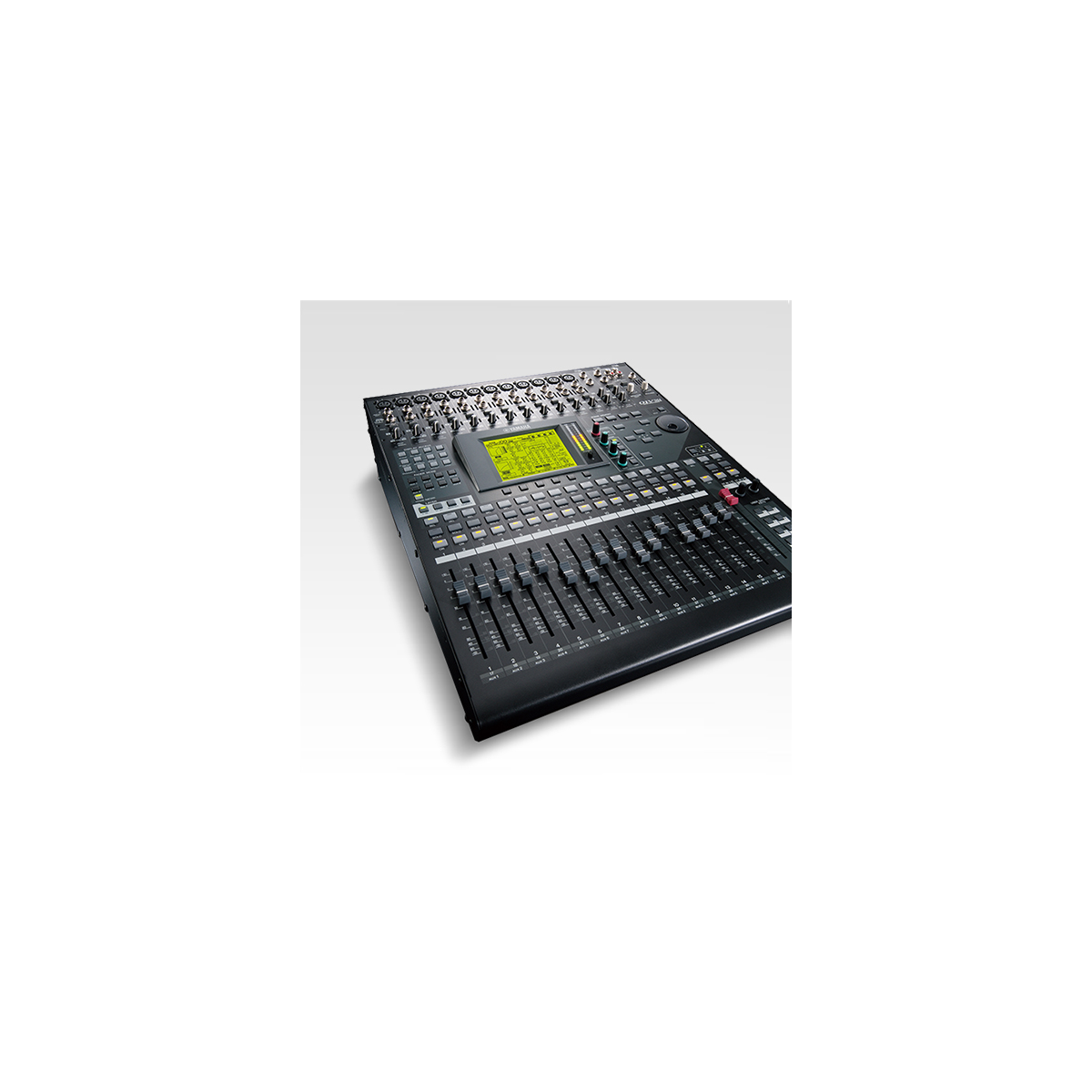

Yamaha 01V96i: Multi-Track Digital Mixing Console with USB
Model 01V96i
Request a Quote
Availability: Out of Stock
- Mixing capability Mixing channels: 32 Mono + 4 Stereo
- Mixing capability GROUP: 8
- Mixing capability AUX: 8
- Mixing capability MAIN: Stereo
Product Overview
Overview
The Yamaha 01V96i is a multi-track digital mixing console with USB.
Corporate AV supplies, installs and supports the Yamaha 01V96i across India. Request a quote for supply, installation and commissioning. Yamaha lists the 01V96i as a discontinued model; Corporate AV supports installed units and can advise on the current Yamaha range.
Key features
- Mixing capability Mixing channels: 32 Mono + 4 Stereo
- Mixing capability GROUP: 8
- Mixing capability AUX: 8
- Mixing capability MAIN: Stereo
Why choose the 01V96i
it is a multi-track digital mixing console with USB from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the 01V96i is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Mixing capability Mixing channels: 32 Mono + 4 Stereo
Mixing capability GROUP: 8
Mixing capability AUX: 8
Mixing capability MAIN: Stereo
Mixing capability Input channel functions: Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan
Use Cases
Ideal Applications
Live sound and event production
Houses of worship
Auditoriums and conference halls
Broadcast, theatre and studios
Technical Details
Technical Specifications
Specifications
Mixing capability Mixing channels
32 Mono + 4 Stereo
Mixing capability GROUP
8
Mixing capability AUX
8
Mixing capability MAIN
Stereo
Mixing capability Input channel functions
Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan
Mixing capability Output channel functions
Attenuator, 4-band PEQ, Compressor, Delay
Mixing capability On-board processors
4x SPX multi effectors
I/O Mic inputs
12
I/O Phantom power
+48V DC; ON/OFF per 4ch
I/O Line inputs
2x Stereo, 2x 2tr in
I/O AD converter
24-bit; 128-time over sampling
I/O Line outputs
Stereo output, Monitor output, 4x Omni output
I/O DA converter
24-bit; 128-time over sampling
I/O Digital I/O
ADAT (8-in/8-out), 2tr in/out
I/O Expansion slots
Mini-YGDAI (16-in/16-out)
I/O Control and others
To Host(USB), MIDI, Word clock I/O
Internal processing
32bit, Accumulator: 58bit
Sampling frequency rate Internal
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Sampling frequency rate External
44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
Signal delay
Less than 1.6ms CH INPUT to STEREO OUT (@SampIing frequency = 48kHz) / Less than 0.8ms CH INPUT to STEREO OUT (@SampIing frequency = 96kHz)
Total harmonic distortion
CH INPUT to STEREO OUT: Less than 0.05%, 20Hz to 20kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into 600Ω (@SampIing frequency = 48kHz) / Less than 0.05%, 20Hz to 40kHz @+14dBu into
Frequency response
CH INPUT to STEREO OUT: 0.5, -1.5dB, 20Hz - 20kHz @+4dBu into 600Ω(@SampIing frequency = 48kHz) / 0.5, -1.5dB, 20Hz - 40kHz @+4dBu into 600Ω(@SampIing frequency = 96kHz)
Dynamic range
110dB typ. DA Converter (STEREO OUT) / 105dB typ. AD+DA (to STEREO OUT) @fs=48kHz / 105dB typ. AD+DA (to STEREO OUT) @fs=96kHz
Hum & noise level Equivalent input noise
-128dBu Equivalent Input Noise.
Hum & noise level Residual output noise
-86dBu residual output noise. STEREO OUT: STEREO OUT off. / -86dBu (90dB S/N) STEREO OUT: STEREO fader at nominal level and all CH INPUT faders at minimum level. / -64dBu (68dB S/N) STEREO OUT:
Crosstalk
-80dB adjacent input channels (CH1-12) / -80dB adjacent input channels (CH13-16) / -80dB input to output
Power requirements
AC100V, 120V, 220-240V 50/60 Hz
Power consumption
90W
Dimensions W
436mm; 17-1/8in
Dimensions H
148mm; 5-7/8in
Dimensions D
548mm; 21-5/8in
Net weight
14kg; 30.86lbs
Others
Fader: 100mm motorized x17
