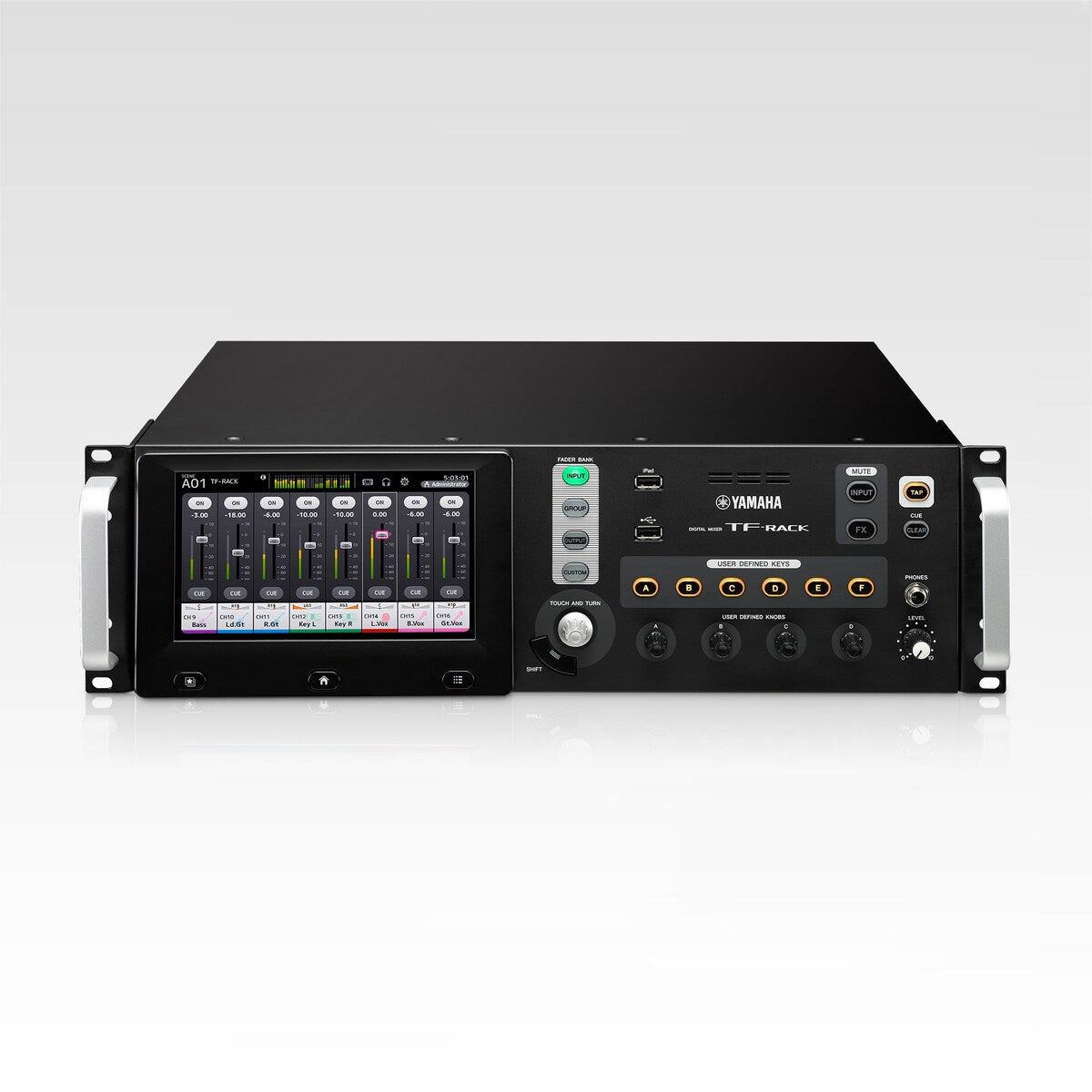

Yamaha TF-RACK: 40-Input Rack-Mount Digital Mixer
Model TF-RACK
Request a Quote
Availability: Out of Stock
- 16 mic/line + 1 stereo line input and 16 outputs
- 40 input channels (32 mono + 2 stereo + 2 return) and 20 aux buses
- 8 effects and 10 GEQ with scene memory (200 scenes)
- TouchFlow Operation interface optimised for touch-panel control
Product Overview
Overview
The Yamaha TF-RACK is a 40-Input rack-mount digital mixer. The TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and operability as the TF consoles.
Corporate AV supplies, installs and supports the Yamaha TF-RACK across India. Request a quote for supply, installation and commissioning.
Key features
- 16 mic/line + 1 stereo line input and 16 outputs
- 40 input channels (32 mono + 2 stereo + 2 return) and 20 aux buses
- 8 effects and 10 GEQ with scene memory (200 scenes)
- TouchFlow Operation interface optimised for touch-panel control
- 1 expansion slot for the NY64-D Dante card
Why choose the TF-RACK
it is a 40-Input rack-mount digital mixer from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the TF-RACK is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
16 mic/line + 1 stereo line input and 16 outputs
40 input channels (32 mono + 2 stereo + 2 return) and 20 aux buses
8 effects and 10 GEQ with scene memory (200 scenes)
TouchFlow Operation interface optimised for touch-panel control
1 expansion slot for the NY64-D Dante card
Use Cases
Ideal Applications
Live sound and event production
Houses of worship
Auditoriums and conference halls
Broadcast, theatre and studios
Technical Details
Technical Specifications
Specifications
Outline Mixing Capacity Input Channels
40 (32 mono + 2 stereo + 2 return)
Outline Mixing Capacity Aux Buses
20 (8 mono + 6 stereo)
Outline Mixing Capacity Stereo Buses
1
Outline Mixing Capacity Sub Buses
1
Outline Input channel functions
8 DCA Groups
Outline I/O Inputs
16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
Outline I/O Outputs
16 (8 XLR + 8 TRS phone)
Outline I/O Expansion slots
1 (for NY64-D)
Outline On-board processors DSP
8 Effects + 10 GEQ
General specifications Sampling frequency rate Internal
48 kHz
General specifications Signal delay
Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
General specifications Fader
Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
General specifications Total harmonic distortion
Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
General specifications Frequency response
+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
General specifications Dynamic range
110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
General specifications Hum & noise level Equivalent input noise
–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
General specifications Hum & noise level Residual output noise
–85 dBu, ST master off (Measured with an A-Weight filter)
General specifications Crosstalk
–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
General specifications Power requirements
100–240 V 50/60 Hz
General specifications Power consumption
85 W
General specifications Dimensions W
480 mm (18-7/8 in)
General specifications Dimensions H
132 mm (5-1/4 in)
General specifications Dimensions D
409 mm (16-1/8 in)
General specifications Net weight
9.2 kg (20.3lb)
General specifications Accessories
Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4)
General specifications Options
Audio Interface Card (NY-64D), Foot Switch (FC5)
General specifications Others
Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The TF-RACK From Corporate AV?
- Genuine Yamaha stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Yamaha TF-RACK?
The Yamaha TF-RACK is a 40-Input rack-mount digital mixer. The TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and operability as the TF consoles.
Who is the Yamaha TF-RACK best suited for?
The TF-RACK suits live sound and event production, houses of worship and auditoriums and conference halls. Corporate AV can advise whether it is the right fit for your venue or room.
What are the key specifications of the Yamaha TF-RACK?
Yamaha lists these key specifications for the TF-RACK. Outline Mixing Capacity Input Channels: 40 (32 mono + 2 stereo + 2 return). Outline Mixing Capacity Aux Buses: 20 (8 mono + 6 stereo). Outline Mixing Capacity Stereo Buses: 1. Outline Mixing Capacity Sub Buses: 1.
Can Corporate AV supply multiple Yamaha TF-RACK units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha TF-RACK in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha TF-RACK in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
