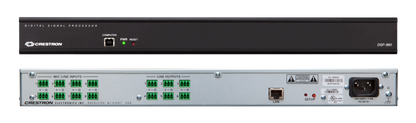

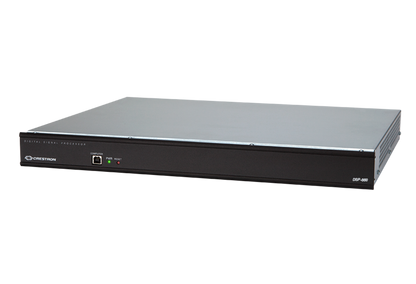

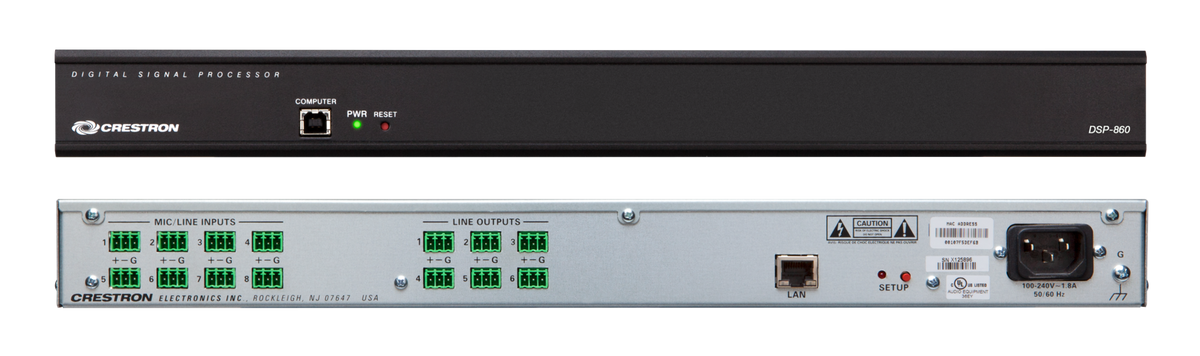

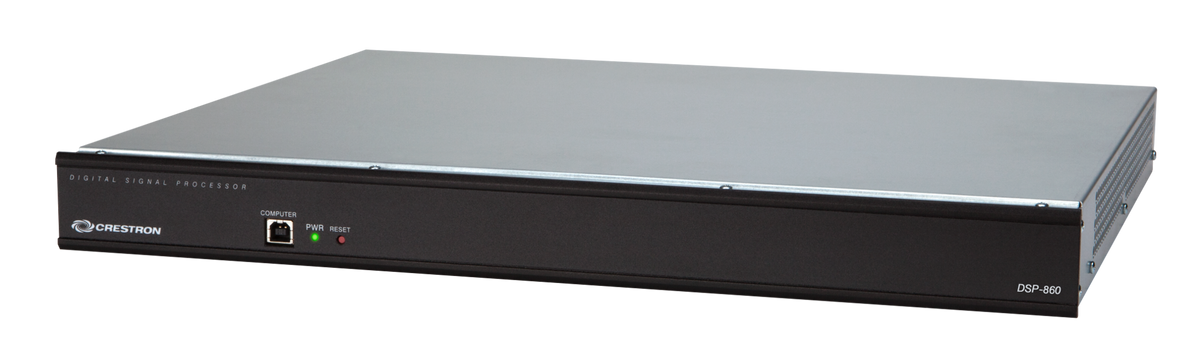

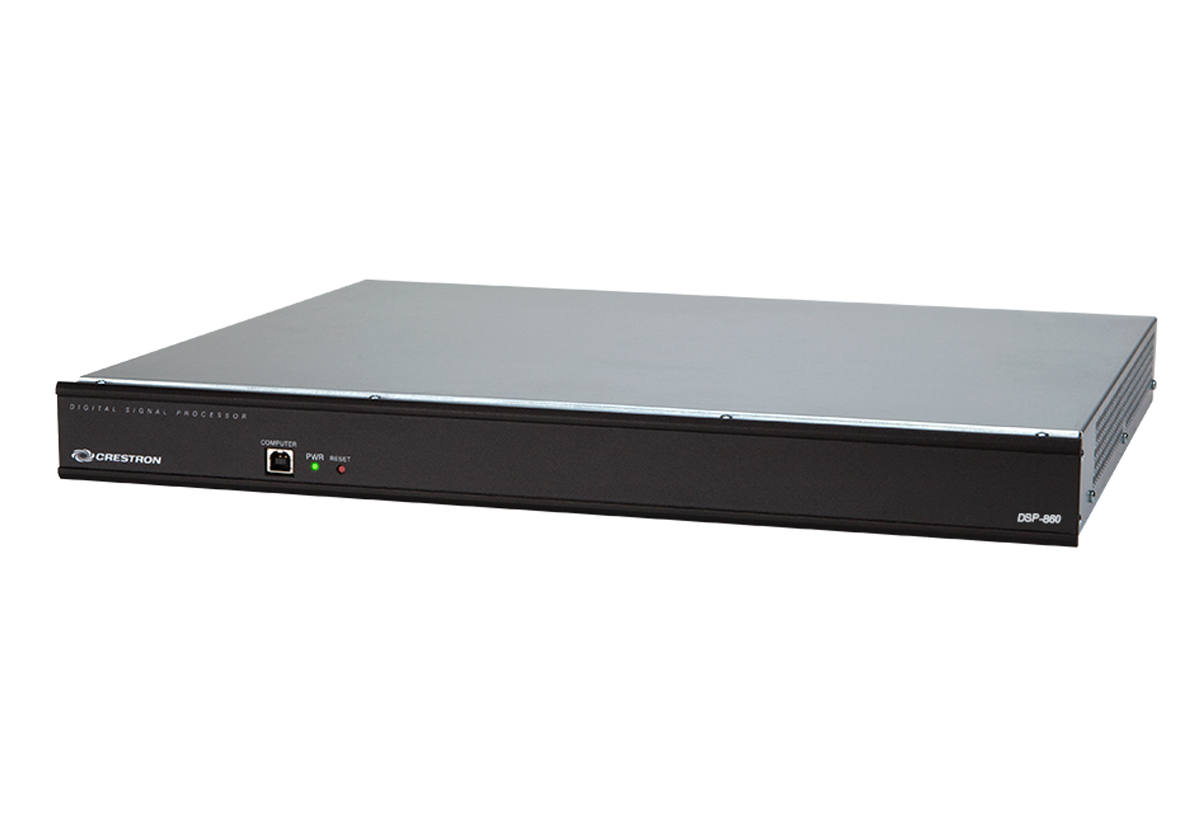

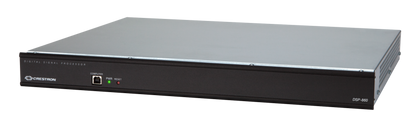

Crestron DSP-860: Avia 8x6 Digital Signal Processor
Model DSP-860
Request a Quote
Availability: Out of Stock
- Eight mic/line inputs with 66 dB gain range
- Six +24 dB balanced line outputs, eight internal aux buses
- 24-bit 48 kHz conversion, 110 dB dynamic range, 3.0 ms latency
- Avia Audio Tool, live or offline over Ethernet or USB
Product Overview
Overview
The Crestron DSP-860 is an Avia 8x6 digital signal processor with eight mic/line inputs, six balanced line outputs and eight internal aux buses in a single 19-inch rack space. It is configured with the Avia Audio Tool over Ethernet or USB, live or offline.
Corporate AV supplies, configures and commissions the Crestron DSP-860 across India for conference rooms, boardrooms and installed audio systems, with Crestron control integration where the project needs it. Request a quote for supply, installation and commissioning.
Key features
- Hybrid channel strip architecture with customizable inputs and outputs
- Eight mic/line inputs with 66 dB gain range and per-channel +48 V phantom power
- Six +24 dB balanced line outputs and eight internal aux buses
- 24-bit 48 kHz converters, 110 dB dynamic range and 3.0 ms latency
- Avia Audio Tool software for real-time or offline configuration over Ethernet or USB
- Native Crestron control system integration for rapid programming
- Internal universal power supply, single-space 19 in. rack mountable
Why choose the DSP-860
It brings eight mic/line inputs and six balanced outputs into one rack space, with a hybrid channel strip design and native Crestron control integration. The Avia Audio Tool lets the system be configured live or offline before it reaches site.
Product Highlights
Key Benefits
Eight mic/line inputs with 66 dB gain range
Six +24 dB balanced line outputs, eight internal aux buses
24-bit 48 kHz conversion, 110 dB dynamic range, 3.0 ms latency
Avia Audio Tool, live or offline over Ethernet or USB
Single-space 19 in. rack mount with internal power supply
Use Cases
Ideal Applications
Conference Room Audio
Boardrooms
Installed Audio
Technical Details
Technical Specifications
Audio performance
Converters
24-bit 48 kHz analog-to-digital and digital-to-analog
Frequency response
20 Hz to 20 kHz +/-0.5 dB
Dynamic range
110 dB, 22 Hz to 22 kHz, 0 dB gain
Equivalent input noise
-125 dBu, 22 Hz to 22 kHz, no weighting
Latency
3.0 ms (analog in to analog out)
Inputs and outputs
Mic/line inputs
(8) 3-pin 3.5 mm terminal blocks, balanced, +24 dBu maximum, 66 dB gain range, 10k Ohms balanced
Phantom power
+48 Volts DC, 12 mA, software enabled or disabled per channel
Line outputs
(6) 3-pin 3.5 mm terminal blocks, balanced/unbalanced, +24 dBu maximum, 150 Ohms balanced
Network and control
Ethernet
10/100/1000 Mbps, TCP/IP, UDP/IP, CIP, DHCP, SSL, SSH, SFTP
USB
USB device port for computer console (setup)
Software
Avia Audio Tool
Power and physical
Power
100-240 V AC, 1.8 A, 30 W typical
Mounting
Freestanding or 1 RU 19 in. rack mount (adhesive feet and rack ears included)
Dimensions
1.72 in. (44 mm) high without feet, 17.28 in. (439 mm) wide, 14.35 in. (365 mm) deep
Weight
8.4 lb (3.9 kg)
Operating temperature
41 to 104 degrees F (5 to 40 degrees C)
In The Box
What's Included
Removable power cord
Rack ears and adhesive feet
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The DSP-860 From Corporate AV?
- Genuine Crestron Electronics stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Crestron Electronics products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Crestron DSP-860?
The Crestron DSP-860 is an Avia 8x6 digital signal processor with eight mic/line inputs, six balanced line outputs and eight internal aux buses, in a single-space 19 in. rack mountable chassis.
How many inputs and outputs does the DSP-860 have?
It has eight mic/line inputs with a 66 dB gain range and six +24 dB balanced line outputs, plus eight internal aux buses for signal routing.
How is the DSP-860 configured?
It is configured with the Avia Audio Tool. Setup and operation can run live over Ethernet or USB, or the system can be configured offline and sent to the processor later.
Does the DSP-860 provide phantom power?
Yes. Each mic/line input provides +48 V DC phantom power at 12 mA, enabled or disabled per channel in software.
How does the DSP-860 work with a Crestron control system?
Crestron lists native control system integration for rapid programming, so the processor can be controlled from a Crestron control system and touch screens.
What are the audio specifications of the DSP-860?
Crestron lists 24-bit 48 kHz conversion, a 20 Hz to 20 kHz response within 0.5 dB, 110 dB dynamic range, an EIN of -125 dBu and 3.0 ms latency from analog input to analog output.
What is the Crestron part number for the DSP-860?
Crestron lists the material number for the DSP-860 as 6507123.
