Crestron DMC-SO-HD: 2-Channel DM 8G Fiber Output Card
Model DMC-SO-HD
Request a Quote
Availability: Out of Stock
- Two independent DM 8G Fiber outputs
- Fits DM-MD8X8, DM-MD16X16 and DM-MD32X32 switchers
- Up to 1000 ft (300 m) on CresFiber 8G
- Parallel HDMI port on the first output
Product Overview
Overview

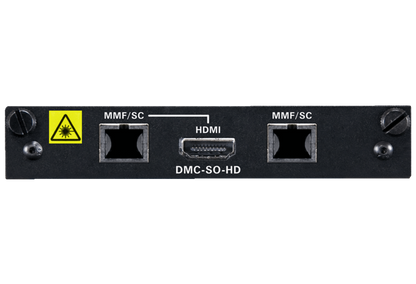

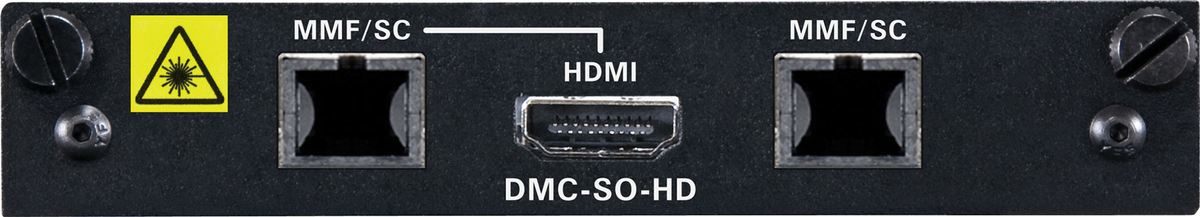

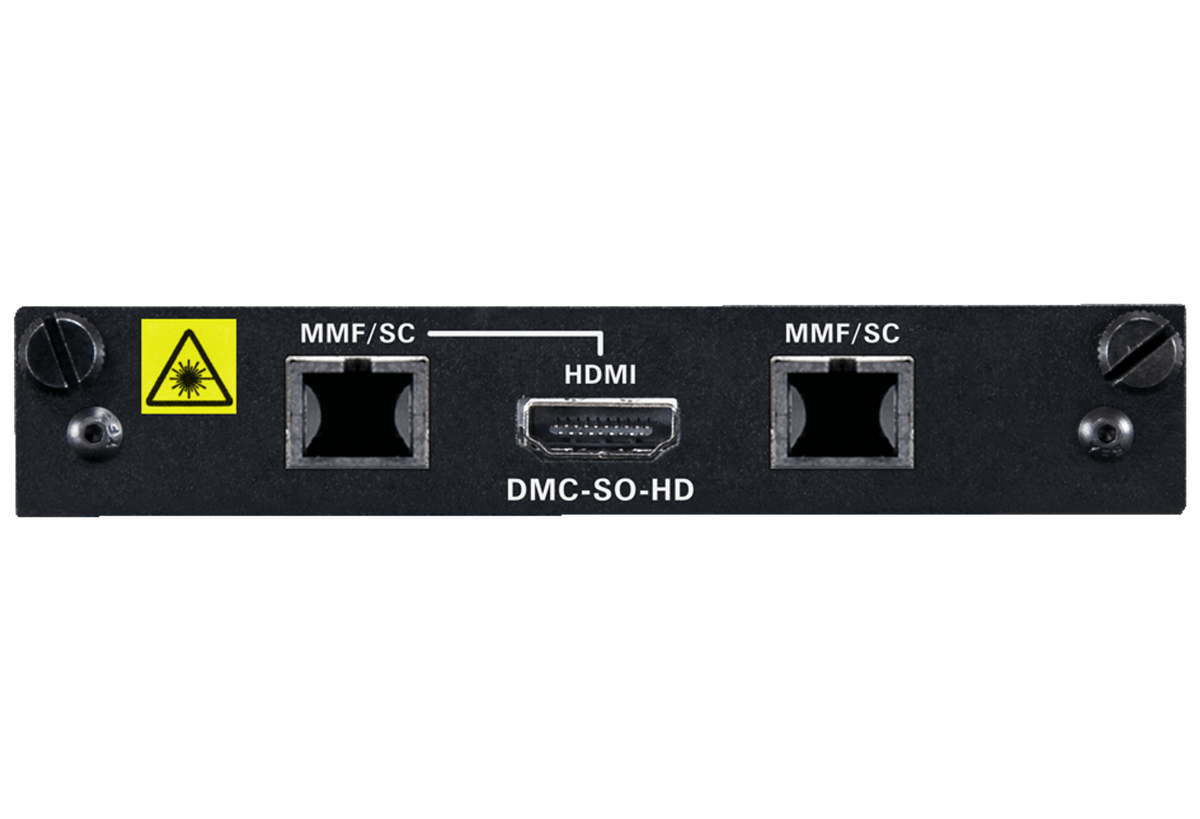

The Crestron DMC-SO-HD is a modular output card with two independent DigitalMedia 8G Fiber outputs for DM-MD8X8, DM-MD16X16 and DM-MD32X32 switchers. A parallel HDMI port on the first output carries the same signal.
Crestron has discontinued the DMC-SO-HD and does not name a direct replacement on its product page. Corporate AV can advise on the current Crestron switching option for your project and supplies, integrates and supports DigitalMedia systems across India. Request a quote for supply, installation and commissioning.
Key features
- Modular output card for DM-MD8X8, DM-MD16X16 and DM-MD32X32 switchers
- Two independent DM 8G Fiber outputs, occupying a single output card slot
- Cable runs up to 1000 ft (300 m) on CresFiber 8G, or 500 ft (150 m) on other multimode fiber
- Parallel HDMI port on the first output
- Video up to Full HD 1080p and computer resolutions up to WUXGA, with 3D and Deep Color
- Dolby TrueHD, DTS-HD and uncompressed 7.1 linear PCM audio, HDCP compliant
Why choose the DMC-SO-HD
It adds two independent fiber outputs to a DM switcher for runs of up to 1000 ft, with an HDMI port alongside the first output for a local display. Crestron has discontinued it, so Corporate AV can advise on the current equivalent.
Product Highlights
Key Benefits
Two independent DM 8G Fiber outputs
Fits DM-MD8X8, DM-MD16X16 and DM-MD32X32 switchers
Up to 1000 ft (300 m) on CresFiber 8G
Parallel HDMI port on the first output
Full HD 1080p and WUXGA, HDCP compliant
Use Cases
Ideal Applications
Long-Distance AV Distribution
Auditoriums
Technical Details
Technical Specifications
Video and audio
Signal types
DM 8G Fiber with Deep Color and 3D, HDMI with Deep Color and 3D (DVI compatible)
Resolutions
Up to 1080p video and WUXGA computer resolutions, any resolution allowed by HDMI up to 165 MHz pixel clock
Audio formats
Dolby Digital, Dolby TrueHD, DTS, DTS-HD variants and LPCM up to 8 channels
Connectors
Fiber outputs
(2) SC female optical fiber connectors, one DM 8G Fiber output each
HDMI
(1) 19-pin Type A HDMI female, same signal as the first DM 8G Fiber output
Indicators
(2) green LEDs, one per DM 8G Fiber output, showing link status
Physical
Construction
Plug-in card occupying one DM switcher output card slot, metal faceplate with black finish
Weight
6.2 oz (176 g)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The DMC-SO-HD From Corporate AV?
- Genuine Crestron Electronics stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Crestron Electronics products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Crestron DMC-SO-HD?
The Crestron DMC-SO-HD is a 2-channel DigitalMedia 8G Fiber output card for DM switchers. It provides two independent DM 8G Fiber outputs and a parallel HDMI port on the first output.
Which switchers use the DMC-SO-HD?
Crestron lists it as a modular output card for the DM-MD8X8, DM-MD16X16 and DM-MD32X32 switchers. It occupies a single output card slot.
How far can the DMC-SO-HD send a signal?
Up to 1000 ft (300 m) using Crestron CresFiber 8G cable, or 500 ft (150 m) using other multimode fiber such as legacy CRESFIBER, CRESFIBER-SINGLE-SC or third-party OM3 simplex cable.
What video and audio does the DMC-SO-HD handle?
It handles video up to Full HD 1080p and computer resolutions up to WUXGA, including 3D and Deep Color, with Dolby TrueHD, DTS-HD and uncompressed 7.1 linear PCM audio. It is HDCP compliant.
What connectors does the DMC-SO-HD have?
It has two SC female optical fiber connectors, each providing one DM 8G Fiber output, and one HDMI Type A connector that carries the same signal as the first fiber output.
Is the Crestron DMC-SO-HD discontinued?
Yes. Crestron lists the DMC-SO-HD as discontinued and does not name a substitute on its page. Corporate AV can advise on a current option for your DM system.
What is the Crestron part number for the DMC-SO-HD?
Crestron lists the material number for the DMC-SO-HD as 6507170.
