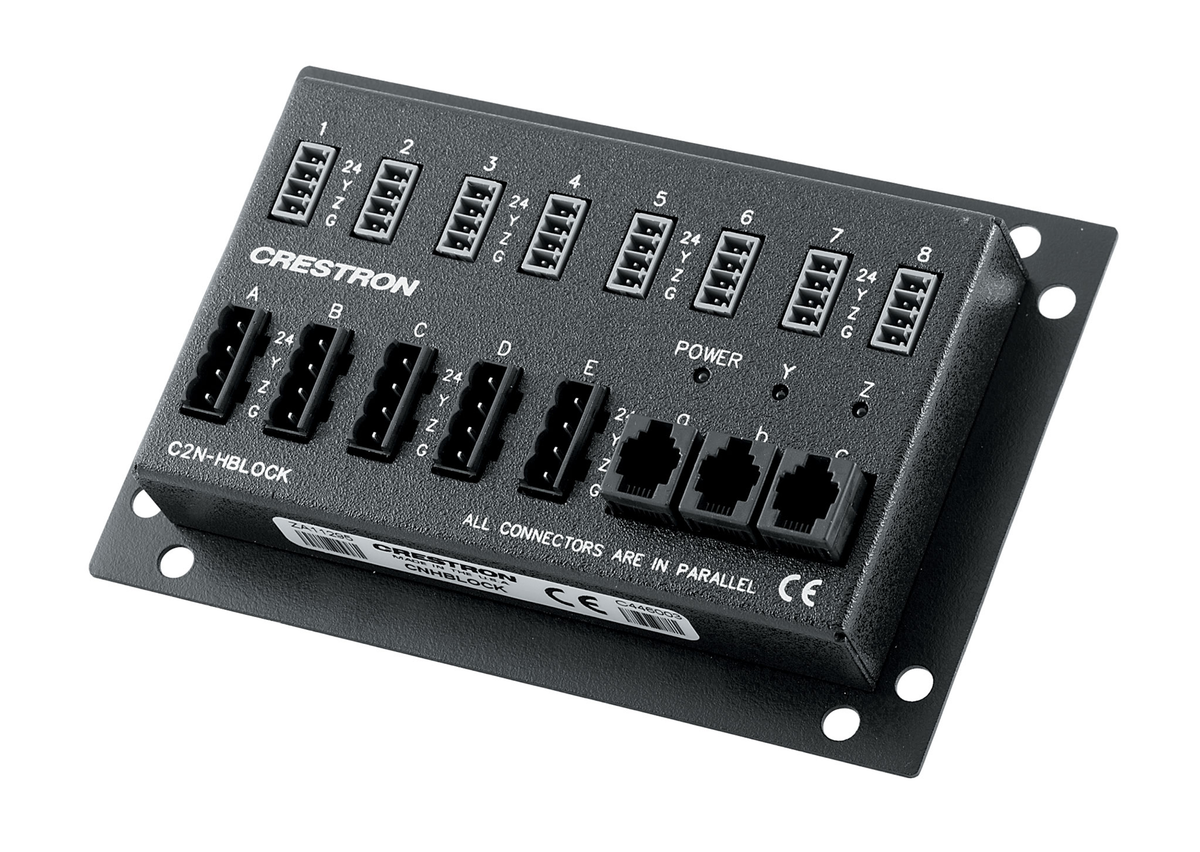

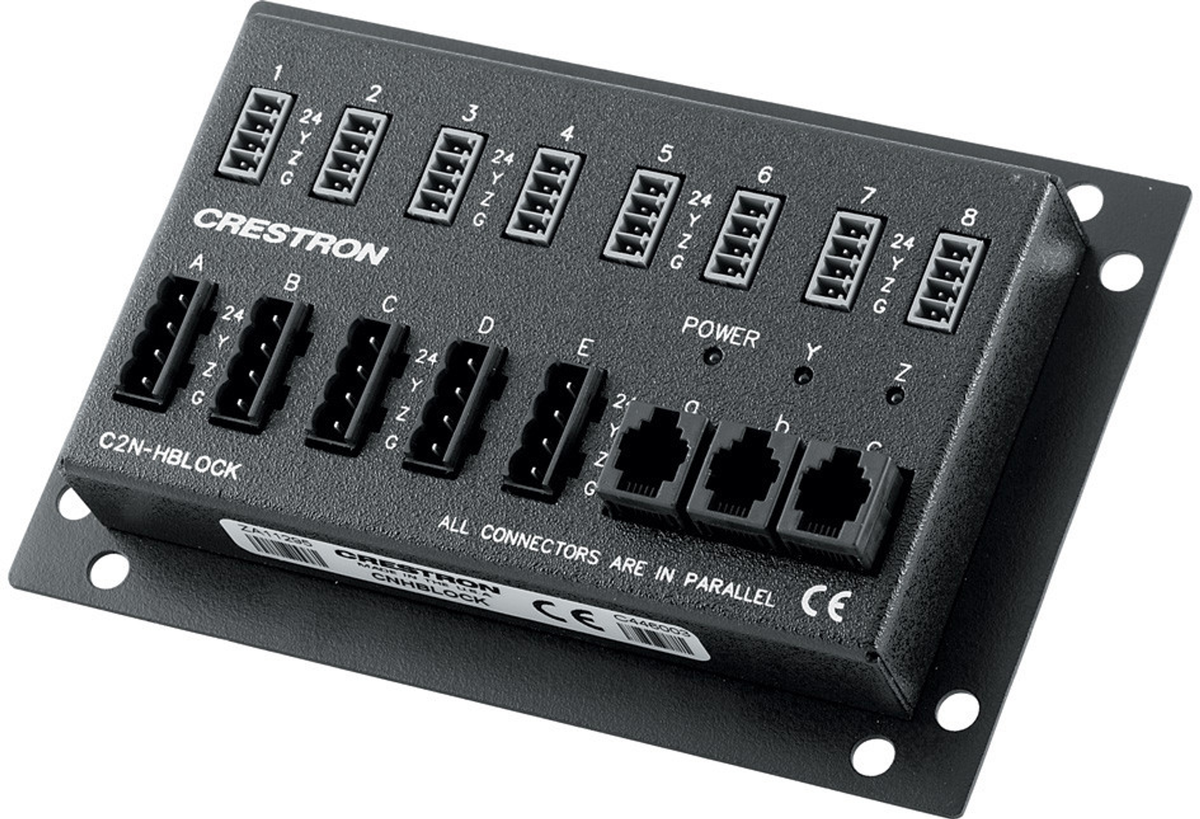

Crestron C2N-HBLOCK: Multi-Type Cresnet Distribution Block
Model C2N-HBLOCK
Request a Quote
Availability: Out of Stock
- 16 Cresnet ports wired in parallel
- Accepts standard Cresnet, High-Power and RJ11 cables
- LEDs for network power and Y and Z data signals
- Cascadable, mounting plate included
Product Overview
Overview
The Crestron C2N-HBLOCK is a parallel distribution block for terminating multiple Cresnet cables. It accepts standard 4-wire Cresnet, Cresnet High-Power and RJ11 modular cables on 16 ports wired in parallel, with LEDs showing network power and data.
Corporate AV supplies and installs Crestron Cresnet wiring and control system accessories across India, alongside the programming and commissioning of the control system. Request a quote for supply, installation and commissioning.
Key features
- Parallel termination for multiple Cresnet cables on 16 ports
- Accepts standard 4-wire Cresnet, Cresnet High-Power and RJ11 modular cables
- Eight 3.5 mm, five 5 mm and three RJ11 ports
- Diagnostic LEDs show network power and the integrity of the Y and Z data signals
- Cascadable, so several units can be linked for larger Cresnet networks
- Mounting plate included for standalone surface mounting
- Up to three units rack mount together with the optional CNXRMAK kit, sold separately
Why choose the C2N-HBLOCK
It collects Cresnet wiring in one place: 16 parallel ports across three connector types, with LEDs that show power and data at a glance. Units can be cascaded for larger systems or rack mounted three together.
Product Highlights
Key Benefits
16 Cresnet ports wired in parallel
Accepts standard Cresnet, High-Power and RJ11 cables
LEDs for network power and Y and Z data signals
Cascadable, mounting plate included
Rack mountable with the optional CNXRMAK kit
Use Cases
Ideal Applications
Control System Wiring
Boardrooms
Technical Details
Technical Specifications
Connectors
Ports 1-8
(8) 4-pin 3.5 mm detachable terminal blocks, Cresnet distribution ports
Ports A-E
(5) 4-pin 5 mm detachable terminal blocks, Cresnet distribution ports
Ports a-c
(3) 6-pin RJ11 female, RJ11-style Cresnet distribution ports
Indicators
POWER
(1) green LED, Cresnet power present at any port
Y
(1) red LED, presence and integrity of the Cresnet Y data signal
Z
(1) red LED, presence and integrity of the Cresnet Z data signal
Physical
Enclosure
Metal with black finish, surface mount box with removable mounting plate
Dimensions
1.33 in. (34 mm) high, 6.55 in. (167 mm) wide, 4.30 in. (110 mm) deep, including mounting plate
Weight
10.9 oz (309 g) including all supplied terminal block connectors
Rack mounting
Up to three units with the optional CNXRMAK kit (sold separately)
In The Box
What's Included
Mounting plate
Terminal block connectors
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The C2N-HBLOCK From Corporate AV?
- Genuine Crestron Electronics stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Crestron Electronics products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Crestron C2N-HBLOCK?
The Crestron C2N-HBLOCK is a multi-type Cresnet distribution block, a parallel block for terminating multiple Cresnet cables in a control system installation.
What connectors does the C2N-HBLOCK have?
It has eight 4-pin 3.5 mm detachable terminal blocks, five 4-pin 5 mm detachable terminal blocks and three 6-pin RJ11 ports, giving 16 Cresnet distribution ports.
Which cables does the C2N-HBLOCK accept?
Crestron lists standard 4-wire Cresnet cable, Cresnet High-Power cable and RJ11 modular cables. All Cresnet ports are wired in parallel.
What do the LEDs on the C2N-HBLOCK show?
A green POWER LED shows that Cresnet power is present, and red Y and Z LEDs show the presence and integrity of the Cresnet Y and Z data signals, which helps with wiring diagnostics.
Can several C2N-HBLOCK units be used together?
Yes. Crestron lists a cascadable design, and up to three units can be rack mounted together using the optional CNXRMAK rack mount kit, which is sold separately.
How big is the C2N-HBLOCK?
Including its mounting plate it is 1.33 in. (34 mm) high, 6.55 in. (167 mm) wide and 4.30 in. (110 mm) deep, and weighs 10.9 oz (309 g) with all supplied terminal block connectors.
What is the Crestron part number for the C2N-HBLOCK?
Crestron lists the material number for the C2N-HBLOCK as 6500129.
