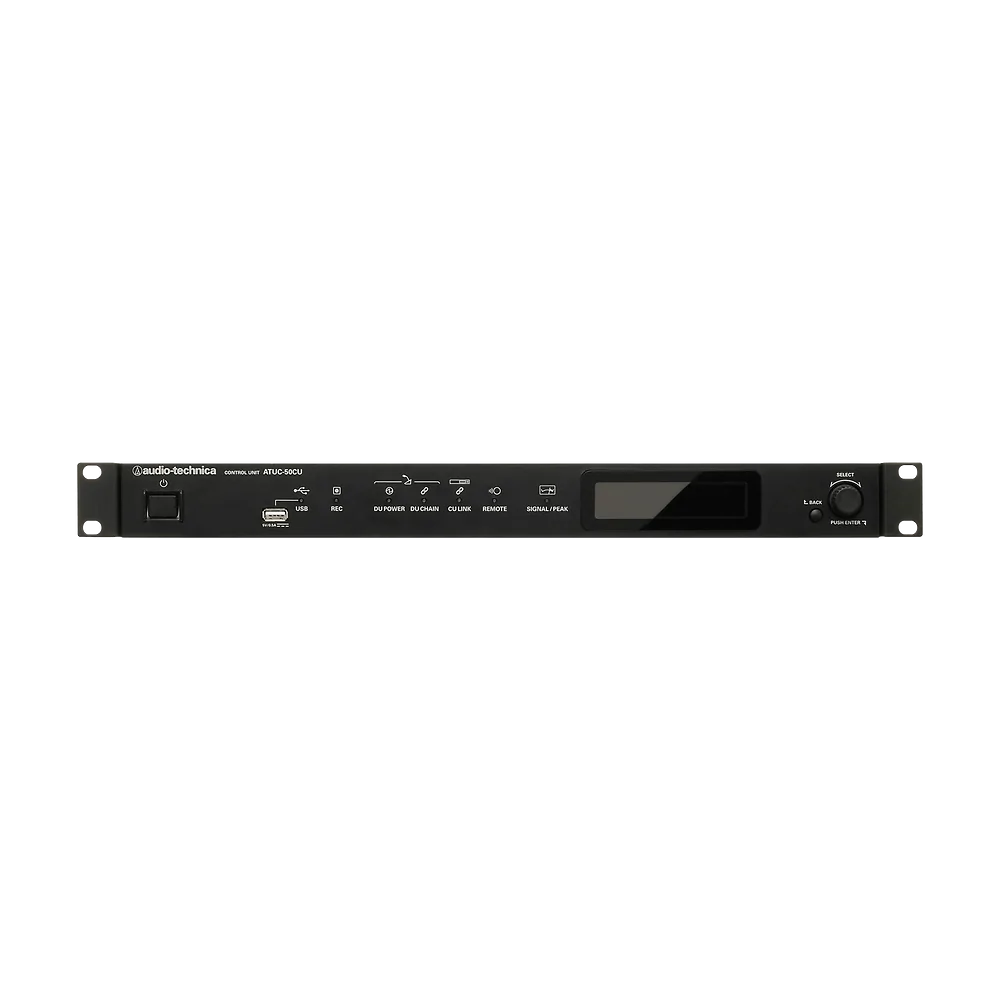

Audio-Technica ATUC-50CU: Wired Discussion System Control Unit
Model ATUC-50CU
Request a Quote
Availability: Out of Stock
- Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor
- Easy plug-and-play operation for wired discussion systems
- Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units
- Three ATUC-50CUs can be linked via Cat5e (or better) cable, providing a wired system
Product Overview
Overview
The Audio-Technica ATUC-50CU is a wired discussion system control unit. The 19" rack-mountable ATUC-50CU control unit drives wired discussion systems only. It provides 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit.
Corporate AV supplies, installs and supports the Audio-Technica ATUC-50CU across India. Request a quote for supply, installation and commissioning.
Key features
- Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor
- Easy plug-and-play operation for wired discussion systems
- Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units
- Three ATUC-50CUs can be linked via Cat5e (or better) cable, providing a wired system
- Systems can be configured in either daisy chain or ring topology
- Three selectable operation modes (Free Talk, Request to Talk, and Full Remote), plus various override settings
- Built-in WAV and MP3 recorder lets you record to a USB mass storage device
- Four configurable balanced matrix output plus one unbalanced output that outputs the same audio as Output 1
Why choose the ATUC-50CU
It is a wired discussion system control unit, a component of a wired discussion system for boardrooms and council chambers. Corporate AV adds a site survey, installation and support across India, so the ATUC-50CU is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor
Easy plug-and-play operation for wired discussion systems
Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units
Three ATUC-50CUs can be linked via Cat5e (or better) cable, providing a wired system
Systems can be configured in either daisy chain or ring topology
Use Cases
Ideal Applications
Boardrooms and council chambers
Courtrooms and committee rooms
Conference centres
Corporate meeting rooms
Technical Details
Technical Specifications
Audio
Dynamic range
110 dB A-weighted
Frequency response
+ 1.0, – 2.0dB, 20Hz-20kHz, refer to +4dBu output @ 1kHz
Recording
Via USB storage device:1/2/3/4 track (WAV) (BWF standard)1/2 track (MP3) (Original format)MP3 bit rate:64kbps/128kbps/192kbps/256kbps/320kbps
Connections
Mic/Line ×2, AUX (ST) ×1, INTERPRETATION RETURN ×2Outputs: Balanced ×4, Unbalanced ×1LINK /CHAIN: DU A/B Terminals, CU A/B Terminals (DU C/D Terminals)
Signal-to-noise Ratio
90 dB, A-weighted
Signal delays
MIC Input to Output: 1ms DU to CU: 1.2ms
Headroom
20 dB
Total harmonic distortion
Less than 0.03% @1kHz unity
Crosstalk at 1 kHz
Less than –80dB
Operating Humidity
25-85%
OLED Display
20x2 Character type, Color: Yellow,Operating life time: 100,000 hours
Connectivity
Equivalent Input Noise
Mic/Line 1-2, less than -126dBu, Rs=150 ohm
Physical and power
Power Supply
AC 100V~240V 50/60Hz
Phantom Power
DC +48V
Power Consumption
20W ~ 175W (max.)
Operating Temperature Range
0-40° C
Dimensions
482.6mm x 331.6mm x 44mm
Weight
3.4kg
Accessories
AC power cord, Quick Setup Guide x 2,Euroblock connectors x 9, Warranty Sheet
Other specifications
Category
Discussion System, Audio-Technica
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ATUC-50CU From Corporate AV?
- Genuine Audio Technica stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Audio Technica products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Audio-Technica ATUC-50CU?
The Audio-Technica ATUC-50CU is a wired discussion system control unit. The 19" rack-mountable ATUC-50CU control unit drives wired discussion systems only. It provides 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit.
Who is the Audio-Technica ATUC-50CU best suited for?
The ATUC-50CU suits boardrooms and council chambers, courtrooms and committee rooms and conference centres. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Audio-Technica ATUC-50CU units for a rollout?
Yes. Corporate AV supplies and integrates the Audio-Technica ATUC-50CU in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Audio-Technica ATUC-50CU in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What power does the Audio-Technica ATUC-50CU need?
Audio-Technica specifies DC +48V for the ATUC-50CU.
What are the key specifications of the Audio-Technica ATUC-50CU?
Audio-Technica lists these key specifications for the ATUC-50CU. Dynamic range: 110 dB A-weighted. Frequency response: + 1.0, – 2.0dB, 20Hz-20kHz, refer to +4dBu output @ 1kHz. Signal-to-noise Ratio: 90 dB, A-weighted. Signal delays: MIC Input to Output: 1ms DU to CU: 1.2ms.
