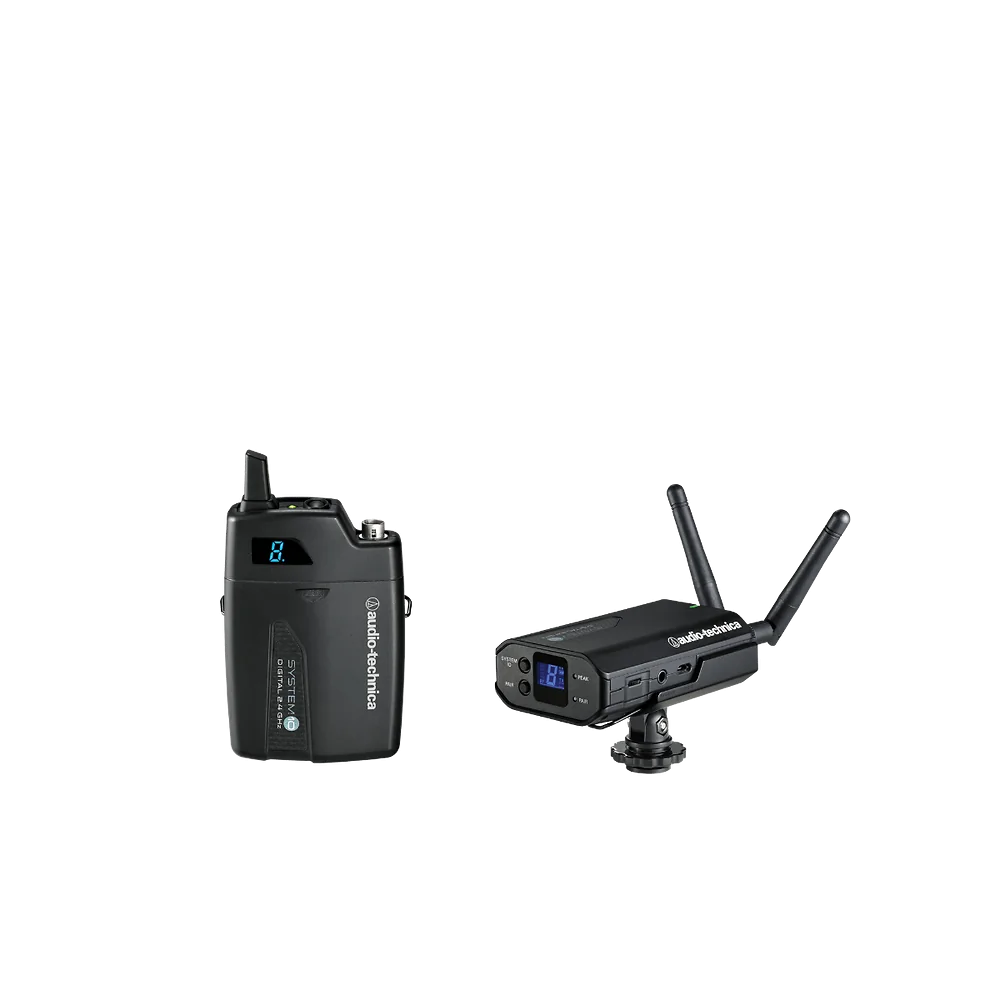

Audio-Technica ATW-1701: System 10 Camera-Mount Body-Pack Set
Model ATW-1701
Request a Quote
Availability: Out of Stock
- Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Frequency Response: 20 Hz to 20 kHz Depending on microphone type
- Total Harmonic Distortion: <0.05% typical
- Audio Sampling: 24 bits / 48 kHz
Product Overview
Overview
The Audio-Technica ATW-1701 is a System 10 camera-mount body-pack set. It operates in the 2.4 GHz ISM band (2400 to 2483.5 MHz).
Corporate AV supplies, installs and supports the Audio-Technica ATW-1701 across India. Request a quote for supply, installation and commissioning.
Key features
- Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Frequency Response: 20 Hz to 20 kHz Depending on microphone type
- Total Harmonic Distortion: <0.05% typical
- Audio Sampling: 24 bits / 48 kHz
- Body Pack: RF Power Output: 10 mW
Why choose the ATW-1701
It is a System 10 camera-mount body-pack set, a digital wireless microphone system on the licence-free 2.4 GHz band. Corporate AV adds a site survey, installation and support across India, so the ATW-1701 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response: 20 Hz to 20 kHz Depending on microphone type
Total Harmonic Distortion: <0.05% typical
Audio Sampling: 24 bits / 48 kHz
Body Pack: RF Power Output: 10 mW
Use Cases
Ideal Applications
Presentations, lectures and training
Meeting rooms and conference rooms
Houses of worship
Schools and corporate events
Technical Details
Technical Specifications
Product
Model
ATW-1701
Brand
Audio-Technica
Wireless
Operating Frequencies
2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response
20 Hz to 20 kHz Depending on microphone type
Operating Range
30 m (100') radius, 60 m (200') diameter typical Open range environment with no interfering signals
Total Harmonic Distortion
<0.05% typical
Audio Sampling
24 bits / 48 kHz
Receiver: Receiving System
Diversity (frequency/time/space)
Connectivity
Body Pack: Input Connections
Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Receiver: Maximum Output Level
3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Physical and power
Operating Temperature Range
0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Body Pack: RF Power Output
10 mW
Body Pack: Battery Life
>7 hours (alkaline) Depending on battery type and use pattern
Body Pack: Battery Type
Two 1.5V AA not included
Body Pack: Dimensions
70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Body Pack: Net Weight
100 grams (3.5 oz) without batteries
Receiver: Power Supply
100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Receiver: Operating Temperature Range
40° F (4° C) to 110° F (43° C)
Receiver: Dimensions
56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
Receiver: Weight
105 grams (3.7 oz)
Receiver: Accessories Included
Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable
Receiver: Battery Current/Life
12 hours Depending on environmental conditions Battery Charging Time: 4 hours 30 minutes Depending on environmental conditions Charging Temperature Range: 5° C to +35° C (41°
Receiver: Battery Type
Internal Battery: 3.7V rechargeable Li-ion battery Battery Rating: 5.5 Wh1,460 mAh
Other specifications
Category
Wireless Microphone System, Audio-Technica
In The Box
What's Included
Two antennas
camera shoe mount
AC adapter (USB-type)
USB cable
3.5 mm (1/8") stereo cable
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ATW-1701 From Corporate AV?
- Genuine Audio Technica stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Audio Technica products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Audio-Technica ATW-1701?
The Audio-Technica ATW-1701 is a System 10 camera-mount body-pack set. It operates in the 2.4 GHz ISM band (2400 to 2483.5 MHz).
Who is the Audio-Technica ATW-1701 best suited for?
The ATW-1701 suits presentations, lectures and training, meeting rooms and conference rooms and houses of worship. Corporate AV can advise whether it is the right fit for your space.
Which frequency band does the Audio-Technica ATW-1701 use?
Audio-Technica lists the ATW-1701 (System 10) as operating in the 2.4 GHz ISM band (2400 to 2483.5 MHz). The 2.4 GHz ISM band is a licence-free band for low-power devices in India, and Corporate AV can confirm that the system suits your site.
Can Corporate AV supply multiple Audio-Technica ATW-1701 units for a rollout?
Yes. Corporate AV supplies and integrates the Audio-Technica ATW-1701 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Audio-Technica ATW-1701 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What accessories are included with the Audio-Technica ATW-1701?
Audio-Technica lists these included accessories: Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable.
What are the key specifications of the Audio-Technica ATW-1701?
Audio-Technica lists these key specifications for the ATW-1701. Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz). Frequency Response: 20 Hz to 20 kHz Depending on microphone type. Total Harmonic Distortion: <0.05% typical. Audio Sampling: 24 bits / 48 kHz.
