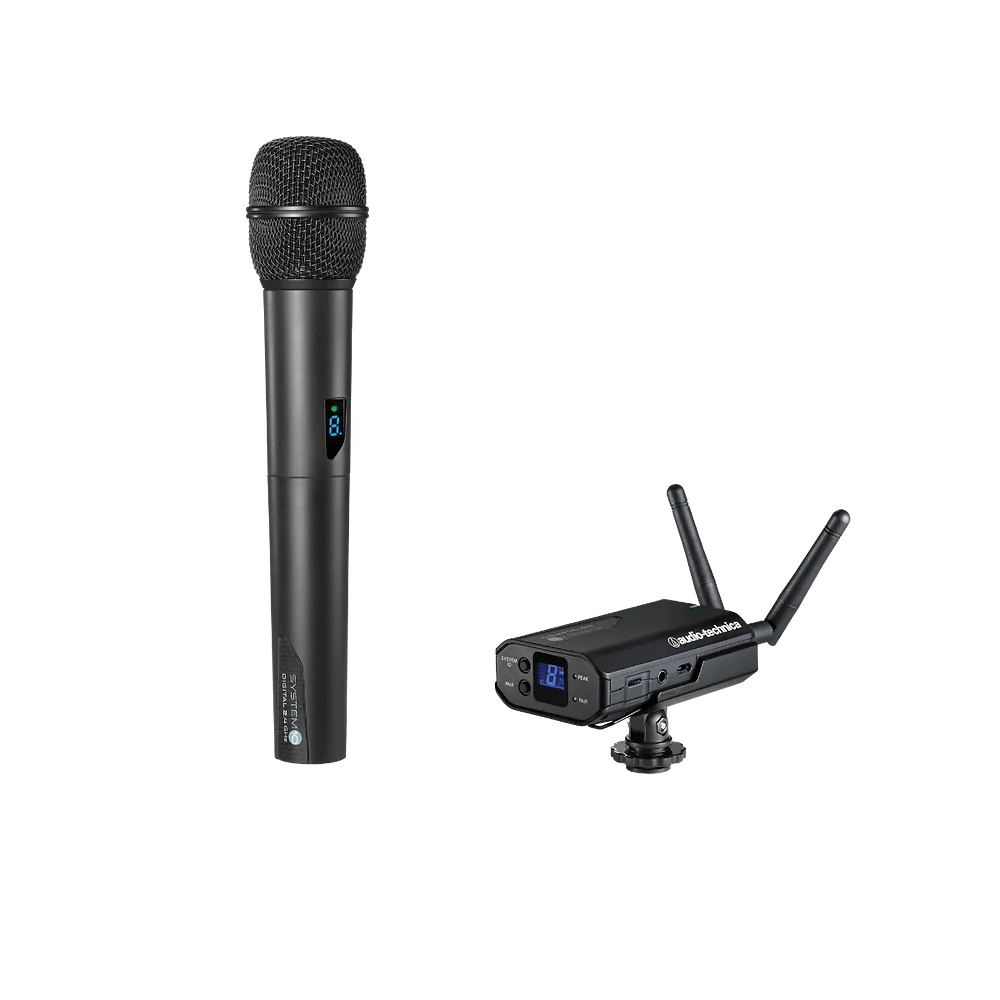

Audio-Technica ATW-1702: System 10 Camera-Mount Handheld Set
Model ATW-1702
Request a Quote
Availability: Out of Stock
- Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Frequency Response: 20 Hz to 20 kHz Depending on microphone type
- Total Harmonic Distortion: <0.05% typical
- Audio Sampling: 24 bits / 48 kHz
Product Overview
Overview
The Audio-Technica ATW-1702 is a System 10 camera-mount handheld set. ATW-R1700 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp. It operates in the 2.4 GHz ISM band (2400 to 2483.5 MHz).
Corporate AV supplies, installs and supports the Audio-Technica ATW-1702 across India. Request a quote for supply, installation and commissioning.
Key features
- Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Frequency Response: 20 Hz to 20 kHz Depending on microphone type
- Total Harmonic Distortion: <0.05% typical
- Audio Sampling: 24 bits / 48 kHz
- Handheld Transmitter: RF Power Output: 10 mW
Why choose the ATW-1702
It is a System 10 camera-mount handheld set, a digital wireless microphone system on the licence-free 2.4 GHz band. Corporate AV adds a site survey, installation and support across India, so the ATW-1702 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response: 20 Hz to 20 kHz Depending on microphone type
Total Harmonic Distortion: <0.05% typical
Audio Sampling: 24 bits / 48 kHz
Handheld Transmitter: RF Power Output: 10 mW
Use Cases
Ideal Applications
Presentations, lectures and training
Meeting rooms and conference rooms
Houses of worship
Schools and corporate events
Technical Details
Technical Specifications
Product
Model
ATW-1702
Brand
Audio-Technica
Wireless
Operating Frequencies
2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response
20 Hz to 20 kHz Depending on microphone type
Operating Range
30 m (100') radius, 60 m (200') diameter typical Open range environment with no interfering signals
Total Harmonic Distortion
<0.05% typical
Audio Sampling
24 bits / 48 kHz
Receiver: Receiving System
Diversity (frequency/time/space)
Connectivity
Receiver: Maximum Output Level
3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Physical and power
Operating Temperature Range
0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Handheld Transmitter: RF Power Output
10 mW
Handheld Transmitter: Battery Type
Two 1.5V AA not included
Handheld Transmitter: Battery Life
>7 hours (alkaline) Depending on battery type and use pattern
Handheld Transmitter: Dimensions
254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Handheld Transmitter: Net Weight
280 grams (9.9 oz) without batteries
Handheld Transmitter: Accessories Included
AT8456a Quiet-Flex stand clamp
Receiver: Power Supply
100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Receiver: Operating Temperature Range
40° F (4° C) to 110° F (43° C)
Receiver: Dimensions
56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
Receiver: Weight
105 grams (3.7 oz)
Receiver: Accessories Included
Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable
Receiver: Battery Current/Life
12 hours Depending on environmental conditions Battery Charging Time: 4 hours 30 minutes Depending on environmental conditions Charging Temperature Range: 5° C to +35° C (41°
Receiver: Battery Type
Internal Battery: 3.7V rechargeable Li-ion battery Battery Rating: 5.5 Wh1,460 mAh
Other specifications
Category
Wireless Microphone System, Audio-Technica
In The Box
What's Included
AT8456a Quiet-Flex stand clamp
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ATW-1702 From Corporate AV?
- Genuine Audio Technica stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Audio Technica products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Audio-Technica ATW-1702?
The Audio-Technica ATW-1702 is a System 10 camera-mount handheld set. ATW-R1700 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp. It operates in the 2.4 GHz ISM band (2400 to 2483.5 MHz).
Who is the Audio-Technica ATW-1702 best suited for?
The ATW-1702 suits presentations, lectures and training, meeting rooms and conference rooms and houses of worship. Corporate AV can advise whether it is the right fit for your space.
Which frequency band does the Audio-Technica ATW-1702 use?
Audio-Technica lists the ATW-1702 (System 10) as operating in the 2.4 GHz ISM band (2400 to 2483.5 MHz). The 2.4 GHz ISM band is a licence-free band for low-power devices in India, and Corporate AV can confirm that the system suits your site.
Can Corporate AV supply multiple Audio-Technica ATW-1702 units for a rollout?
Yes. Corporate AV supplies and integrates the Audio-Technica ATW-1702 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Audio-Technica ATW-1702 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What accessories are included with the Audio-Technica ATW-1702?
Audio-Technica lists these included accessories: AT8456a Quiet-Flex stand clamp.
What are the key specifications of the Audio-Technica ATW-1702?
Audio-Technica lists these key specifications for the ATW-1702. Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz). Frequency Response: 20 Hz to 20 kHz Depending on microphone type. Total Harmonic Distortion: <0.05% typical. Audio Sampling: 24 bits / 48 kHz.
