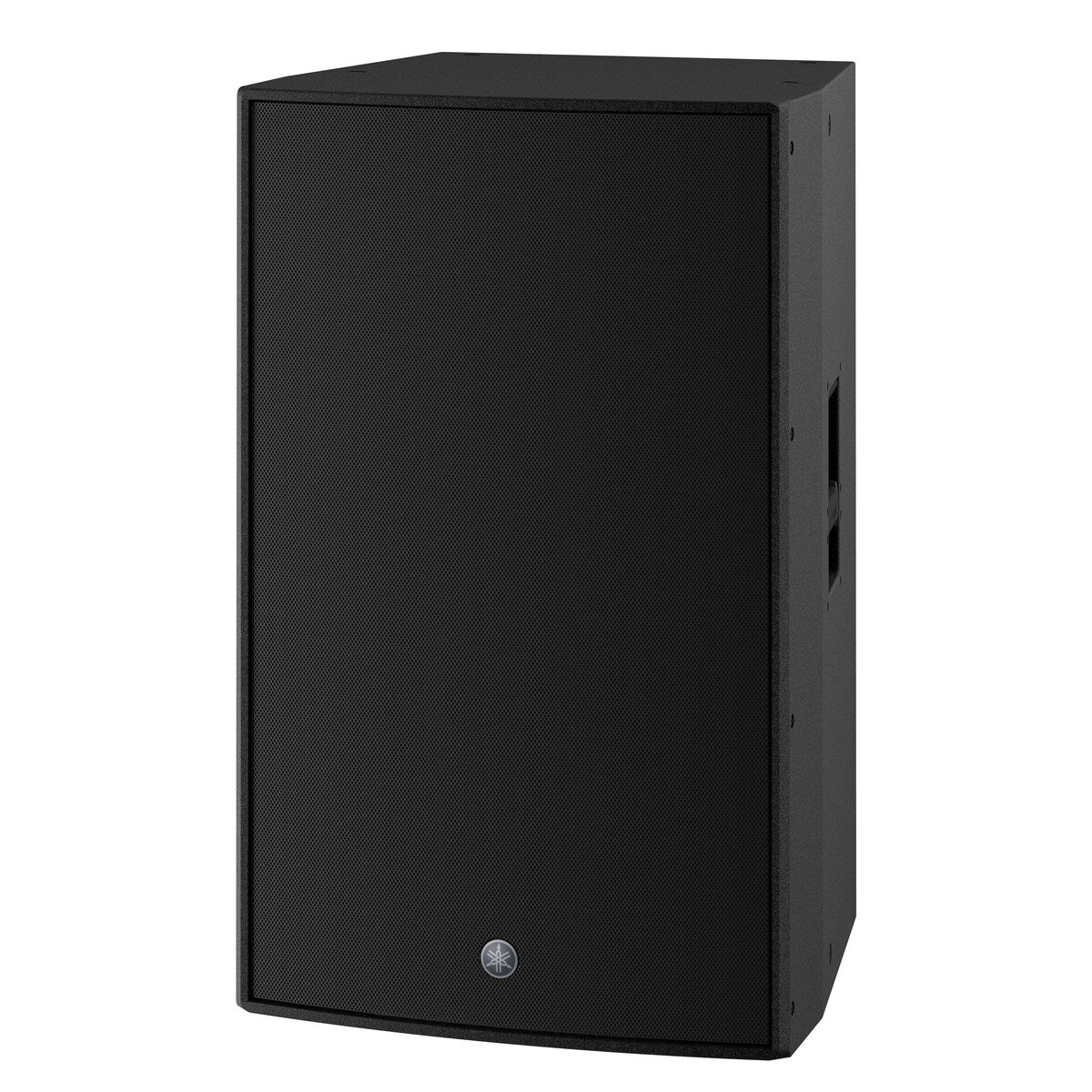

  • Yamaha DZR315 3-Way 15-Inch 2000 W Powered Loudspeaker - front view
1 1

Yamaha DZR315: 3-Way 15-Inch 2000 W Powered Loudspeaker

Model DZR315

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Yamaha Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 3-way powered loudspeaker with a 2" HF, an 8 " MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
Auditorium Audio System Solutions Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Yamaha DZR315 is a 3-Way 15-Inch 2000 W powered loudspeaker. The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

Corporate AV supplies, installs and supports the Yamaha DZR315 across India. Request a quote for supply, installation and commissioning.

Key features

  • 3-way powered loudspeaker with a 2" HF, an 8 " MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Why choose the DZR315
it is a 3-Way 15-Inch 2000 W powered loudspeaker from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the DZR315 is specified and set up for your space and not just shipped.
Product Highlights

Key Benefits

3-way powered loudspeaker with a 2" HF, an 8 " MF and a 15" LF

Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA

High power 2000W Class-D amplifier module

96kHz DSP and FIR filter for true high-resolution sound with super low latency

Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion

Use Cases

Ideal Applications

Live sound and front-of-house PA

Houses of worship and event halls

Auditoriums and conference rooms

Rental and touring productions

Technical Details

Technical Specifications

General specifications
Speaker type 3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency range (-10dB) 31Hz - 20kHz
Coverage area H75° x V50°
Components LF 15" Cone, 3" Voice Coil, Neodymium magnet
Components MF 8" Cone, 1.5" Voice Coil, Ferrite magnet
Components HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 700Hz (FIR-X), 2.5kHz (Passive)
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 143dB SPL
Power rating Dynamic 2000W (LF: 1000W, MF/HF: 1000W)
Power rating Burst (20ms) 1100W (LF: 1000W, MF/HF: 100W)
Power rating Continuous 950W (LF: 850W, MF/HF: 100W)
I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
I/O Connectors Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
I/O Connectors AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Side x2
Rigging M10 x16
Dimensions W 550 mm (21.6")
Dimensions H 897 mm (35.3") (with rubber feet)
Dimensions D 520 mm (20.5")
Net weight 41.6kg (91.7lbs)
Options Cover: SPCVR-DZR315
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The DZR315 From Corporate AV?
  • Genuine Yamaha stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the Yamaha DZR315?
The Yamaha DZR315 is a 3-Way 15-Inch 2000 W powered loudspeaker. The DZR315 is 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
Who is the Yamaha DZR315 best suited for?
The DZR315 suits live sound and front-of-house pa, houses of worship and event halls and auditoriums and conference rooms. Corporate AV can advise whether it is the right fit for your venue or room.
What are the main specifications of the Yamaha DZR315?
Yamaha lists maximum output level 143dB SPL; frequency range 31Hz - 20kHz; weight 41.6kg (91.7lbs).
What power does the Yamaha DZR315 need?
Yamaha lists the DZR315 power as 45W (Idle), 150W (1/8). Corporate AV plans power distribution and cabling during the site survey.
Can Corporate AV supply multiple Yamaha DZR315 units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha DZR315 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha DZR315 in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
