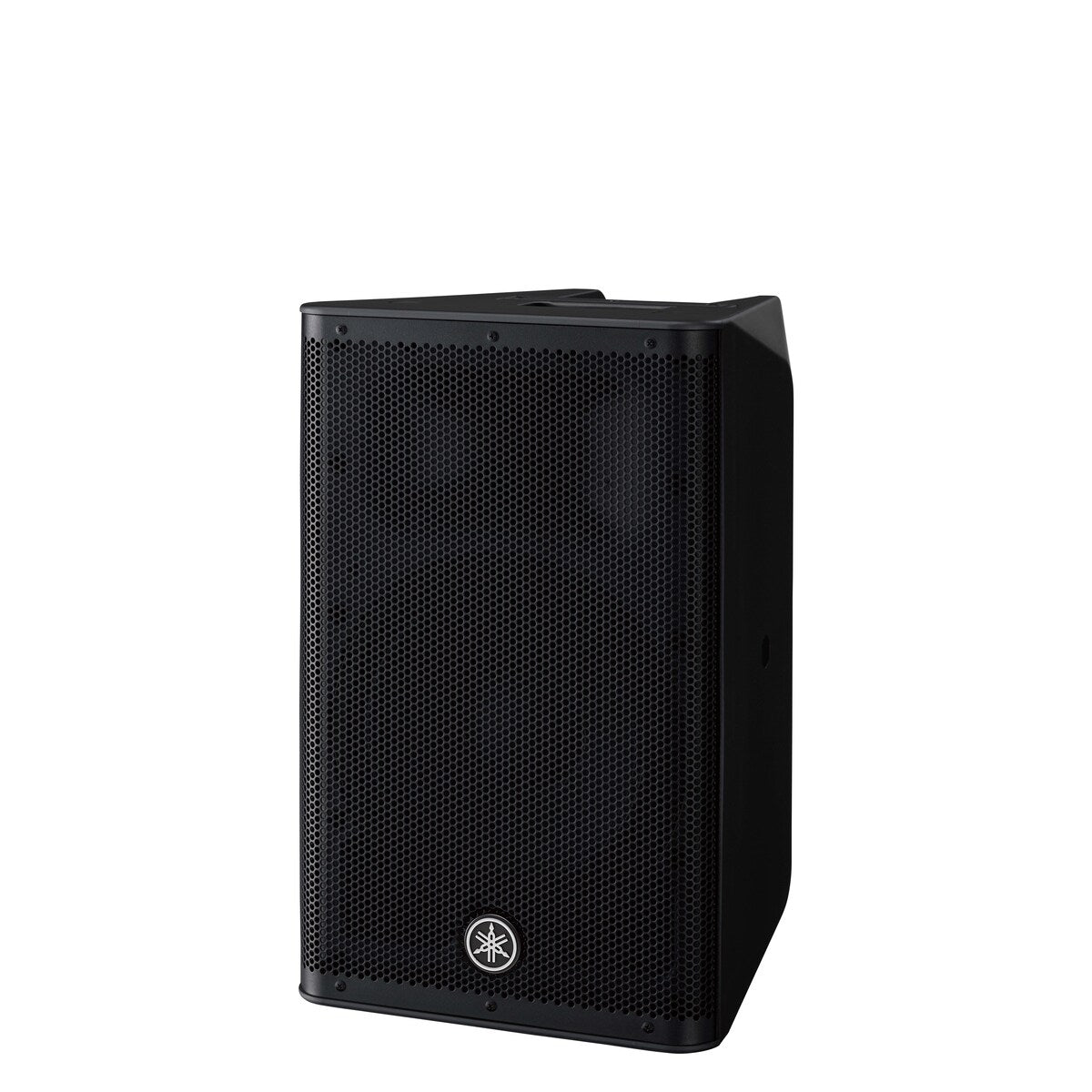

  • Yamaha DXR10mkII 10-Inch 1100 W 2-Way Active Loudspeaker - front view
1 1

Yamaha DXR10mkII: 10-Inch 1100 W 2-Way Active Loudspeaker

Model DXR10mkII

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Yamaha Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Speaker type: 10" 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB): 56Hz - 20kHz
  • Nominal coverage H: 90°
  • Nominal coverage V: 60°
Auditorium Audio System Solutions Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Yamaha DXR10mkII is a 10-Inch 1100 W 2-Way active loudspeaker. Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII's compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.

Corporate AV supplies, installs and supports the Yamaha DXR10mkII across India. Request a quote for supply, installation and commissioning. Yamaha lists the DXR10mkII as a discontinued model; Corporate AV supports installed units and can advise on the current Yamaha range.

Key features

  • 10" 2-way Powered Loudspeaker
  • Speaker type: 10" 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB): 56Hz - 20kHz
  • Nominal coverage H: 90°
Why choose the DXR10mkII
it is a 10-Inch 1100 W 2-Way active loudspeaker from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the DXR10mkII is specified and set up for your space and not just shipped.
Product Highlights

Key Benefits

Speaker type: 10" 2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range (-10dB): 56Hz - 20kHz

Nominal coverage H: 90°

Nominal coverage V: 60°

Components LF: Diameter:10" cone, Voice Coil:2", Magnet:Ferrite

Use Cases

Ideal Applications

Live sound and front-of-house PA

Houses of worship and event halls

Auditoriums and conference rooms

Rental and touring productions

Technical Details

Technical Specifications

General specifications
Speaker type 10" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 56Hz - 20kHz
Nominal coverage H 90°
Nominal coverage V 60°
Components LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
Components HF Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Crossover FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis) 132dB SPL
I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements 100V - 240V, 50Hz/60Hz
Power consumption 90W
Flying and mounting hardware Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket 35mm with 2-way features (0 or 7 degrees)
Dimensions W 305mm (12")
Dimensions H 502mm (19 6/8")
Dimensions D 310mm (12 2/8")
Net weight 13.9kg (30.6lbs)
Accessories UB-DXR10 (U-bracket)
Others Material: ABS (Matte Finish, Black)

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The DXR10mkII From Corporate AV?
  • Genuine Yamaha stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the Yamaha DXR10mkII?
The Yamaha DXR10mkII is a 10-Inch 1100 W 2-Way active loudspeaker. Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII's compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.
Who is the Yamaha DXR10mkII best suited for?
The DXR10mkII suits live sound and front-of-house pa, houses of worship and event halls and auditoriums and conference rooms. Corporate AV can advise whether it is the right fit for your venue or room.
What are the main specifications of the Yamaha DXR10mkII?
Yamaha lists maximum output level 132dB SPL; output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W); frequency range 56Hz - 20kHz; weight 13.9kg (30.6lbs).
What power does the Yamaha DXR10mkII need?
Yamaha lists the DXR10mkII power as 100V - 240V, 50Hz/60Hz. Corporate AV plans power distribution and cabling during the site survey.
Is the Yamaha DXR10mkII still a current model?
Yamaha lists the DXR10mkII as discontinued. Corporate AV supports installed DXR10mkII units and can advise on the current Yamaha equivalent for a new project.
Can Corporate AV supply multiple Yamaha DXR10mkII units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha DXR10mkII in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha DXR10mkII in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
