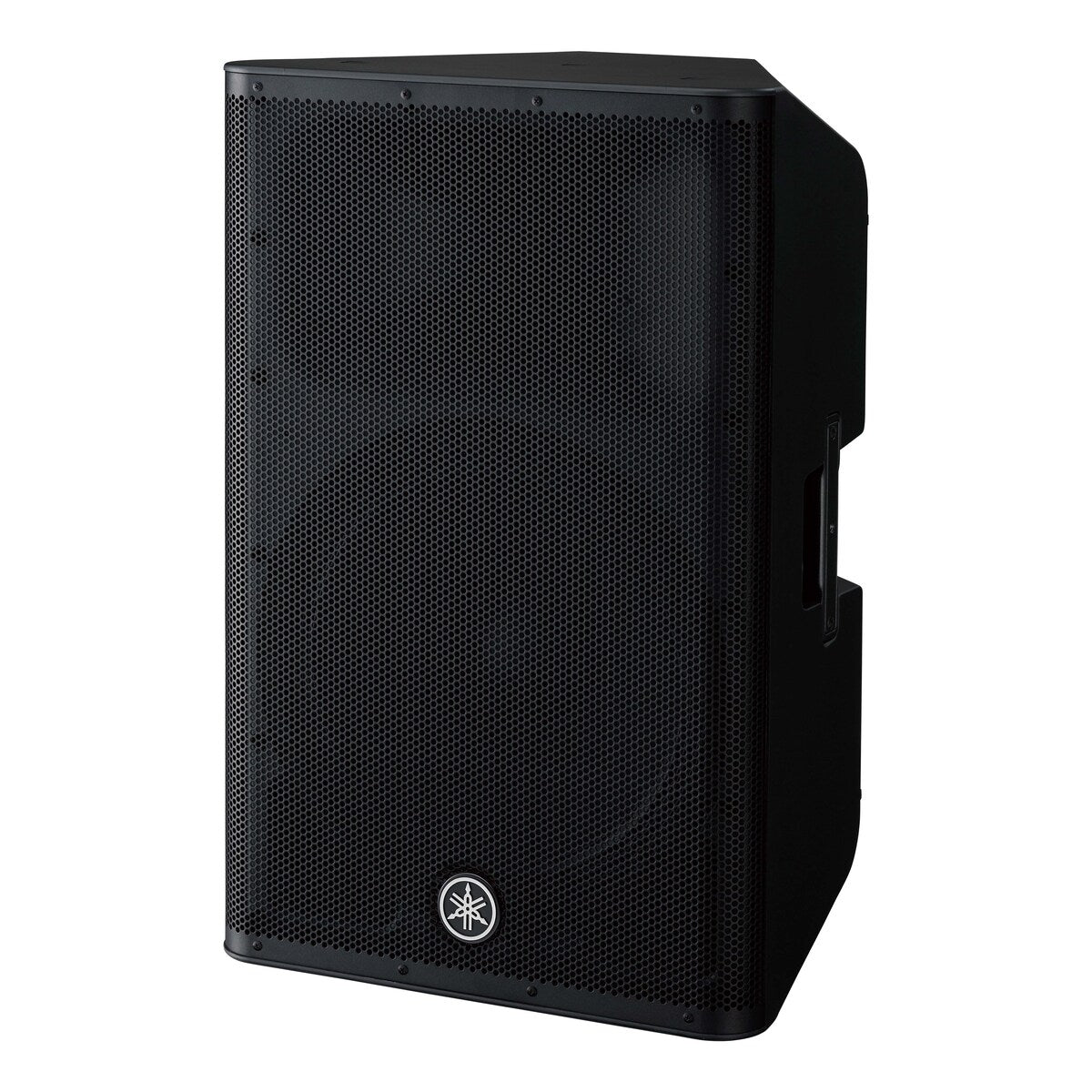

  • Yamaha DXR15mkII 15-Inch 1100 W 2-Way Active Loudspeaker - front view
1 1

Yamaha DXR15mkII: 15-Inch 1100 W 2-Way Active Loudspeaker

Model DXR15mkII

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Yamaha Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Speaker type: 15" 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB): 49Hz - 20kHz
  • Nominal coverage H: 90°
  • Nominal coverage V: 60°
Auditorium Audio System Solutions Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Yamaha DXR15mkII is a 15-Inch 1100 W 2-Way active loudspeaker. The DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.

Corporate AV supplies, installs and supports the Yamaha DXR15mkII across India. Request a quote for supply, installation and commissioning. Yamaha lists the DXR15mkII as a discontinued model; Corporate AV supports installed units and can advise on the current Yamaha range.

Key features

  • 15" 2-way Powered Loudspeaker
  • Speaker type: 15" 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB): 49Hz - 20kHz
  • Nominal coverage H: 90°
Why choose the DXR15mkII
it is a 15-Inch 1100 W 2-Way active loudspeaker from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the DXR15mkII is specified and set up for your space and not just shipped.
Product Highlights

Key Benefits

Speaker type: 15" 2-way, Bi-amp powered speaker, Bass-reflex type

Frequency range (-10dB): 49Hz - 20kHz

Nominal coverage H: 90°

Nominal coverage V: 60°

Components LF: Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite

Use Cases

Ideal Applications

Live sound and front-of-house PA

Houses of worship and event halls

Auditoriums and conference rooms

Rental and touring productions

Technical Details

Technical Specifications

General specifications
Speaker type 15" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 49Hz - 20kHz
Nominal coverage H 90°
Nominal coverage V 60°
Components LF Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
Components HF Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Crossover FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis) 134dB SPL
I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements 100V - 240V, 50Hz/60Hz
Power consumption 110W
Flying and mounting hardware Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Pole socket 35mm with 2-way features (0 or 7 degrees)
Dimensions W 445mm (17 4/8")
Dimensions H 700mm (27 4/8")
Dimensions D 380mm (15")
Net weight 21.8kg (48.1lbs)
Accessories UB-DXR15 (U-bracket)
Others Material: ABS (Matte Finish, Black)

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The DXR15mkII From Corporate AV?
  • Genuine Yamaha stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the Yamaha DXR15mkII?
The Yamaha DXR15mkII is a 15-Inch 1100 W 2-Way active loudspeaker. The DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.
Who is the Yamaha DXR15mkII best suited for?
The DXR15mkII suits live sound and front-of-house pa, houses of worship and event halls and auditoriums and conference rooms. Corporate AV can advise whether it is the right fit for your venue or room.
What are the main specifications of the Yamaha DXR15mkII?
Yamaha lists maximum output level 134dB SPL; output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W); frequency range 49Hz - 20kHz; weight 21.8kg (48.1lbs).
What power does the Yamaha DXR15mkII need?
Yamaha lists the DXR15mkII power as 100V - 240V, 50Hz/60Hz. Corporate AV plans power distribution and cabling during the site survey.
Is the Yamaha DXR15mkII still a current model?
Yamaha lists the DXR15mkII as discontinued. Corporate AV supports installed DXR15mkII units and can advise on the current Yamaha equivalent for a new project.
Can Corporate AV supply multiple Yamaha DXR15mkII units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha DXR15mkII in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha DXR15mkII in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
