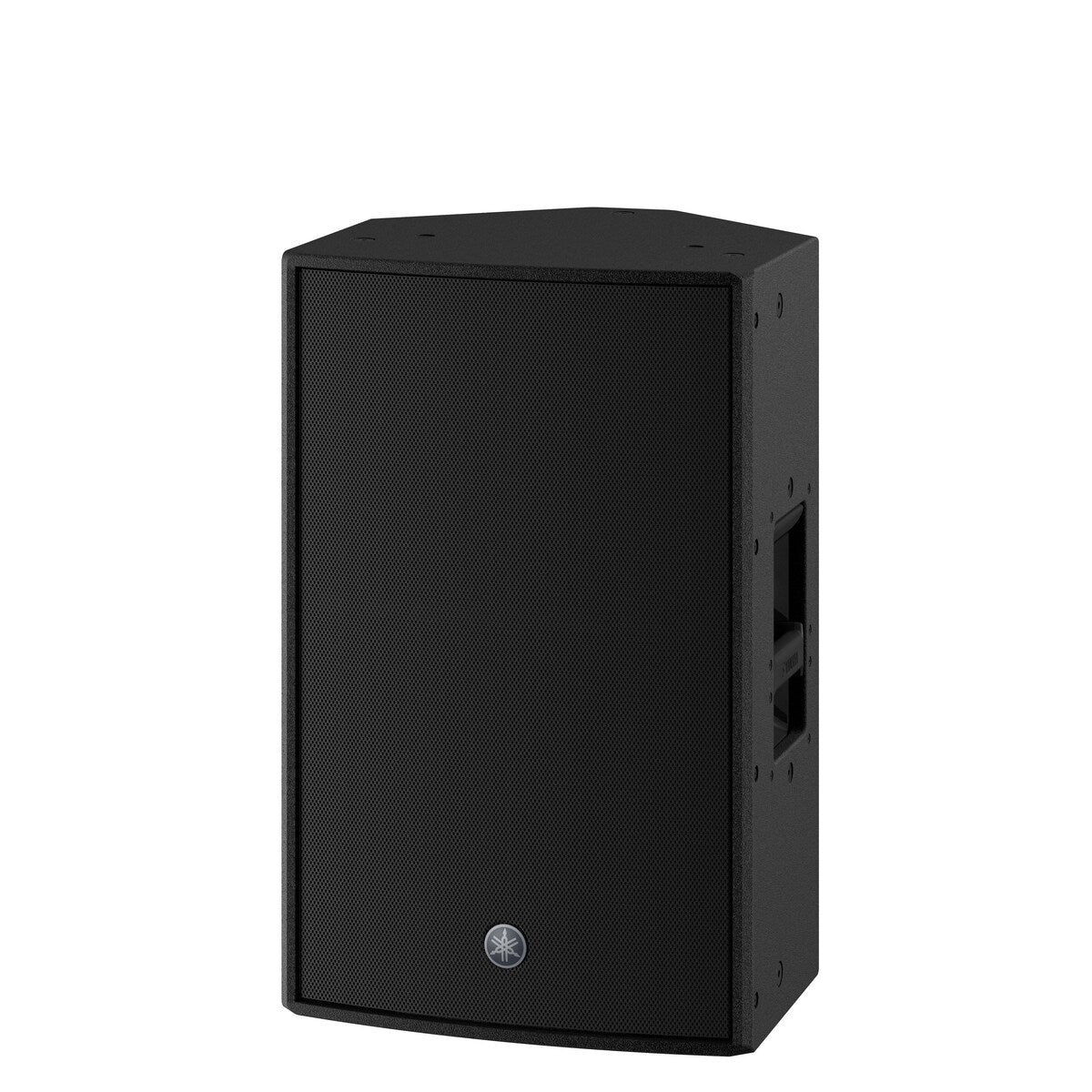

Yamaha DZR12-D: 12-Inch 2000 W Powered Loudspeaker with Dante
Model DZR12-D
Request a Quote
Availability: Out of Stock
- 2-way powered loudspeaker with a 2" HF and a 12" LF
- Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today's professional audio demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
Product Overview
Overview
The Yamaha DZR12-D is a 12-Inch 2000 W powered loudspeaker with Dante. The DZR12-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Corporate AV supplies, installs and supports the Yamaha DZR12-D across India. Request a quote for supply, installation and commissioning.
Key features
- 2-way powered loudspeaker with a 2" HF and a 12" LF
- Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today's professional audio demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
Why choose the DZR12-D
it is a 12-Inch 2000 W powered loudspeaker with Dante from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the DZR12-D is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
2-way powered loudspeaker with a 2" HF and a 12" LF
Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today's professional audio demands
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Use Cases
Ideal Applications
Live sound and front-of-house PA
Houses of worship and event halls
Auditoriums and conference rooms
Rental and touring productions
Technical Details
Technical Specifications
General specifications
Speaker type
2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB)
39Hz - 20kHz
Coverage area
H90° x V60° (Rotatable)
Components LF
12" Cone, 3" Voice Coil, Neodymium magnet
Components HF
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover
1.8kHz (FIR-X)
Sampling frequency rate Internal
96kHz and FIR Filter
A/D D/A Converters
96kHz AD/DA
Maximum output level (1m; on axis)
139dB SPL
SRC
Yes
Power rating Dynamic
2000W (LF: 1000W, MF/HF: 1000W)
Power rating Burst (20ms)
1100W (LF: 1000W, MF/HF: 100W)
Power rating Continuous
950W (LF: 850W, MF/HF: 100W)
I/O Connectors Analog I/O
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
I/O Connectors Digital I/O
Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
I/O Connectors Others
USB2.0 Host 5V 500mA for USB memory DATA storage/load
I/O Connectors AC
IEC AC inlet x1 (V-Lock)
Amplifier class
Class-D
Cooling
Fan cooling, Variable speeds
Power consumption
45W (Idle), 150W (1/8)
Handle
Aluminium die-cast, Side x2
Rigging
M10 x12
Dimensions W
410 mm (16.1")
Dimensions H
646 mm (25.4") (with rubber feet)
Dimensions D
394 mm (15.5")
Net weight
21.4kg (47.2lbs)
Options
U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others
Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
Floor Monitor Angle
50° Symmetrical
Pole socket
Φ35 mm x2 (0° or -7°)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The DZR12-D From Corporate AV?
- Genuine Yamaha stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Yamaha DZR12-D?
The Yamaha DZR12-D is a 12-Inch 2000 W powered loudspeaker with Dante. The DZR12-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Who is the Yamaha DZR12-D best suited for?
The DZR12-D suits live sound and front-of-house pa, houses of worship and event halls and auditoriums and conference rooms. Corporate AV can advise whether it is the right fit for your venue or room.
What are the main specifications of the Yamaha DZR12-D?
Yamaha lists maximum output level 139dB SPL; frequency range 39Hz - 20kHz; weight 21.4kg (47.2lbs).
What power does the Yamaha DZR12-D need?
Yamaha lists the DZR12-D power as 45W (Idle), 150W (1/8). Corporate AV plans power distribution and cabling during the site survey.
Can Corporate AV supply multiple Yamaha DZR12-D units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha DZR12-D in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha DZR12-D in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
