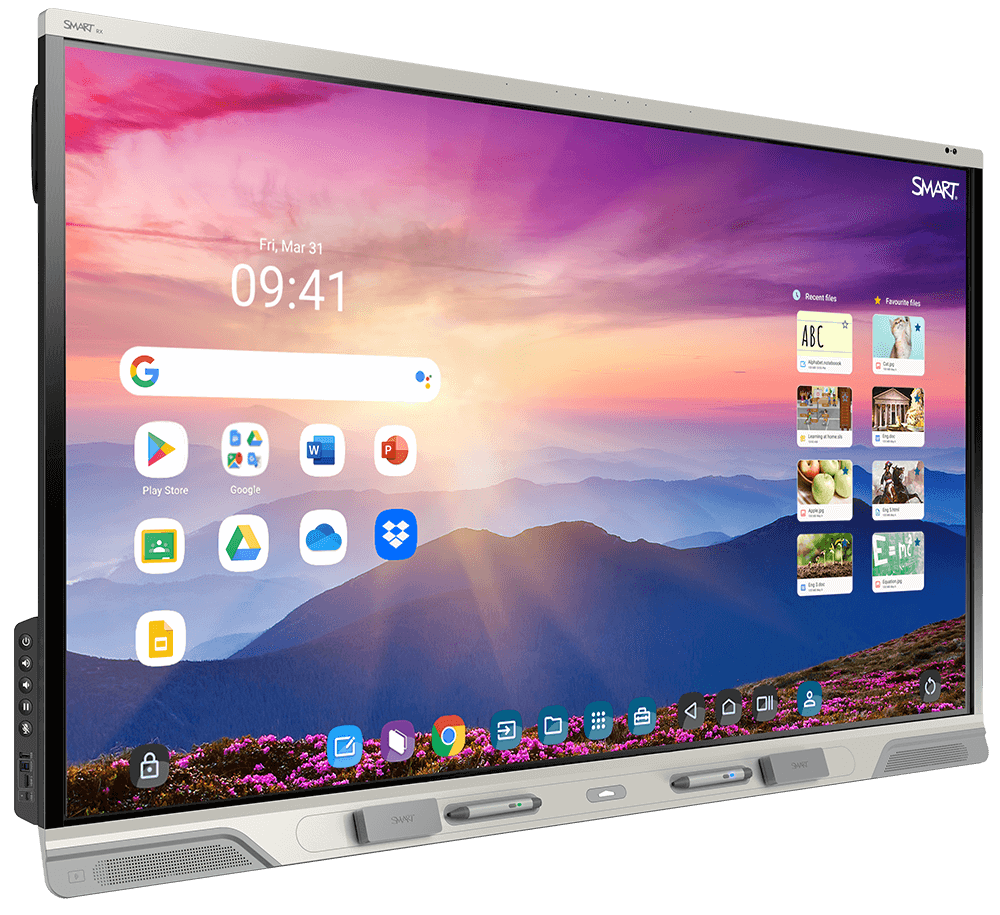

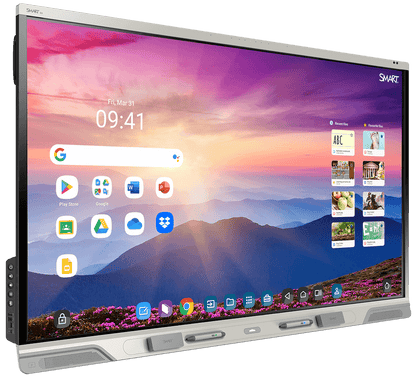

SMART RX065: 65 Inch 4K UHD Interactive Display with iQ
Model RX065
Request a Quote
Availability: Out of Stock
- 65-inch 4K UHD LED display at 490 cd/m²
- Up to 50 touch points with HyPr Touch and Advanced IR
- iQ Android 15 built in
- Audio: Integrated soundbar with two 20 W speakers and a 15 W subwoofer
Product Overview
Overview
The SMART Board RX065 is a 65-inch 4K UHD interactive display with up to 50-point touch and the iQ Android 15 built in, made for classrooms, training rooms and meeting spaces.
Specification highlights for the RX065: Screen size (diagonal): 65 inch; Maximum display resolution: 4K UHD (3840 × 2160); Brightness: 490 cd/m² (individual displays can vary). Corporate AV supplies and integrates the RX065 across India for classrooms, training rooms and meeting spaces, including site survey, installation and commissioning where the project needs it.
Key features
- 65-inch 4K UHD LED display at 490 cd/m²
- Up to 50 touch points with HyPr Touch and Advanced IR
- iQ Android 15 built in
- Audio: Integrated soundbar with two 20 W speakers and a 15 W subwoofer
- Microphone: Integrated linear eight-microphone array
- Wireless: (Wi-Fi 6e) and Bluetooth 5.2 dual mode
- OPS slot for SMART PCM modules (up to 100 W)
Why choose the RX065
It puts a 65-inch 4K UHD touch display with up to 50-point touch in the room, so a classroom or meeting can present, annotate and collaborate on one screen. Corporate AV checks the room, mounting surface, power and network during a site survey, so the RX065 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights
Key Benefits
65-inch 4K UHD LED display at 490 cd/m²
Up to 50 touch points with HyPr Touch and Advanced IR
iQ Android 15 built in
Audio: Integrated soundbar with two 20 W speakers and a 15 W subwoofer
Microphone: Integrated linear eight-microphone array
Use Cases
Ideal Applications
Classrooms & Training Rooms
Meeting & Huddle Rooms
Technical Details
Technical Specifications
Display
Screen size (diagonal)
65 inch
Backlight
LED
Aspect ratio
16:9
Maximum display resolution
4K UHD (3840 × 2160)
Refresh rate
60 Hz
Minimum lifespan
50,000 hours
Brightness
490 cd/m² (individual displays can vary)
Display response time
8 ms
Viewing angle
178°
Glass
Optically bonded | Anti-glare | Anti-fingerprint | Heat-tempered
Frame color
White
Sensors
Proximity | Ambient light | Infrared | Room temperature | Humidity | Equivalent carbon dioxide (eCO2) | Volatile organic compound (VOC) | Particulate matter (PM2.5)
Audio
Speakers
Integrated soundbar with two 20 W speakers and a 15 W subwoofer
Microphone
Integrated linear eight-microphone array with visual mute indicator and onboard acoustic echo cancellation
Interactive experience
Touch technology
HyPr Touch with Advanced IR and Tool Explorer (V2)
Touch features
Simultaneous tool differentiation | Object Awareness | Pen ID | Silktouch | Palm rejection
Typical touch response time
4 ms
Frame rate
300 Hz
Accuracy
1 mm
Minimum object size
2 mm
Multitouch capabilities
Up to 50 touch points (operating system dependent)
Tools included
Stylus with multi-color select and fine eraser (×2) | Erasers with angle of orientation (×2)
NFC
Integrated RFID NFC reader/writer
Software and operating system
Operating system
iQ embedded Android, version 15 (automatic update to Android 17 supported)
CPU
Octa-core
Memory
8 GB DDR4
Storage
64 GB (up to 576 GB)
Software included
SMART Notebook | SMART Product Drivers and SMART Ink
Software optional
SMART Notebook Plus | Lumio | SMART Control Signage
Updates
Automatic over-the-air (OTA)
Connectivity
Inputs
HDMI 2.1 4K @ 60 Hz with HDCP 1.4, HDCP 2.3, ARC and eARC (HDMI 2 input) | USB Type-C 4K @ 60 Hz DisplayPort 1.2 (65 W power delivery) | USB Type-C SuperSpeed (15 W power delivery) | VGA | RS-232 | RJ45 LAN in | USB 2.0 Type-A | USB 3.2 Gen 1 Type-A and Type-B | microSD slot
Outputs
HDMI 2.1 4K @ 60 Hz | USB Type-C 4K @ 60 Hz DisplayPort 1.4a | 3.5 mm stereo | S/PDIF optical | RJ45 LAN out
Wired network
RJ45 (×2) 1000BASE-T
Wi-Fi
IEEE 802.11ax (Wi-Fi 6e)
Bluetooth
5.2 dual mode
OPS slot
OPS PC accessory slot for SMART PCM modules (up to 100 W)
Power and environment
Power requirements
100 V to 240 V AC, 50 Hz to 60 Hz
Typical power consumption
94 W
Standby power
<0.5 W
Operating temperature
5-35 °C (41-95 °F)
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
5-80% relative humidity, non-condensing
Physical
Weight
42 kg (92.6 lb)
VESA mount
M8 | 600 × 400 mm
Handles
2
In The Box
What's Included
Country-specific power cable
USB 2.0 A to B cable, 5 m
USB 3.2 Gen 1 Type-C cable, 1.8 m
Stylus with multi-color select and fine eraser (×2)
Bar erasers (×2)
External tri-band Wi-Fi and Bluetooth antennas (×2)
Remote control
AAA batteries (×2)
SMART ID cards for NFC sign in (×2)
Illustrated installation instructions
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The RX065 From Corporate AV?
- Genuine SMART stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs SMART products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
How bright is the SMART RX065?
SMART lists the brightness of the RX065 as: 490 cd/m² (individual displays can vary).
What resolution does the SMART RX065 have?
SMART lists the resolution of the RX065 as: 4K UHD (3840 × 2160).
What touch technology does the SMART RX065 use?
SMART lists the touch technology of the RX065 as: HyPr Touch with Advanced IR and Tool Explorer (V2).
How many touch points does the SMART RX065 support?
SMART lists the touch capability of the RX065 as: Up to 50 touch points (operating system dependent).
What operating system does the SMART RX065 run?
SMART lists the operating system of the RX065 as: iQ embedded Android, version 15 (automatic update to Android 17 supported).
Does Corporate AV install the SMART RX065?
Yes. Corporate AV can supply the RX065 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the SMART RX065 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
