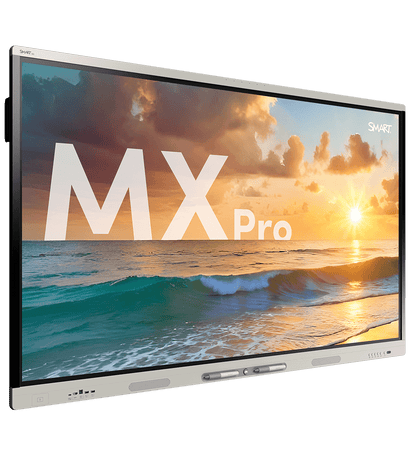

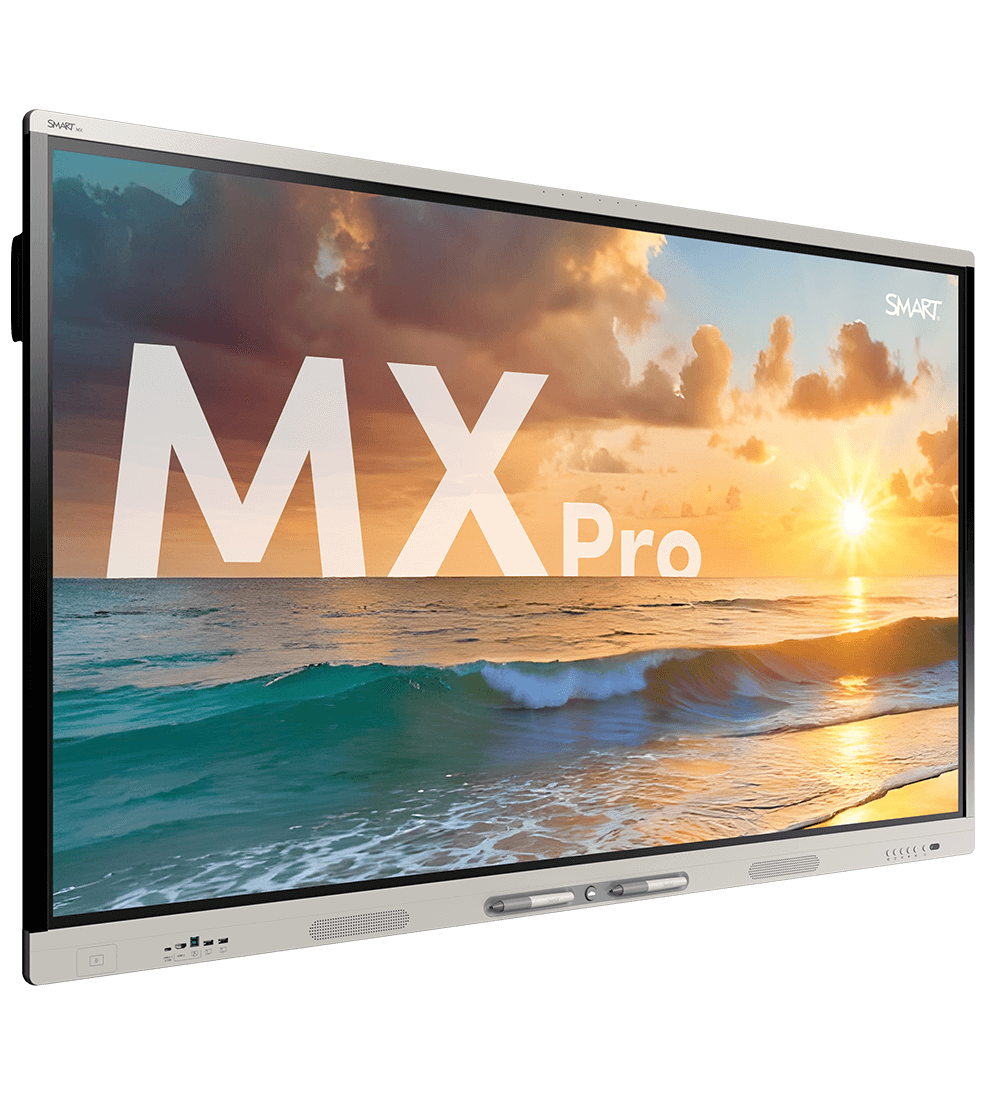

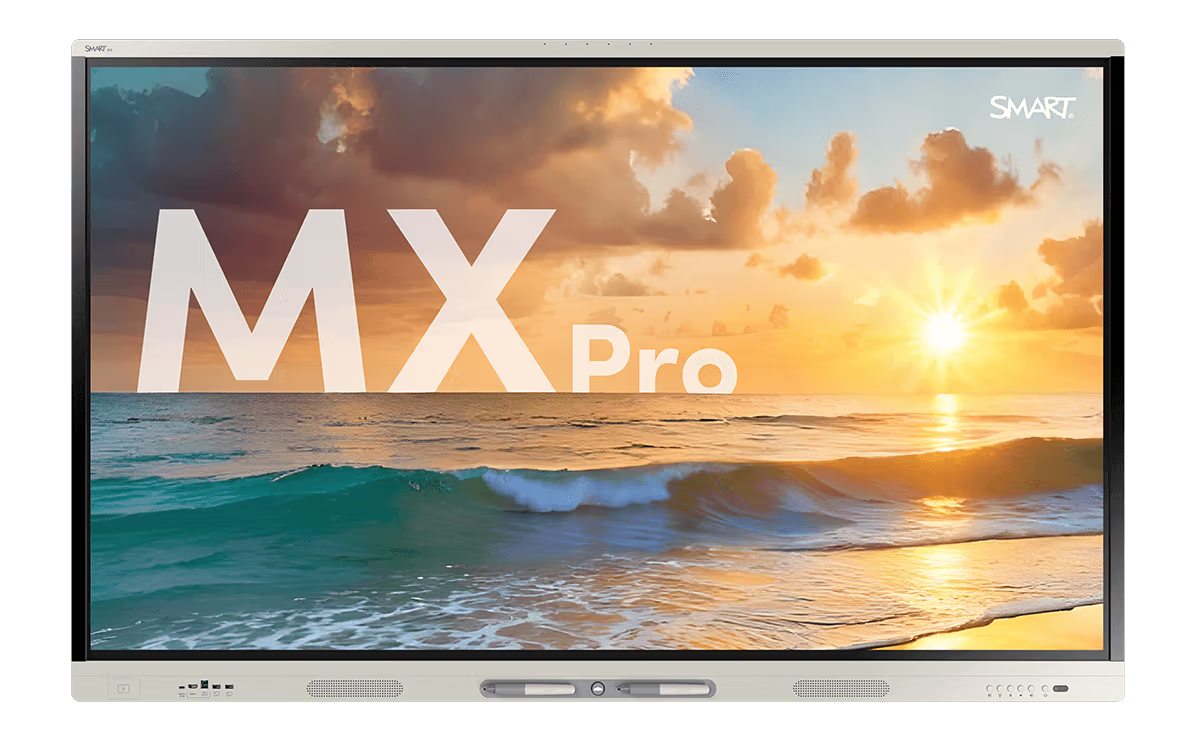

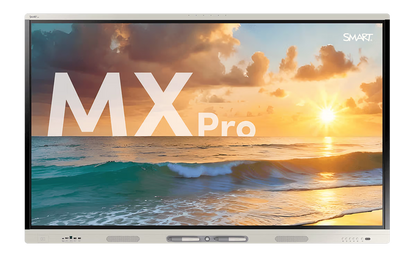

SMART MX065-V5 Pro: 65 Inch 4K Interactive Display
Model MX065-V5 Pro
Request a Quote
Availability: Out of Stock
- 65-inch 4K UHD LED display at 400 cd/m²
- Up to 50 touch points with HyPr Touch and Advanced IR
- iQ Android 15 built in
- Audio: 2 integrated 20 W speakers
Product Overview
Overview
The SMART Board MX065-V5 Pro is a 65-inch 4K UHD interactive display with up to 50-point touch and the iQ Android 15 built in, made for classrooms, training rooms and meeting spaces.
Specification highlights for the MX065-V5 Pro: Screen size (diagonal): 65 inch; Maximum display resolution: 4K UHD (3840 × 2160); Brightness: 400 cd/m² (individual displays can vary). Corporate AV supplies and integrates the MX065-V5 Pro across India for classrooms, training rooms and meeting spaces, including site survey, installation and commissioning where the project needs it.
Key features
- 65-inch 4K UHD LED display at 400 cd/m²
- Up to 50 touch points with HyPr Touch and Advanced IR
- iQ Android 15 built in
- Audio: 2 integrated 20 W speakers
- Microphone: Integrated linear six-microphone array
- Wireless: (Wi-Fi 6e) and Bluetooth 5.2 dual mode
- OPS slot for SMART PCM modules (up to 85 W)
Why choose the MX065-V5 Pro
It puts a 65-inch 4K UHD touch display with up to 50-point touch in the room, so a classroom or meeting can present, annotate and collaborate on one screen. Corporate AV checks the room, mounting surface, power and network during a site survey, so the MX065-V5 Pro is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights
Key Benefits
65-inch 4K UHD LED display at 400 cd/m²
Up to 50 touch points with HyPr Touch and Advanced IR
iQ Android 15 built in
Audio: 2 integrated 20 W speakers
Microphone: Integrated linear six-microphone array
Use Cases
Ideal Applications
Classrooms & Training Rooms
Meeting & Huddle Rooms
Boardrooms & Executive Suites
Technical Details
Technical Specifications
Display
Screen size (diagonal)
65 inch
Backlight
LED
Aspect ratio
16:9
Maximum display resolution
4K UHD (3840 × 2160)
Refresh rate
60 Hz
Minimum lifespan
50,000 hours
Brightness
400 cd/m² (individual displays can vary)
Viewing angle
178°
Glass
Full heat-tempered | Anti-glare | Anti-fingerprint | Bonded
Frame color
White
Convenience buttons
Power | Home | Volume | Input select | Screen shade | Freeze frame
Sensors
Proximity (motion, some models) | Ambient light | Infrared
Audio
Speakers
2 integrated 20 W speakers
Microphone
Integrated linear six-microphone array with onboard acoustic echo cancellation
Interactive experience
Touch technology
HyPr Touch with Advanced IR
Touch features
Simultaneous tool differentiation | Object Awareness
Typical touch response time
5 ms
Accuracy
1 mm
Minimum object size
2 mm
Multitouch capabilities
50 (Windows) | 50 (Mac) | 32 (Android) | 16 (Chrome OS)
Tools included
Pens (×2)
Tool holders
Magnetic | Frame-mounted
NFC
Integrated RFID NFC reader/writer (ISO 14443A/B, ISO 15693, NFC Tag 1-4)
Software and operating system
Operating system
iQ embedded Android, version 15 (automatic update to Android 17 supported)
CPU
Octa-core
Memory
8 GB DDR4
Storage
64 GB (up to 576 GB)
Software included
SMART Meeting Pro (room license and 10 personal licenses)
Software optional
SMART Remote Management | SMART Control | SMART TeamWorks | SMART Control Signage
Google Play
Google Play Store and Google Play Protect certified
Updates
Automatic over-the-air (OTA)
Connectivity
Inputs
HDMI 2.1 4K @ 60 Hz with HDCP 1.4, HDCP 2.3, ARC and eARC (HDMI 2 input) | USB Type-C 4K @ 60 Hz DisplayPort 1.2 (27 W and 65 W power delivery) | VGA | RS-232 | RJ45 LAN in | USB 2.0 Type-A | USB 3.2 Gen 1 Type-A | USB 3.2 Gen 1 Type-B | microSD slot | 3.5 mm stereo
Outputs
HDMI 2.1 4K @ 60 Hz | USB Type-C 4K @ 60 Hz DisplayPort 1.4a | 3.5 mm stereo | S/PDIF optical | RJ45 LAN out
Wired network
RJ45 (×2) 1000BASE-T
Wi-Fi
IEEE 802.11ax (Wi-Fi 6e)
Bluetooth
5.2 dual mode
OPS slot
OPS PC accessory slot for SMART PCM modules (up to 85 W)
Power and environment
Power requirements
100 V to 240 V AC, 50 Hz to 60 Hz
Typical power consumption
90 W
Standby power
0.2 W
Operating temperature
5-35 °C (41-95 °F)
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
5-80% relative humidity, non-condensing
Physical
Weight
40 kg (89 lb)
VESA mount
M8 | 600 × 400 mm
Handles
2
In The Box
What's Included
Country-specific power cable
USB 2.0 A to B cable, 5 m
USB 3.2 Gen 1 Type-C cable, 1.8 m
Pens (×2)
External tri-band Wi-Fi and Bluetooth antennas (×2)
Remote control
AAA batteries (×2)
SMART ID cards for NFC sign in (×2)
Illustrated installation instructions
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The MX065-V5 Pro From Corporate AV?
- Genuine SMART stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs SMART products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
How bright is the SMART MX065-V5 Pro?
SMART lists the brightness of the MX065-V5 Pro as: 400 cd/m² (individual displays can vary).
What resolution does the SMART MX065-V5 Pro have?
SMART lists the resolution of the MX065-V5 Pro as: 4K UHD (3840 × 2160).
What touch technology does the SMART MX065-V5 Pro use?
SMART lists the touch technology of the MX065-V5 Pro as: HyPr Touch with Advanced IR.
How many touch points does the SMART MX065-V5 Pro support?
SMART lists the touch capability of the MX065-V5 Pro as: 50 (Windows) | 50 (Mac) | 32 (Android) | 16 (Chrome OS).
What operating system does the SMART MX065-V5 Pro run?
SMART lists the operating system of the MX065-V5 Pro as: iQ embedded Android, version 15 (automatic update to Android 17 supported).
Does Corporate AV install the SMART MX065-V5 Pro?
Yes. Corporate AV can supply the MX065-V5 Pro only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the SMART MX065-V5 Pro in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
