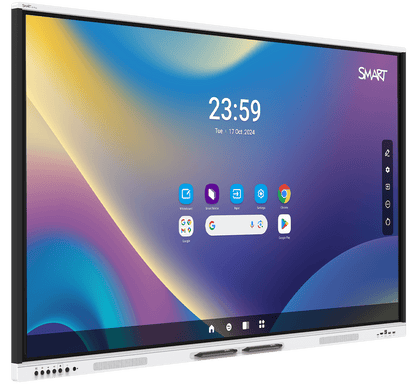

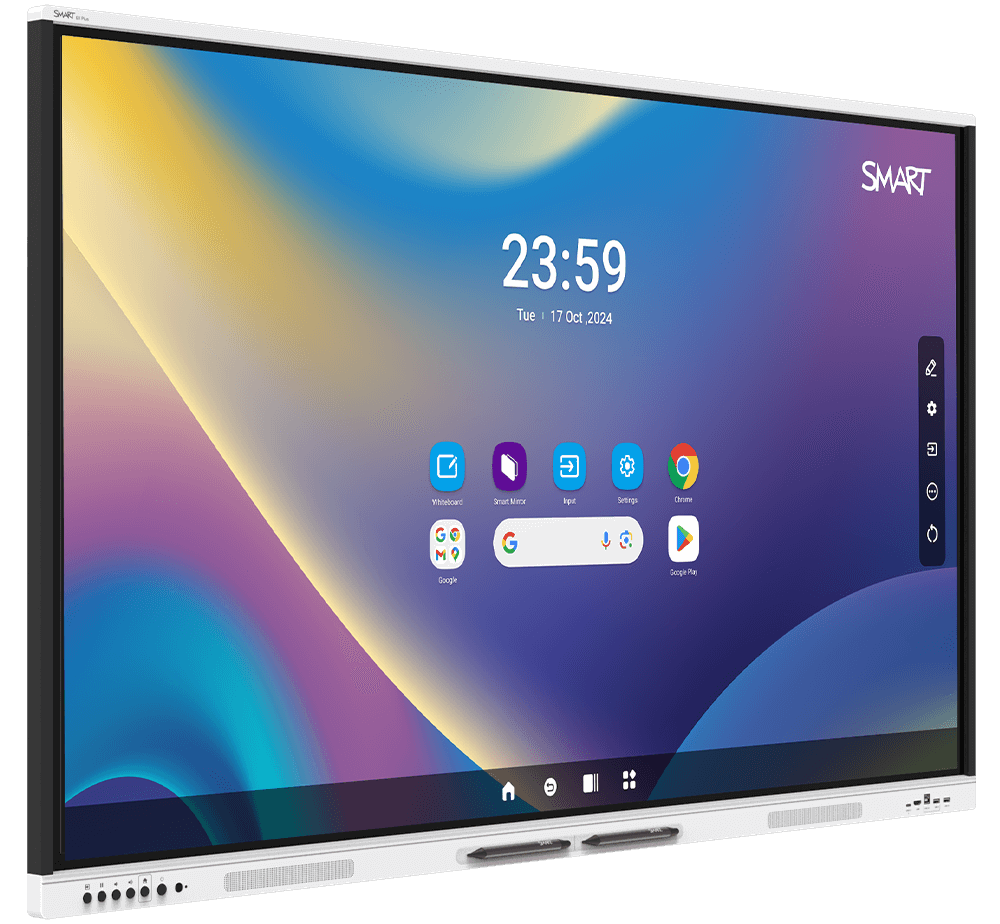

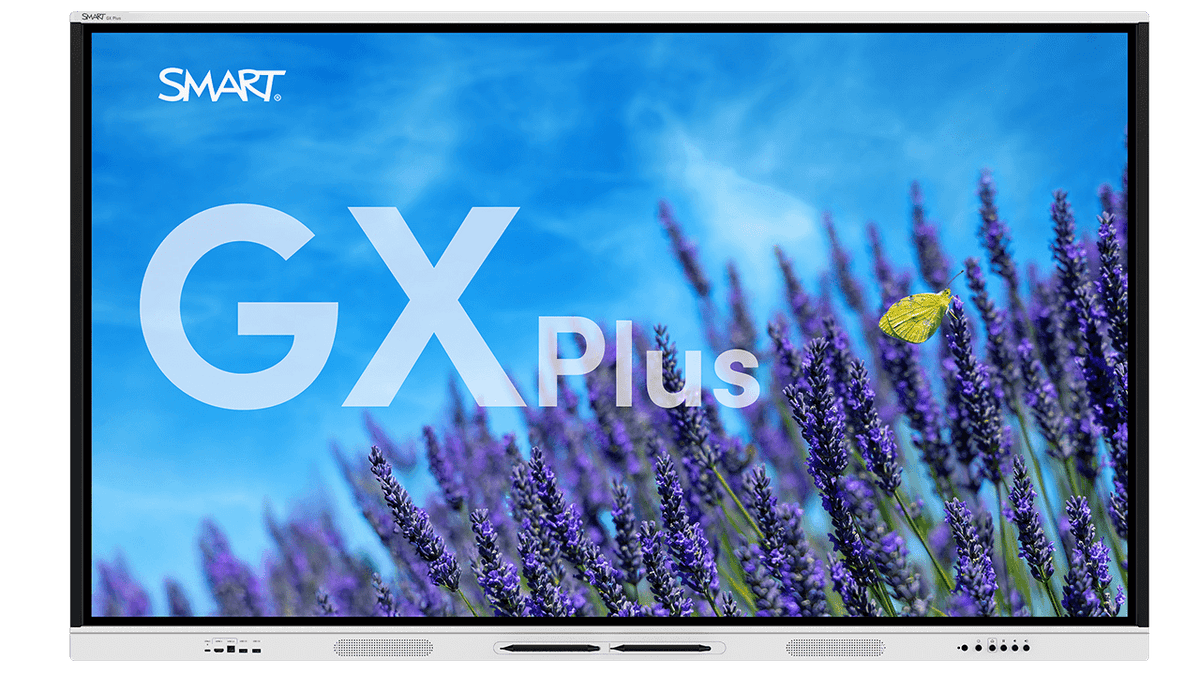

SMART GX086-V4 Plus: 86 Inch 4K Interactive Display
Model GX086-V4 Plus
Request a Quote
Availability: Out of Stock
- 86-inch 4K UHD LED display at 400 cd/m²
- Up to 50 touch points with HyPr Touch and Advanced IR
- Embedded Android 14 built in
- Audio: 2 integrated 20 W speakers with high-fidelity audio
Product Overview
Overview
The SMART Board GX086-V4 Plus is an 86-inch 4K UHD interactive display with up to 50-point touch and Embedded Android 14 built in, made for classrooms, training rooms and meeting spaces.
Specification highlights for the GX086-V4 Plus: Screen size (diagonal): 86 inch; Maximum display resolution: 4K UHD (3840 × 2160); Brightness: 400 cd/m² (individual displays can vary). Corporate AV supplies and integrates the GX086-V4 Plus across India for classrooms, training rooms and meeting spaces, including site survey, installation and commissioning where the project needs it.
Key features
- 86-inch 4K UHD LED display at 400 cd/m²
- Up to 50 touch points with HyPr Touch and Advanced IR
- Embedded Android 14 built in
- Audio: 2 integrated 20 W speakers with high-fidelity audio
- Wireless: (Wi-Fi 6) and Bluetooth 5.2
- OPS slot for SMART PCM modules (up to 65 W)
Why choose the GX086-V4 Plus
It puts an 86-inch 4K UHD touch display with up to 50-point touch in the room, so a classroom or meeting can present, annotate and collaborate on one screen. Corporate AV checks the room, mounting surface, power and network during a site survey, so the GX086-V4 Plus is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights
Key Benefits
86-inch 4K UHD LED display at 400 cd/m²
Up to 50 touch points with HyPr Touch and Advanced IR
Embedded Android 14 built in
Audio: 2 integrated 20 W speakers with high-fidelity audio
Wireless: (Wi-Fi 6) and Bluetooth 5.2
Use Cases
Ideal Applications
Classrooms & Training Rooms
Meeting & Huddle Rooms
Technical Details
Technical Specifications
Display
Screen size (diagonal)
86 inch
Backlight
LED
Aspect ratio
16:9
Maximum display resolution
4K UHD (3840 × 2160)
Refresh rate
60 Hz
Lifespan
50,000 hours
Brightness
400 cd/m² (individual displays can vary)
Display response time
8 ms
Viewing angle
178°
Glass
Full heat-tempered | Anti-glare | Anti-fingerprint | Bonded
Frame color
White
Convenience buttons
Power | Home | Volume | Input select | Freeze frame
Sensors
Ambient light | Infrared
Audio
Speakers
2 integrated 20 W speakers with high-fidelity audio
Interactive experience
Touch technology
Advanced infrared
Touch features
Simultaneous tool differentiation | Object Awareness | Silktouch
Typical touch response time
2.5 ms
Frame rate
400 Hz
Accuracy
1 mm
Minimum object size
2 mm
Multitouch capabilities
Up to 50 touch points (operating system dependent)
Tools included
Pens (×2)
Tool holders
Magnetic | Frame-mounted
Software and operating system
Operating system
Embedded Android, version 14.0 (forward compatible)
CPU
Octa-core
Memory
8 GB DDR4
Storage
64 GB (up to 576 GB)
Software included
SMART Mirror | SMART Notebook | SMART Product Drivers and SMART Ink
Software optional
SMART Notebook Plus | Lumio | SMART Meeting Pro | SMART TeamWorks | SMART Remote Management
Updates
Over-the-air (OTA)
Connectivity
Inputs
HDMI 2.1 4K @ 60 Hz with HDCP 1.4, 2.2/2.3 and ARC (HDMI 1 input) | DisplayPort 1.4a | VGA | RS-232 | RJ45 LAN in | USB Type-C 4K @ 60 Hz (up to 65 W power delivery) | USB 2.0 Type-A | USB 3.2 Gen 1 Type-A | 3.5 mm stereo | microSD slot
Outputs
HDMI 2.1 4K @ 60 Hz | USB Type-C 4K @ 60 Hz | 3.5 mm stereo | S/PDIF optical | RJ45 LAN out
Wired network
RJ45 (×2) 1000BASE-T
Wi-Fi
IEEE 802.11ax (Wi-Fi 6)
Bluetooth
5.2
OPS slot
OPS PC accessory slot for SMART PCM modules (up to 65 W)
Physical
Weight
51 kg (113 lb)
VESA mount
M8 | 800 × 600 mm
Handles
2
In The Box
What's Included
Country-specific power cable
USB 2.0 A to B cable, 5 m
USB 3.2 Gen 1 Type-C cable, 1.8 m
Pens (×2)
External dual-band (2.4 and 5 GHz) Wi-Fi and Bluetooth antennas (×2)
Remote control
AAA batteries (×2)
Illustrated installation instructions
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The GX086-V4 Plus From Corporate AV?
- Genuine SMART stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs SMART products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
How bright is the SMART GX086-V4 Plus?
SMART lists the brightness of the GX086-V4 Plus as: 400 cd/m² (individual displays can vary).
What resolution does the SMART GX086-V4 Plus have?
SMART lists the resolution of the GX086-V4 Plus as: 4K UHD (3840 × 2160).
What touch technology does the SMART GX086-V4 Plus use?
SMART lists the touch technology of the GX086-V4 Plus as: Advanced infrared.
How many touch points does the SMART GX086-V4 Plus support?
SMART lists the touch capability of the GX086-V4 Plus as: Up to 50 touch points (operating system dependent).
What operating system does the SMART GX086-V4 Plus run?
SMART lists the operating system of the GX086-V4 Plus as: Embedded Android, version 14.0 (forward compatible).
Does Corporate AV install the SMART GX086-V4 Plus?
Yes. Corporate AV can supply the GX086-V4 Plus only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the SMART GX086-V4 Plus in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
