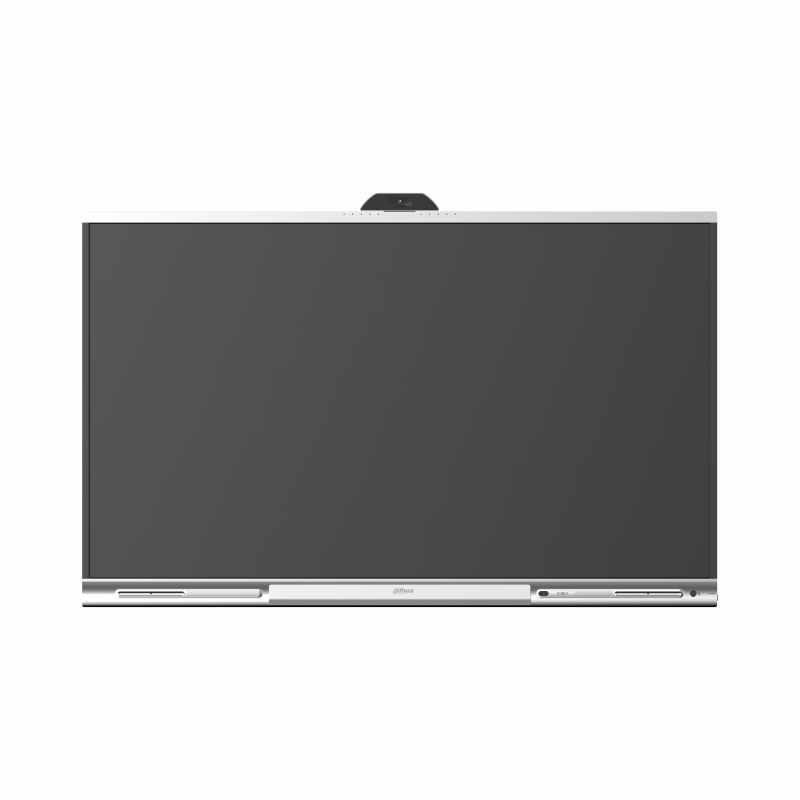

Dahua LPH98-MC470-P-S2: 98 Inch Interactive Display
Model LPH98-MC470-P-S2
Request a Quote
Availability: Out of Stock
- 98-Inch 4K Display: Ultra-large UHD screen offers stunning visuals and ample space for collaboration
- Multi-Touch Technology: Supports multiple users interacting simultaneously for dynamic teamwork
- Anti-Glare Tempered Glass: Reduces reflections and provides a smooth, durable writing surface
- Wireless Screen Sharing: Easily connect and share content from laptops, tablets, and smartphones
Product Overview
Overview
The Dahua LPH98-MC470-P-S2 is a 98 inch interactive display. With its expansive 98-inch touchscreen display, this interactive whiteboard delivers exceptional clarity and vivid colors, making presentations engaging and easy to follow. The 4K Ultra HD resolution ensures every detail is crisp, while the advanced multi-touch technology enables seamless and intuitive collaboration.
Corporate AV supplies, installs and supports the Dahua LPH98-MC470-P-S2 across India. Request a quote for supply, installation and commissioning.
Key features
- 98-Inch 4K Display - Ultra-large UHD screen offers stunning visuals and ample space for collaboration.
- Multi-Touch Technology - Supports multiple users interacting simultaneously for dynamic teamwork.
- Anti-Glare Tempered Glass - Reduces reflections and provides a smooth, durable writing surface.
- Wireless Screen Sharing - Easily connect and share content from laptops, tablets, and smartphones.
- Real-Time Annotation - Write, draw, and highlight directly on the screen for interactive presentations.
- Integrated Operating System - Built-in OS supports a variety of applications and seamless device management.
- Multiple Connectivity Options - HDMI, USB, and network ports for versatile device integration.
- Powerful Audio System - Built-in speakers deliver clear, room-filling sound.
Why choose the LPH98-MC470-P-S2
It is a 98 inch interactive display for presentations, whiteboarding and collaboration in meeting rooms and classrooms. Corporate AV adds a site survey, installation and support across India, so the LPH98-MC470-P-S2 is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
98-Inch 4K Display: Ultra-large UHD screen offers stunning visuals and ample space for collaboration
Multi-Touch Technology: Supports multiple users interacting simultaneously for dynamic teamwork
Anti-Glare Tempered Glass: Reduces reflections and provides a smooth, durable writing surface
Wireless Screen Sharing: Easily connect and share content from laptops, tablets, and smartphones
Real-Time Annotation: Write, draw, and highlight directly on the screen for interactive presentations
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Screen Size
98 inch
Backlight
DLED
Aspect Ratio
16:9
Brightness
450 cd/m² (typ.)
Resolution
3840 (H) × 2160 (V)
Viewing Angle
H (178°) / V (178°)
Lifespan
≥50,000 hr
Display Color
90% NTSC (typ.)
Refresh Rate
60 Hz
Static Contrast Ratio
1200 (typ.)
System
Operating System
Android 14
CPU
Quad-core A73 + Quad-core A53
CPU Frequency
2.2 GHz + 2.0 GHz
GPU
ARM Mali-G52 MP8 (8EE)
RAM
20 GB (System: 16 GB, Camera: 4 GB)
ROM
128 GB
NFC
Supports quick unlock via NFC
Audio
Number of Cavities
3
Frequency
150 Hz–20 kHz
Power
2.1 channel, front-end 2 × 20 W + rear-end 20 W
Built-in Speaker
3
Media functions
Operating System of External Module
Windows 7/8/10/11
Wi-Fi Hotspot
Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time
Connectivity
Light Sensor
1
Front Button
1 × power button (right side)
Front Ports
1 × USB 3.2 Gen1 (left side)
Network Port
1 × RJ-45
Wi-Fi
Yes, 1 × Station, 1 × AP
Wi-Fi Standard
Station: 802.11b/g/n/a/ac AP: 802.11b/g/n/a/ac/ax
Wi-Fi Frequency Range
2400–2483.5 MHz, 5150–5350 MHz, 5470–5725 MHz, 5725–5850 MHz
MAX Power Transmission (Wi-Fi)
≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz
Bluetooth
Yes
Bluetooth Standard
BR/EDR/BLE, BT5.3
Bluetooth Frequency Range
2400–2483.5 MHz
MAX Power Transmission (Bluetooth)
≤20 dBm@2400–2483.5 MHz
RFID Modulation Method
ASK
RFID Frequency Range
13.56 MHz
MAX Power Transmission (RFID)
42dBuA/m @10 m
USB
3 × USB 3.2 Gen1 Type-A; 1 × Micro USB 2.0
RS-232
1 × DB9 port, male connector
Video Input
2 × HDMI 2.0 (4K@60 Hz)
Video Output
1× HDMI 2.0 (4K@60 Hz)
Audio Output
1 × 3.5 mm Line Out port; 1 × SPDIF port
Others
1 × Touch port
IrDA
1
Microphone
16 arrays
Type-C Port
1 × Type-C IN (DP IN (4K60 fps) + USB 3.2 Gen1 HOST+ USB 2.0 Device (touch) + PD 65 W)
General
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
555 W (basic), 600 W (max)
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–90% (RH), non-condensing
Storage Humidity
10%–90% (RH), non-condensing
Product Material
Metal casing
Protective Glass
3.2 mm Anti-dazzle tempered glass
Casing Color (Frame/Rear)
Black on the left and right, Starry Gray on the top and bottom.
Product Dimensions
2,218.3 mm × 110.2 mm × 1,383.6 mm (87.20" × 4.34" × 54.49") (L × W × H)
Frame Size
Top border: 28.6 mm (1.13"), left and right borders: 17.9 mm (0.70"), bottom border: 69.6 mm (2.74")
Net Weight
102 kg (224.87 lb)
Holes Distance
1,000 mm × 400 mm (39.37" × 15.75")
Installation
Wall mount; mobile bracket
Standby Power Consumption
≤0.5 W
Packing List
1 × Smart interactive whiteboard 1 × Power cord 2 × Stylus pen 1 × Quick start guide 1 × Wall mount bracket 1 × Remote control 1 × Legal and Regulatory Information 1 × Wall-mount screw pack
Glass Thickness
3.2 mm (0.13")
Other specifications
Category
Interactive Display, Dahua
Touchscreen
Response Time
≤4 ms
Touch Technology
Infrared
Touch Points
32 on Android, 50 on Windows
Valid Touch
1.5 mm (0.06") (over 90% touch area)
Writing Mode
Finger + Pen (attaches magnetically)
Anti-light Interference
Anti-dazzle tempered glass
Surface Hardness
≥9H
Touch Resolution
32767 × 32767
Number of Multi-user Writing Points
10 points (over 90% touch area)
Camera
Camera
Android: Photo: 52 MP; Video: 8 MP Windows: Photo: 8 MP; Video: 8 MP
Auto Control
Auto flip; Auto white balance
Distortion
–8.6%
Max. Resolution
Photo: 9632 (H) × 5418 (V); Video: 3840 (H) × 2160 (V)
Storage
8GB eMMC
Field of View
H: 87°; V: 49°; D: 99°
Face Detection
Yes
Digital Zoom
Yes, supports up to 9x digital zoom.
Fingerprint
Fingerprint Capacity
100
Fingerprint Resolution
160 × 160
FAR
<0.001%
Microphone
Pick-up Distance
Far-field sound pickup: 8 m–12 m (26.25 ft–39.37 ft)
Number of Microphones
16 arrays
AGC
Yes
Echo Cancellation
Yes
Polar Pattern
Omnidirectional
Intelligent Noise Filtering
YES
