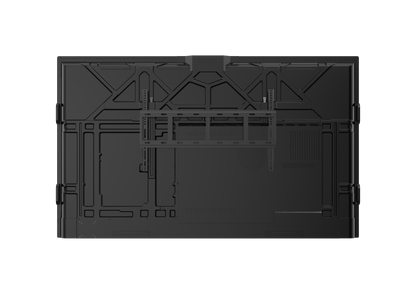

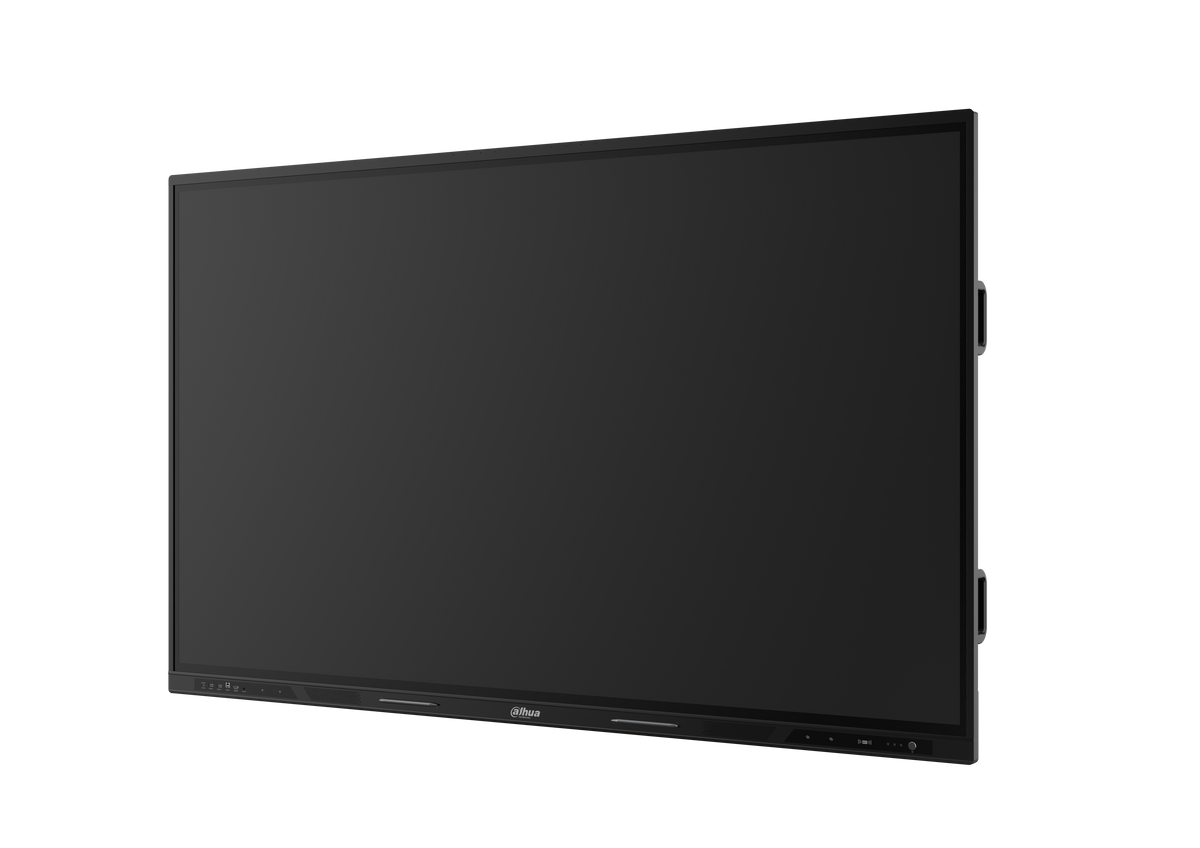

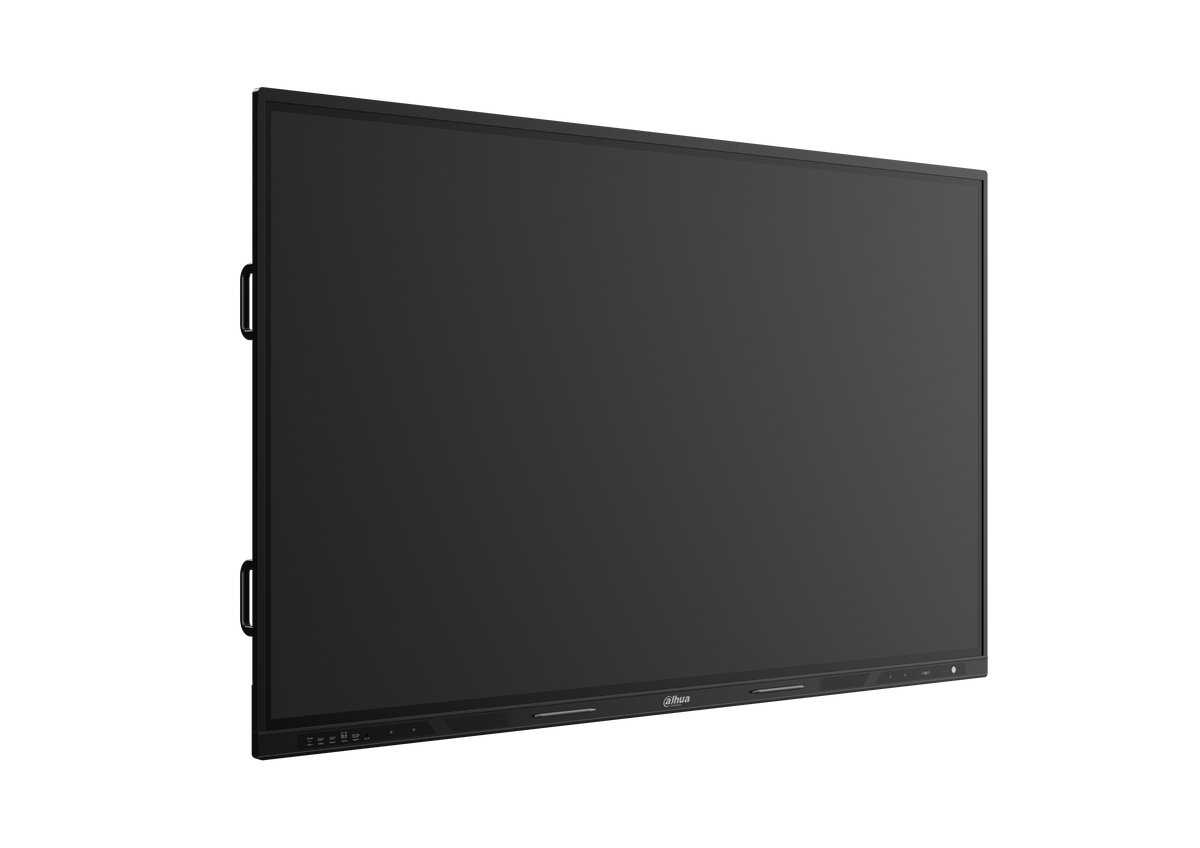

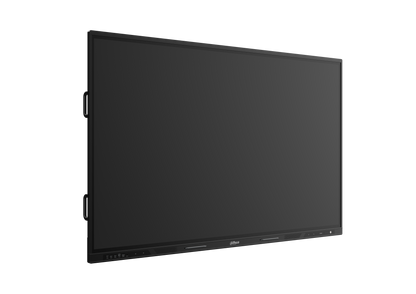

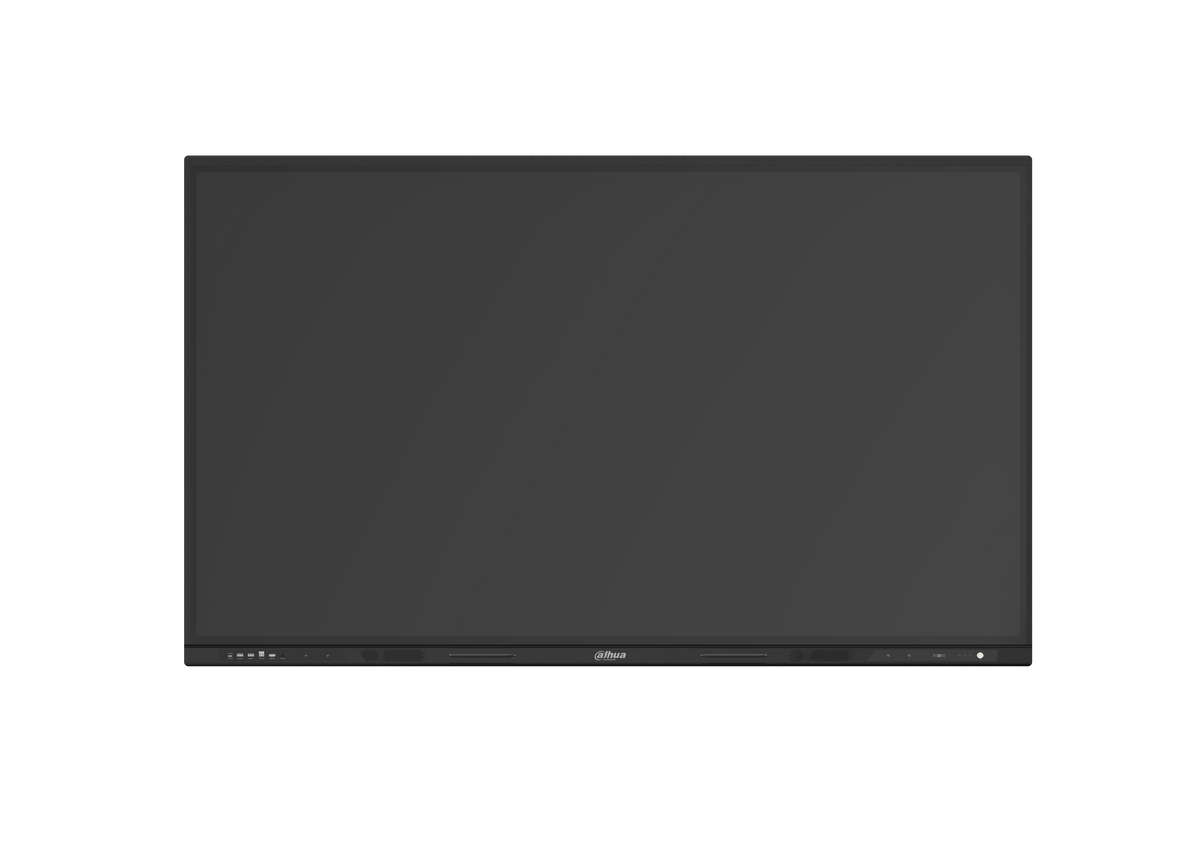

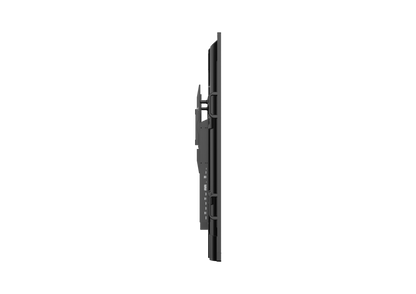

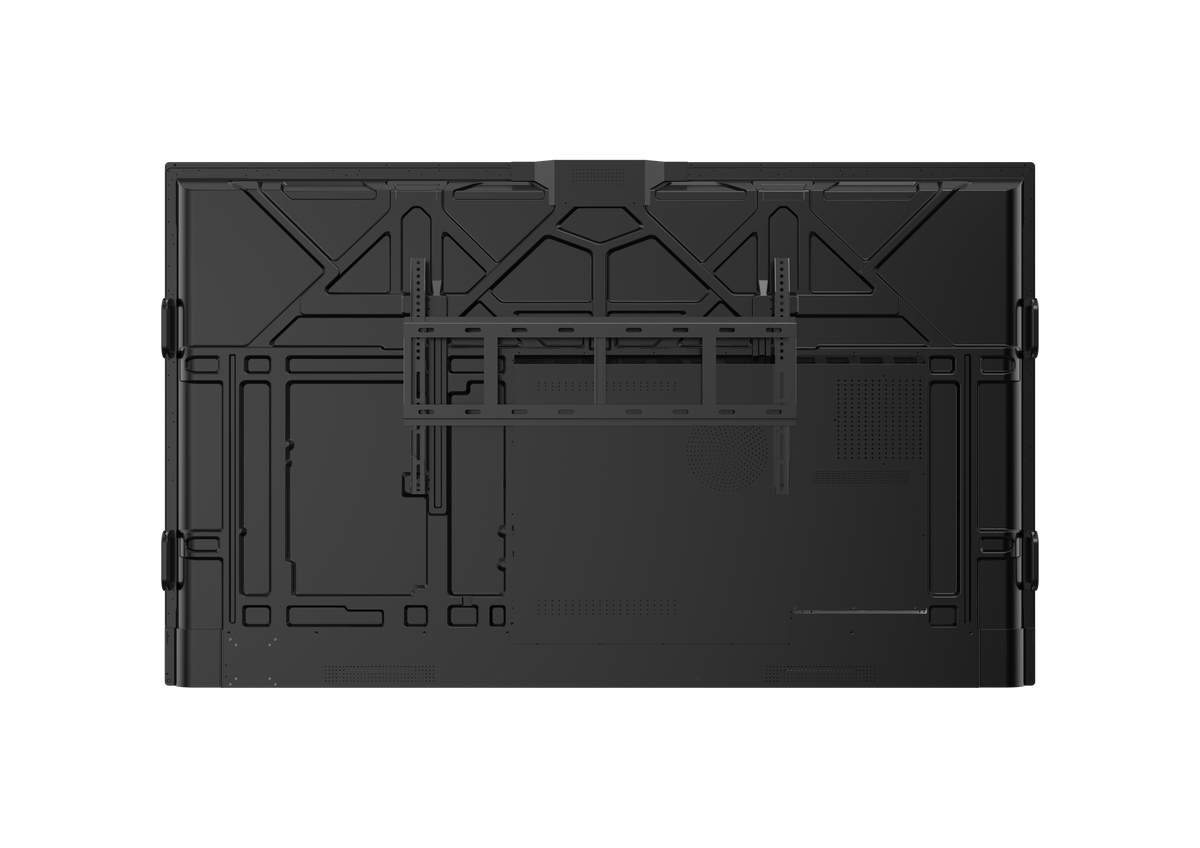

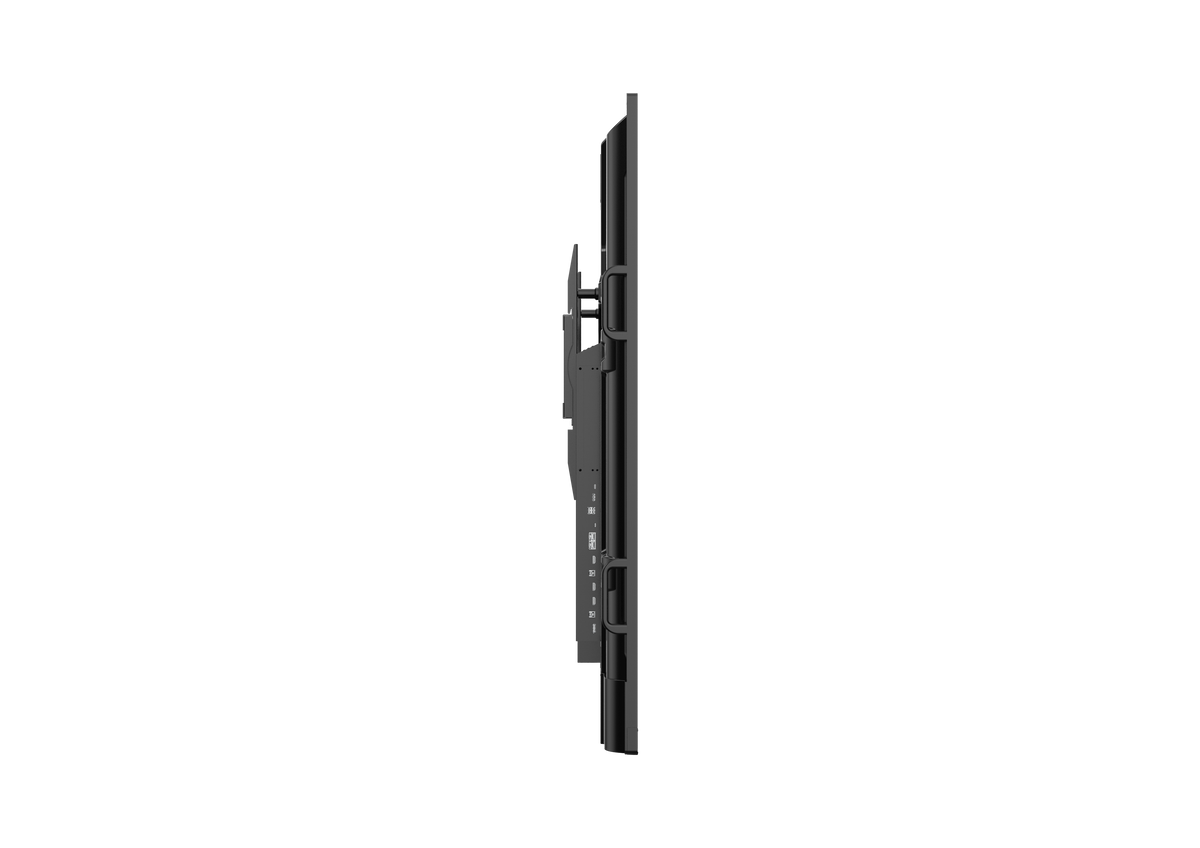

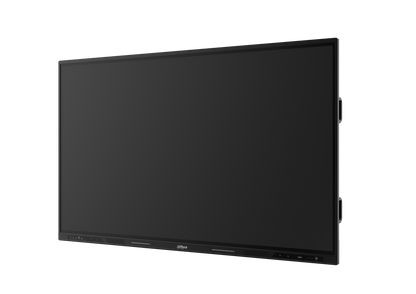

Dahua LPH86-ST473: 86 Inch Interactive Display
Model LPH86-ST473
Request a Quote
Availability: Out of Stock
- 86-Inch 4K UHD Display: Offers stunning clarity for immersive presentations and detailed visuals
- Anti-Glare, Anti-Fingerprint Glass: Keeps the screen clear and easy to view in any lighting condition
- Smart Annotation Tools: Built-in software for easy note-taking, drawing, and document editing
- Wide Device Compatibility: Connects with laptops, tablets, smartphones, and USB drives for flexible usage
Product Overview
Overview
The Dahua LPH86-ST473 is an 86 inch interactive display. With its expansive 86-inch 4K UHD display, this interactive whiteboard transforms presentations and brainstorming sessions, offering crystal-clear visuals and ultra-responsive touchscreen capabilities. Designed for seamless integration into any workspace, the LPH86-ST473 supports multi-user interaction, making it perfect for educational institutions, corporate boardrooms, and creative environments.
Corporate AV supplies, installs and supports the Dahua LPH86-ST473 across India. Request a quote for supply, installation and commissioning.
Key features
- 86-Inch 4K UHD Display - Offers stunning clarity for immersive presentations and detailed visuals.
- Anti-Glare, Anti-Fingerprint Glass - Keeps the screen clear and easy to view in any lighting condition.
- Integrated Wireless Connectivity - Effortlessly connects to devices for seamless screen sharing and collaboration.
- Smart Annotation Tools - Built-in software for easy note-taking, drawing, and document editing.
- Wide Device Compatibility - Connects with laptops, tablets, smartphones, and USB drives for flexible usage.
- Durable Construction - Designed for heavy daily use in classrooms and meeting spaces.
- Energy-Efficient Performance - Consumes less power without compromising brightness or functionality.
Why choose the LPH86-ST473
It is a 86 inch interactive display for presentations, whiteboarding and collaboration in meeting rooms and classrooms. Corporate AV adds a site survey, installation and support across India, so the LPH86-ST473 is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
86-Inch 4K UHD Display: Offers stunning clarity for immersive presentations and detailed visuals
Anti-Glare, Anti-Fingerprint Glass: Keeps the screen clear and easy to view in any lighting condition
Smart Annotation Tools: Built-in software for easy note-taking, drawing, and document editing
Wide Device Compatibility: Connects with laptops, tablets, smartphones, and USB drives for flexible usage
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Panel Dimensions
86 inch
Backlight
DLED
Aspect Ratio
16:9
Brightness
400 cd/m² (typ.)
Static Contrast
VA: 4000 (typ.), IPS: 1200 (typ.)
Resolution
3840 (H) × 2160 (V)
Viewing Angle
178° (H)/178° (V)
Lifespan
50,000 hrs
Display Color
1.07G /10 bit (8 bit + FRC)
Refresh Rate
60 Hz
System
Operating System
Android 14
CPU
Quad-core A73 + Quad-core A53
CPU Frequency
2.2 GHz + 2.0 GHz
GPU
ARM Mali-G52 MP8 (8EE)
RAM
8 GB
ROM
128 GB
Audio
Built-in Speaker
2 full-range speakers and 1 low-frequency speaker The power of a single speaker is not less than 20W
Power
2.1 sound channel, front-end: 2 × 20 W and back-end: 20 W
Frequency
20 Hz–20 kHz
Media functions
IR Receiver
1
Card Swiping with NFC
Yes
Wireless Access Point
WIFI 6, 2.4 GHz/5 GHz；Supports enabling Hotspot and Wi-Fi at the same time
Connectivity
Light Sensor
Yes
Front Button
1 × power supply button
Front Ports
1 × Type C (4K@60 Hz, Touch, 65 W, Net); 2 × USB 3.0 Type A; 1 × USB 3.0 Type-B (Touch); 1 × HDMI In (4K@60 Hz); 1 × Mic In (3.5 mm port)
Wi-Fi
Yes
Wi-Fi Standard
Wi-Fi Station 802.11b/g/n/a/ac/ax Wi-Fi AP 802.11b/g/n/a/ac/ax
Wi-Fi Frequency Range
2400–2483.5 MHz, 5150-5350 MHz, 5470–5725 MHz, 5725–5850 MHz
MAX Power Transmission (Wi-Fi)
CE EIRP: ≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz
Bluetooth
Yes
Bluetooth Standard
BR/EDR/BLE (Bluetooth mode) BT5.2 (Bluetooth version)
Bluetooth Frequency Range
2400–2483.5M Hz
MAX Power Transmission (Bluetooth)
CE EIRP: ≤20 dBm@2400–2483.5 MHz
RFID Modulation Method
ASK
RFID Frequency Range
13.56 MHz
MAX Power Transmission (RFID)
CE: 13.56 MHz: 42dBuA/m @10 m
General
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
250 W (basic); 450 W (max)
Standby Power Consumption
≤0.5 W
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature
–10 °C to +50 °C (+14 °F to +122 °F)
Operating Humidity
10%–90% (RH)
Storage Humidity
10%–90% (RH)
Product Material
Metal
Glass
3.2 mm Anti-dazzle tempered glass
Casing Color (Frame/Rear)
Frame: Black for left and right, top and bottom as well as back cover
Product Dimensions
1,953.4 mm × 142.9 mm × 1,176.2 mm (76.91" × 5.63" × 46.31") (L × W × H)
Net Weight
60 kg (132.28 lb)
Holes Distance
800 mm × 600 mm (31.50" × 23.62")
Installation
Wall mount, mobile bracket
Packing List
1 × Power Cord; 2 × Passive Writing Pen; 1 × HDMI Cable; 1 × Quick Start Guide; Wall-mounted bracket installed on the whiteboard; 1 × Accessory Package; 1 × Remote Control; 1 × Legal and Regulatory Information
Certifications
Certifications
CB, CE, Energy Star, ROHS, REACH, WEEE
Other specifications
Category
Interactive Display, Dahua
Touchscreen
Response Time
8 ms (typ.)
Touch Technology
Capacitive
Attachment Method
Zero Air Gap
Touch Points
32 points for Android and 40 points for Windows
Touch Accuracy
± 2 mm (over 90% area)
Writing Mode
Finger + Pen (attaches magnetically)
Communication Mode
USB
Anti-light Interference
Anti-dazzle tempered glass
Surface Hardness
≥8H
Touch Resolution
32767 × 32767
Camera
Camera
48 MP (Optional)
Auto Control
Auto whitebalance, voice tracking, auto framing
Distortion
–8.6%
Max. Resolution
3840 (H) × 2160 (V)
Field of View
H: 87°, V: 49°, D: 99°
Microphone
Microphone
8 arrays
Pick-up Distance
6 m-10 m (19.69 ft-32.81 ft) pickup
AGC
Yes
Echo Cancellation
Yes
Polar Pattern
Omnidirectional
Intelligent Noise Filtering
Yes
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LPH86-ST473 From Corporate AV?
- Genuine Dahua stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Dahua products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Dahua LPH86-ST473?
The Dahua LPH86-ST473 is an 86 inch interactive display. With its expansive 86-inch 4K UHD display, this interactive whiteboard transforms presentations and brainstorming sessions, offering crystal-clear visuals and ultra-responsive touchscreen capabilities. Designed for seamless integration into any workspace, the LPH86-ST473 supports multi-user interaction, making it perfect for educational institutions, corporate boardrooms, and creative environments.
Who is the Dahua LPH86-ST473 best suited for?
The LPH86-ST473 suits boardrooms and meeting rooms, classrooms and training rooms and digital whiteboarding and brainstorming. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Dahua LPH86-ST473 units for a rollout?
Yes. Corporate AV supplies and integrates the Dahua LPH86-ST473 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Dahua LPH86-ST473 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Dahua LPH86-ST473?
These key specifications are listed for the Dahua LPH86-ST473. Operating System: Android 14. CPU: Quad-core A73 + Quad-core A53. CPU Frequency: 2.2 GHz + 2.0 GHz. RAM: 8 GB. ROM: 128 GB.
