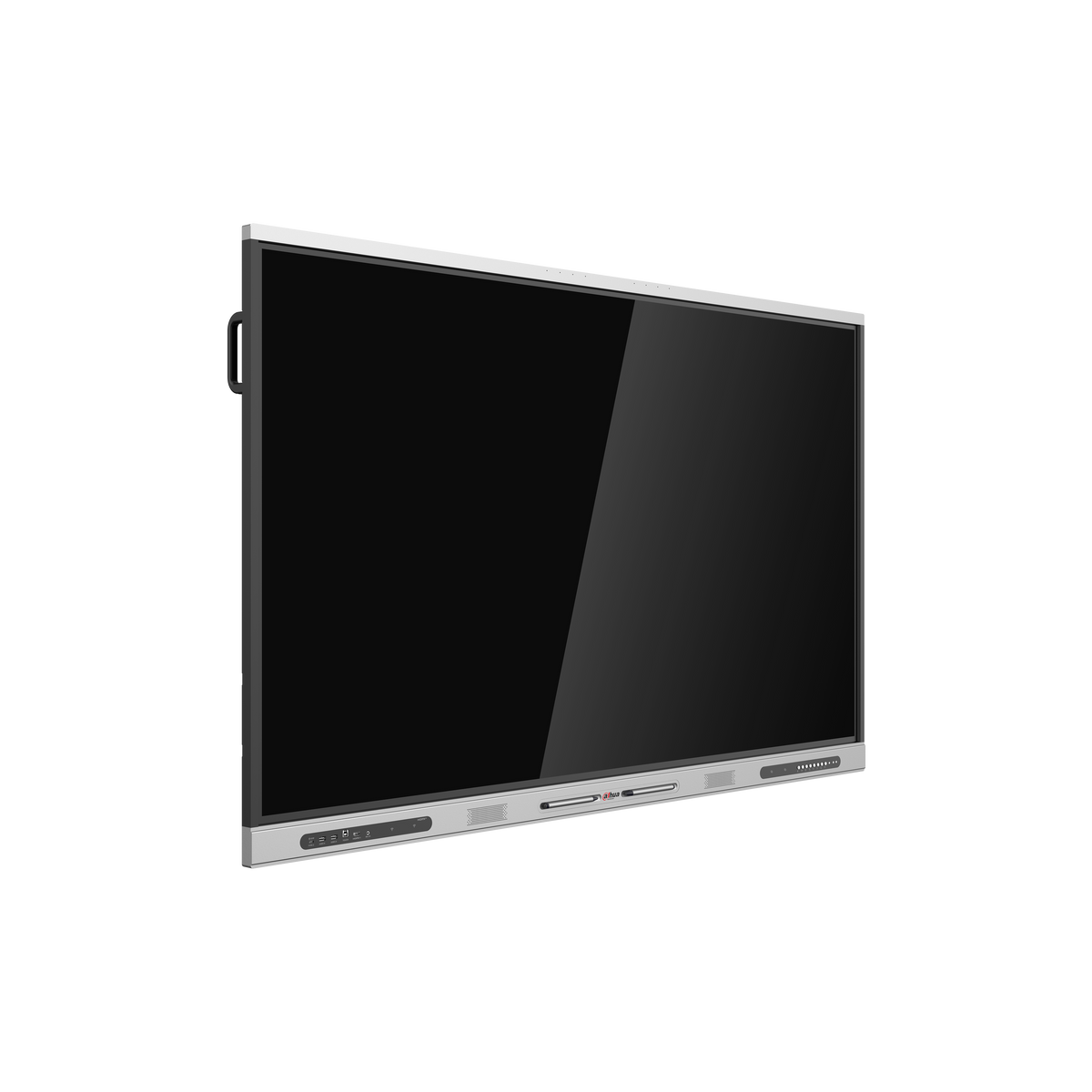

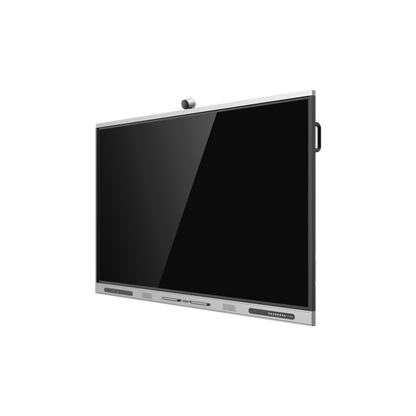

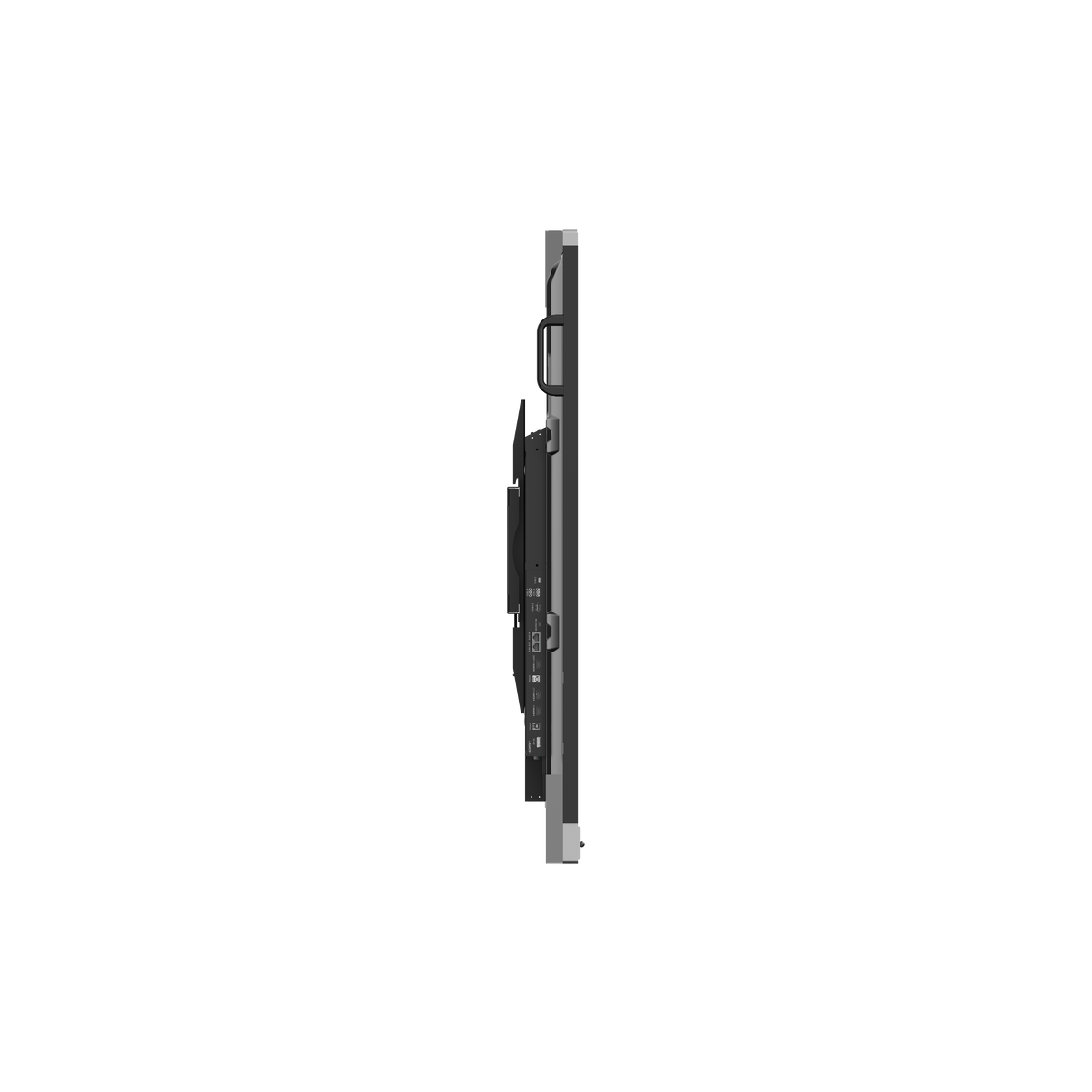

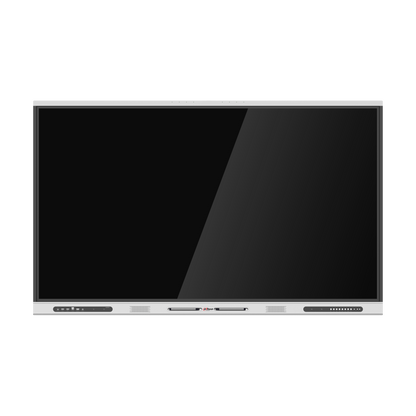

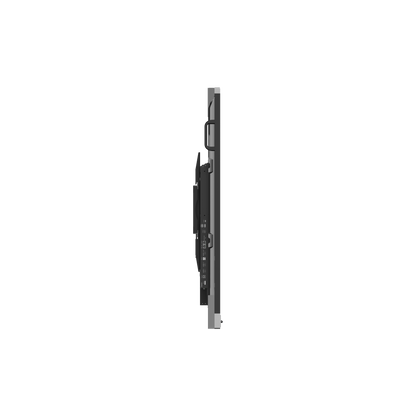

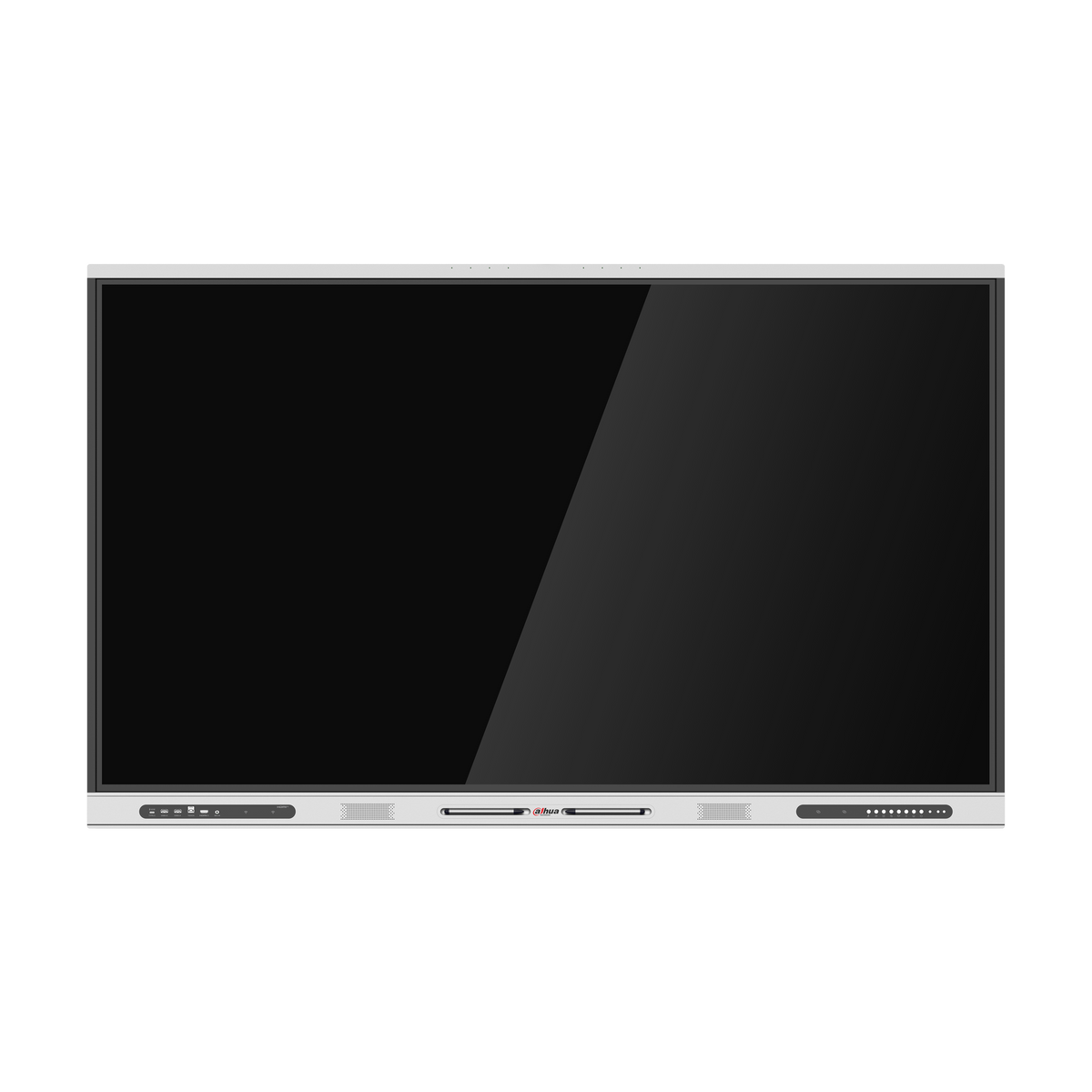

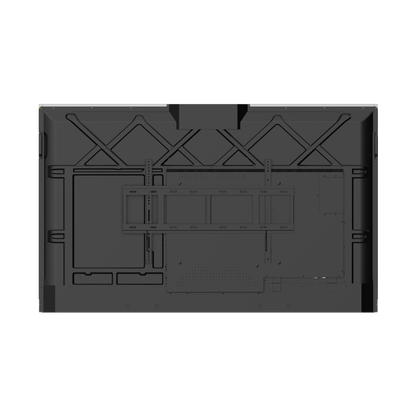

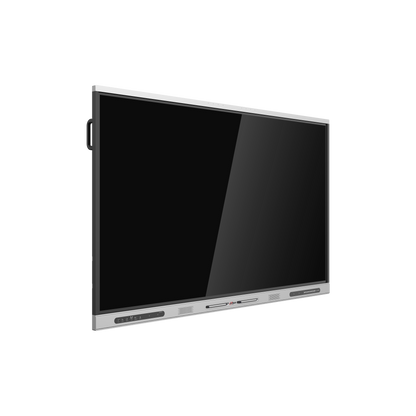

Dahua LPH86-ST470-P: 86 Inch Interactive Display
Model LPH86-ST470-P
Request a Quote
Availability: Out of Stock
- Multi-Touch Capability: Supports multiple users interacting at once, perfect for collaborative work
- Wireless Connectivity: Easily share screens and content wirelessly from any compatible device
- Integrated Whiteboard Software: Includes easy-to-use tools for annotation, drawing, and note-taking
- Anti-Glare Surface: Ensures excellent visibility and reduces reflections under bright lighting
Product Overview
Overview
The Dahua LPH86-ST470-P is an 86 inch interactive display. With its expansive 86-inch 4K UHD display, this smart whiteboard provides a vivid, immersive experience for both teaching and corporate meetings. The intuitive multi-touch technology allows multiple users to interact simultaneously, fostering dynamic group discussions and creative sessions.
Corporate AV supplies, installs and supports the Dahua LPH86-ST470-P across India. Request a quote for supply, installation and commissioning.
Key features
- 86-Inch 4K UHD Display - Offers ultra-high definition visuals for crystal-clear presentations and detailed content.
- Multi-Touch Capability - Supports multiple users interacting at once, perfect for collaborative work.
- Wireless Connectivity - Easily share screens and content wirelessly from any compatible device.
- Integrated Whiteboard Software - Includes easy-to-use tools for annotation, drawing, and note-taking.
- Anti-Glare Surface - Ensures excellent visibility and reduces reflections under bright lighting.
- Seamless Device Compatibility - Works with Windows, macOS, iOS, and Android devices for maximum flexibility.
- Built-In Speakers - Enhances multimedia presentations with high-quality audio output.
- Durable Construction - Designed for long-lasting use in busy educational and corporate settings.
Why choose the LPH86-ST470-P
It is a 86 inch interactive display for presentations, whiteboarding and collaboration in meeting rooms and classrooms. Corporate AV adds a site survey, installation and support across India, so the LPH86-ST470-P is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Multi-Touch Capability: Supports multiple users interacting at once, perfect for collaborative work
Wireless Connectivity: Easily share screens and content wirelessly from any compatible device
Integrated Whiteboard Software: Includes easy-to-use tools for annotation, drawing, and note-taking
Anti-Glare Surface: Ensures excellent visibility and reduces reflections under bright lighting
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Panel Dimensions
65 inch; 75 inch; 86 inch
Backlight
DLED
Aspect Ratio
16:09
Brightness
400 cd/m² (typ.)
Static Contrast
VA: 4000 (typ.); IPS: 1200 (typ.)
Resolution
3840 × 2160
Viewing Angle
178°(H) / 178°(V)
Lifespan
50,000 hours
Display Color
1.07 B/10 bit (8 bit + FRC)
Refresh Rate
60 Hz
System
Operating System
Android 11
CPU
Quad-core A73 + Quad-core A53
CPU Frequency
2.2GHz + 2.0GHz
GPU
ARM Mali-G52 MP8 (8EE)
RAM
8 GB
ROM
64 GB (optional 128 GB)
Audio
Built-in Speaker
3
Power
2.1 channel front-end: 2 × 15 W (Ma×.) Back-end: 20 W (Ma×.)
Frequency
20 kHz–200 kHz
Media functions
IR Receiver
Yes
Bluetooth
Bluetooth 5.2
Wi-Fi
WIFI 5, 2.4 GHz/5 GHz; Integrated Wi-Fi 802.11 a/b/g/n/ac, supports PEAP/EAP-GTC authentication protocol within 802.l×
Wireless Access Point
WIFI 6, 2.4 GHz/5 GHz; Supports enabling hotspot and Wi-Fi at the same time
Connectivity
Light Sensor
Yes
Front Button
8 buttons (power, home, menu, signal source, touch lock, curtain, volume, and annotation)
Front Ports
Type C × 1 (4K@60 Hz, Touch, 65 W) HDMI In × 1 (4K@60 Hz) USB 3.0 Type-B × 1 (Touch) USB 3.0 Type A × 2 Mic In × 1 (3.5 mm port)
General
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
65-inch: 120 W (typ.); 300 W (ma×.); 75-inch: 150 W (typ.); 350 W (ma×.); 86-inch: 250 W (typ.); 500 W (ma×.)
Standby Power Consumption
≤0.5 W
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature
–10 °C to +50 °C (+14 °F to +122 °F)
Operating Humidity
10%–90% (RH)
Storage Humidity
10%–90% (RH)
Product Material
Metal
Glass
4 mm Anti-dazzle tempered glass
Casing Color (Frame/Rear)
Bottom/top: Silver; left/right: black; back: black
Product Dimensions
65-inch: 1,485.2 mm × 93.0 mm × 924.5 mm (58.47" × 3.66" × 36.40") 75-inch: 1,707.5 mm × 93.0 mm × 1,050.0 mm (67.22" × 3.66" × 41.34") 86-inch: 1,953.2 mm × 93.0 mm × 1,187.9 mm (76.90" × 3.66" × 46.77")
Net Weight
65-inch: 42 kg (92.60 lb) 75-inch: 54 kg (119.05 lb) 86-inch: 70 kg (154.33 lb)

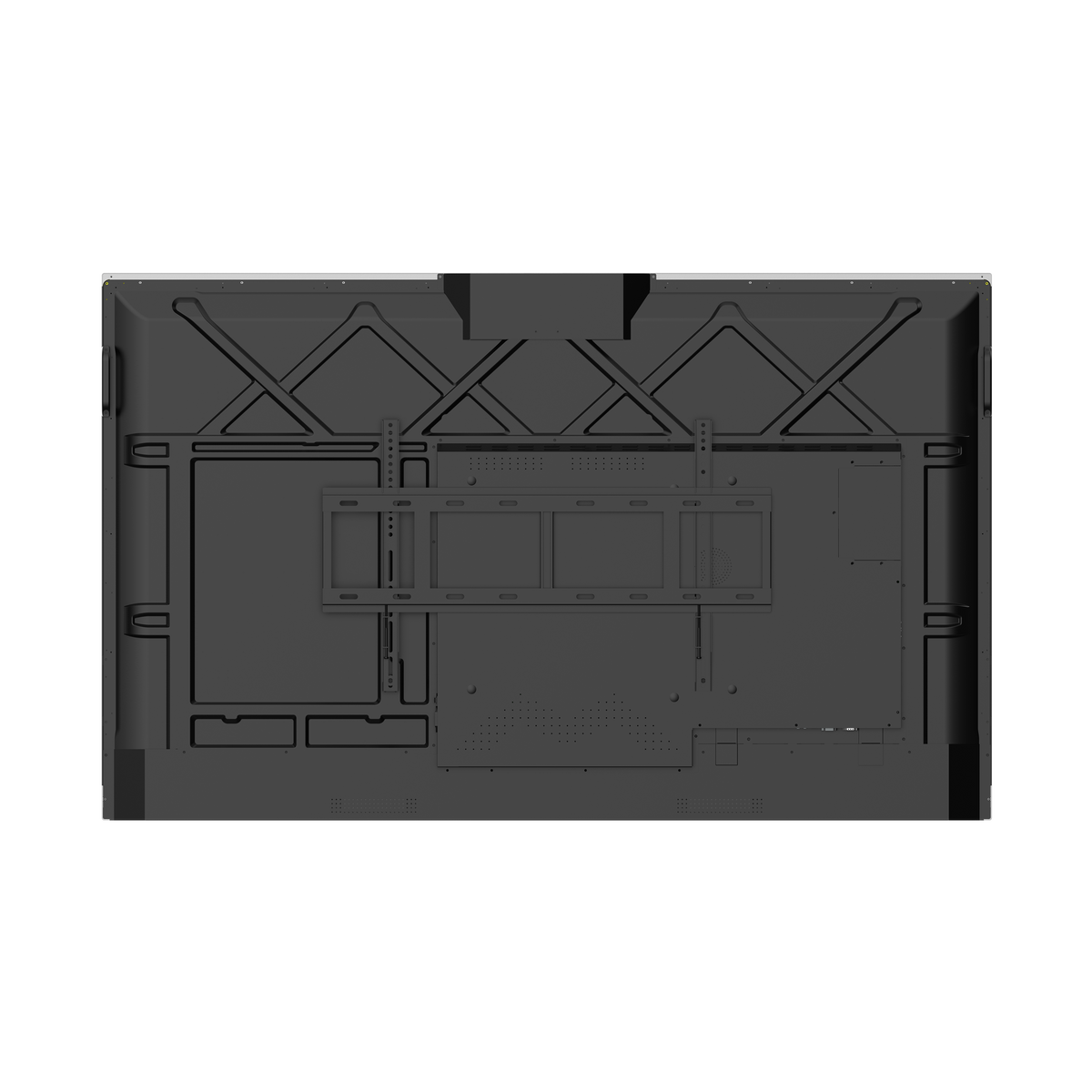

Holes Distance
65-inch: 500 mm × 400 mm (19.69" × 15.75") 75-inch: 600 mm × 400 mm (23.62" × 15.75") 86-inch: 800 mm × 400 mm (31.50" × 15.75")
Installation
Wall mount; mobile bracket
Certifications
Certifications
CB, CE, Energy Star, ROHS, REACH, WEEE
Other specifications
Category
Interactive Display, Dahua
Touchscreen
Response Time
≤10 ms
Touch Technology Type
Infrared touch technology
Attachment Method
Zero Air Gap
Touch Points
Android: 32, Windows: 40
Touch Accuracy
± 1 mm (0.04") (over 90% area)
Valid Touch
2 mm (0.08")
Touch Height
3 mm (0.12")
Writing Mode
Finger + Pen
Communication Mode
USB
Anti-light Interference
Anti-dazzle tempered glass
Surface Hardness
8H
Touch Resolution
32767 × 32767

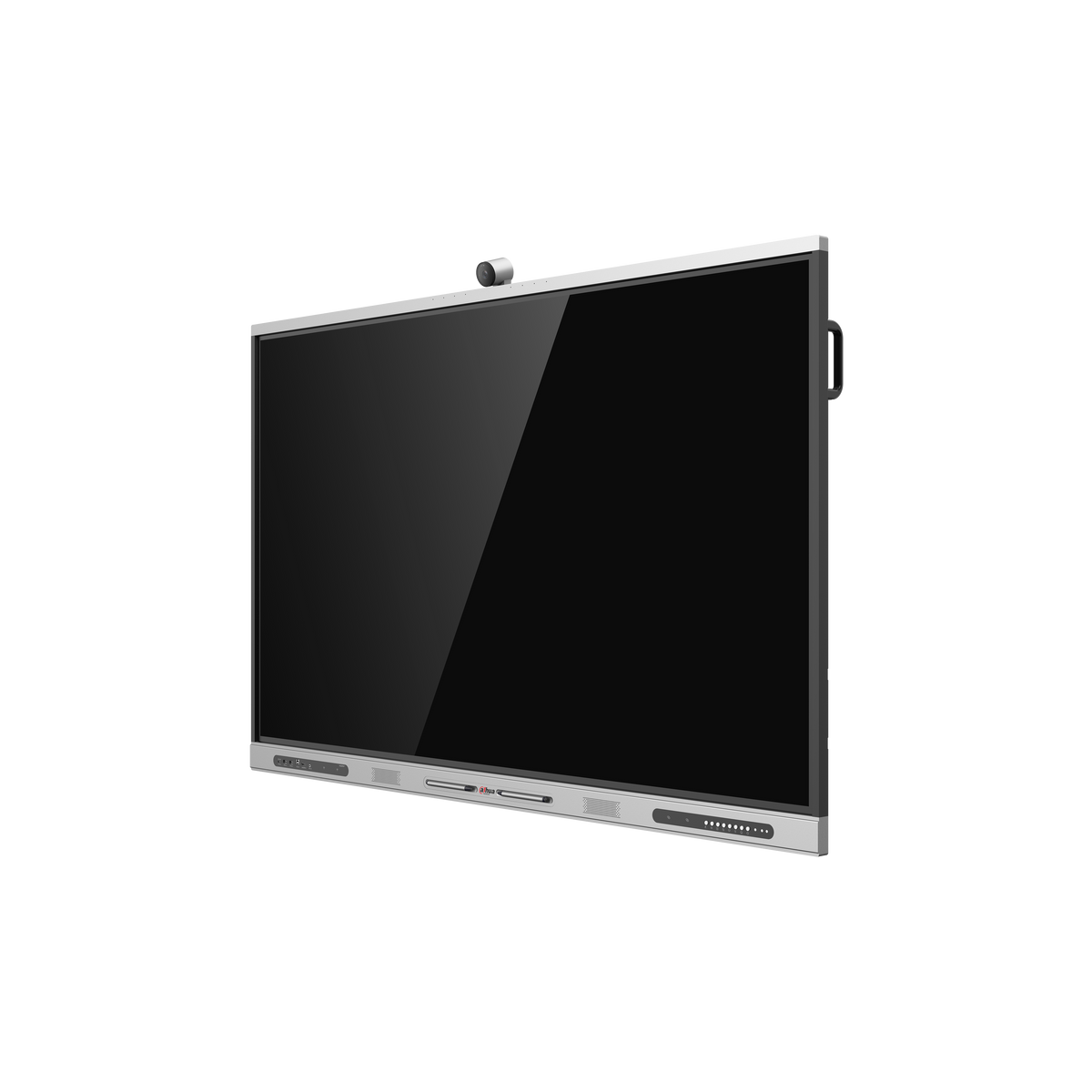

Plug-in Camera (sold separately)
Plug-in Camera
48 MP
Auto Control
Auto white balance
Distortion
–8.6%
Max. Resolution
3840 × 2160@30 fps
Field of View
H: 87°; V: 49°; D: 99°
Microphone
Microphone
8-array
Pick-up Distance
6 m–10 m (19.69 ft–32.81 ft )
AGC
Yes
Echo Cancellation
Yes
Polar Pattern
Omni-directional
Intelligent Noise Filtering
Yes
