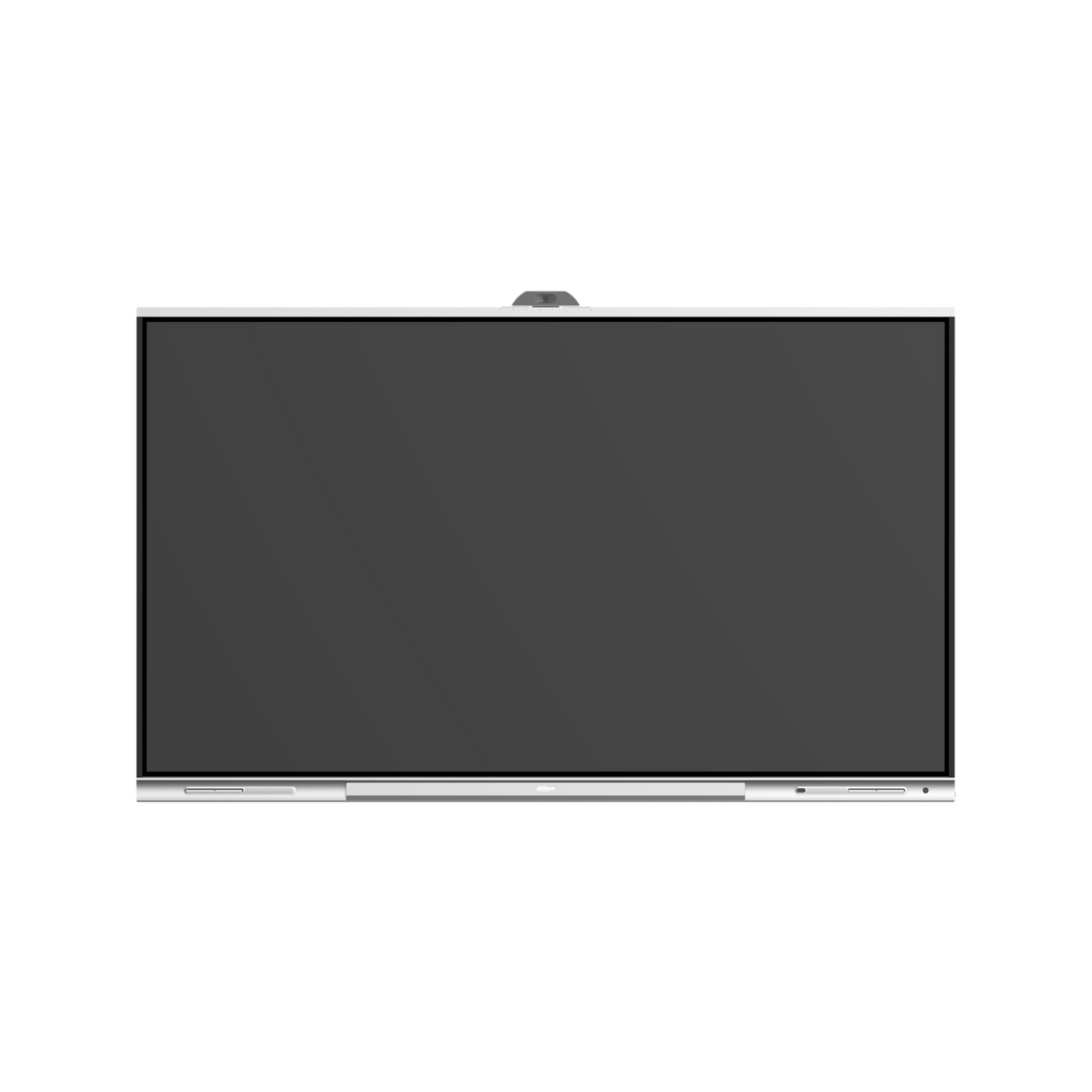

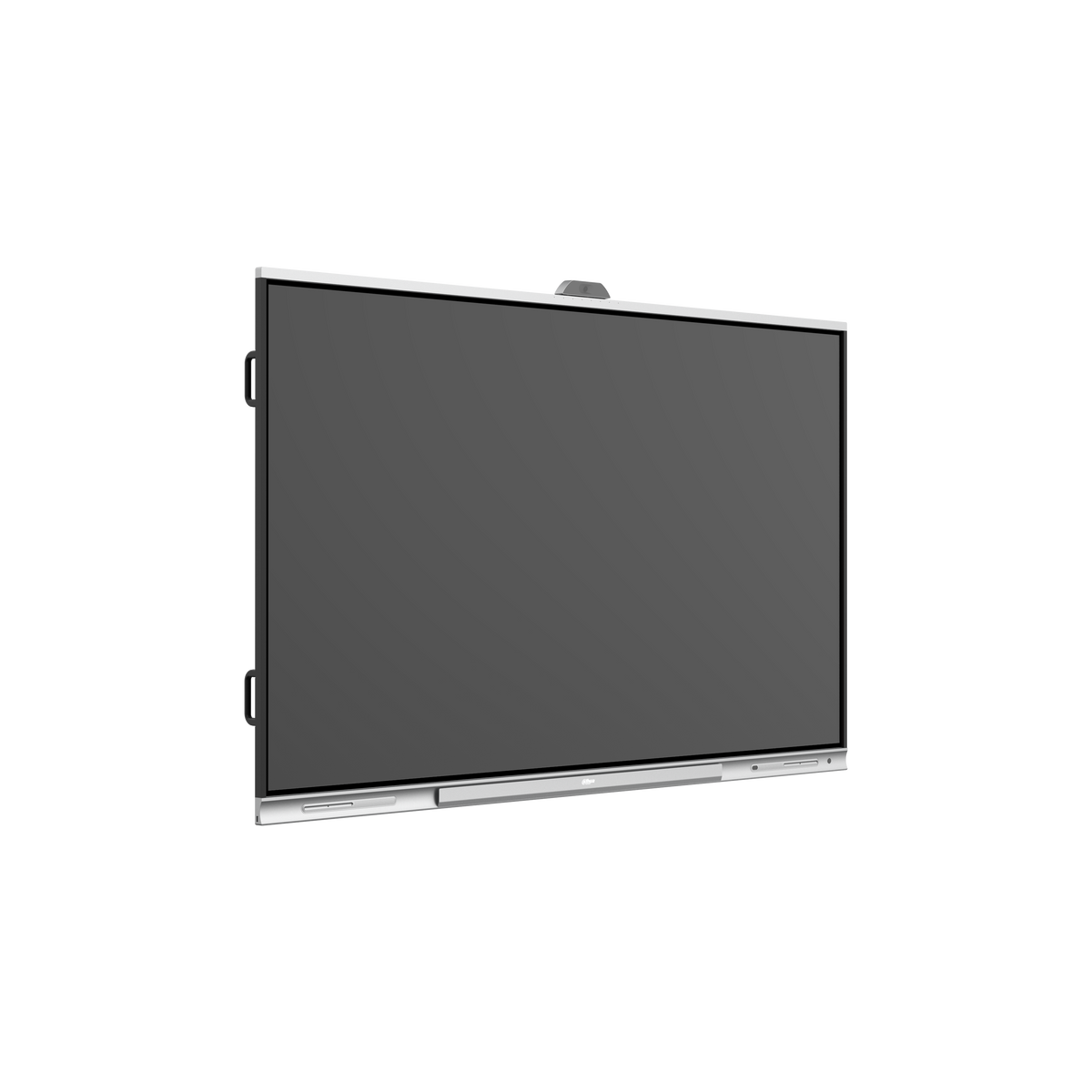

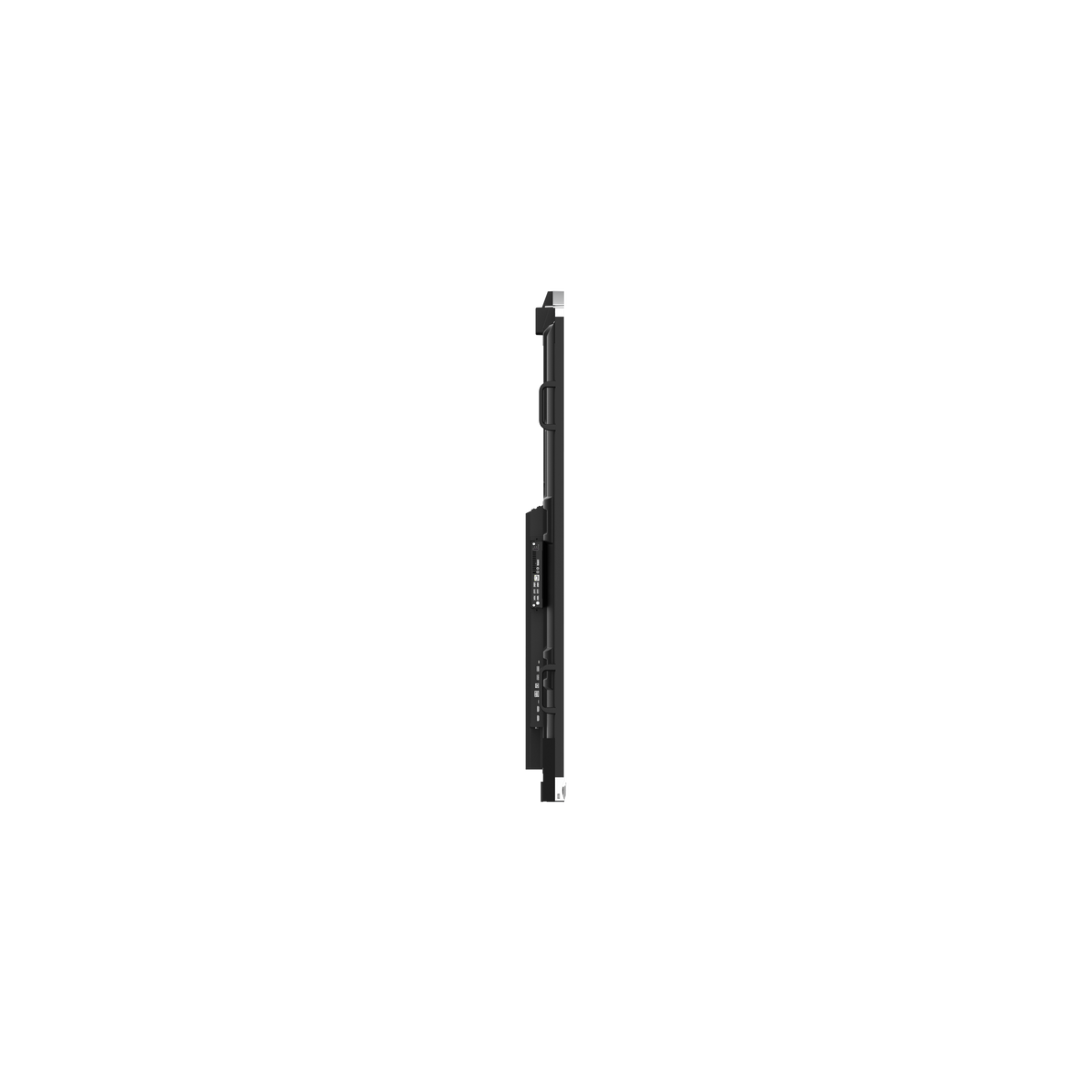

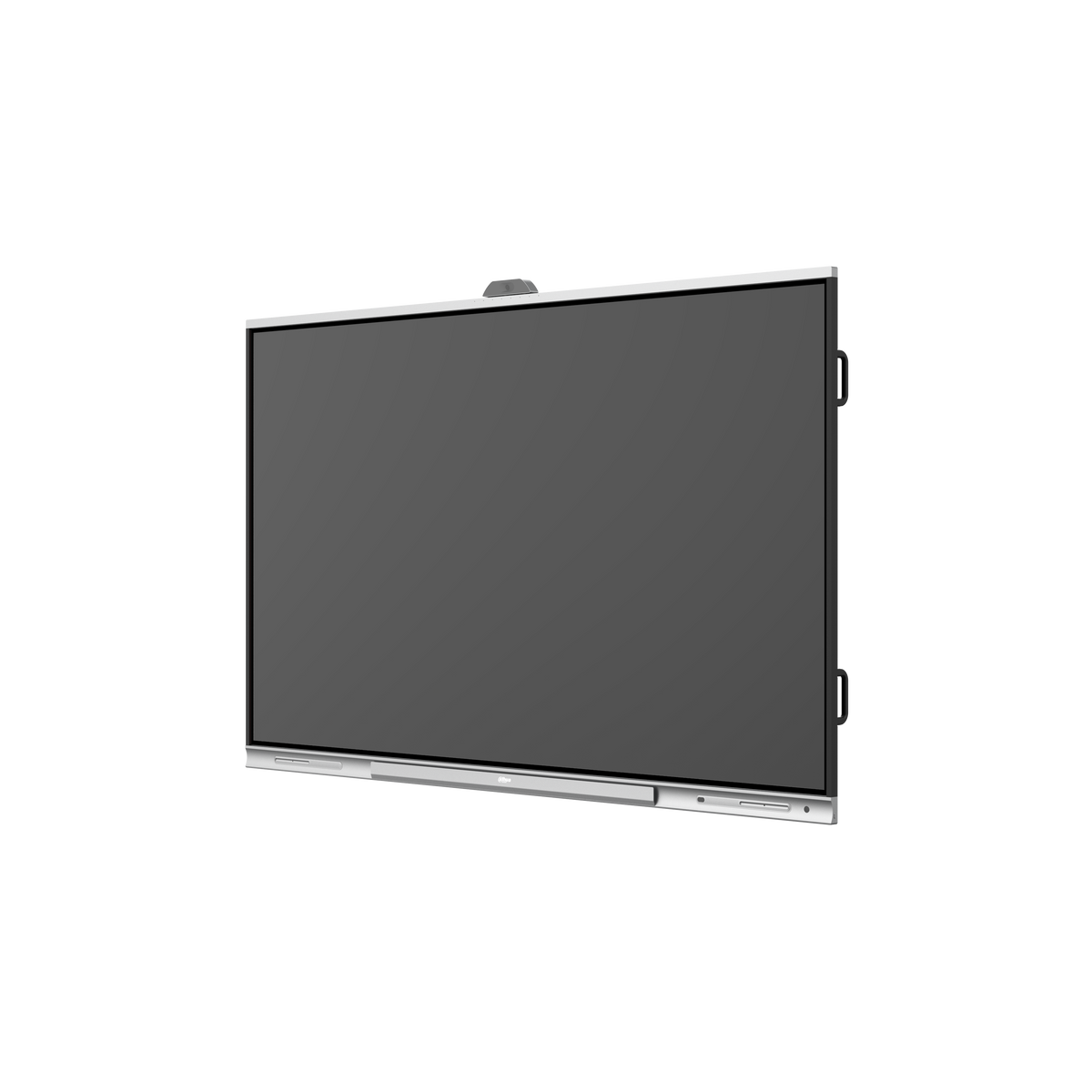

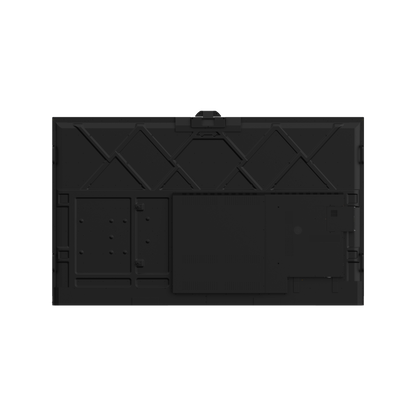

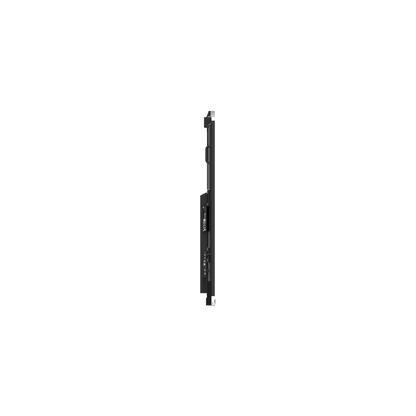

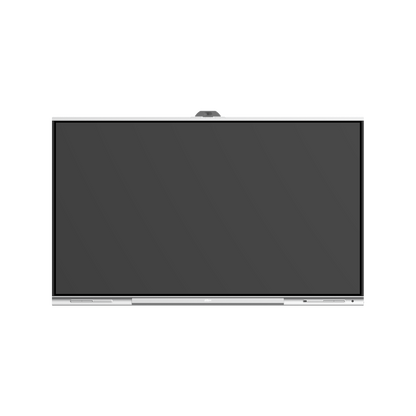

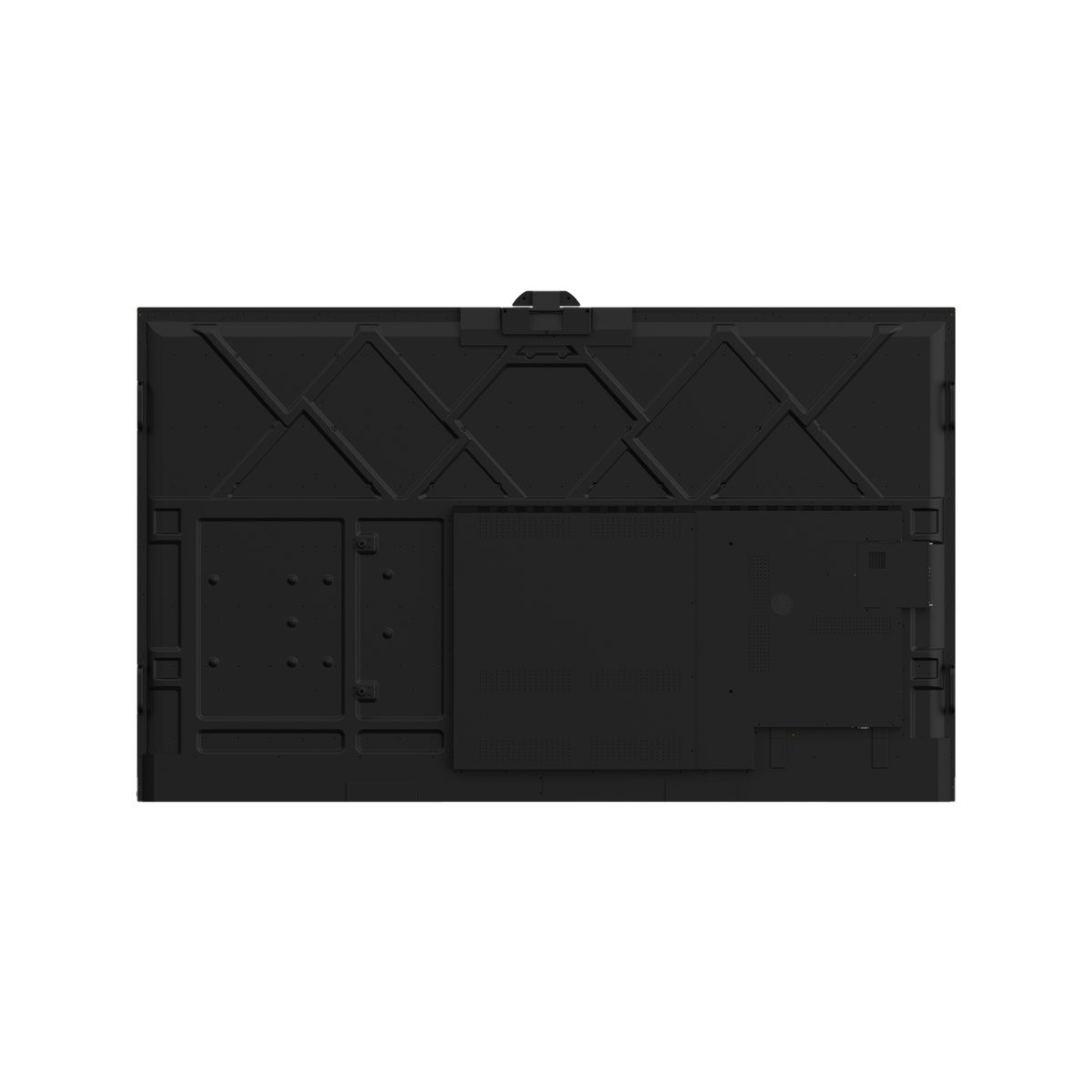

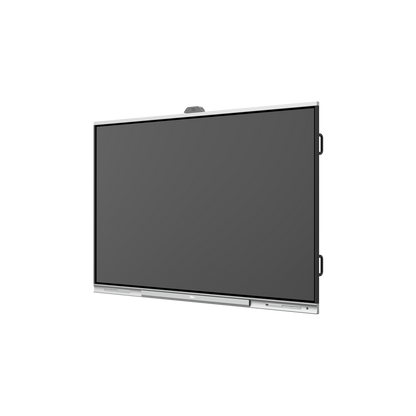

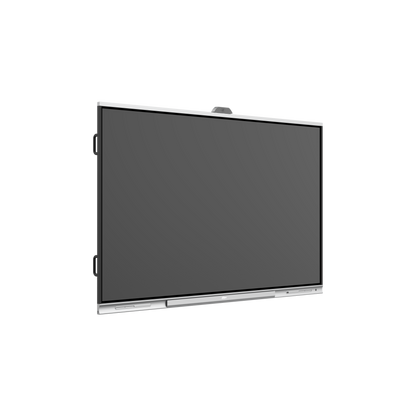

Dahua LPH98-MC470-P: 98 Inch DeepHub Pro Interactive Display
Model LPH98-MC470-P
Request a Quote
Availability: Out of Stock
- Integrated Whiteboarding Tools: Annotate, highlight, and write freely with responsive digital ink
- Smart Collaboration: Enables real-time co-authoring and remote participation for hybrid meetings
- Robust Data Security: Advanced encryption and user management keep your information protected
- CPU Frequency: 2.2 GHz + 2.0 GHz
Product Overview
Overview
The Dahua LPH98-MC470-P is a 98 inch DeepHub Pro interactive display. Engineered for large meeting spaces and immersive classrooms, this 98-inch interactive whiteboard transforms presentations with ultra-high-definition clarity and responsive multi-touch technology. The DeepHub Pro seamlessly integrates with popular conferencing platforms, making it perfect for hybrid learning and remote collaboration.
Corporate AV supplies, installs and supports the Dahua LPH98-MC470-P across India. Request a quote for supply, installation and commissioning.
Key features
- 98-Inch 4K UHD Display - Expansive, ultra-high-definition screen delivers crisp visuals for impactful presentations.
- Wireless Screen Sharing - Effortlessly connect laptops, tablets, or smartphones without cables for dynamic sharing.
- Integrated Whiteboarding Tools - Annotate, highlight, and write freely with responsive digital ink.
- Smart Collaboration - Enables real-time co-authoring and remote participation for hybrid meetings.
- Robust Data Security - Advanced encryption and user management keep your information protected.
- Seamless Conferencing Integration - Compatible with leading video conferencing platforms for streamlined meetings.
- Multi-Device Connectivity - Multiple HDMI, USB, and wireless options for flexible device integration.
Why choose the LPH98-MC470-P
It is a 98 inch interactive display for presentations, whiteboarding and collaboration in meeting rooms and classrooms. Corporate AV adds a site survey, installation and support across India, so the LPH98-MC470-P is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Integrated Whiteboarding Tools: Annotate, highlight, and write freely with responsive digital ink
Smart Collaboration: Enables real-time co-authoring and remote participation for hybrid meetings
Robust Data Security: Advanced encryption and user management keep your information protected
CPU Frequency: 2.2 GHz + 2.0 GHz
GPU: ARM Mali-G52 MP8 (8EE)
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Panel Dimensions
65-inch; 75-inch; 86-inch; 98-inch
Backlight
DLED
Aspect Ratio
16:9
Brightness
65-inch: 350 cd/m²; 75-inch: 350 cd/m²; 86-inch: 400 cd/m²; 98-inch: 400 cd/m²
Resolution
3840 (H) × 2160 (V)
Viewing Angle
H: 178°; V: 178°
Lifespan
50,000 h
Display Color
72% NTSC
Refresh Rate
60 Hz
Static Contrast
1200:1
System
CPU Frequency
2.2 GHz + 2.0 GHz
GPU
ARM Mali-G52 MP8 (8EE)
Operating System
Android 11.0
CPU
Quad-core A73 + Quad-core A53
RAM
12 GB (System: 8 GB, Camera: 4 GB )
ROM
64 GB
Audio
Frequency
150 Hz–20 kHz
Power
Full: 15 W × 3
Built-in Speaker
3
Media functions
Operating System of External Module
Windows 7/8/10;Android
WiFi
Dual-band 2.4 G/5 G; supports 802.11 a/b/g/n/ac wireless frequency range
Wi-Fi Hotspot
Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time
Connectivity
Light Sensor
1
Front Button
1 × power button (right side)
Front Ports
1 × USB 3.0 (left side)
Network Port
1 × RJ-45
Wi-Fi
1 × Wi-Fi; 1 × Hotspot
USB
3 × USB 3.0; 1 × Micro USB
RS-232
1 × RS-232
Video Input
1 × HDMI IN
Video Output
1 × HDMI OUT
Audio Output
1 × 3.5 mm (Line OUT) port
Others
1 × Touch
IrDA
1
Microphone
8 Array
Type-C Port
1 × Type-C
General
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
65-inch: 200 W; 75-inch: 300 W; 86-inch: 400 W; 98-inch: 600 W
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature
–10 °C to +50 °C (+14 °F to +122 °F)
Operating Humidity
10%–90%
Storage Humidity
10%–90%
Product Material
Metal casing
Protective Glass
Anti-dazzle tempered glass with a hardness of 7 on the Mohs scale
Casing Color (Frame/Rear)
Bottom/top: Silver; left/right: black
Net Weight
65-inch: 40 kg (88.18 lb) 75-inch: 54 kg (119.05 lb) 86-inch: 67 kg (147.71 lb) 98-inch: 91 kg (200.62 lb)
Holes Distance
65-inch: 500 mm× 400 mm (19.69''× 15.75'') 75-inch: 600 mm× 400 mm (23.62''× 15.75'') 86-inch: 800 mm× 400 mm (31.50''× 15.75'') 98-inch: 1000 mm× 400 mm (39.37''× 15.75'')
Installation
Wall mount; mobile bracket
Standby Power Consumption
≤ 0.5 W
Packing List
Smart interactive whiteboard × 1 Power cord × 3 Stylus pen × 2 Quick start guide × 1 Wall mount bracket (already installed on the whiteboard): × 1 Accessory package × 1 Remote control × 1
Other specifications
Category
Interactive Display, Dahua
Camera
Pixel
48 MP
Auto Control
Auto flip; Auto white balance
Distortion
–8.6%
Max. Resolution
3840 × 2160@30 fps
Storage
8 GB eMMC
Field of View
H: 87°; V: 49°; D: 99°
Face Detection
Yes
Touchscreen
Touch Technology Type
Infrared touch technology
Touch Points
Supports 20 touch points and drawing up to 20 lines
Valid Touch
2 mm
touch accuracy
± 1 mm
Writing Mode
Finger + Pen (attaches magnetically)
Anti-light Interference
Anti-dazzle tempered glass
Surface Hardness
7 on the Mohs scale
Touch Resolution
32767 × 32767
Number of Multi-user Writing Points
10
Fingerprint
Fingerprint Capacity
100
Fingerprint Resolution
160 × 160
FAR
0.001%
Microphone
Pick-up Distance
Far-field sound pickup: 6 m–8 m (19.69 ft–26.25 ft)
Number of Microphones
8
AGC
Yes
Echo Cancellation
Yes
Polar Pattern
Omnidirectional
Intelligent Noise Filtering
Yes
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LPH98-MC470-P From Corporate AV?
- Genuine Dahua stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Dahua products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Dahua LPH98-MC470-P?
The Dahua LPH98-MC470-P is a 98 inch DeepHub Pro interactive display. Engineered for large meeting spaces and immersive classrooms, this 98-inch interactive whiteboard transforms presentations with ultra-high-definition clarity and responsive multi-touch technology. The DeepHub Pro seamlessly integrates with popular conferencing platforms, making it perfect for hybrid learning and remote collaboration.
Who is the Dahua LPH98-MC470-P best suited for?
The LPH98-MC470-P suits boardrooms and meeting rooms, classrooms and training rooms and digital whiteboarding and brainstorming. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Dahua LPH98-MC470-P units for a rollout?
Yes. Corporate AV supplies and integrates the Dahua LPH98-MC470-P in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Dahua LPH98-MC470-P in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Dahua LPH98-MC470-P?
These key specifications are listed for the Dahua LPH98-MC470-P. CPU Frequency: 2.2 GHz + 2.0 GHz. Operating System: Android 11.0. CPU: Quad-core A73 + Quad-core A53. RAM: 12 GB (System: 8 GB, Camera: 4 GB ). ROM: 64 GB.
