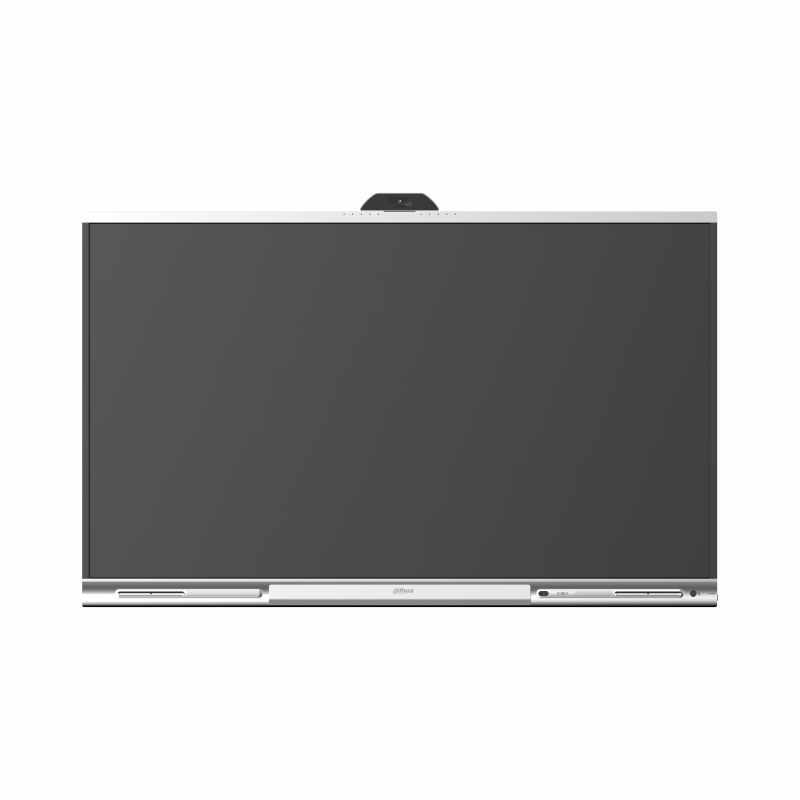

Dahua LPH86-MC470-P-S2: 86 Inch Interactive Display
Model LPH86-MC470-P-S2
Request a Quote
Availability: Out of Stock
- 86-Inch 4K UHD Display: Delivers ultra-high-definition clarity for vivid images and text
- Multi-Touch Technology: Supports multiple users simultaneously for collaborative learning and teamwork
- Wireless Screen Sharing: Easily connect and share content from various devices without cables
- Ultra-Responsive Writing: Offers smooth and instant pen-to-screen experience for precise annotations
Product Overview
Overview
The Dahua LPH86-MC470-P-S2 is an 86 inch interactive display. This advanced interactive display offers a stunning 4K Ultra HD resolution for crystal-clear visuals, ensuring every lesson or presentation is vibrant and engaging. With multi-touch support, the smart board allows seamless interaction for multiple users, making group activities intuitive and dynamic.
Corporate AV supplies, installs and supports the Dahua LPH86-MC470-P-S2 across India. Request a quote for supply, installation and commissioning.
Key features
- 86-Inch 4K UHD Display - Delivers ultra-high-definition clarity for vivid images and text.
- Multi-Touch Technology - Supports multiple users simultaneously for collaborative learning and teamwork.
- Wireless Screen Sharing - Easily connect and share content from various devices without cables.
- Ultra-Responsive Writing - Offers smooth and instant pen-to-screen experience for precise annotations.
- Integrated Android System - Runs educational and business apps directly on the whiteboard for added functionality.
- Anti-Glare Surface - Minimizes reflections for comfortable viewing in bright rooms.
- Robust Build Quality - Durable construction ensures long-lasting performance in high-traffic areas.
- Built-in Speakers - Provides clear, room-filling audio for multimedia presentations and video calls.
Why choose the LPH86-MC470-P-S2
It is a 86 inch interactive display for presentations, whiteboarding and collaboration in meeting rooms and classrooms. Corporate AV adds a site survey, installation and support across India, so the LPH86-MC470-P-S2 is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
86-Inch 4K UHD Display: Delivers ultra-high-definition clarity for vivid images and text
Multi-Touch Technology: Supports multiple users simultaneously for collaborative learning and teamwork
Wireless Screen Sharing: Easily connect and share content from various devices without cables
Ultra-Responsive Writing: Offers smooth and instant pen-to-screen experience for precise annotations
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Screen Size
86 inch
Backlight
DLED
Aspect Ratio
16:9
Brightness
450 cd/m² (typ.)
Resolution
3840 (H) × 2160 (V)
Viewing Angle
H (178°) / V (178°)
Lifespan
≥50,000 hr
Display Color
90% NTSC (typ.)
Refresh Rate
60 Hz
Static Contrast Ratio
1200 (typ.)
System
Operating System
Android 14
CPU
Quad-core A73 + Quad-core A53
CPU Frequency
2.2 GHz + 2.0 GHz
GPU
ARM Mali-G52 MP8 (8EE)
RAM
20 GB (System: 16 GB, Camera: 4 GB)
ROM
128 GB
NFC
Supports quick unlock via NFC
Audio
Number of Cavities
3
Frequency
150 Hz–20 kHz
Power
2.1 channel, front-end 2 × 20 W + rear-end 20 W
Built-in Speaker
3
Media functions
Operating System of External Module
Windows 7/8/10/11
Wi-Fi Hotspot
Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time
Connectivity
Light Sensor
1
Front Button
1 × power button (right side)
Front Ports
1 × USB 3.2 Gen1 (left side)
Network Port
1 × RJ-45
Wi-Fi
Yes, 1 × Station, 1 × AP
Wi-Fi Standard
Station: 802.11b/g/n/a/ac AP: 802.11b/g/n/a/ac/ax
Wi-Fi Frequency Range
2400–2483.5 MHz, 5150–5350 MHz, 5470–5725 MHz, 5725–5850 MHz
MAX Power Transmission (Wi-Fi)
≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz
Bluetooth
Yes
Bluetooth Standard
BR/EDR/BLE, BT5.3
Bluetooth Frequency Range
2400–2483.5 MHz
MAX Power Transmission (Bluetooth)
≤20 dBm@2400–2483.5 MHz
RFID Modulation Method
ASK
RFID Frequency Range
13.56 MHz
MAX Power Transmission (RFID)
42dBuA/m @10 m
USB
3 × USB 3.2 Gen1 Type-A; 1 × Micro USB 2.0
RS-232
1 × DB9 port, male connector
Video Input
2 × HDMI 2.0 (4K@60 Hz)
Video Output
1× HDMI 2.0 (4K@60 Hz)
Audio Output
1 × 3.5 mm Line Out port; 1 × SPDIF port
Others
1 × Touch port
IrDA
1
Microphone
16 arrays
Type-C Port
1 × Type-C IN (DP IN (4K60 fps) + USB 3.2 Gen1 HOST+ USB 2.0 Device (touch) + PD 65 W)
General
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
425 W (basic), 500 W (max)
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–90% (RH), non-condensing
Storage Humidity
10%–90% (RH), non-condensing
Product Material
Metal casing
Protective Glass
3.2 mm Anti-dazzle tempered glass
Casing Color (Frame/Rear)
Black on the left and right, Starry Gray on the top and bottom.
Product Dimensions
1,955.3 mm × 93.3 mm × 1,232.2 mm (77.00" × 3.67" × 48.55") (L × W × H)
Frame Size
Top border: 28.6 mm (1.13"), left and right borders: 17.9 mm (0.70"), bottom border: 69.6 mm (2.74")
Net Weight
73 kg (160.94 lb)
Holes Distance
800 mm × 400 mm (31.50" × 15.75")
Installation
Wall mount; mobile bracket
Standby Power Consumption
≤0.5 W
Packing List
1 × Smart interactive whiteboard 1 × Power cord 2 × Stylus pen 1 × Quick start guide 1 × Wall mount bracket 1 × Remote control 1 × Legal and Regulatory Information 1 × Wall-mount screw pack
Glass Thickness
3.2 mm (0.13")
Other specifications
Category
Interactive Display, Dahua
Touchscreen
Response Time
≤3.3 ms
Touch Technology
Infrared
Touch Points
32 on Android, 50 on Windows
Valid Touch
1.5 mm (0.06") (over 90% touch area)
Writing Mode
Finger + Pen (attaches magnetically)
Anti-light Interference
Anti-dazzle tempered glass
Surface Hardness
≥9H
Touch Resolution
32767 × 32767
Number of Multi-user Writing Points
10 points (over 90% touch area)
Camera
Camera
Android: Photo: 52 MP; Video: 8 MP Windows: Photo: 8 MP; Video: 8 MP
Auto Control
Auto flip; Auto white balance
Distortion
–8.6%
Max. Resolution
Photo: 9632 (H) × 5418 (V); Video: 3840 (H) × 2160 (V)
Storage
8GB eMMC
Field of View
H: 87°; V: 49°; D: 99°
Face Detection
Yes
Digital Zoom
Yes, supports up to 9x digital zoom.
Fingerprint
Fingerprint Capacity
100
Fingerprint Resolution
160 × 160
FAR
<0.001%
Microphone
Pick-up Distance
Far-field sound pickup: 8 m–12 m (26.25 ft–39.37 ft)
Number of Microphones
16 arrays
AGC
Yes
Echo Cancellation
Yes
Polar Pattern
Omnidirectional
Intelligent Noise Filtering
YES
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LPH86-MC470-P-S2 From Corporate AV?
- Genuine Dahua stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Dahua products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Dahua LPH86-MC470-P-S2?
The Dahua LPH86-MC470-P-S2 is an 86 inch interactive display. This advanced interactive display offers a stunning 4K Ultra HD resolution for crystal-clear visuals, ensuring every lesson or presentation is vibrant and engaging. With multi-touch support, the smart board allows seamless interaction for multiple users, making group activities intuitive and dynamic.
Who is the Dahua LPH86-MC470-P-S2 best suited for?
The LPH86-MC470-P-S2 suits boardrooms and meeting rooms, classrooms and training rooms and digital whiteboarding and brainstorming. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Dahua LPH86-MC470-P-S2 units for a rollout?
Yes. Corporate AV supplies and integrates the Dahua LPH86-MC470-P-S2 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Dahua LPH86-MC470-P-S2 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Dahua LPH86-MC470-P-S2?
These key specifications are listed for the Dahua LPH86-MC470-P-S2. Operating System: Android 14. CPU: Quad-core A73 + Quad-core A53. CPU Frequency: 2.2 GHz + 2.0 GHz. RAM: 20 GB (System: 16 GB, Camera: 4 GB). ROM: 128 GB.
