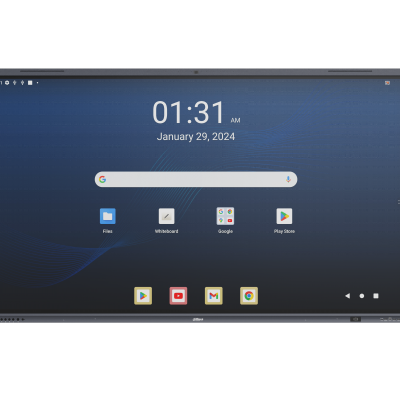

Dahua LPH65-MC480-U: 65 Inch Interactive Display
Model LPH65-MC480-U
Request a Quote
Availability: Out of Stock
- 65-Inch 4K UHD Display: Large, ultra-high-definition screen ensures vivid visuals and detail
- Multi-Touch Technology: Supports multiple users for seamless group collaboration
- Integrated Wireless Connectivity: Connect and share screens from laptops, tablets, or smartphones
- Pre-Installed Collaboration Software: Boosts productivity with instant access to digital whiteboarding tools
Product Overview
Overview
The Dahua LPH65-MC480-U is a 65 inch interactive display. Featuring a stunning 4K UHD screen, this smart whiteboard delivers crystal-clear visuals for dynamic presentations and immersive learning experiences. The ultra-responsive touchscreen supports multiple users, making collaboration seamless and intuitive.
Corporate AV supplies, installs and supports the Dahua LPH65-MC480-U across India. Request a quote for supply, installation and commissioning.
Key features
- 65-Inch 4K UHD Display - Large, ultra-high-definition screen ensures vivid visuals and detail.
- Multi-Touch Technology - Supports multiple users for seamless group collaboration.
- Integrated Wireless Connectivity - Connect and share screens from laptops, tablets, or smartphones.
- Pre-Installed Collaboration Software - Boosts productivity with instant access to digital whiteboarding tools.
- Responsive Annotation Tools - Effortlessly write, draw, and highlight content in real-time.
- Built-in Powerful Speakers - Delivers clear, room-filling audio for presentations and media playback.
- Video Conferencing Ready - Compatible with popular conferencing platforms for remote collaboration.
- Durable, Modern Design - Sleek bezel and robust construction for long-lasting use in any space.
Why choose the LPH65-MC480-U
It is a 65 inch interactive display for presentations, whiteboarding and collaboration in meeting rooms and classrooms. Corporate AV adds a site survey, installation and support across India, so the LPH65-MC480-U is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
65-Inch 4K UHD Display: Large, ultra-high-definition screen ensures vivid visuals and detail
Multi-Touch Technology: Supports multiple users for seamless group collaboration
Integrated Wireless Connectivity: Connect and share screens from laptops, tablets, or smartphones
Pre-Installed Collaboration Software: Boosts productivity with instant access to digital whiteboarding tools
Responsive Annotation Tools: Effortlessly write, draw, and highlight content in real-time
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Screen Size
65 inch
Backlight
DLED
Aspect Ratio
16: 9
Brightness
400 cd/m² (typ.)
Static Contrast Ratio
VA: 5000: 1 (typ.); IPS: 1200: 1 (typ.)
Resolution
3,840 (H) × 2,160 (V)
Viewing Angle
178° (H)/178° (V)
Lifespan
≥50,000 hrs
Display Color
1.07 Billion (10 bits)
Color Gamut
90% NTSC
Refresh Rate
60 Hz
System
Main Processor
RK3588
Operating System
Android 15
CPU
Quad-core A76 + Quad-core A55
CPU Frequency
2.4 GHz
GPU
Mali-G610 MP4
RAM
8 GB
ROM
128 GB
Audio
Built-in Speaker
4 (CH2.2)
Power
2 × 8 W + 2 × 18 W
Frequency
150 Hz–20 kHz
Media functions
IR Receiver
1
Card Swiping with NFC
Yes
Wireless Access Point
Wi-Fi 5, 2.4 GHz and 5 GHz dual band, 802.11 ac/n
Connectivity
Light Sensor
Yes
Front Button
6 buttons: Power supply, menu, signal source, curtain, volume and annotation
Front Ports
2 × USB 3.2 Gen1 Type-A 1 × HDMI IN 1 × USB Type-C IN (100 W fast charge, data transmission, local area network) 1 × Touch USB 2.0 Type-B
Wi-Fi
Yes
Wi-Fi Standard
Wi-Fi Station: 802.11b/g/n/a/ac/ax Wi-Fi AP: 802.11b/g/n/a/ac
Wi-Fi Frequency Range
2400–2483.5 MHz; 5150–5250 MHz; 5250–5350 MHz; 5470–5725 MHz; 5725–5850 MHz;
MAX Power Transmission (Wi-Fi)
≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz;
Bluetooth
Yes
Bluetooth Standard
BT5.2 BR/EDR/BLE
Bluetooth Frequency Range
≤20 dBm@2400–2483.5 MHz
MAX Power Transmission (Bluetooth)
≤20 dBm
RFID Modulation Method
ASK
RFID Frequency Range
13.56 MHz
MAX Power Transmission (RFID)
13.56 MHz:≤42dBuA/m @10 m
General
Operating System of External Module
Windows 7/8/10/11
Power Supply
100–240 VAC, 50/60 Hz, 4.5 A
Power Consumption
170 W (typ.); 450 W (max.)
Standby Power Consumption
≤0.5 W
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–90% (RH)
Storage Humidity
10%–90% (RH)
Product Material
Metal
Glass
3.2 mm anti-glare tempered glass
Casing Color (Frame/Rear)
Black
Product Dimensions
1,488.4 mm × 915.3 mm × 86.2 mm (58.60" × 36.04" × 3.39") (W × H × D)
Frame Size
U: 33.3 mm, L/R: 14.6 mm, D: 43.0 mm (U: 2.42", L/R: 0.69", D: 1.11")
Net Weight
36.55 kg (80.58 lb)
Holes Distance
600 mm × 400 mm (23.62" × 15.75")
Installation
Wall mount or mobile bracket
Packing List
Power cord × 1; Smart interactive whiteboard × 1; Stylus pen × 2; Wall mount bracket × 1; Remote control × 1; Pack of wall mount screws × 1; Wireless plug-in module × 1; Quick start guide × 1; Legal and regulatory information × 1;
Certifications
Certifications
CE, EDLA, Energy Star
Other specifications
Category
Interactive Display, Dahua
Touchscreen
Response Time
≤2.0 ms
Touch Technology
Infrared
Attachment Method
Zero Air Gap
Touch Points
Android:32 points;Windows:50 points
Touch Accuracy
± 0.5 mm (≥ 90% touching area)
Valid Touch
≥ 1.5 mm (0.06") (≥ 90% touching area)
Touch Height
≤0.99 mm (average)
Writing Mode
Finger and stylus pen (magnetic)
Communication Mode
USB
Anti-light Interference
Anti-glare tempered glass
Surface Hardness
≥9H
Touch Resolution
32,768 × 32,768
Camera
Camera
Android: Photo: 48 MP; Video: 8 MP Windows: Photo: 8 MP; Video: 8 MP
Field of View
H: 98°; D: 106°
Microphone
Microphone
8
Pick-up Distance
0 m–12 m (0 ft–39.37 ft)
AGC
Yes
Echo Cancellation
Yes
Intelligent Noise Filtering
Yes
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LPH65-MC480-U From Corporate AV?
- Genuine Dahua stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Dahua products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Dahua LPH65-MC480-U?
The Dahua LPH65-MC480-U is a 65 inch interactive display. Featuring a stunning 4K UHD screen, this smart whiteboard delivers crystal-clear visuals for dynamic presentations and immersive learning experiences. The ultra-responsive touchscreen supports multiple users, making collaboration seamless and intuitive.
Who is the Dahua LPH65-MC480-U best suited for?
The LPH65-MC480-U suits boardrooms and meeting rooms, classrooms and training rooms and digital whiteboarding and brainstorming. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Dahua LPH65-MC480-U units for a rollout?
Yes. Corporate AV supplies and integrates the Dahua LPH65-MC480-U in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Dahua LPH65-MC480-U in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Dahua LPH65-MC480-U?
These key specifications are listed for the Dahua LPH65-MC480-U. Operating System: Android 15. CPU: Quad-core A76 + Quad-core A55. CPU Frequency: 2.4 GHz. RAM: 8 GB. ROM: 128 GB.
