← Dahua Products in India
View full details

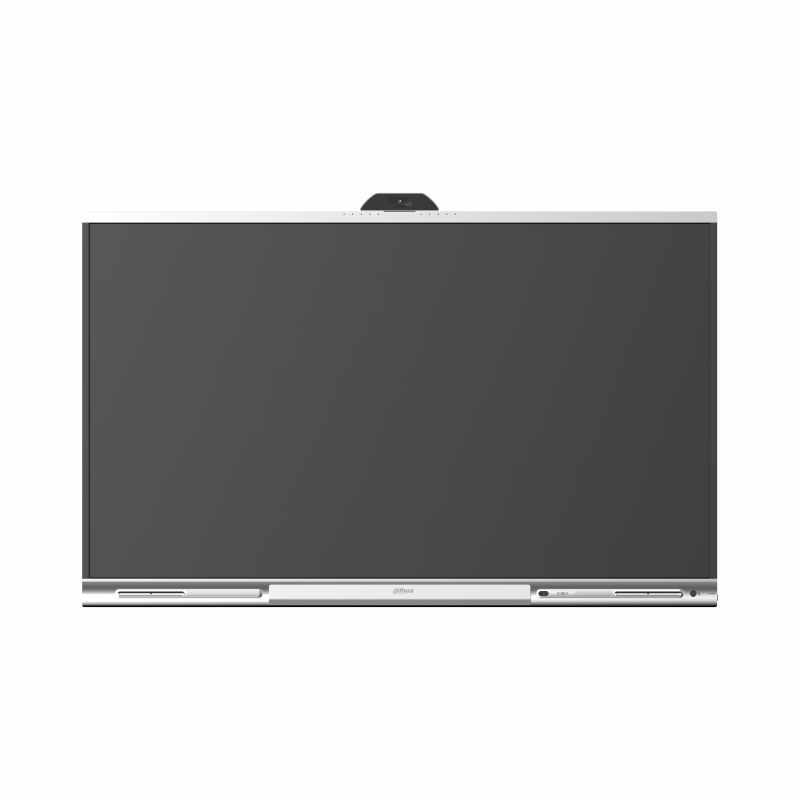

Dahua LPH65-MC470-P-S2: 65 Inch Interactive Display
Model LPH65-MC470-P-S2
Request a Quote
Availability: Out of Stock
- 65-Inch 4K UHD Display: Offers stunning clarity and vibrant colors for impactful presentations and lessons
- Wireless Screen Sharing: Effortlessly share content from laptops, tablets, or smartphones without cables
- Built-In Whiteboarding Tools: Annotate, draw, and brainstorm directly on the screen with intuitive software
- Powerful Integrated Speakers: Delivers clear, room-filling audio for multimedia content and video calls
Product Overview
Overview
The Dahua LPH65-MC470-P-S2 is a 65 inch interactive display. Designed for seamless collaboration, this advanced interactive display delivers ultra-clear 4K visuals on a generous 65-inch touchscreen, making presentations and lessons more engaging. Built on a robust smart platform, the Dahua interactive whiteboard supports multi-touch gestures and wireless screen sharing, allowing multiple users to connect, write, and annotate effortlessly.
Corporate AV supplies, installs and supports the Dahua LPH65-MC470-P-S2 across India. Request a quote for supply, installation and commissioning.
Key features
- 65-Inch 4K UHD Display - Offers stunning clarity and vibrant colors for impactful presentations and lessons.
- Wireless Screen Sharing - Effortlessly share content from laptops, tablets, or smartphones without cables.
- Built-In Whiteboarding Tools - Annotate, draw, and brainstorm directly on the screen with intuitive software.
- Powerful Integrated Speakers - Delivers clear, room-filling audio for multimedia content and video calls.
- Comprehensive Connectivity - Includes HDMI, USB, and LAN ports for connecting a range of devices.
- Cloud Integration - Easily save, share, and access files through cloud storage support.
- Anti-Glare Surface - Reduces reflections and ensures comfortable viewing in any lighting conditions.
Why choose the LPH65-MC470-P-S2
It is a 65 inch interactive display for presentations, whiteboarding and collaboration in meeting rooms and classrooms. Corporate AV adds a site survey, installation and support across India, so the LPH65-MC470-P-S2 is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
65-Inch 4K UHD Display: Offers stunning clarity and vibrant colors for impactful presentations and lessons
Wireless Screen Sharing: Effortlessly share content from laptops, tablets, or smartphones without cables
Built-In Whiteboarding Tools: Annotate, draw, and brainstorm directly on the screen with intuitive software
Powerful Integrated Speakers: Delivers clear, room-filling audio for multimedia content and video calls
Comprehensive Connectivity: Includes HDMI, USB, and LAN ports for connecting a range of devices
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Screen Size
65 inch
Backlight
DLED
Aspect Ratio
16:9
Brightness
450 cd/m² (typ.)
Resolution
3840 (H) × 2160 (V)
Viewing Angle
H (178°) / V (178°)
Lifespan
≥50,000 hr
Display Color
90% NTSC (typ.)
Refresh Rate
60 Hz
Static Contrast Ratio
1200 (typ.)
System
Operating System
Android 14
CPU
Quad-core A73 + Quad-core A53
CPU Frequency
2.2 GHz + 2.0 GHz
GPU
ARM Mali-G52 MP8 (8EE)
RAM
20 GB (System: 16 GB, Camera: 4 GB)
ROM
128 GB
NFC
Supports quick unlock via NFC
Audio
Number of Cavities
3
Frequency
150 Hz–20 kHz
Power
2.1 channel, front-end 2 × 20 W + rear-end 20 W
Built-in Speaker
3
Media functions
Operating System of External Module
Windows 7/8/10/11
Wi-Fi Hotspot
Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time
Connectivity
Light Sensor
1
Front Button
1 × power button (right side)
Front Ports
1 × USB 3.2 Gen1 (left side)
Network Port
1 × RJ-45
Wi-Fi
Yes, 1 × Station, 1 × AP
Wi-Fi Standard
Station: 802.11b/g/n/a/ac AP: 802.11b/g/n/a/ac/ax
Wi-Fi Frequency Range
2400–2483.5 MHz, 5150–5350 MHz, 5470–5725 MHz, 5725–5850 MHz
MAX Power Transmission (Wi-Fi)
≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz
Bluetooth
Yes
Bluetooth Standard
BR/EDR/BLE, BT5.3
Bluetooth Frequency Range
2400–2483.5 MHz
MAX Power Transmission (Bluetooth)
≤20 dBm@2400–2483.5 MHz
RFID Modulation Method
ASK
RFID Frequency Range
13.56 MHz
MAX Power Transmission (RFID)
42dBuA/m @10 m
USB
3 × USB 3.2 Gen1 Type-A; 1 × Micro USB 2.0
RS-232
1 × DB9 port, male connector
Video Input
2 × HDMI 2.0 (4K@60 Hz)
Video Output
1× HDMI 2.0 (4K@60 Hz)
Audio Output
1 × 3.5 mm Line Out port; 1 × SPDIF port
Others
1 × Touch port
IrDA
1
Microphone
16 arrays
Type-C Port
1 × Type-C IN (DP IN (4K60 fps) + USB 3.2 Gen1 HOST+ USB 2.0 Device (touch) + PD 65 W)
General
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
221 W (basic), 300 W (max)
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–90% (RH), non-condensing
Storage Humidity
10%–90% (RH), non-condensing
Product Material
Metal casing
Protective Glass
3.2 mm Anti-dazzle tempered glass
Casing Color (Frame/Rear)
Black on the left and right, Starry Gray on the top and bottom.
Product Dimensions
1,486.5 mm × 93.1 mm × 968.5 mm (58.52" × 3.67" × 38.13") (L × W × H)
Frame Size
Top border: 28.6 mm (1.13"), left and right borders: 17.9 mm (0.70"), bottom border: 69.6 mm (2.74")
Net Weight
43 kg (94.80 lb)
Holes Distance
500 mm × 400 mm (19.69" × 15.75")
Installation
Wall mount; mobile bracket
Standby Power Consumption
≤0.5 W
Packing List
1 × Smart interactive whiteboard 1 × Power cord 2 × Stylus pen 1 × Quick start guide 1 × Wall mount bracket 1 × Remote control 1 × Legal and Regulatory Information 1 × Wall-mount screw pack
Glass Thickness
3.2 mm (0.13")
Other specifications
Category
Interactive Display, Dahua
Touchscreen
Response Time
≤3.3 ms
Touch Technology
Infrared
Touch Points
32 on Android, 50 on Windows
Valid Touch
1.5 mm (0.06") (over 90% touch area)
Writing Mode
Finger + Pen (attaches magnetically)
Anti-light Interference
Anti-dazzle tempered glass
Surface Hardness
≥9H
Touch Resolution
32767 × 32767
Number of Multi-user Writing Points
10 points (over 90% touch area)
Camera
Camera
Android: Photo: 52 MP; Video: 8 MP Windows: Photo: 8 MP; Video: 8 MP
Auto Control
Auto flip; Auto white balance
Distortion
–8.6%
Max. Resolution
Photo: 9632 (H) × 5418 (V); Video: 3840 (H) × 2160 (V)
Storage
8GB eMMC
Field of View
H: 87°; V: 49°; D: 99°
Face Detection
Yes
Digital Zoom
Yes, supports up to 9x digital zoom.
Fingerprint
Fingerprint Capacity
100
Fingerprint Resolution
160 × 160
FAR
<0.001%
Microphone
Pick-up Distance
Far-field sound pickup: 8 m–12 m (26.25 ft–39.37 ft)
Number of Microphones
16 arrays
AGC
Yes
Echo Cancellation
Yes
Polar Pattern
Omnidirectional
Intelligent Noise Filtering
YES
