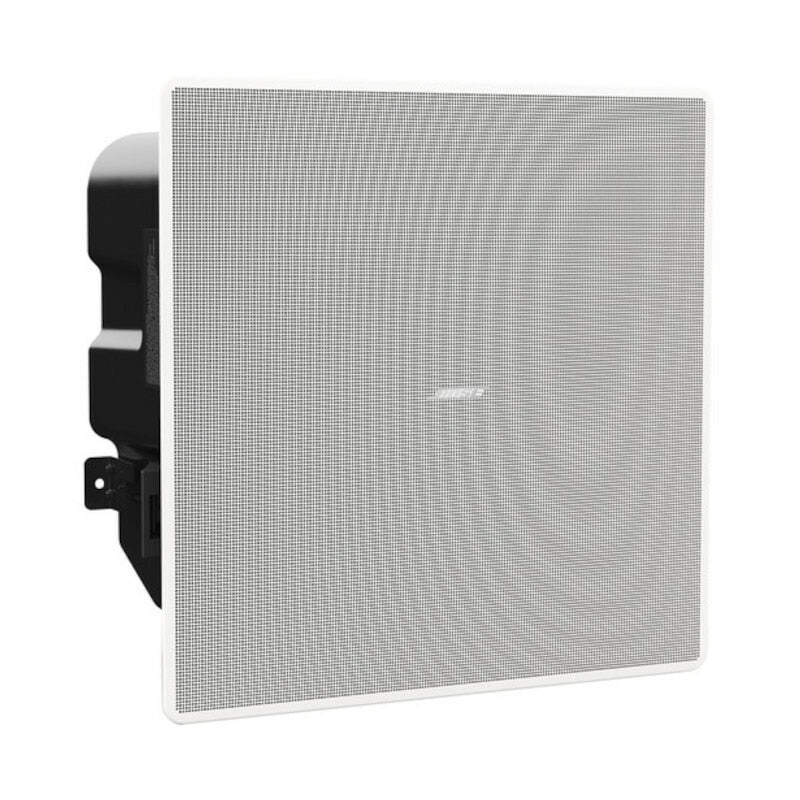

  • Bose EdgeMax EM180 White loudspeaker - angled view
1 1

Bose EdgeMax EM180: White In-Ceiling Loudspeaker

Model EdgeMax EM180

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Patented PhaseGuide technology with a high frequency compression driver and 8 inch woofer for boundary loaded bass
  • 180 degree horizontal coverage designed for mounting along a wall to ceiling perimeter
  • 125W RMS and 500W peak power handling with 114dB SPL continuous, 120dB peak
  • 70V and 100V transformer taps from 2.5W to 80W plus bypass mode, with a 1kHz passive crossover
Installed Audio Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The EM180 uses patented PhaseGuide technology to project sound 180 degrees along a wall perimeter, replacing multiple conventional dome tweeter ceiling speakers with one unit.

Specification highlights for the EdgeMax EM180: Frequency Response: 45Hz to 20kHz; Power Handling: 125W RMS, 500W peak, 114dB SPL / 120dB peak SPL; Coverage: 180 degrees horizontal for wall perimeter mounting. Corporate AV supplies and integrates the EdgeMax EM180 across India for installed sound in commercial, hospitality and retail spaces, including site survey, system design and commissioning where the project needs it.

Key features

  • Patented PhaseGuide technology with a high frequency compression driver and 8 inch woofer for boundary loaded bass
  • 180 degree horizontal coverage designed for mounting along a wall to ceiling perimeter
  • 125W RMS and 500W peak power handling with 114dB SPL continuous, 120dB peak
  • 70V and 100V transformer taps from 2.5W to 80W plus bypass mode, with a 1kHz passive crossover
Why choose the EdgeMax EM180
It is a Bose Professional loudspeaker rated at 125W RMS, 500W peak, 114dB SPL / 120dB peak SPL, so installed sound in the space comes from a purpose-built commercial speaker. Corporate AV checks the room, mounting surface, power and network during a site survey, so the EdgeMax EM180 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

Patented PhaseGuide technology with a high frequency compression driver and 8 inch woofer for boundary loaded bass

180 degree horizontal coverage designed for mounting along a wall to ceiling perimeter

125W RMS and 500W peak power handling with 114dB SPL continuous, 120dB peak

70V and 100V transformer taps from 2.5W to 80W plus bypass mode, with a 1kHz passive crossover

Use Cases

Ideal Applications

Retail Stores & Malls

Hotels & Hospitality

Technical Details

Technical Specifications

Acoustic performance
Frequency Response 45Hz to 20kHz
Coverage 180 degrees horizontal for wall perimeter mounting
Power Handling 125W RMS, 500W peak, 114dB SPL / 120dB peak SPL
Impedance 70V taps 2.5 to 80W, 100V taps 5 to 80W, bypass mode
Drivers and construction
Driver Configuration High frequency compression driver, 8 inch woofer, two way
Color White
General
Part Number 777189-0220

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The EdgeMax EM180 From Corporate AV?
  • Genuine Bose stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Bose products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What frequency range does the Bose EdgeMax EM180 cover?
Bose lists the frequency range of the EdgeMax EM180 as: 45Hz to 20kHz.
What power does the Bose EdgeMax EM180 handle?
Bose lists the power of the EdgeMax EM180 as: 125W RMS, 500W peak, 114dB SPL / 120dB peak SPL.
What coverage does the Bose EdgeMax EM180 offer?
Bose lists the coverage of the EdgeMax EM180 as: 180 degrees horizontal for wall perimeter mounting.
What impedance does the Bose EdgeMax EM180 use?
Bose lists the impedance of the EdgeMax EM180 as: 70V taps 2.5 to 80W, 100V taps 5 to 80W, bypass mode.
What drivers does the Bose EdgeMax EM180 use?
Bose lists the drivers of the EdgeMax EM180 as: High frequency compression driver, 8 inch woofer, two way.
Does Corporate AV install the Bose EdgeMax EM180?
Yes. Corporate AV can supply the EdgeMax EM180 only, or deliver it turnkey with site survey, system design, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the Bose EdgeMax EM180 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
