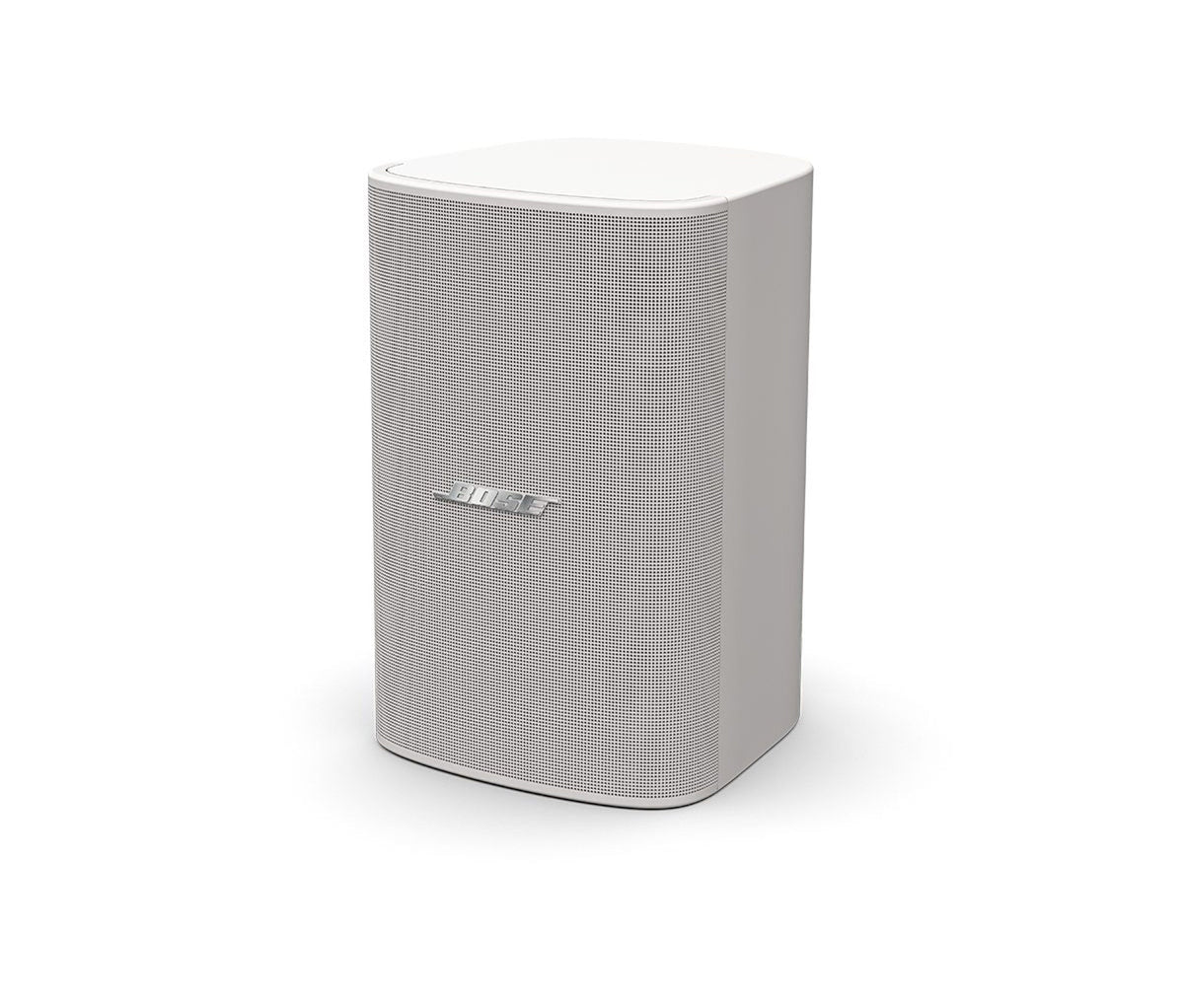

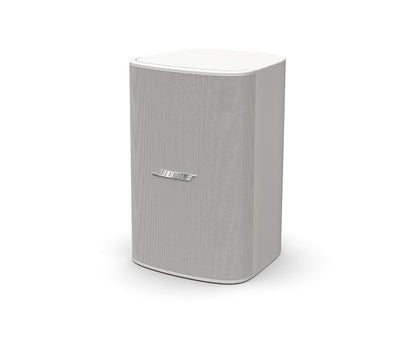

  • Bose DesignMax DM6SE White loudspeaker - front view

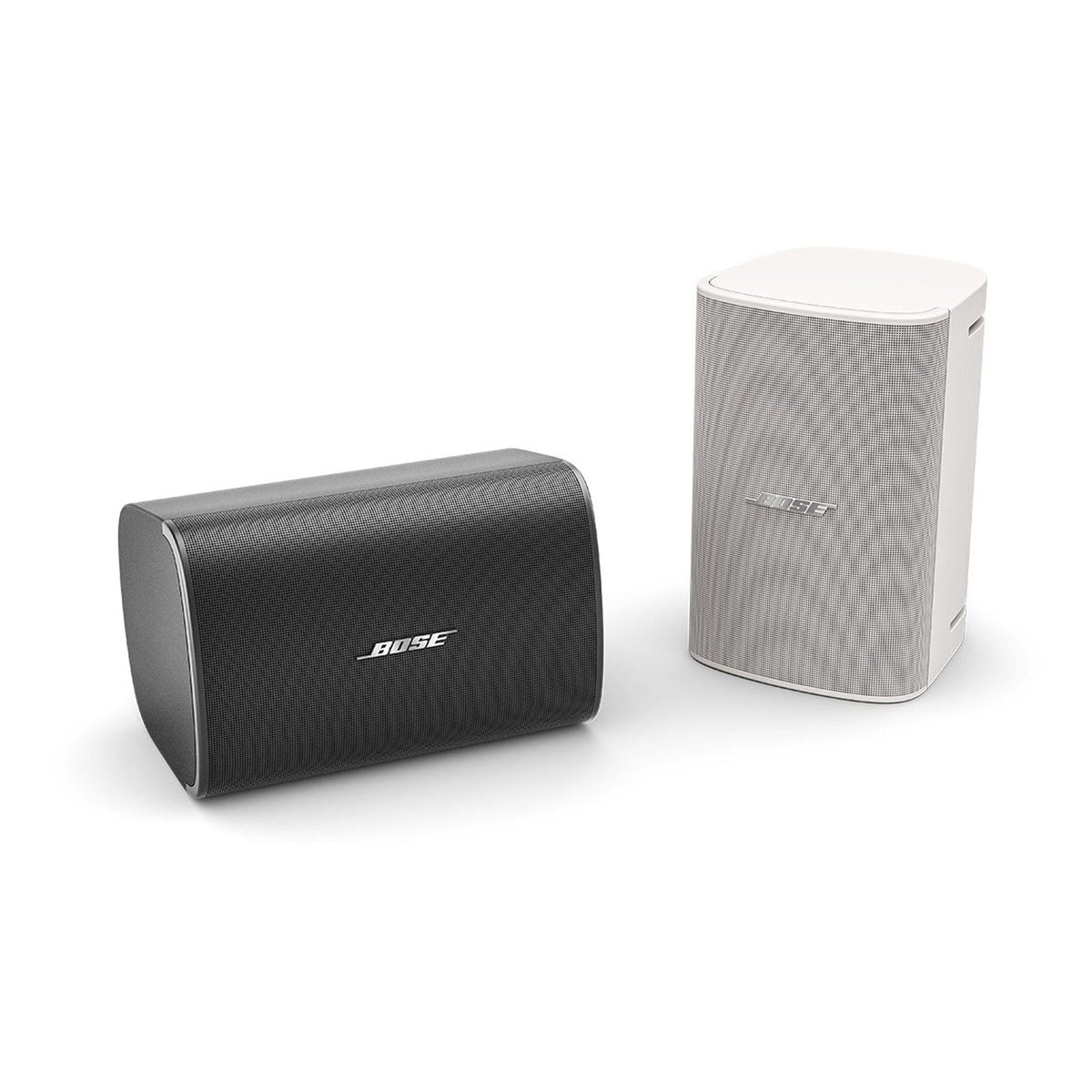

  • Bose DesignMax DM6SE White loudspeaker - angled view
1 2

Bose DesignMax DM6SE: Surface-Mount Loudspeaker, White

Model DesignMax DM6SE

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Coaxial two-way design with 6.5 inch woofer and 1.25 inch coaxial tweeter
  • 125W continuous power handling, 500W peak, up to 111dB maximum SPL at 1 meter
  • IP55 outdoor rated for covered outdoor and wet location installs
  • Locks onto a hidden QuickHold U-bracket for fast, secure surface mount installation
Installed Audio Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Bose DesignMax DM6SE is a Bose Professional surface mount coaxial loudspeaker rated for outdoor use.

Specification highlights for the DesignMax DM6SE: Frequency Response (-3dB): 70 Hz to 20 kHz; Power Handling: 125W continuous, 500W peak; Maximum SPL: 111 dB @ 1m. Corporate AV supplies and integrates the DesignMax DM6SE across India for installed sound in commercial, hospitality and retail spaces, including site survey, system design and commissioning where the project needs it.

Key features

  • Coaxial two-way design with 6.5 inch woofer and 1.25 inch coaxial tweeter
  • 125W continuous power handling, 500W peak, up to 111dB maximum SPL at 1 meter
  • IP55 outdoor rated for covered outdoor and wet location installs
  • Locks onto a hidden QuickHold U-bracket for fast, secure surface mount installation
  • 125 degree conical coverage for wide, even sound distribution
Why choose the DesignMax DM6SE
It is a Bose Professional loudspeaker rated at 125W continuous, 500W peak with an IP55 outdoor rated rating, so installed sound in the space comes from a purpose-built commercial speaker. Corporate AV checks the room, mounting surface, power and network during a site survey, so the DesignMax DM6SE is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

Coaxial two-way design with 6.5 inch woofer and 1.25 inch coaxial tweeter

125W continuous power handling, 500W peak, up to 111dB maximum SPL at 1 meter

IP55 outdoor rated for covered outdoor and wet location installs

Locks onto a hidden QuickHold U-bracket for fast, secure surface mount installation

125 degree conical coverage for wide, even sound distribution

Use Cases

Ideal Applications

Outdoor & Semi-Outdoor Sites

Retail Stores & Malls

Hotels & Hospitality

Technical Details

Technical Specifications

Acoustic performance
Frequency Response (-3dB) 70 Hz to 20 kHz
Frequency Range (-10dB) 59 Hz to 20 kHz
Power Handling 125W continuous, 500W peak
Sensitivity 90 dB SPL @ 1W / 1m
Maximum SPL 111 dB @ 1m
Coverage 125 degrees conical
Drivers and construction
Color White
Mounting and compatibility
Mounting Hidden QuickHold U-bracket, surface mount
Physical
Net Weight 5.93 kg (13.1 lb) single, with grille
Environment and compliance
Environmental Rating IP55 outdoor rated
General
Part Number 829682-0220
Crossover 1.7 kHz passive two-way

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The DesignMax DM6SE From Corporate AV?
  • Genuine Bose stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Bose products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What frequency range does the Bose DesignMax DM6SE cover?
Bose lists the frequency range of the DesignMax DM6SE as: Frequency Response (-3dB) 70 Hz to 20 kHz; Frequency Range (-10dB) 59 Hz to 20 kHz.
What power does the Bose DesignMax DM6SE handle?
Bose lists the power of the DesignMax DM6SE as: 125W continuous, 500W peak.
How loud does the Bose DesignMax DM6SE get?
Bose lists the maximum output of the DesignMax DM6SE as: 111 dB @ 1m.
What coverage does the Bose DesignMax DM6SE offer?
Bose lists the coverage of the DesignMax DM6SE as: 125 degrees conical.
Can the Bose DesignMax DM6SE be used outdoors?
Bose lists the environmental rating of the DesignMax DM6SE as: IP55 outdoor rated.
Does Corporate AV install the Bose DesignMax DM6SE?
Yes. Corporate AV can supply the DesignMax DM6SE only, or deliver it turnkey with site survey, system design, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the Bose DesignMax DM6SE in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
