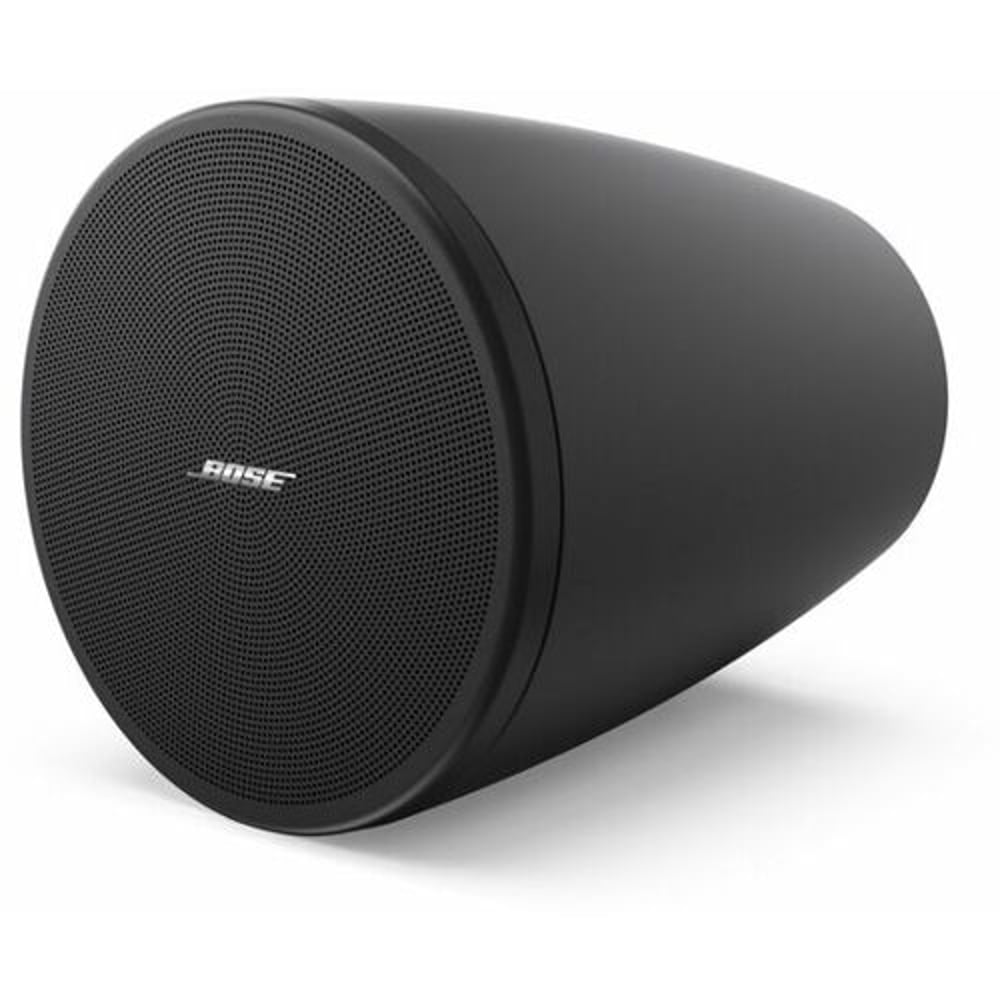

  • Bose DesignMax DM3P Black loudspeaker - product view

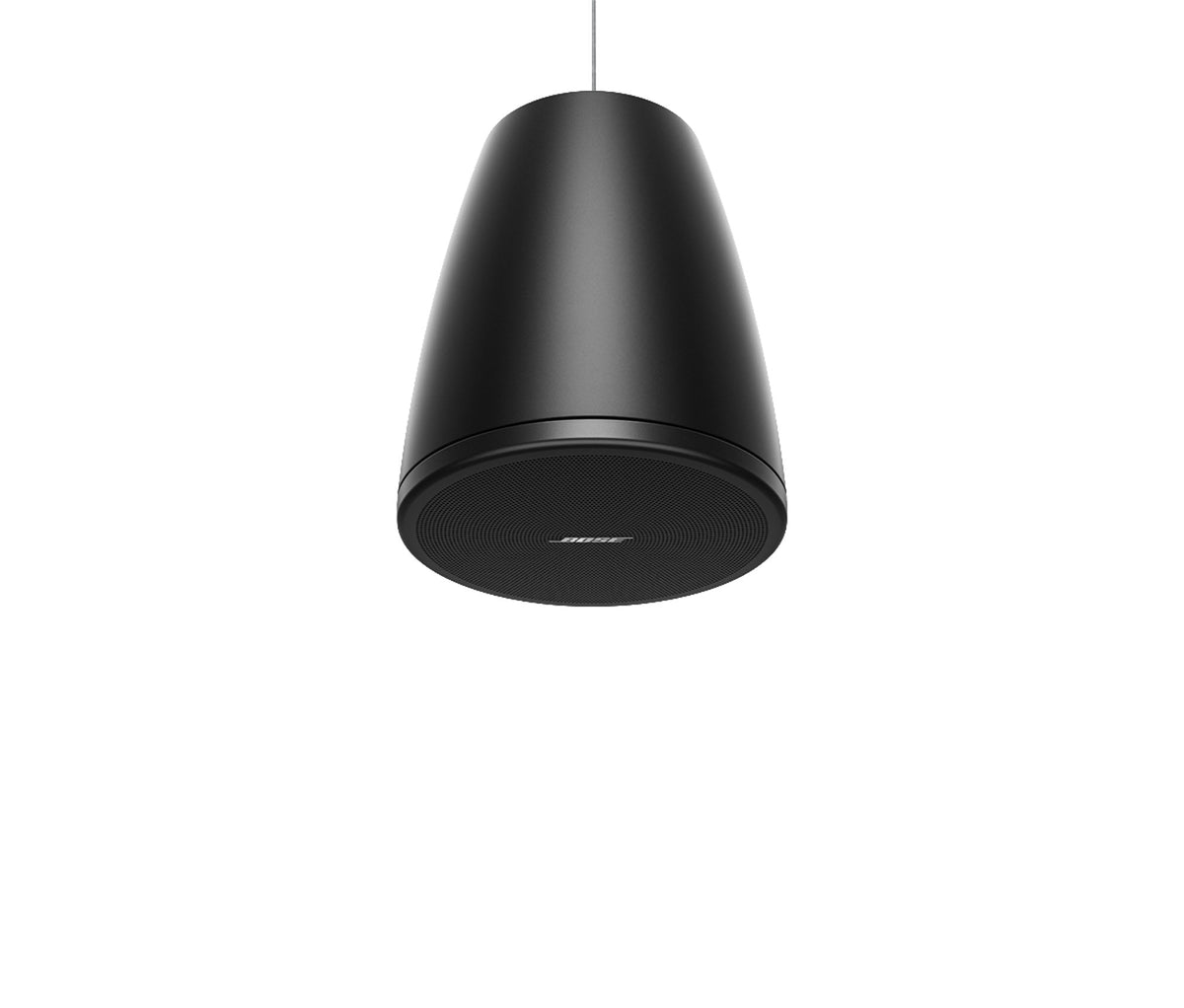

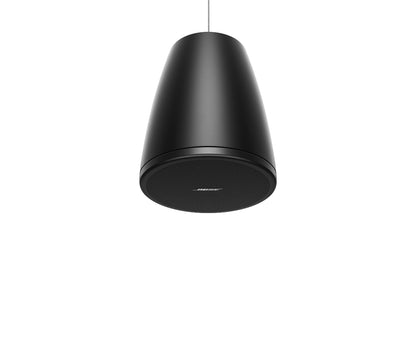

  • Bose DesignMax DM3P Black loudspeaker - front view

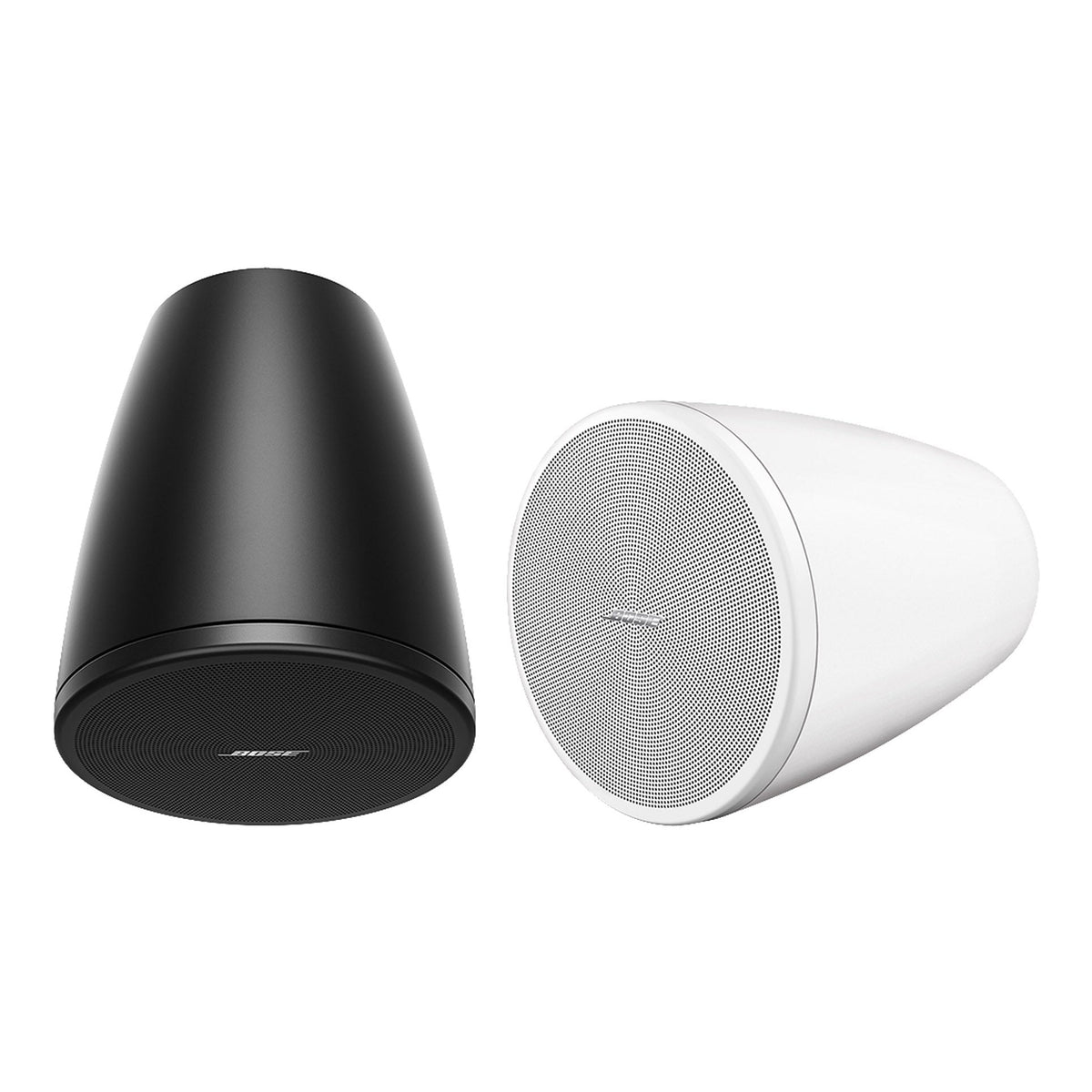

  • Bose DesignMax DM3P Black loudspeaker - angled view (1 of 2)

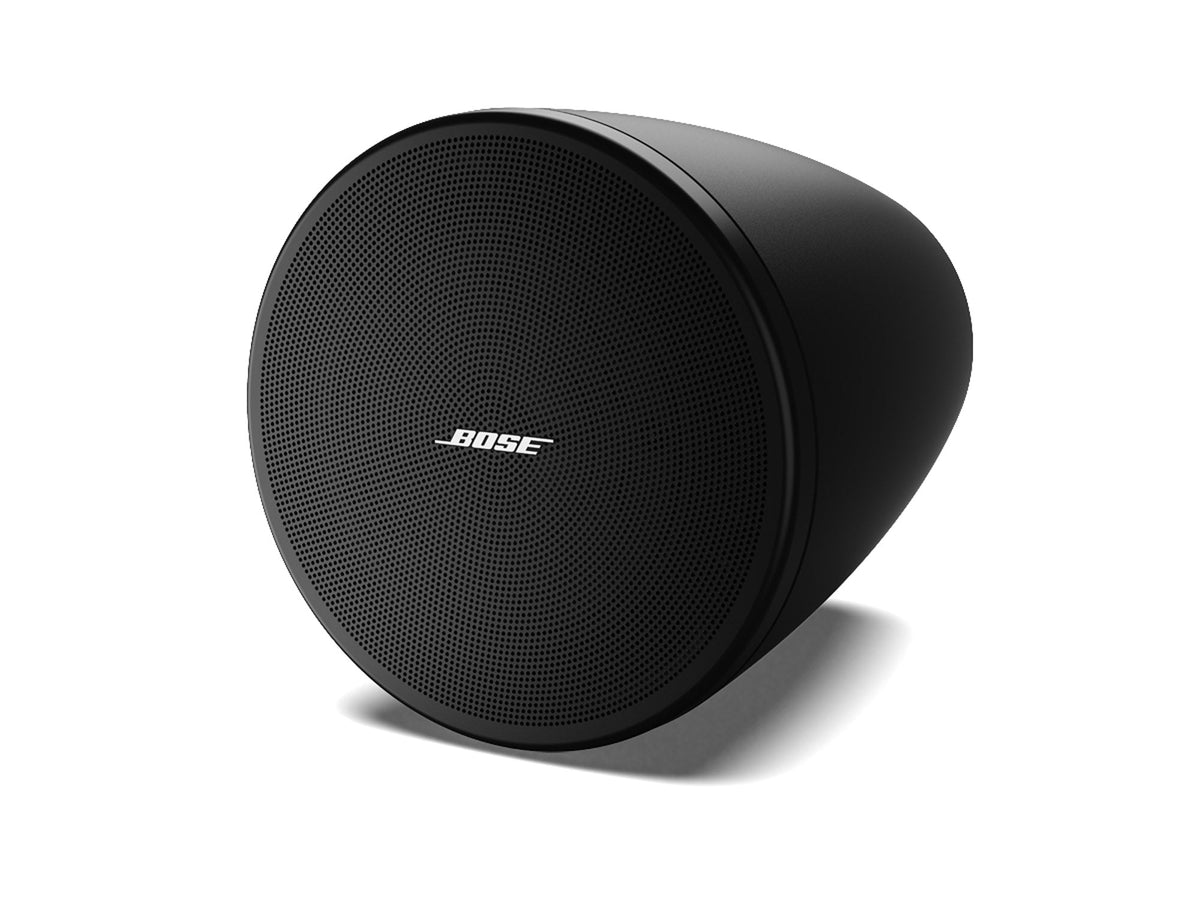

  • Bose DesignMax DM3P Black loudspeaker - angled view (2 of 2)

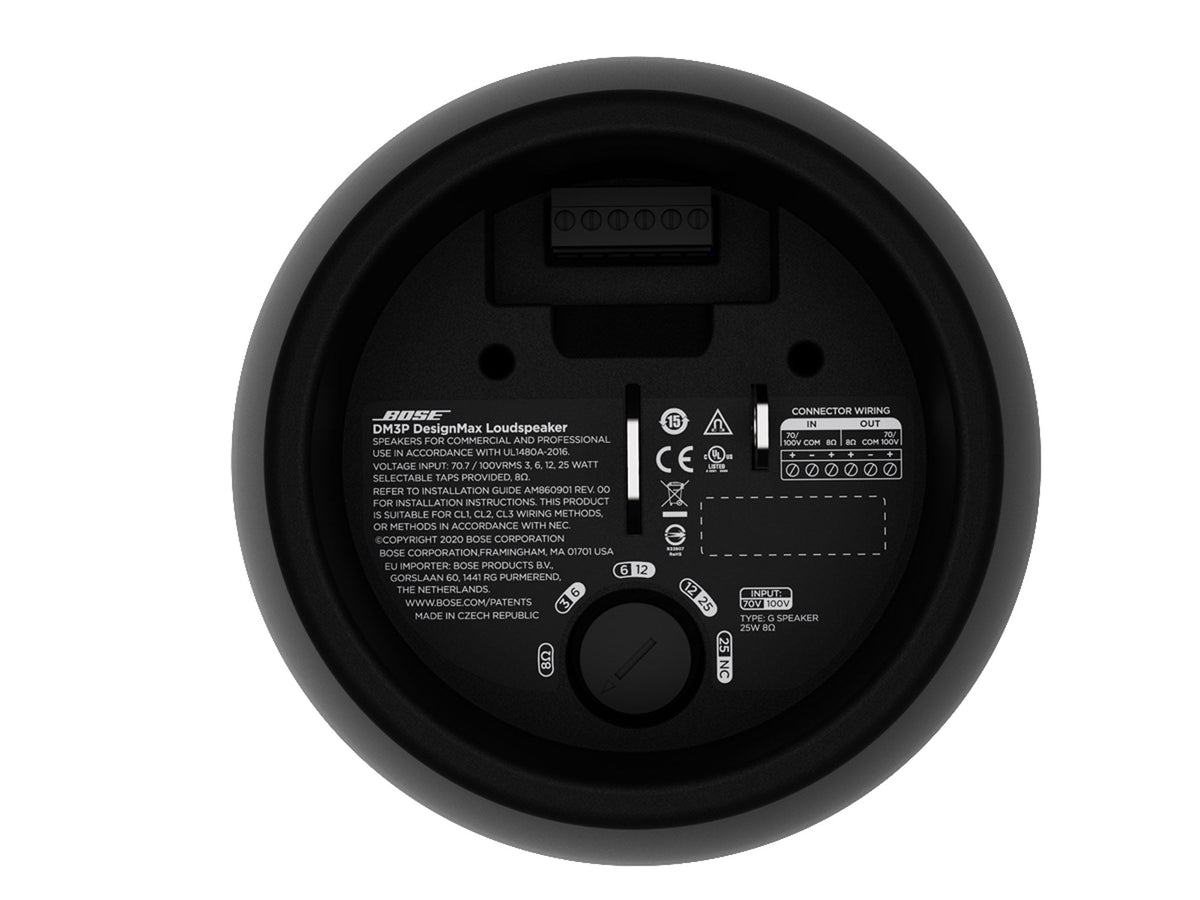

  • Bose DesignMax DM3P Black loudspeaker - rear view
1 5

Bose DesignMax DM3P: Pendant Loudspeaker, Black

Model DesignMax DM3P

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Coaxial two-way design with 3.25 inch woofer and 0.75 inch neodymium dome tweeter
  • 120W peak power handling with 105dB peak SPL
  • Recessed single-point suspension system for a sleek, discreet pendant install
  • 130 degree nominal coverage with Dispersion Alignment for even sound distribution
Installed Audio Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Bose DesignMax DM3P is a Bose Professional coaxial pendant loudspeaker built for discreet, high performance commercial sound.

Specification highlights for the DesignMax DM3P: Frequency Response (-3dB): 85 Hz to 20 kHz; Peak SPL: 105 dB; Coverage: 130 degrees nominal. Corporate AV supplies and integrates the DesignMax DM3P across India for installed sound in commercial, hospitality and retail spaces, including site survey, system design and commissioning where the project needs it.

Key features

  • Coaxial two-way design with 3.25 inch woofer and 0.75 inch neodymium dome tweeter
  • 120W peak power handling with 105dB peak SPL
  • Recessed single-point suspension system for a sleek, discreet pendant install
  • 130 degree nominal coverage with Dispersion Alignment for even sound distribution
  • Selectable 70V/100V transformer taps or 8 ohm direct operation
Why choose the DesignMax DM3P
It is a Bose Professional loudspeaker, so installed sound in the space comes from a purpose-built commercial speaker. Corporate AV checks the room, mounting surface, power and network during a site survey, so the DesignMax DM3P is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

Coaxial two-way design with 3.25 inch woofer and 0.75 inch neodymium dome tweeter

120W peak power handling with 105dB peak SPL

Recessed single-point suspension system for a sleek, discreet pendant install

130 degree nominal coverage with Dispersion Alignment for even sound distribution

Selectable 70V/100V transformer taps or 8 ohm direct operation

Use Cases

Ideal Applications

Auditoriums & Large Venues

Offices & Corporate Spaces

Retail Stores & Malls

Hotels & Hospitality

Technical Details

Technical Specifications

Acoustic performance
Frequency Response (-3dB) 85 Hz to 20 kHz
Peak Power Handling 120 W
Peak SPL 105 dB
Impedance 8 ohm, with 70V taps (3W/6W/12W/25W) and 100V taps (6W/12W/25W)
Coverage 130 degrees nominal
Drivers and construction
Color Black
Physical
Dimensions 8.2 x 9.8 in (207 x 248 mm) diameter x depth
General
Part Number 841165-0120
Suspension Cable 15 ft (4.6 m) Gripple adjustable cable included

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The DesignMax DM3P From Corporate AV?
  • Genuine Bose stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Bose products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What frequency range does the Bose DesignMax DM3P cover?
Bose lists the frequency range of the DesignMax DM3P as: 85 Hz to 20 kHz.
How loud does the Bose DesignMax DM3P get?
Bose lists the maximum output of the DesignMax DM3P as: 105 dB.
What coverage does the Bose DesignMax DM3P offer?
Bose lists the coverage of the DesignMax DM3P as: 130 degrees nominal.
What impedance does the Bose DesignMax DM3P use?
Bose lists the impedance of the DesignMax DM3P as: 8 ohm, with 70V taps (3W/6W/12W/25W) and 100V taps (6W/12W/25W).
What are the dimensions of the Bose DesignMax DM3P?
Bose lists the dimensions of the DesignMax DM3P as: 8.2 x 9.8 in (207 x 248 mm) diameter x depth.
Does Corporate AV install the Bose DesignMax DM3P?
Yes. Corporate AV can supply the DesignMax DM3P only, or deliver it turnkey with site survey, system design, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the Bose DesignMax DM3P in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
