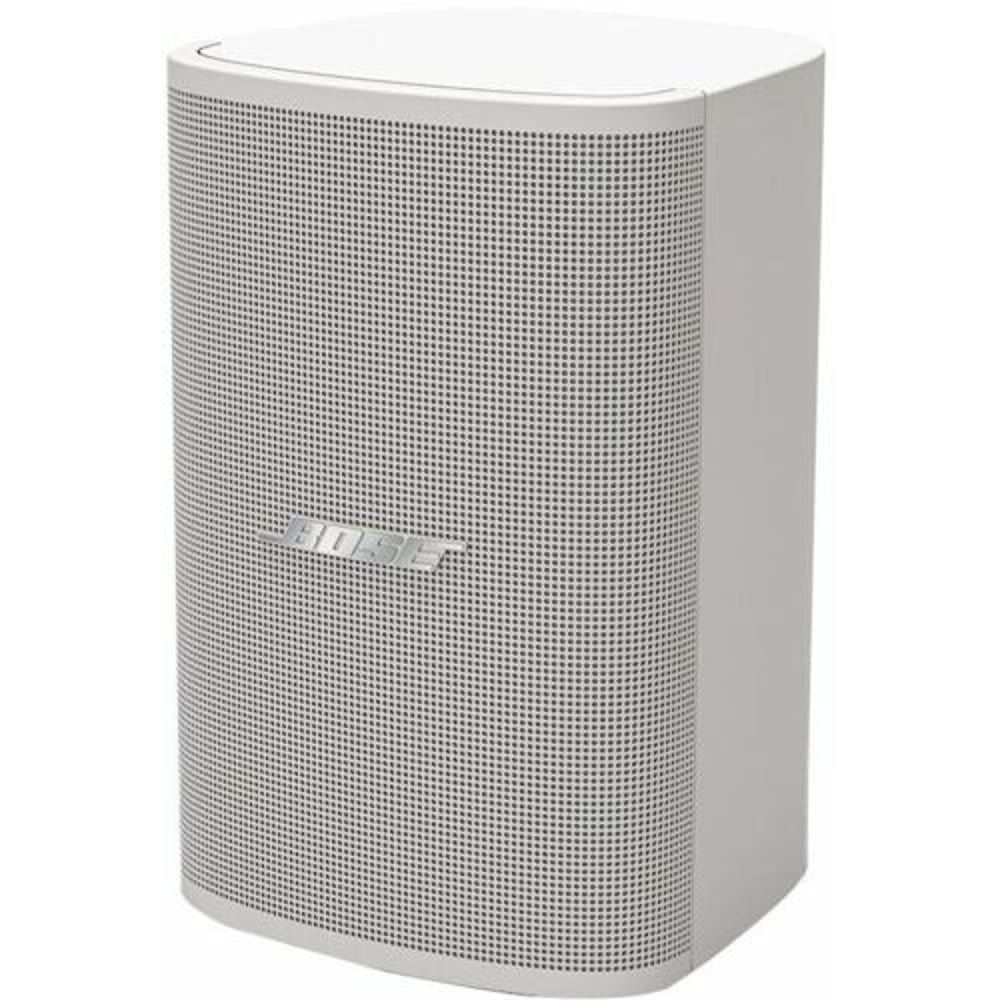

  • Bose DesignMax DM3SE White loudspeaker - product view

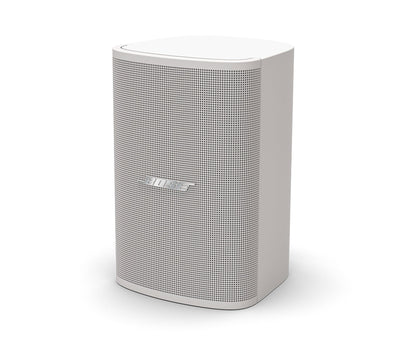

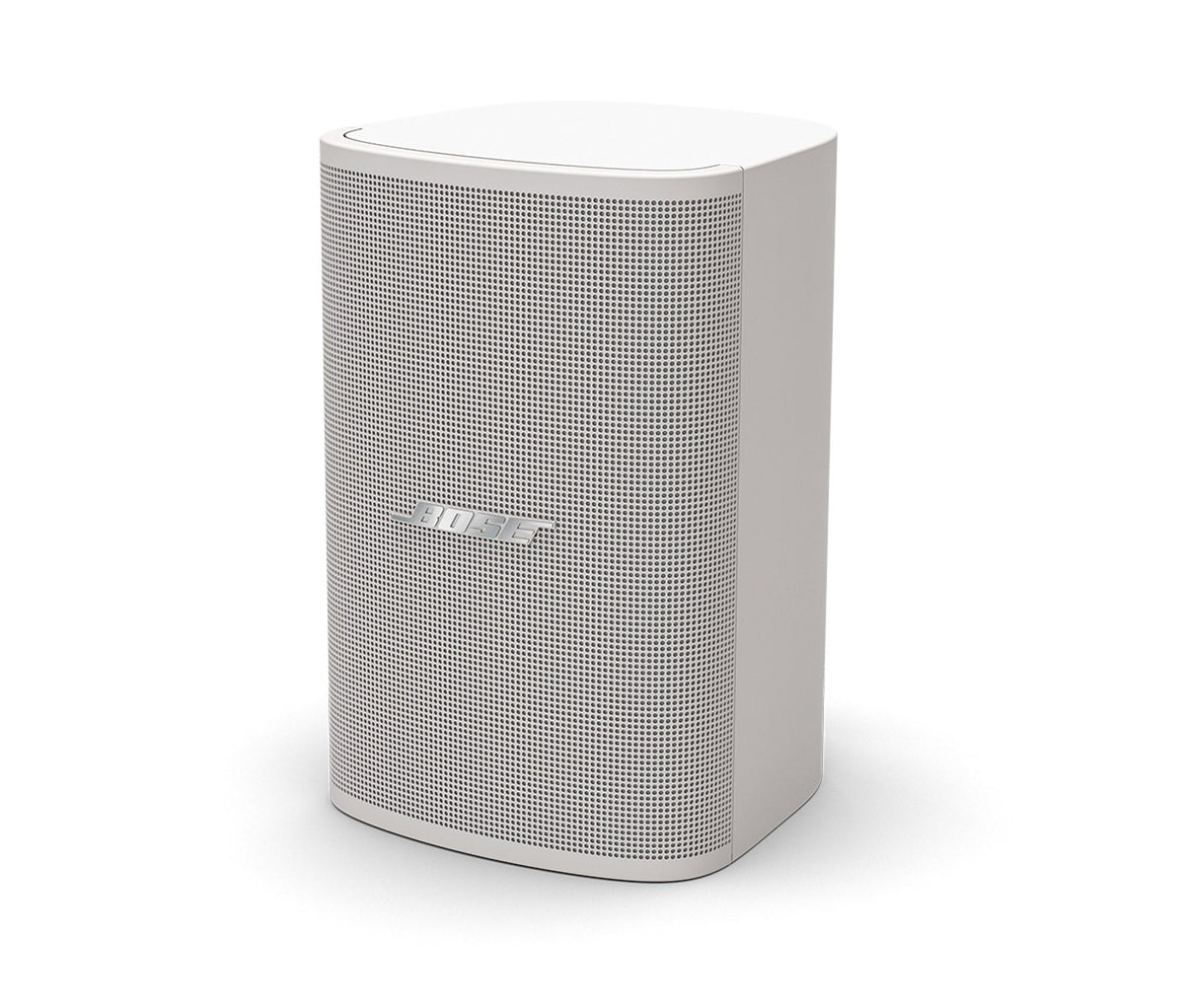

  • Bose DesignMax DM3SE White loudspeaker - front view

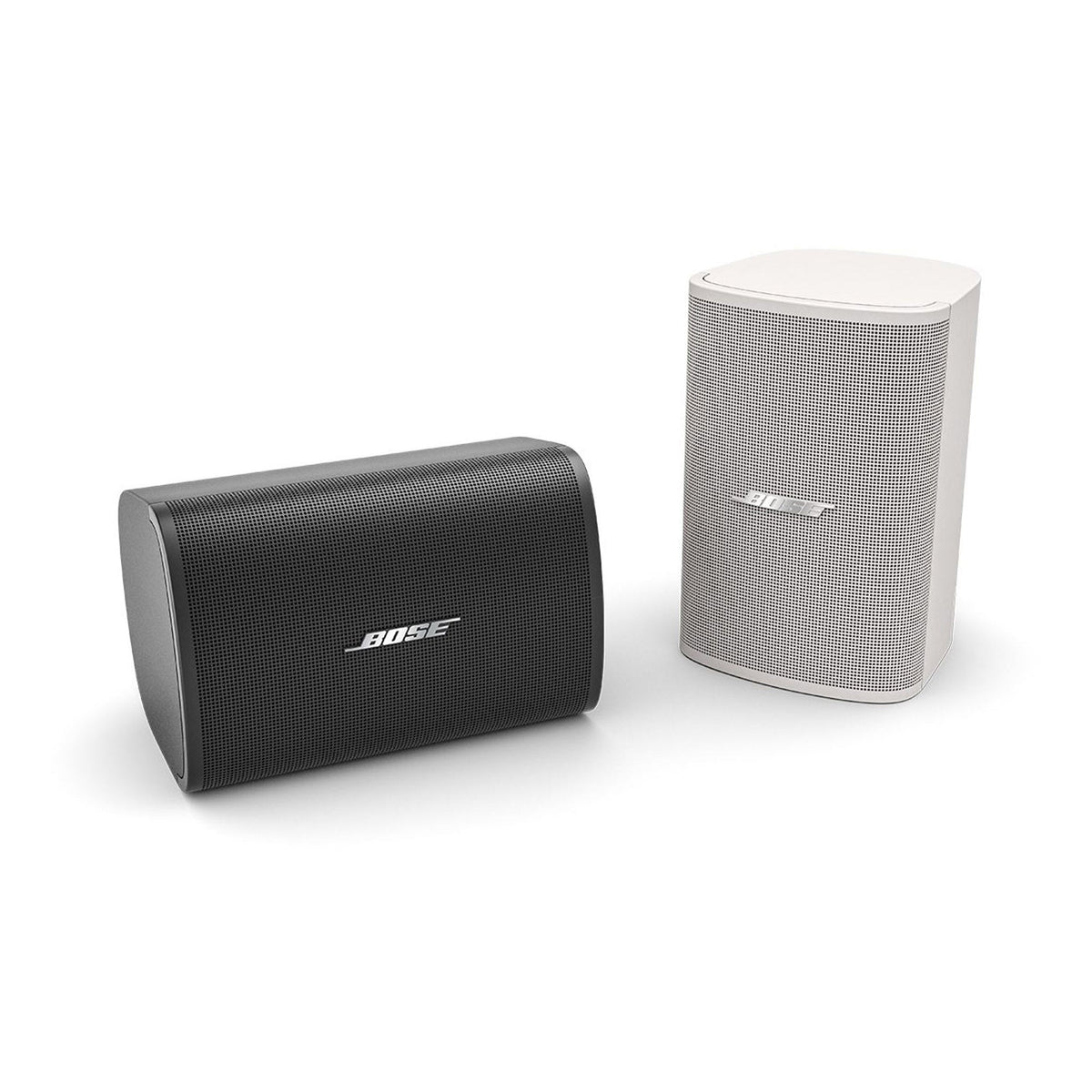

  • Bose DesignMax DM3SE White loudspeaker - angled view

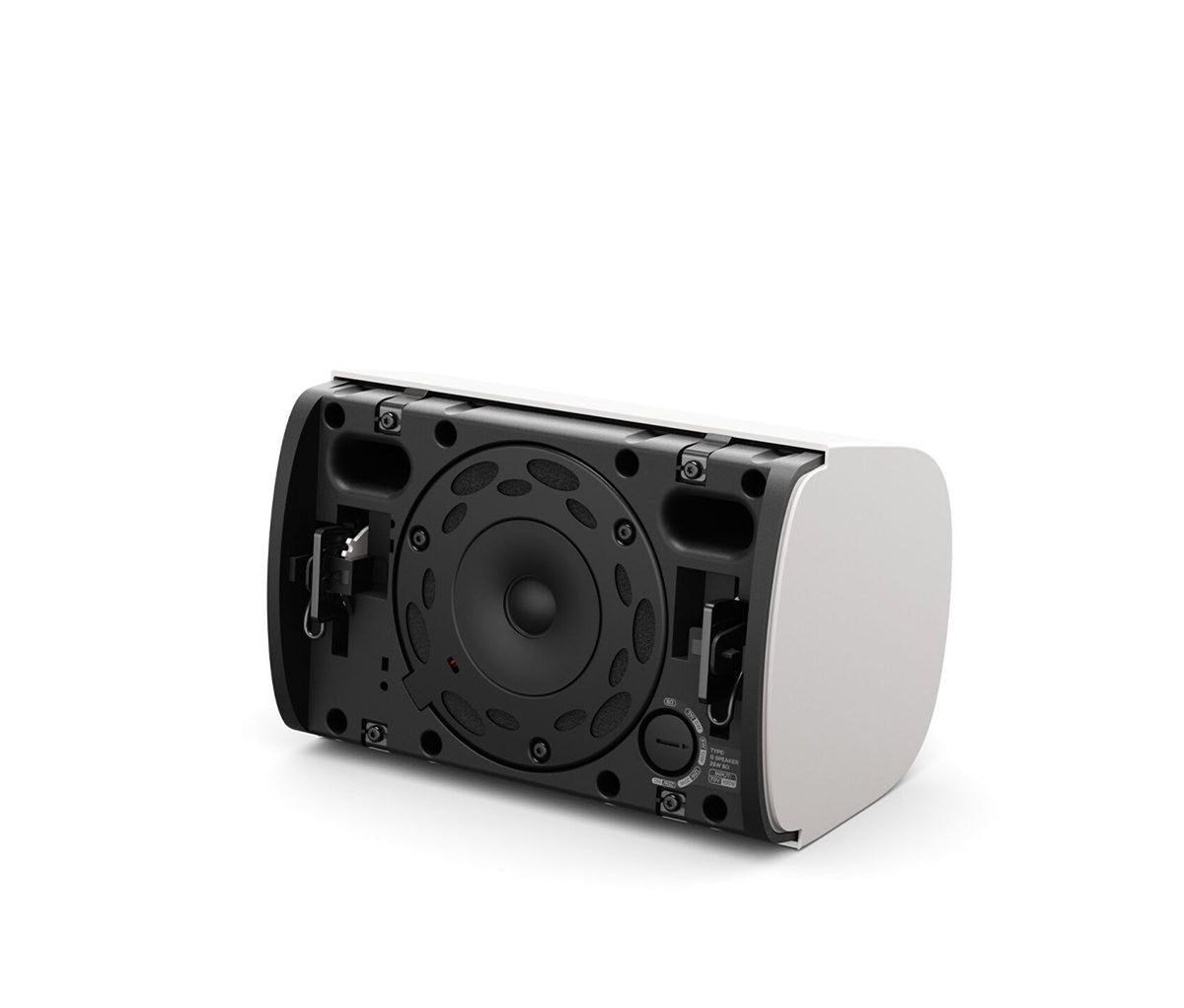

  • Bose DesignMax DM3SE White loudspeaker - rear view
1 4

Bose DesignMax DM3SE: 3.5 Inch Surface Mount Loudspeaker, White

Model DesignMax DM3SE

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Coaxial two way 3.5 inch woofer and 0.75 inch tweeter for point source sound imaging
  • Frequency range of 75 Hz to 20 kHz from a 30 watt rated enclosure
  • Surface mounted design that locks onto a hidden QuickHold U-bracket for fast, secure installation
  • IP55 outdoor rated for covered outdoor or semi exposed installations
Installed Audio Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Bose DesignMax DM3SE is a 3.5 Inch Surface Mount Loudspeaker, White. Its small footprint and premium white finish suit retail, hospitality and small commercial spaces that need clear, intelligible sound without a visually intrusive speaker.

Specification highlights for the DesignMax DM3SE: Frequency Range: 75 Hz to 20 kHz; Power Rating: 30 W. Corporate AV supplies and integrates the DesignMax DM3SE across India for installed sound in commercial, hospitality and retail spaces, including site survey, system design and commissioning where the project needs it.

Key features

  • Coaxial two way 3.5 inch woofer and 0.75 inch tweeter for point source sound imaging
  • Frequency range of 75 Hz to 20 kHz from a 30 watt rated enclosure
  • Surface mounted design that locks onto a hidden QuickHold U-bracket for fast, secure installation
  • IP55 outdoor rated for covered outdoor or semi exposed installations
  • Compact, unobtrusive enclosure that complements premium commercial interiors
Why choose the DesignMax DM3SE
It is a Bose Professional loudspeaker with an IP55 rating, so installed sound in the space comes from a purpose-built commercial speaker. Corporate AV checks the room, mounting surface, power and network during a site survey, so the DesignMax DM3SE is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

Coaxial two way 3.5 inch woofer and 0.75 inch tweeter for point source sound imaging

Frequency range of 75 Hz to 20 kHz from a 30 watt rated enclosure

Surface mounted design that locks onto a hidden QuickHold U-bracket for fast, secure installation

IP55 outdoor rated for covered outdoor or semi exposed installations

Compact, unobtrusive enclosure that complements premium commercial interiors

Use Cases

Ideal Applications

Retail Stores & Malls

Hotels & Hospitality

Outdoor & Semi-Outdoor Sites

Offices & Corporate Spaces

Technical Details

Technical Specifications

Acoustic performance
Power Rating 30 W
Frequency Range 75 Hz to 20 kHz
Drivers and construction
Driver Complement 3.5 inch woofer, 0.75 inch coaxial tweeter
Enclosure Rating IP55
Color White
Mounting and compatibility
Mounting Hidden QuickHold U-bracket, surface mount
Physical
Dimensions, Loudspeaker Only (H x W x D) 232 x 154 x 155 mm (9.1 x 6.1 x 6.1 in)
Dimensions with Bracket (H x W x D) 232 x 154 x 171 mm (9.1 x 6.1 x 6.7 in)
General
Part Number 829712-0220

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The DesignMax DM3SE From Corporate AV?
  • Genuine Bose stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Bose products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What frequency range does the Bose DesignMax DM3SE cover?
Bose lists the frequency range of the DesignMax DM3SE as: 75 Hz to 20 kHz.
Can the Bose DesignMax DM3SE be used outdoors?
Bose lists the environmental rating of the DesignMax DM3SE as: IP55.
How is the Bose DesignMax DM3SE mounted?
Bose lists the mounting of the DesignMax DM3SE as: Hidden QuickHold U-bracket, surface mount.
What colour is the Bose DesignMax DM3SE?
The DesignMax DM3SE is: White.
What is the part number of the Bose DesignMax DM3SE in white?
The part number is 829712-0220. Part numbers carry regional suffixes, so Corporate AV confirms the exact India order code when preparing your quote.
Does Corporate AV install the Bose DesignMax DM3SE?
Yes. Corporate AV can supply the DesignMax DM3SE only, or deliver it turnkey with site survey, system design, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the Bose DesignMax DM3SE in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
