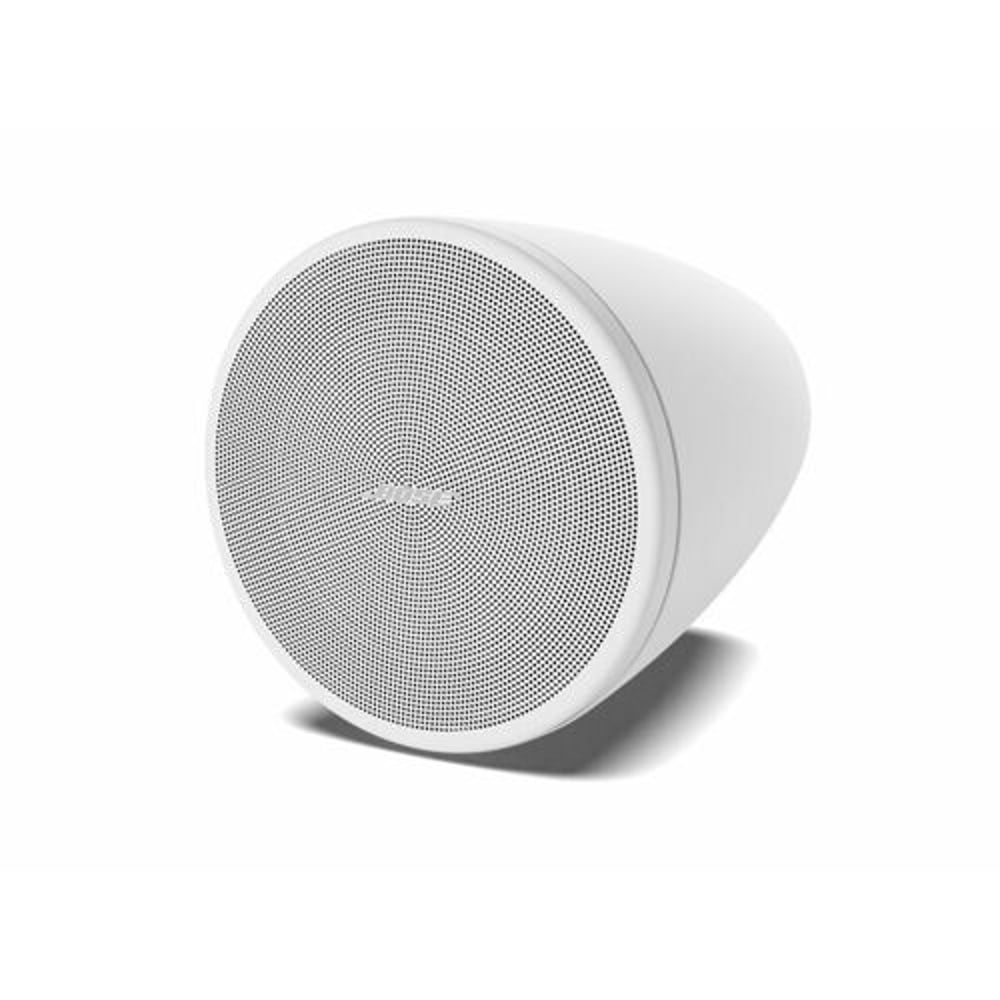

  • Bose DesignMax DM3P White loudspeaker - product view

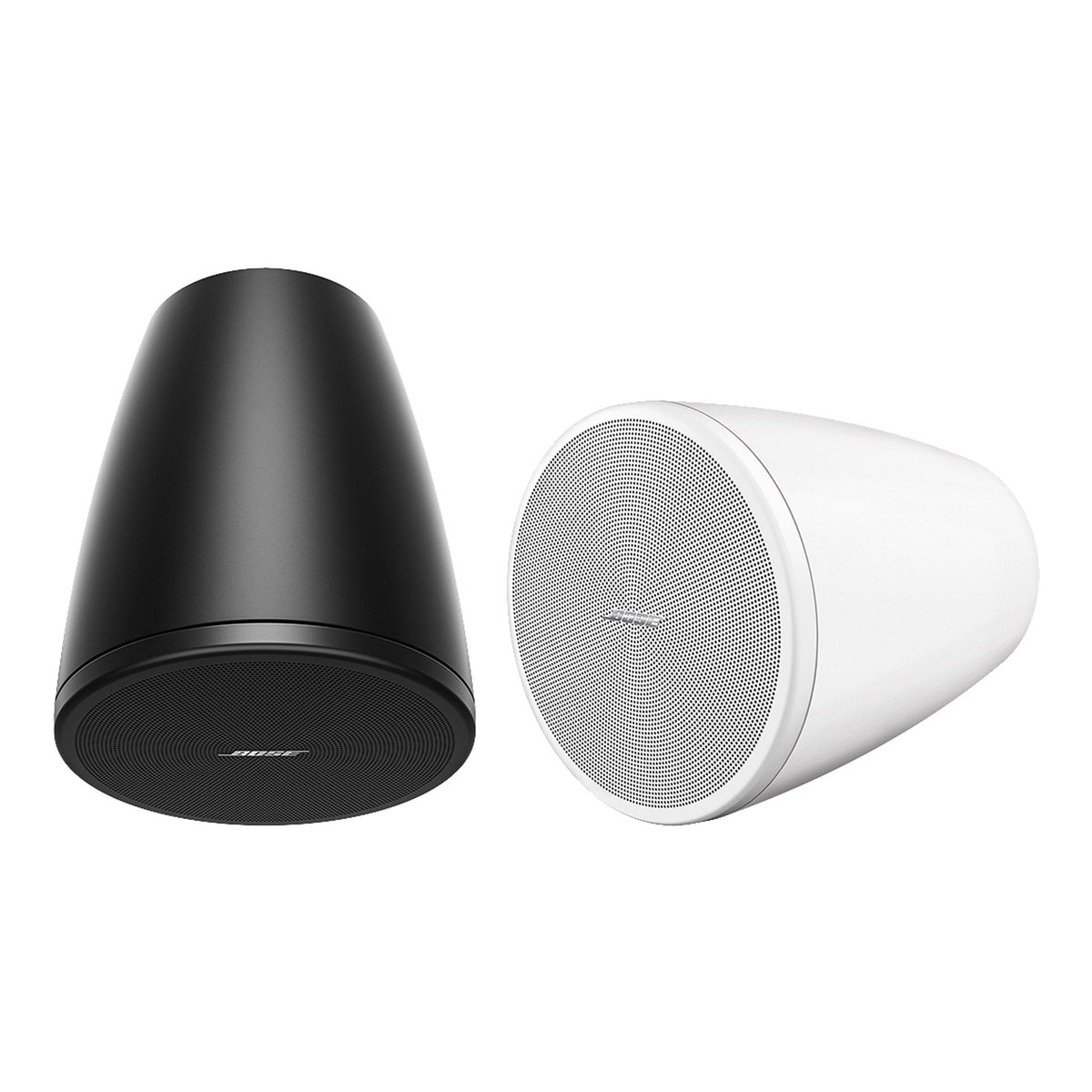

  • Bose DesignMax DM3P White loudspeaker - angled view (1 of 2)

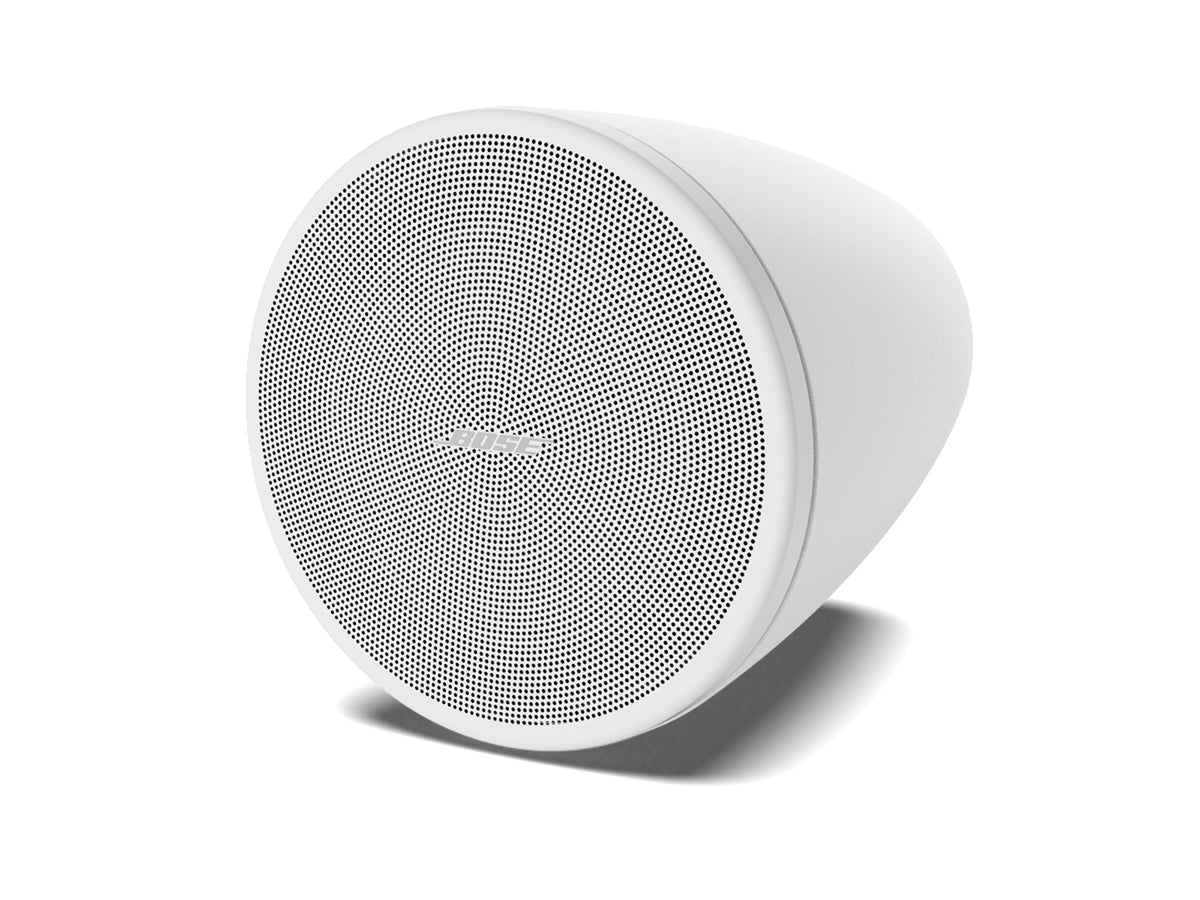

  • Bose DesignMax DM3P White loudspeaker - angled view (2 of 2)
1 3

Bose DesignMax DM3P: White 30W Coaxial Speaker

Model DesignMax DM3P

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Coaxial 3.25 inch woofer and 0.75 inch tweeter mounted within the Dispersion Alignment system
  • 30 watt continuous power handling with 120 watt peak capability
  • Frequency response of 75 Hz to 20 kHz for clear highs and surprising low end
  • Recessed single-point Gripple suspension for a sleek, minimal-hardware pendant look
Installed Audio Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Bose Professional DesignMax DM3P is a compact coaxial pendant loudspeaker in white for retail, hospitality and commercial ceiling-drop sound installations.

Specification highlights for the DesignMax DM3P: Frequency Response: 75 Hz to 20 kHz; Power Handling: 30W continuous, 120W peak; Maximum SPL: 105 dB. Corporate AV supplies and integrates the DesignMax DM3P across India for installed sound in commercial, hospitality and retail spaces, including site survey, system design and commissioning where the project needs it.

Key features

  • Coaxial 3.25 inch woofer and 0.75 inch tweeter mounted within the Dispersion Alignment system
  • 30 watt continuous power handling with 120 watt peak capability
  • Frequency response of 75 Hz to 20 kHz for clear highs and surprising low end
  • Recessed single-point Gripple suspension for a sleek, minimal-hardware pendant look
Why choose the DesignMax DM3P
It is a Bose Professional loudspeaker rated at 30W continuous, 120W peak, so installed sound in the space comes from a purpose-built commercial speaker. Corporate AV checks the room, mounting surface, power and network during a site survey, so the DesignMax DM3P is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

Coaxial 3.25 inch woofer and 0.75 inch tweeter mounted within the Dispersion Alignment system

30 watt continuous power handling with 120 watt peak capability

Frequency response of 75 Hz to 20 kHz for clear highs and surprising low end

Recessed single-point Gripple suspension for a sleek, minimal-hardware pendant look

Use Cases

Ideal Applications

Retail Stores & Malls

Hotels & Hospitality

Offices & Corporate Spaces

Technical Details

Technical Specifications

Acoustic performance
Power Handling 30W continuous, 120W peak
Frequency Response 75 Hz to 20 kHz
Maximum SPL 105 dB
Coverage Pattern 130 degrees conical
Drivers and construction
Driver Configuration Coaxial 3.25 inch woofer with 0.75 inch tweeter
Color White
Mounting and compatibility
Mounting Recessed single-point Gripple pendant suspension
General
Part Number 841165-0220

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The DesignMax DM3P From Corporate AV?
  • Genuine Bose stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Bose products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What frequency range does the Bose DesignMax DM3P cover?
Bose lists the frequency range of the DesignMax DM3P as: 75 Hz to 20 kHz.
What power does the Bose DesignMax DM3P handle?
Bose lists the power of the DesignMax DM3P as: 30W continuous, 120W peak.
How loud does the Bose DesignMax DM3P get?
Bose lists the maximum output of the DesignMax DM3P as: 105 dB.
What coverage does the Bose DesignMax DM3P offer?
Bose lists the coverage of the DesignMax DM3P as: 130 degrees conical.
What drivers does the Bose DesignMax DM3P use?
Bose lists the drivers of the DesignMax DM3P as: Coaxial 3.25 inch woofer with 0.75 inch tweeter.
Does Corporate AV install the Bose DesignMax DM3P?
Yes. Corporate AV can supply the DesignMax DM3P only, or deliver it turnkey with site survey, system design, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the Bose DesignMax DM3P in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
