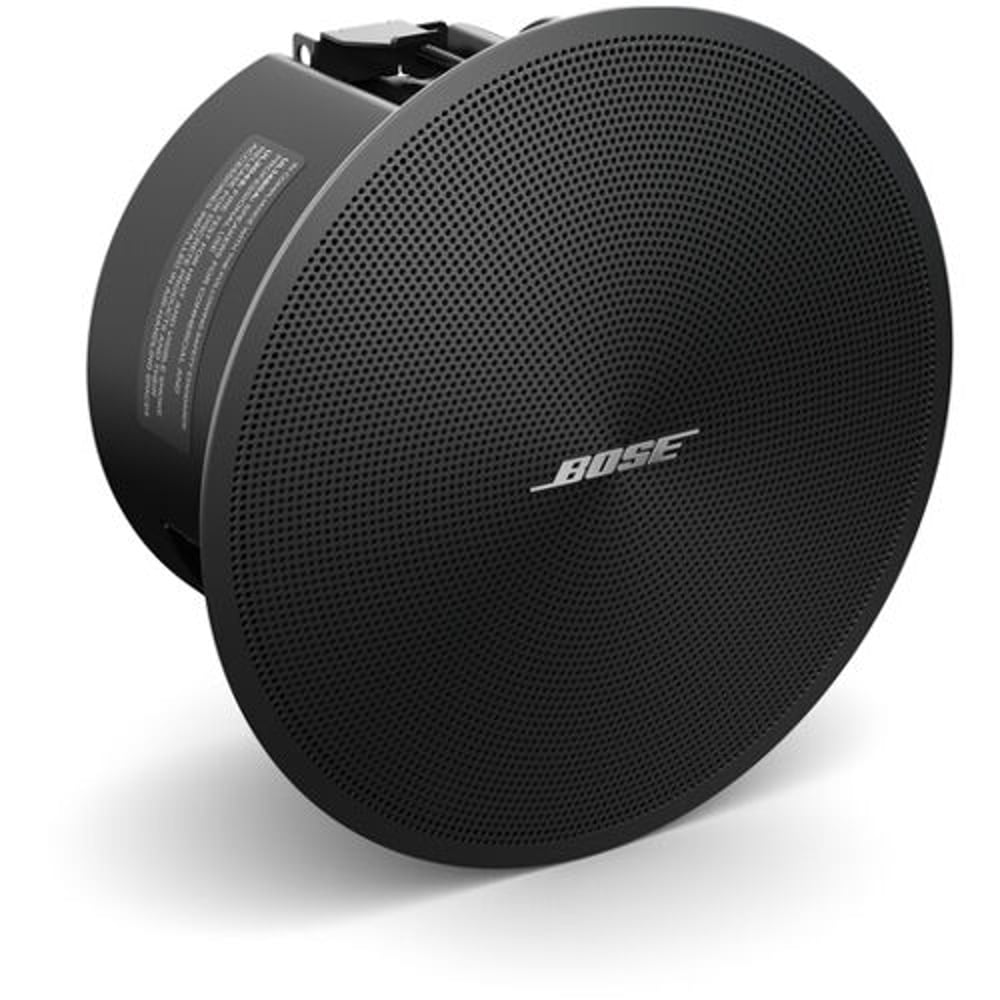

  • Bose DesignMax DM2C-LP Black loudspeaker - product view

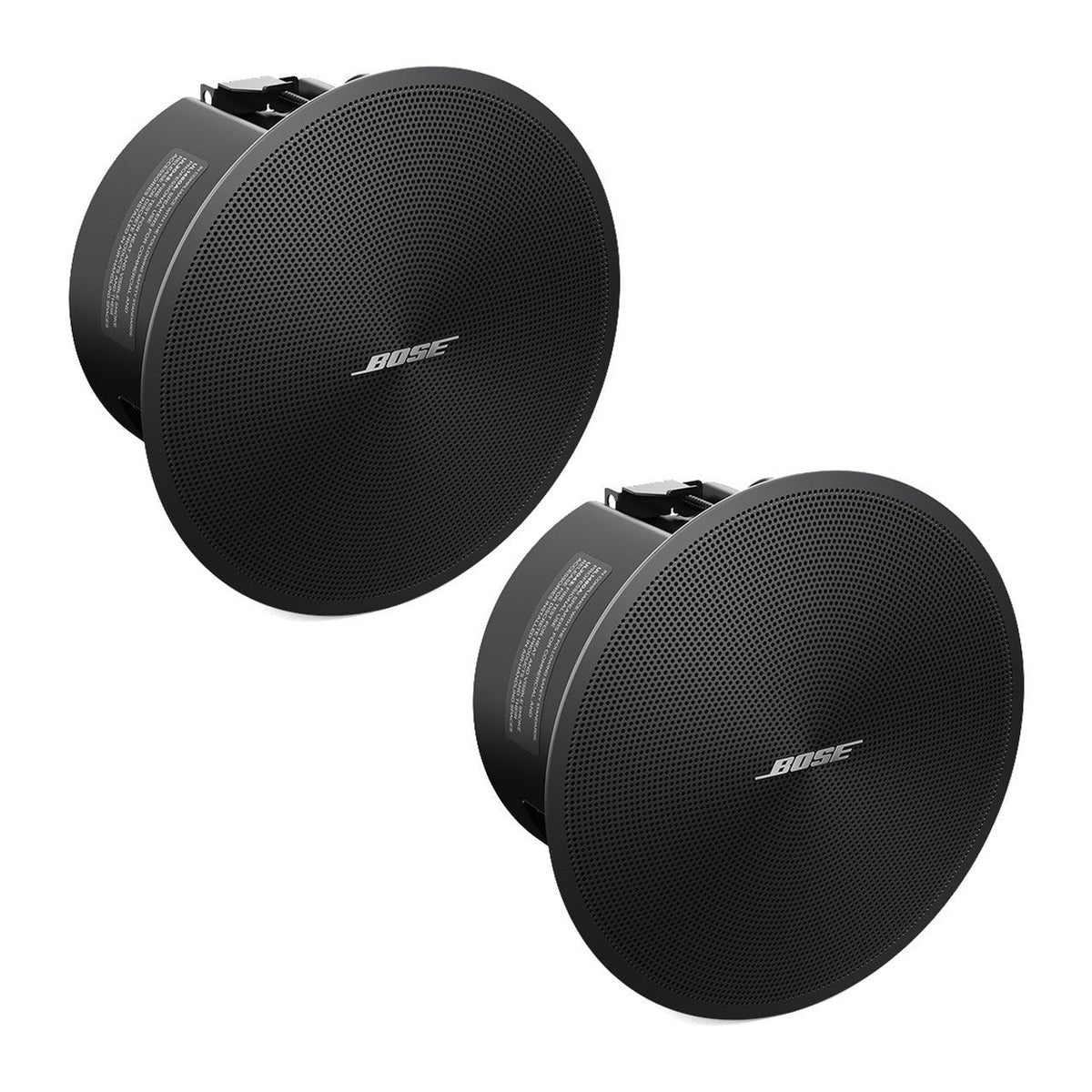

  • Bose DesignMax DM2C-LP Black loudspeaker - front view
1 2

Bose DesignMax DM2C-LP: 2.25 Inch In-Ceiling Loudspeaker Pair, Black

Model DesignMax DM2C-LP

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 20W loudspeaker with a 2.25 inch transducer covering 85Hz to 19kHz
  • Low profile backcan measuring just 165mm in diameter for tight ceiling spaces
  • Installs via Bose QuickHold mounting arms through a 39mm cutout
  • 150 degree conical coverage between 1 and 4kHz
Installed Audio Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Bose DesignMax DM2C-LP is a Bose Professional low profile in ceiling loudspeaker pair for background music in tight ceiling voids.

Specification highlights for the DesignMax DM2C-LP: Frequency Response: 95Hz to 18,000Hz (-3dB); Power Handling: 20W continuous; Coverage Angle: 150 degrees conical (1-4kHz). Corporate AV supplies and integrates the DesignMax DM2C-LP across India for installed sound in commercial, hospitality and retail spaces, including site survey, system design and commissioning where the project needs it.

Key features

  • 20W loudspeaker with a 2.25 inch transducer covering 85Hz to 19kHz
  • Low profile backcan measuring just 165mm in diameter for tight ceiling spaces
  • Installs via Bose QuickHold mounting arms through a 39mm cutout
  • 150 degree conical coverage between 1 and 4kHz
Why choose the DesignMax DM2C-LP
It is a Bose Professional loudspeaker rated at 20W continuous, so installed sound in the space comes from a purpose-built commercial speaker. Corporate AV checks the room, mounting surface, power and network during a site survey, so the DesignMax DM2C-LP is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

20W loudspeaker with a 2.25 inch transducer covering 85Hz to 19kHz

Low profile backcan measuring just 165mm in diameter for tight ceiling spaces

Installs via Bose QuickHold mounting arms through a 39mm cutout

150 degree conical coverage between 1 and 4kHz

Use Cases

Ideal Applications

Retail Stores & Malls

Hotels & Hospitality

Technical Details

Technical Specifications

Acoustic performance
Power Handling 20W continuous
Frequency Response 95Hz to 18,000Hz (-3dB)
Coverage Angle 150 degrees conical (1-4kHz)
Sensitivity 84dB SPL / 1W @ 1m
Drivers and construction
Color Black
Physical
Weight 1.6kg per speaker, 0.7kg backcan
General
Part Number 815011-0110
Grille Dimensions 155 x 155mm
