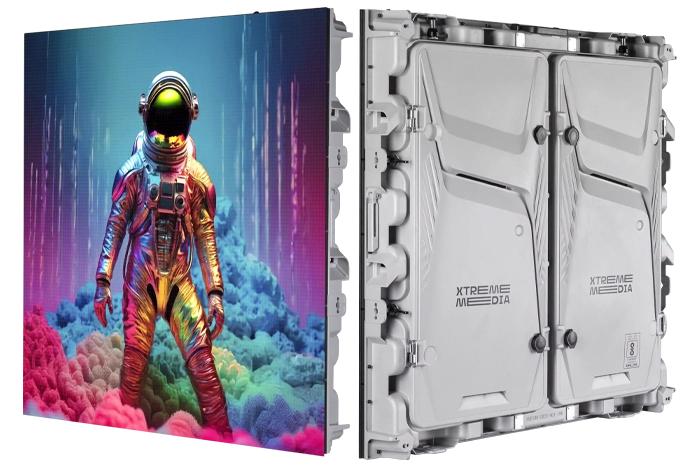

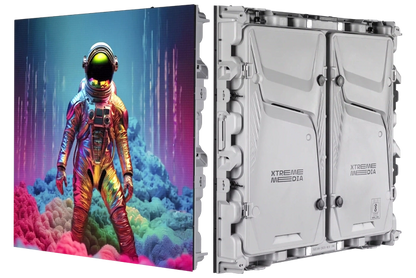

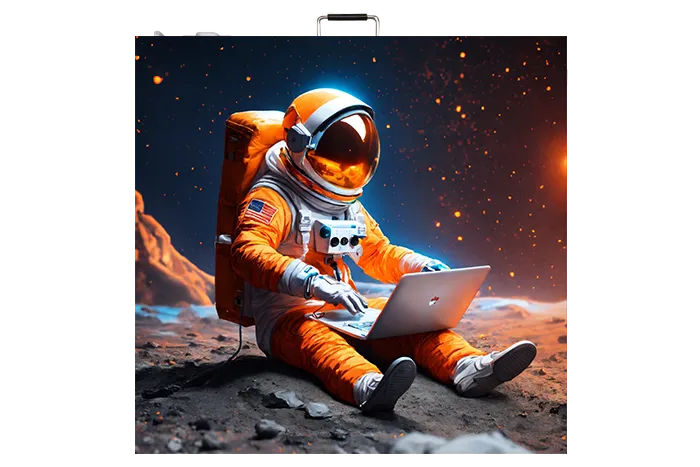

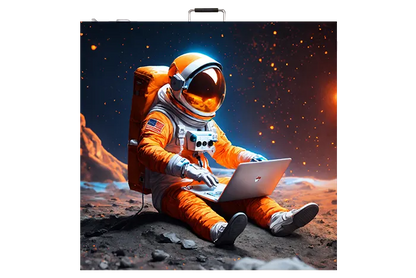

Xtreme Media NYX OD: SMD Outdoor LED Display, P2.5 to P10
Model NYX OD
Request a Quote
Availability: Out of Stock
- High Brightness and Cost-effective: The high brightness capabilities of Xtreme Media's Nyx OD LED displays make them visible even in broad daylight
- IP 65/54: These Led Displays are IP65/54 rated which ensures that they are weather-proof and can sustain any harsh environment
- Screen Monitoring
Product Overview
Overview
The Xtreme Media NYX OD is an SMD outdoor LED display with IP65/54 protection. Xtreme Media's Nyx OD series LED displays are designed for outdoor applications. The SMD feature allows for more precise control of energy usage, leading to reduced power consumption and improving the overall performance.
Corporate AV supplies, installs and supports the Xtreme Media NYX OD across India. Request a quote for supply, installation and commissioning.
Key features
- High Brightness and Cost-effective: The high brightness capabilities of Xtreme Media's Nyx OD LED displays make them visible even in broad daylight
- IP 65/54: These Led Displays are IP65/54 rated which ensures that they are weather-proof and can sustain any harsh environment
- Screen Monitoring
Typical applications

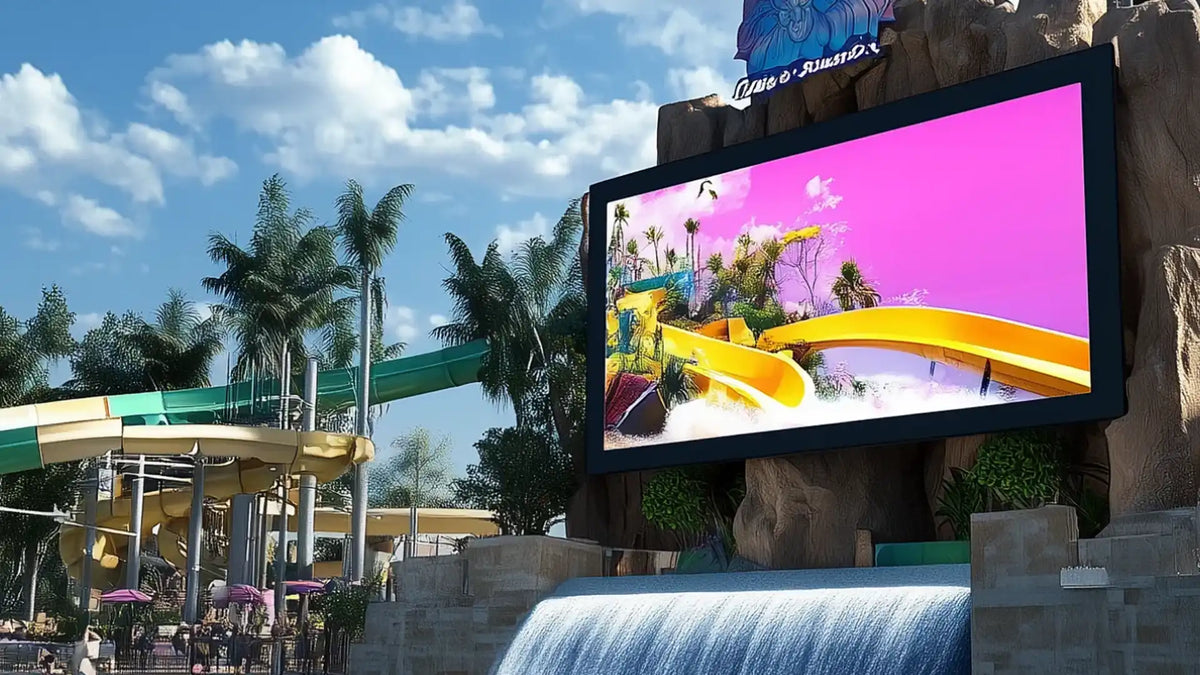

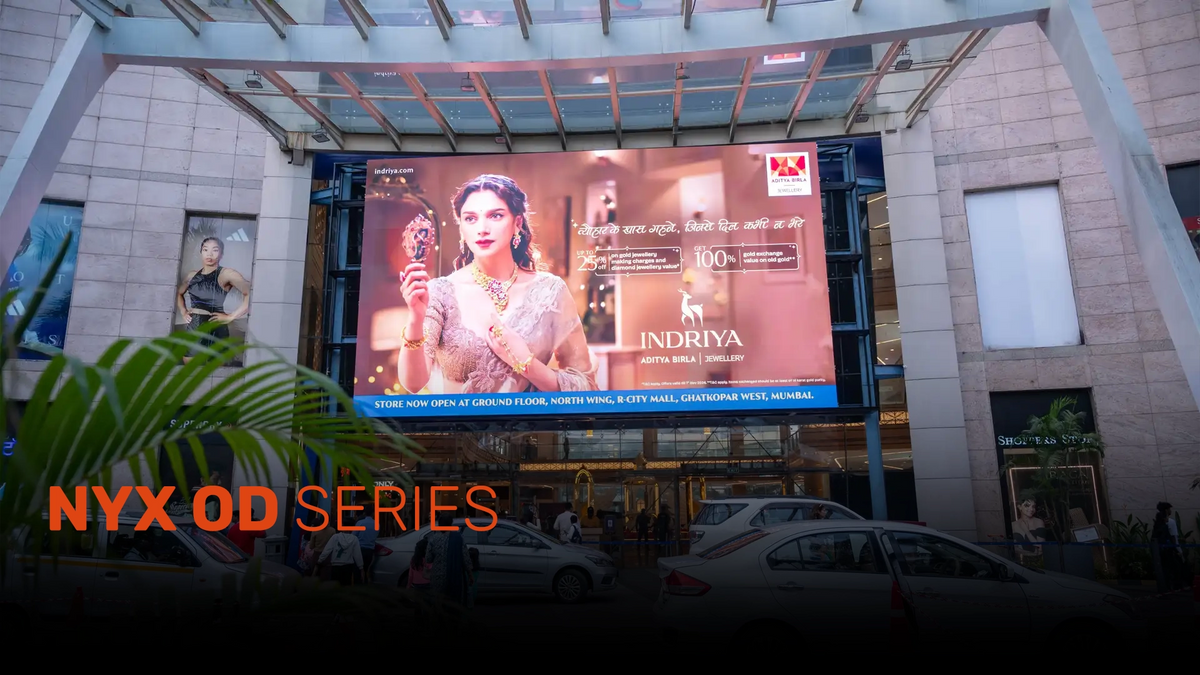

- Outdoor advertising
- Daylight-visible outdoor displays
- Weather-exposed outdoor sites
Why choose the NYX OD
it is an SMD outdoor LED display with IP65/54 protection from Xtreme Media, an Indian manufacturer, supplied with Corporate AV's site survey, installation and support across India, so the NYX OD is specified for your venue and not just shipped.
Product Highlights
Key Benefits
High Brightness and Cost-effective: The high brightness capabilities of Xtreme Media's Nyx OD LED displays make them visible even in broad daylight
IP 65/54: These Led Displays are IP65/54 rated which ensures that they are weather-proof and can sustain any harsh environment
Screen Monitoring
Use Cases
Ideal Applications
Outdoor advertising
Daylight-visible outdoor displays
Weather-exposed outdoor sites
Technical Details
Technical Specifications
Display and performance
Models (in column order)
XM Nyx OD - 2.5 | XM Nyx OD - 3 | XM Nyx OD - 4 | XM Nyx OD - 5 | XM Nyx OD - 8 | XM Nyx OD - 10
Pixel Pitch (mm)
2.5 mm | 3 mm | 4 mm | 5 mm | 8 mm | 10 mm
Maximum Brightness (nits)
5000 | 5000 | 5000 | 5000 | 5000/6000 | 5000/6000
Viewing Angle
160 x 160
Contrast Ratio
5000:1
Refresh Rate (Hz)
3840 | 3840 | 3840 | 3840 | 1920 | 1920
Data Processing
12–14 Bit | 12–14 Bit | 14 Bit | 14 Bit | 12–14 Bit | 12–14 Bit
Cabinet and installation
Cabinet Dimension (W x H x D) mm
640 x 960 x 125 | 960 x 960 x 115 | 960 x 960 x 127 | 960 x 960 x 127 | 960 x 960 x 127 | 960 x 960 x 127
Weight (kg/m²)
30 | 30 | 25 | 25 | 25 | 25

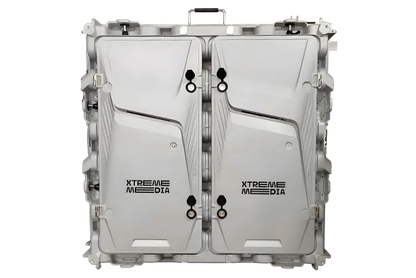

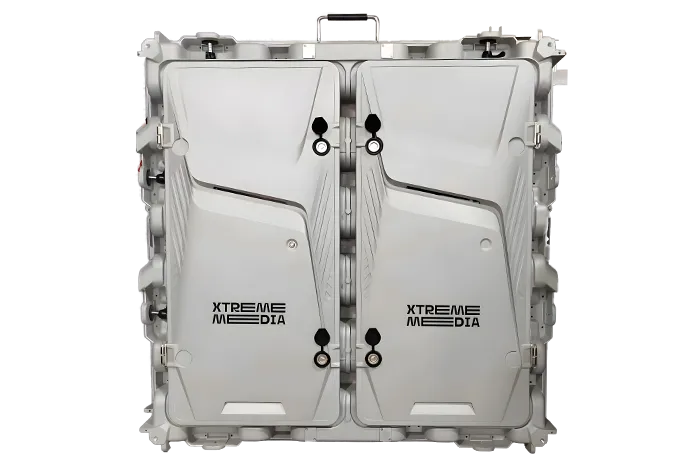

Cabinet Type
Die - Cast Al
Service Access
Back | Back | Front / Back | Front / Back | Front / Back | Front / Back
Power, protection and connectivity
Max Power (Watts/m²)
760 | 650 | 750 | 750 | 650 | 650
Ingress Protection
Front IP65 / Back IP54
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The NYX OD From Corporate AV?
- Genuine X-treme Media stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs X-treme Media products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Xtreme Media NYX OD?
The Xtreme Media NYX OD is an SMD outdoor LED display with IP65/54 protection. Xtreme Media's Nyx OD series LED displays are designed for outdoor applications. The SMD feature allows for more precise control of energy usage, leading to reduced power consumption and improving the overall performance.
Where is the Xtreme Media NYX OD used?
Xtreme Media lists the NYX OD for: outdoor advertising; daylight-visible outdoor displays; weather-exposed outdoor sites. Corporate AV can advise whether it suits your venue and requirements.
What pixel pitch options does the Xtreme Media NYX OD offer?
Xtreme Media lists these pixel pitches for the NYX OD: 2.5 mm | 3 mm | 4 mm | 5 mm | 8 mm | 10 mm.
Can Corporate AV supply and install the Xtreme Media NYX OD in India?
Yes. Corporate AV supplies, installs and supports the Xtreme Media NYX OD across India, with a site survey, structure and power planning, commissioning and after-sales support.
How do I get a quote for the Xtreme Media NYX OD?
Use the Request a Quote button on this page or contact Corporate AV with the screen size, pixel pitch, location and timeline, and a consultant will respond with a quotation for supply and installation.
