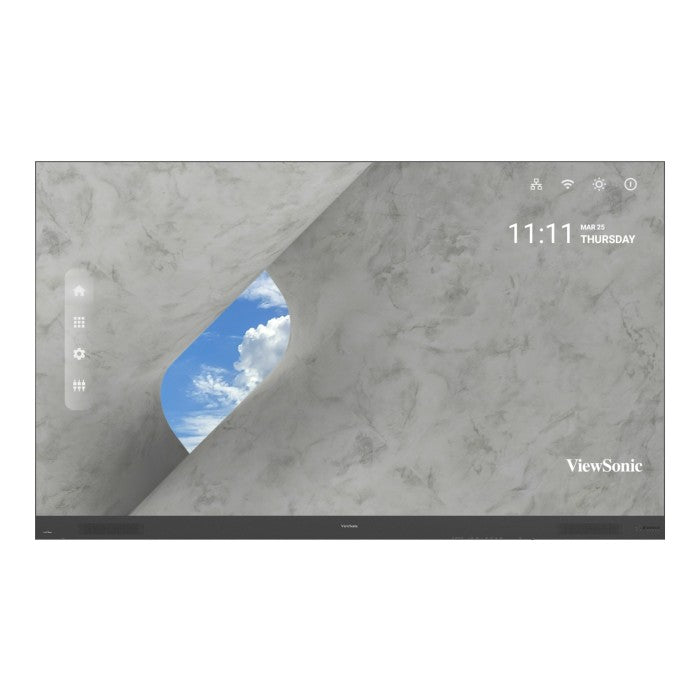

ViewSonic LDP163-181: 163 Inch Direct View LED, 1.88mm Pixel Pitch
Model LDP163-181
Request a Quote
Availability: Out of Stock
- 1.88 mm pixel pitch Direct View LED wall with 1920 x 1080 Full HD resolution
- Harman Kardon dual 20 W passive radiator audio system built in
- Android 9.0 embedded media player with 4GB RAM and 64GB storage
- HDBaseT and multi format HDMI connectivity with 802.11n Wi-Fi
Product Overview
Overview
The ViewSonic LDP163-181 is a modular Direct View LED video wall built for large venue signage, combining a 1.88 mm pixel pitch with 600 nits brightness and built in Harman Kardon audio across a seamless 163 inch display.
Corporate AV supplies, installs and supports the ViewSonic LDP163-181 across India. Request a quote for supply, installation and commissioning.
Key features
- 1.88 mm pixel pitch Direct View LED wall with 1920 x 1080 Full HD resolution
- Harman Kardon dual 20 W passive radiator audio system built in
- Android 9.0 embedded media player with 4GB RAM and 64GB storage
- HDBaseT and multi format HDMI connectivity with 802.11n Wi-Fi
Why choose the LDP163-181
It is an all-in-one direct-view LED display with the pixel pitch and cabinet size listed in its specifications, so no video-wall tiling or bezel gaps. Corporate AV adds a site survey, installation and support across India, so the LDP163-181 is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
1.88 mm pixel pitch Direct View LED wall with 1920 x 1080 Full HD resolution
Harman Kardon dual 20 W passive radiator audio system built in
Android 9.0 embedded media player with 4GB RAM and 64GB storage
HDBaseT and multi format HDMI connectivity with 802.11n Wi-Fi
Use Cases
Ideal Applications
Boardrooms and large meeting rooms
Auditoriums and event venues
Lobbies and corporate showcases
Control and command rooms
Technical Details
Technical Specifications
Display
Pixel Pitch
1.88 mm
Resolution
1920 x 1080 Full HD
Screen Size
163 inch
Brightness
600 nits
Contrast Ratio
6,000:1
Refresh Rate
4,440 Hz
Color Gamut
120% Rec.709
Viewing Angle
160 degrees horizontal and vertical
LED Life
100,000 hours
Connectivity
Connectivity
HDMI 1.4 x2, HDMI 2.0 x3, HDMI 2.1 x1, HDMI 2.0 out x1, USB 2.0 x3, RS232, RJ45, IR in, 802.11n Wi-Fi
Audio, video and software
Embedded System
Android 9.0, MTK9669 CPU, 4GB DDR4, 64GB storage (56GB usable)
Speakers
Harman Kardon dual 20 W passive radiator system
Power and operation
Operating Rating
24/7
Power
1,860 W typical, 2,660 W max
Physical and mounting
Cabinet Dimensions
3610 x 2145.3 x 25 mm, 57 mm with wall mount
Weight
170 kg net, 278 kg gross
Warranty and certifications
Warranty
3 year limited, parts, labor, on site service and pixel performance policy
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LDP163-181 From Corporate AV?
- Genuine ViewSonic stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs ViewSonic products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the ViewSonic LDP163-181?
The ViewSonic LDP163-181 is a modular Direct View LED video wall built for large venue signage, combining a 1.88 mm pixel pitch with 600 nits brightness and built in Harman Kardon audio across a seamless 163 inch display.
Who is the ViewSonic LDP163-181 best suited for?
The LDP163-181 suits boardrooms and large meeting rooms, auditoriums and event venues and lobbies and corporate showcases. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple ViewSonic LDP163-181 units for a rollout?
Yes. Corporate AV supplies and integrates the ViewSonic LDP163-181 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the ViewSonic LDP163-181 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the ViewSonic LDP163-181?
ViewSonic lists these key specifications for the LDP163-181. Screen Size: 163 inch. Resolution: 1920 x 1080 Full HD. Brightness: 600 nits. Connectivity: HDMI 1.4 x2, HDMI 2.0 x3, HDMI 2.1 x1, HDMI 2.0 out x1, USB 2.0 x3, RS232, RJ45, IR in, 802.11n Wi-Fi. Speakers: Harman Kardon dual 20 W passive radiator system.
