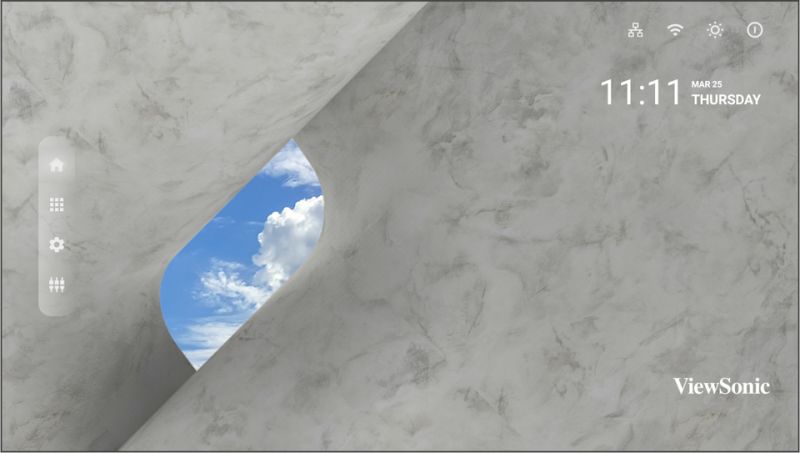

  • ViewSonic LDP163-091 163 Inch 4K Direct View LED Wall, 0.93mm Pitch - front view
1 1

ViewSonic LDP163-091: 163 Inch 4K Direct View LED Wall, 0.93mm Pitch

Model LDP163-091

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized ViewSonic Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 0.93 mm pixel pitch Flip Chip COB Direct View LED wall with native 4K resolution
  • Hot swappable front LED modules across all 288 tiles for fast, low downtime maintenance
  • IP54 front protection and IK08 impact rating for demanding public installations
  • HDMI 2.0 with HDCP 2.2, RJ45 and USB-C connectivity
All-in-One LED Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The ViewSonic LDP163-091 is a 0.93 mm pixel pitch Direct View LED video wall delivering native 4K resolution across a seamless 163 inch display, built with hot swappable Flip Chip COB modules for close viewing corporate and retail installations.

Corporate AV supplies, installs and supports the ViewSonic LDP163-091 across India. Request a quote for supply, installation and commissioning.

Key features

  • 0.93 mm pixel pitch Flip Chip COB Direct View LED wall with native 4K resolution
  • Hot swappable front LED modules across all 288 tiles for fast, low downtime maintenance
  • IP54 front protection and IK08 impact rating for demanding public installations
  • HDMI 2.0 with HDCP 2.2, RJ45 and USB-C connectivity
Why choose the LDP163-091
It is an all-in-one direct-view LED display with the pixel pitch and cabinet size listed in its specifications, so no video-wall tiling or bezel gaps. Corporate AV adds a site survey, installation and support across India, so the LDP163-091 is specified and installed for your space and not just shipped.
Product Highlights

Key Benefits

0.93 mm pixel pitch Flip Chip COB Direct View LED wall with native 4K resolution

Hot swappable front LED modules across all 288 tiles for fast, low downtime maintenance

IP54 front protection and IK08 impact rating for demanding public installations

HDMI 2.0 with HDCP 2.2, RJ45 and USB-C connectivity

Use Cases

Ideal Applications

Boardrooms and large meeting rooms

Auditoriums and event venues

Lobbies and corporate showcases

Control and command rooms

Technical Details

Technical Specifications

Display
Pixel Pitch 0.93 mm
Resolution 3840 x 2160 4K UHD
Screen Size 163 inch, display area 3600 x 2025 mm
Brightness 600 nits, 100 adjustable levels
Contrast Ratio 10,000:1
Viewing Angle 170 degrees horizontal and vertical
LED Life 100,000 hours
Connectivity
Connectivity HDMI 2.0 x4 (3 internal, 1 external, HDCP2.2), RJ45 x3, USB-A x3, USB-C x1 (data only), 3.5 mm audio x2, RS232, IR in and out, SPDIF
Audio, video and software
Speakers 30 W x2, 60 W total
Storage 32GB, 26GB usable
Power and operation
Power 805 W typical, 2414 W max
Physical and mounting
Cabinet Dimensions 3612 x 2172 x 41 mm, 59.8 mm with wall mount
Weight 168.4 kg net, 288 LED modules
Other specifications
Protection IP54 front, IK08 impact rating

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LDP163-091 From Corporate AV?
  • Genuine ViewSonic stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs ViewSonic products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the ViewSonic LDP163-091?
The ViewSonic LDP163-091 is a 0.93 mm pixel pitch Direct View LED video wall delivering native 4K resolution across a seamless 163 inch display, built with hot swappable Flip Chip COB modules for close viewing corporate and retail installations.
Who is the ViewSonic LDP163-091 best suited for?
The LDP163-091 suits boardrooms and large meeting rooms, auditoriums and event venues and lobbies and corporate showcases. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple ViewSonic LDP163-091 units for a rollout?
Yes. Corporate AV supplies and integrates the ViewSonic LDP163-091 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the ViewSonic LDP163-091 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the ViewSonic LDP163-091?
ViewSonic lists these key specifications for the LDP163-091. Screen Size: 163 inch, display area 3600 x 2025 mm. Resolution: 3840 x 2160 4K UHD. Brightness: 600 nits, 100 adjustable levels. Speakers: 30 W x2, 60 W total.
