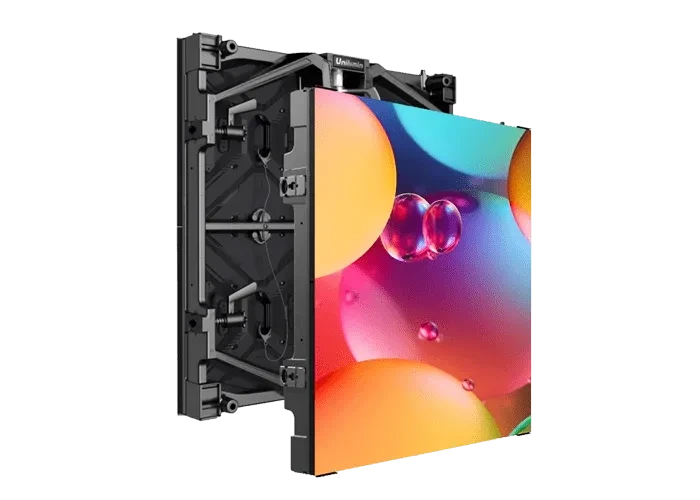

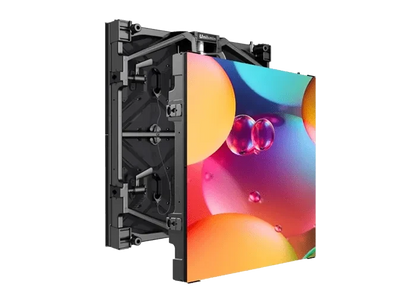

Unilumin Upad IV: Lightweight Indoor Rental LED Display
Model Upad IV
Request a Quote
Availability: Out of Stock
- Pixel pitch 1.5, 1.9 and 2.6 mm
- Die-cast magnesium cabinet, 6.3 kg, 500 x 500 x 70.1 mm
- Tool-free module rear service in 15 seconds; power box in 10 seconds
- Curving from -5° convex to +10° concave
Product Overview
Overview
The Unilumin Upad IV is a lightweight indoor rental LED display in P1.5, P1.9 and P2.6. The die-cast magnesium cabinet weighs 6.3 kg, 30% lighter than average, so one engineer can install, dismantle and service it.
Corporate AV supplies, installs and supports the Unilumin Upad IV across India. Request a quote for supply, installation and commissioning.
Key features
- Pixel pitch 1.5, 1.9 and 2.6 mm
- Die-cast magnesium cabinet, 6.3 kg, 500 x 500 x 70.1 mm
- Tool-free module rear service in 15 seconds; power box in 10 seconds
- Curving from -5° convex to +10° concave
- DDC (Dual Drive Configuration) for dual-use screens
- U-shield lamp technology for fewer damaged lamps
- Flight case, foam sheath and automatic edge protection for touring
Typical applications

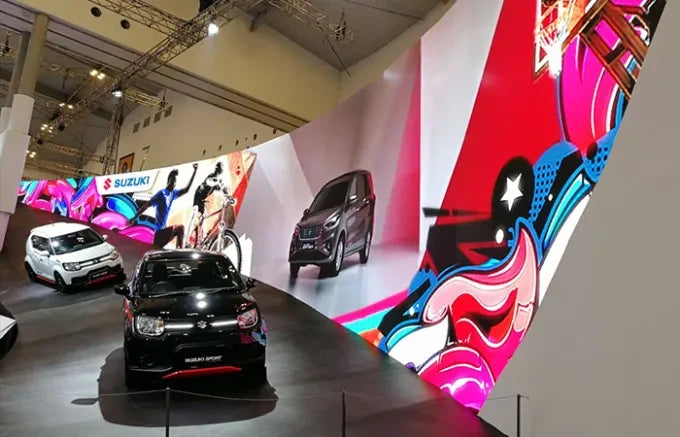

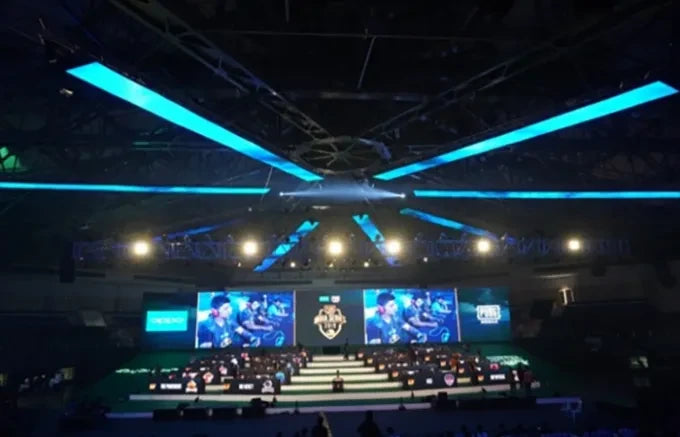

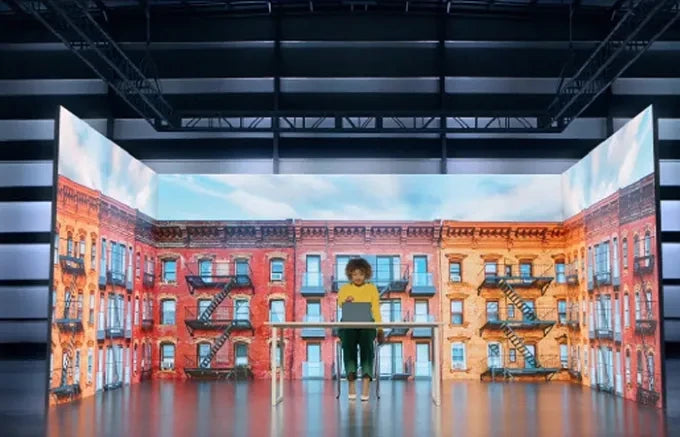

- Internal and external 90° corners
- Ceilings and curved walls

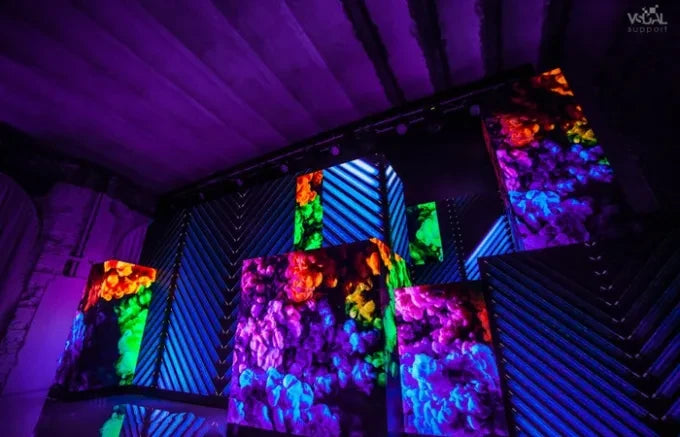

- Cross-shaped and creative screens
Why choose the Upad IV
it is a lightweight indoor rental LED display in P1.5, P1.9 and P2.6 from Unilumin, supplied with Corporate AV's site survey, structure and power planning, installation and support across India, so the Upad IV is specified for your venue and not just shipped.
Product Highlights
Key Benefits
Pixel pitch 1.5, 1.9 and 2.6 mm
Die-cast magnesium cabinet, 6.3 kg, 500 x 500 x 70.1 mm
Tool-free module rear service in 15 seconds; power box in 10 seconds
Curving from -5° convex to +10° concave
DDC (Dual Drive Configuration) for dual-use screens
Use Cases
Ideal Applications
Internal and external 90° corners
Ceilings and curved walls
Cross-shaped and creative screens
Technical Details
Technical Specifications
Display
Pixel pitch
1.5 mm, 1.9 mm, 2.6 mm
Brightness
800 cd/m² (P1.5), 800 cd/m² (P1.9), 1,200 to 1,500 cd/m² (P2.6)
Cabinet and installation
Pixels per panel (W x H)
320 x 320 (P1.5), 256 x 256 (P1.9), 192 x 192 (P2.6)
Pixel density
409,600 / 262,144 / 147,456 pixels per m²
Cabinet size (W x H x D)
500 x 500 x 70.1 mm
Module size
250 x 250 mm
Weight
6.3 kg per panel
Material
Die-cast magnesium
Maintenance
Front and rear
Environment
Indoor
Curve range
-5° (convex) to +10° (concave)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The Upad IV From Corporate AV?
- Genuine Unilumin stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Unilumin products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Unilumin Upad IV?
The Unilumin Upad IV is a lightweight indoor rental LED display in P1.5, P1.9 and P2.6. The die-cast magnesium cabinet weighs 6.3 kg, 30% lighter than average, so one engineer can install, dismantle and service it.
Where is the Unilumin Upad IV used?
Unilumin lists the Upad IV for: internal and external 90° corners; ceilings and curved walls; cross-shaped and creative screens. Corporate AV can advise whether it suits your venue, viewing distance and content.
What pixel pitch options does the Unilumin Upad IV offer?
Unilumin lists: pixel pitch: 1.5 mm, 1.9 mm, 2.6 mm.
How bright is the Unilumin Upad IV?
Unilumin lists: brightness: 800 cd/m² (P1.5), 800 cd/m² (P1.9), 1,200 to 1,500 cd/m² (P2.6).
How much does the Unilumin Upad IV weigh?
Unilumin lists: weight: 6.3 kg per panel.
Can Corporate AV supply and install the Unilumin Upad IV in India?
Yes. Corporate AV supplies, installs and supports the Unilumin Upad IV as single screens and complete LED walls across India, with a site survey, structure and power planning, commissioning and after-sales support.
How do I get a quote for the Unilumin Upad IV?
Use the Request a Quote button on this page or contact Corporate AV with the screen size, pixel pitch, location and timeline, and a consultant will respond with a quotation for supply and installation.
