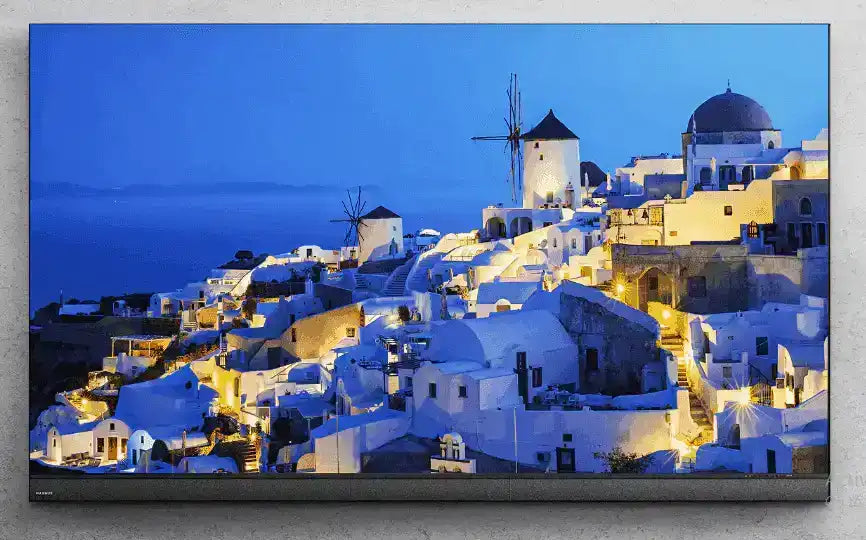

  • MaxHub LX220V07: Raptor Series V3 220 Inch All-in-One DvLED Display - front view
1 1

MaxHub LX220V07: Raptor Series V3 220 Inch All-in-One DvLED Display

Model LX220V07

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized MaxHub Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 220-inch Full HD LED
  • 2.5 mm pixel pitch
  • Android 13
  • 3840Hz refresh rate eliminates flicker on camera recordings and broadcast capture
All-in-One LED Solutions for Business Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

MAXHUB LX220V07 is the largest Full HD model in the Raptor Series V3, a state-of-the-art Direct View LED display purpose-built for the biggest venues, auditoriums, and executive boardrooms. With integrated Android 13, six high-performance speakers, and front-access maintenance, it delivers a true all-in-one large-format solution at maximum scale.

Key specifications of the LX220V07 include a 220-inch Full HD LED screen, 2.5 mm pixel pitch and Android 13. Corporate AV supplies and integrates the LX220V07 across India for boardrooms, auditoriums and large venues, including site survey, mounting and commissioning where the project needs it.

Key features

  • 220 inch 2.5mm pixel pitch SMD LED, Full HD (1920x1080), 100-600 nits adjustable brightness
  • 3840Hz refresh rate eliminates flicker on camera recordings and broadcast capture
  • Android 13 with octa-core processor, 8GB RAM, optional Windows PC module
  • 6-driver immersive audio system (4 full-range + 2 low-frequency), up to 120W output
  • Front-access maintenance for module-level servicing without wall removal
Why choose the LX220V07
It replaces a projector or video wall with one borderless 220-inch LED surface at 2.5 mm pixel pitch, with Android built in so it runs as a self-contained display. Corporate AV checks the room, mounting surface, power and network during a site survey, so the LX220V07 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

220-inch Full HD LED

2.5 mm pixel pitch

Android 13

3840Hz refresh rate eliminates flicker on camera recordings and broadcast capture

6-driver immersive audio system (4 full-range + 2 low-frequency), up to 120W output

Use Cases

Ideal Applications

Boardrooms & Executive Suites

Auditoriums & Large Venues

Technical Details

Technical Specifications

Display
Screen 220 inch SMD LED, 2.5mm pixel pitch, 1920x1080, 6,500:1 contrast, 160/140 degree viewing angle
Processing & Software
Compute Octa-core (4x Cortex-A76+4x Cortex-A55, 2.4GHz), Android 13, 8GB RAM
Audio
Audio 4 full-range + 2 low-frequency drivers, up to 120W, 95dB max SPL
Connectivity & Expansion
Connectivity 4x HDMI in, HDMI out, USB-C, USB 3.0, PoE LAN, RS232, WiFi 6, Bluetooth 5.3
Physical, Mounting & Compatibility
Weight Approximately 296kg net weight
Installation Wall-mounting bar included, front-access maintenance, LED lifespan 100,000+ hours

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LX220V07 From Corporate AV?
  • Genuine MaxHub stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs MaxHub products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What viewing distance suits the 2.5 mm pixel pitch of the MaxHub LX220V07?
As a common rule of thumb, the minimum comfortable viewing distance in metres is roughly the pixel pitch in millimetres, so a 2.5 mm pitch suits viewers from about 2.5 m and beyond. Corporate AV validates this against your room during design.
How is the MaxHub LX220V07 installed and serviced?
MaxHub lists: Wall-mounting bar included, front-access maintenance, LED lifespan 100,000+ hours. Corporate AV handles survey, structure, cabling and calibration for LED projects.
Does the MaxHub LX220V07 have a built-in system?
Yes. The LX220V07 runs Android 13, so it can run content and conferencing apps without an external PC.
What audio does the MaxHub LX220V07 include?
MaxHub lists the audio for the LX220V07 as: 4 full-range + 2 low-frequency drivers, up to 120W, 95dB max SPL.
Which ports and connections does the MaxHub LX220V07 have?
MaxHub lists the following for the LX220V07: 4x HDMI in, HDMI out, USB-C, USB 3.0, PoE LAN, RS232, WiFi 6, Bluetooth 5.3.
Does Corporate AV install the MaxHub LX220V07?
Yes. Corporate AV can supply the LX220V07 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the MaxHub LX220V07 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
