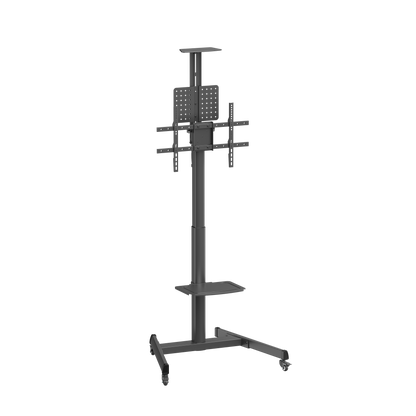

  • Lumi TTV17H-46TW crank adjustable TV cart, product view, supplied in India by Corporate AV

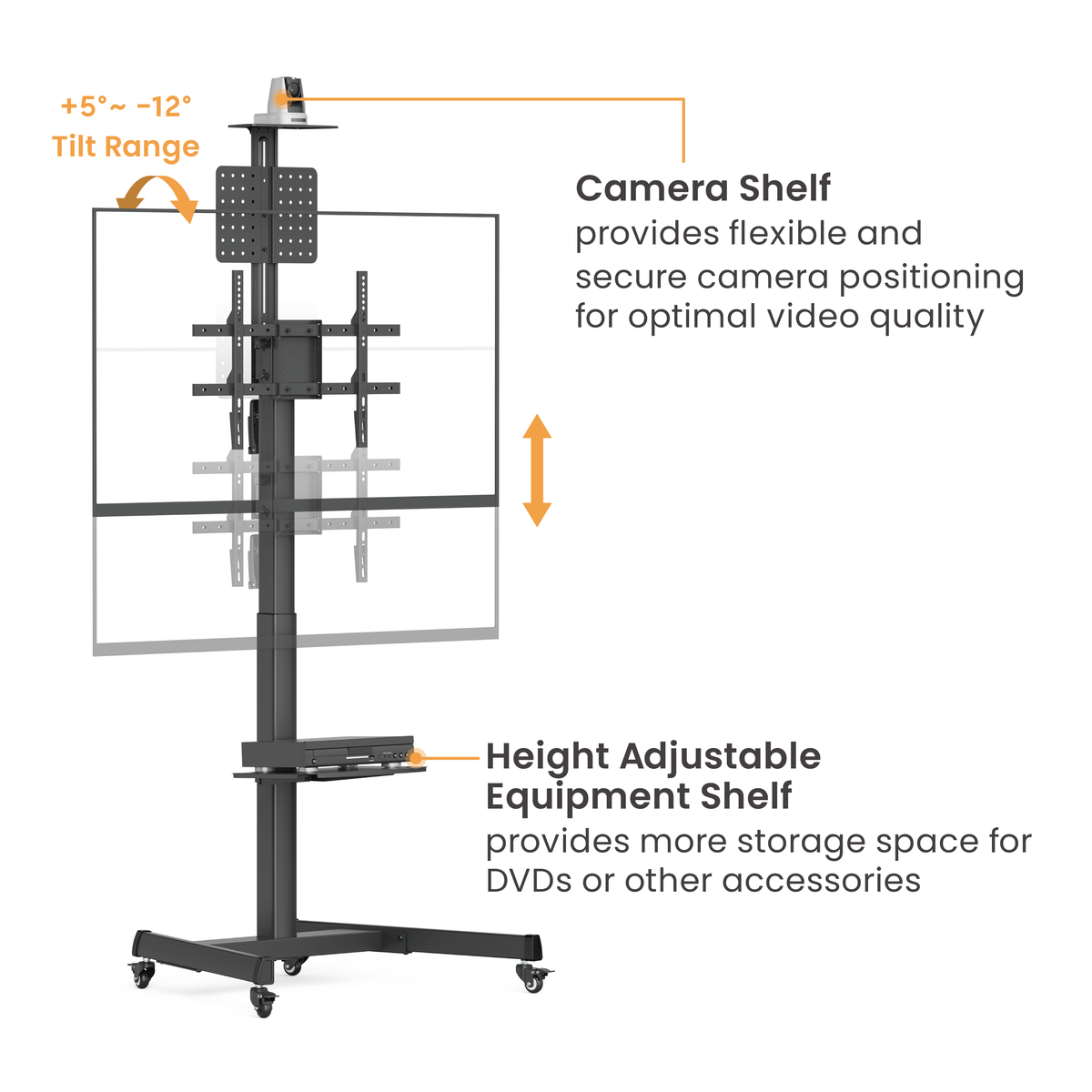

  • Lumi TTV17H-46TW crank adjustable TV cart showing the height adjustment

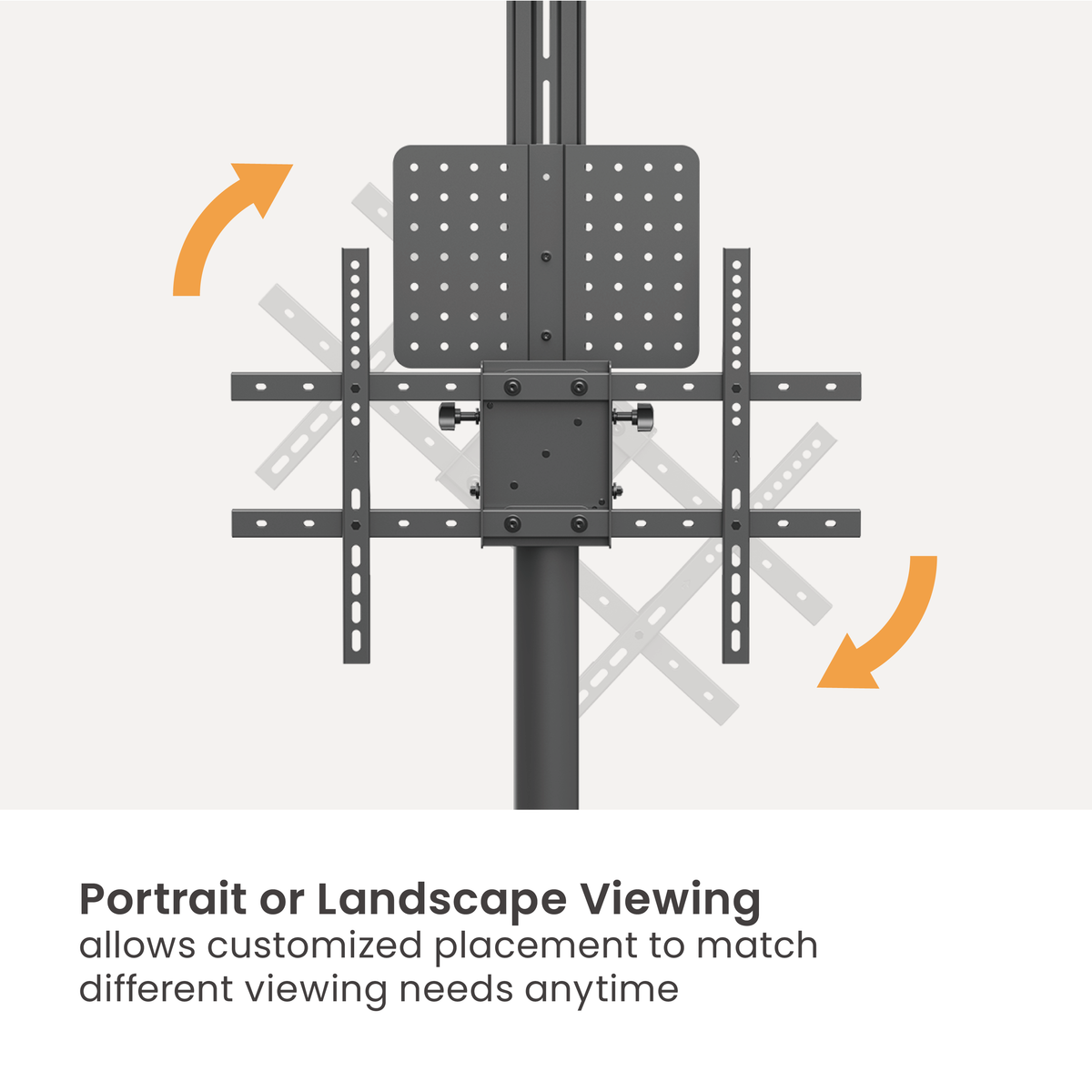

  • Lumi TTV17H-46TW crank adjustable TV cart showing portrait and landscape screen rotation

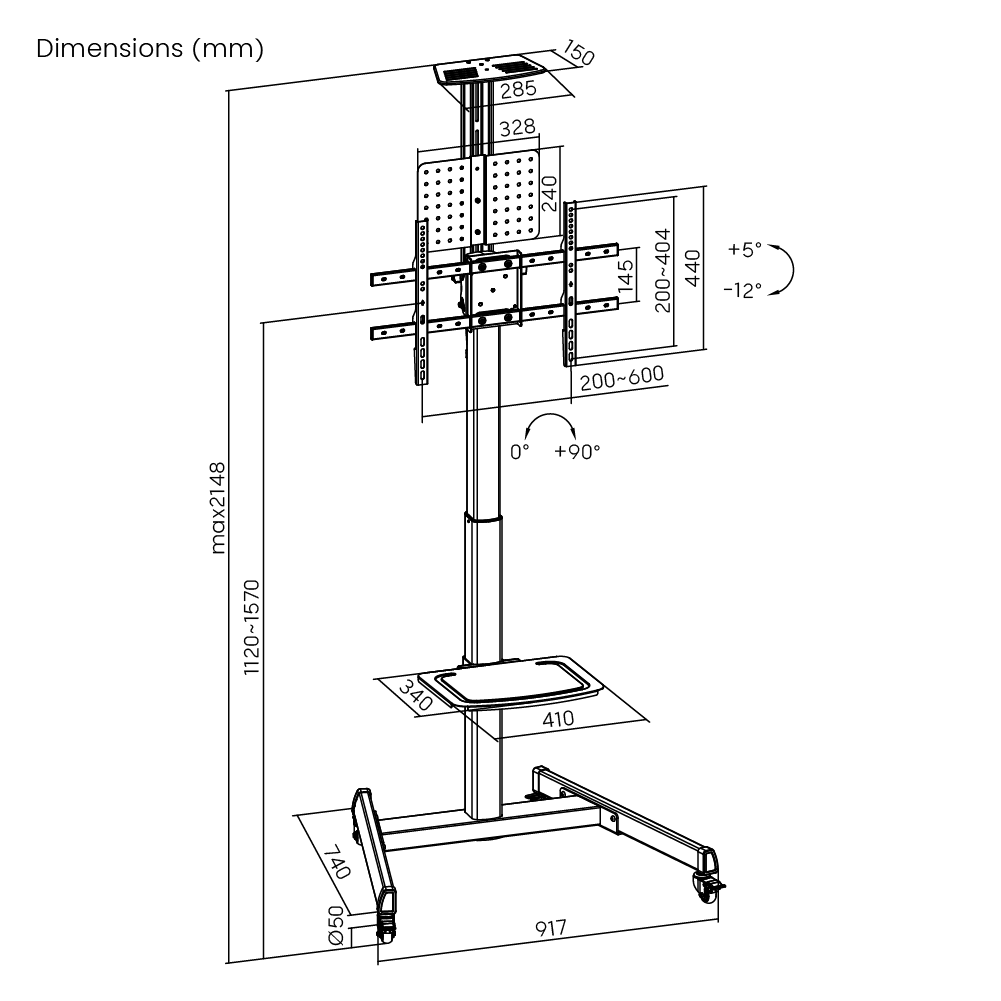

  • Dimension drawing of the Lumi TTV17H-46TW crank adjustable TV cart showing overall size and mounting dimensions
1 4

Lumi TTV17H-46TW: Telescope TV Cart with Crank Handle, 37-70 Inch

Model TTV17H-46TW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 70 kg (154 lbs)
  • Fits screens from 37 to 70 inches
  • Height range of 450 mm (17.7 inch)
  • Tilt range of +5° to -12°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi TTV17H-46TW is a crank adjustable TV cart for flat-panel displays from 37 to 70 inches, with a TV weight capacity of 70 kg (154 lbs). It offers tilt of +5° to -12°, rotation of 0° to +90° and a height range of 450 mm (17.7 inch). It supports VESA patterns from 200 x 200 to 600 x 400 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the TTV17H-46TW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 70 kg (154 lbs)
  • Fits screens from 37 to 70 inches
  • Height range of 450 mm (17.7 inch)
  • Tilt range of +5° to -12°
  • Rotation of 0° to +90°
Why choose the TTV17H-46TW
Choose the TTV17H-46TW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 70 kg (154 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the TTV17H-46TW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 70 kg (154 lbs)

Fits screens from 37 to 70 inches

Height range of 450 mm (17.7 inch)

Tilt range of +5° to -12°

Rotation of 0° to +90°

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 70 inch
VESA Compatible 200 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
TV Weight Capacity 70 kg (154 lbs)
Shelf Weight Capacity 5 kg (11 lbs)
Camera Rack Weight Capacity 5 kg (11 lbs)
Movement & Adjustment
Tilt Range +5° to -12°
Screen Rotation 0° to +90°
Height Range 450 mm (17.7 inch)
TV Height Adjustable Yes
Shelf Height Adjustable Yes
Design & Installation
Product Type Crank Adjustable TV Cart
Dimensions (D x W x H) 917 x 740 x 2148 mm (36.1 x 29.1 x 84.6 inch)
Base Type Caster
Column Size (main / extension) 80 x 80.7 x 1.5 x 850 mm, 70 x 70.7 x 1.5 x 940 mm (3.1 x 3.2 x 0.059 x 33.5 inch, 2.8 x 2.8 x 0.059 x 37 inch)
Wheel Diameter 2 inch (2 inch)
Cable Management Yes
10 Degree Slope Testing Yes
Materials & Finish
Material Steel, Plastic
Surface Finish Powder Coating
Colour Matte Black
Strength Tested 4 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The TTV17H-46TW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi TTV17H-46TW support?
Lumi lists the TTV17H-46TW for screens from 37 to 70 inches with a weight capacity of 70 kg (154 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi TTV17H-46TW fit?
It fits VESA 200 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm.
How much can the Lumi TTV17H-46TW tilt, swivel or extend?
Lumi lists tilt of +5° to -12°, rotation of 0° to +90° and a height range of 450 mm (17.7 inch) for the TTV17H-46TW.
How high can the TV be positioned on the Lumi TTV17H-46TW?
Lumi lists a height range of 450 mm (17.7 inch) with height adjustment of the TV. Corporate AV can help match the height to the room and seating.
Does the Lumi TTV17H-46TW include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi TTV17H-46TW in India?
Yes. Corporate AV can supply the TTV17H-46TW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
