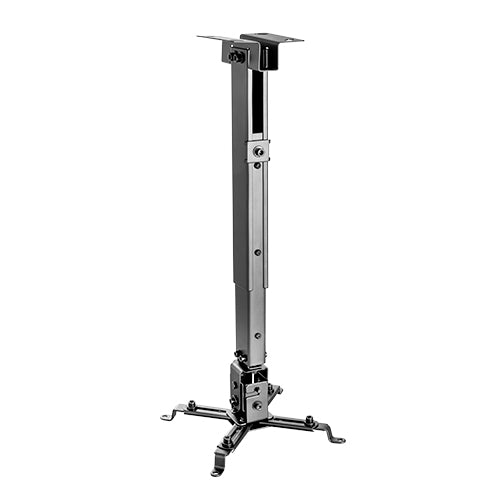

  • Lumi PRB-2 projector mount, product view, supplied in India by Corporate AV

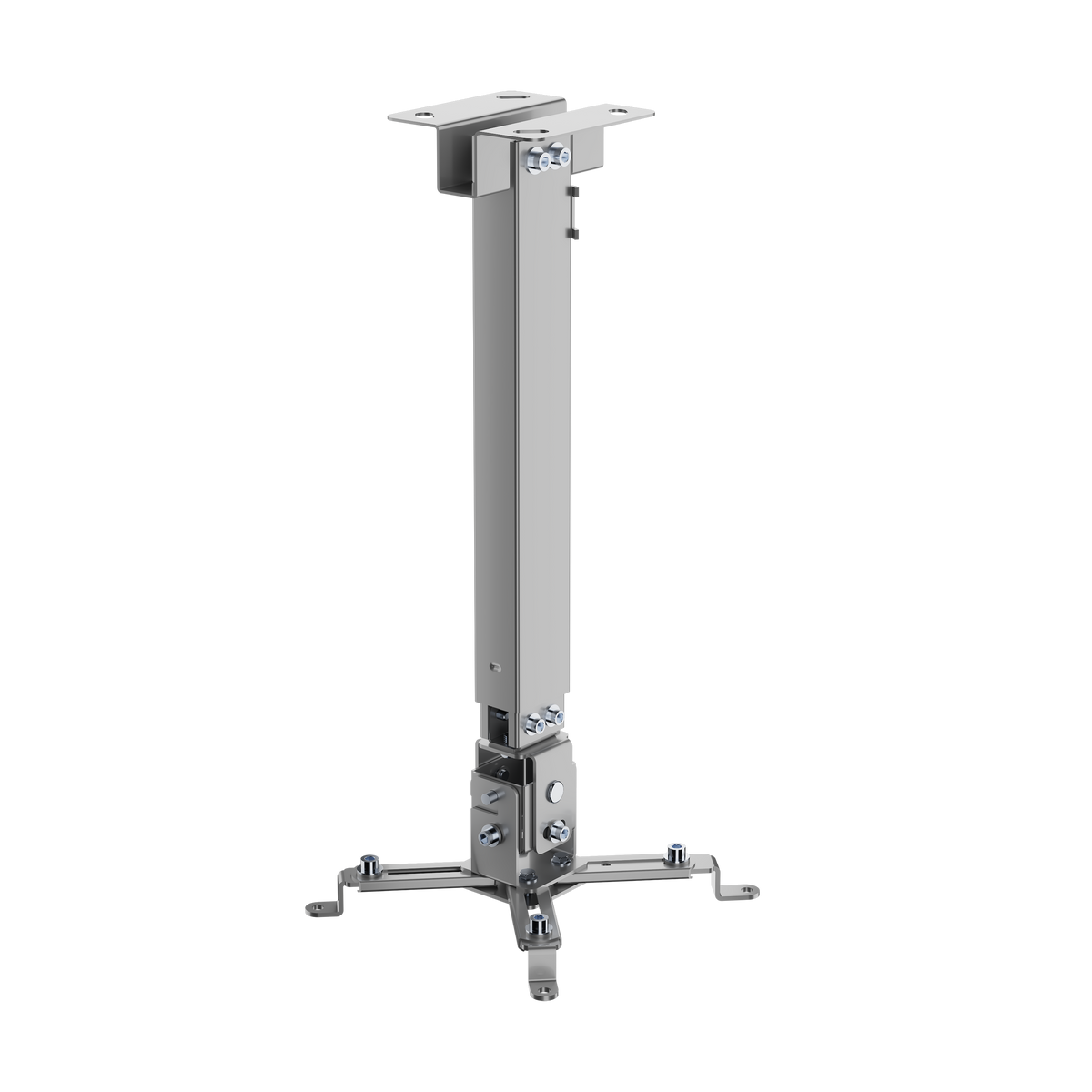

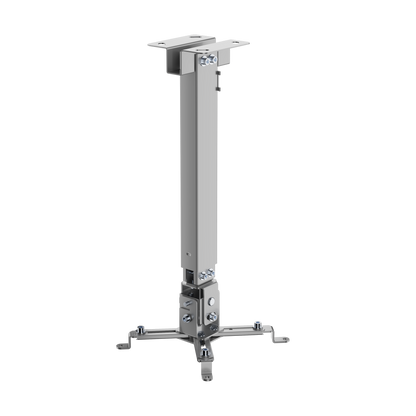

  • Lumi PRB-2 projector mount, alternate angle view

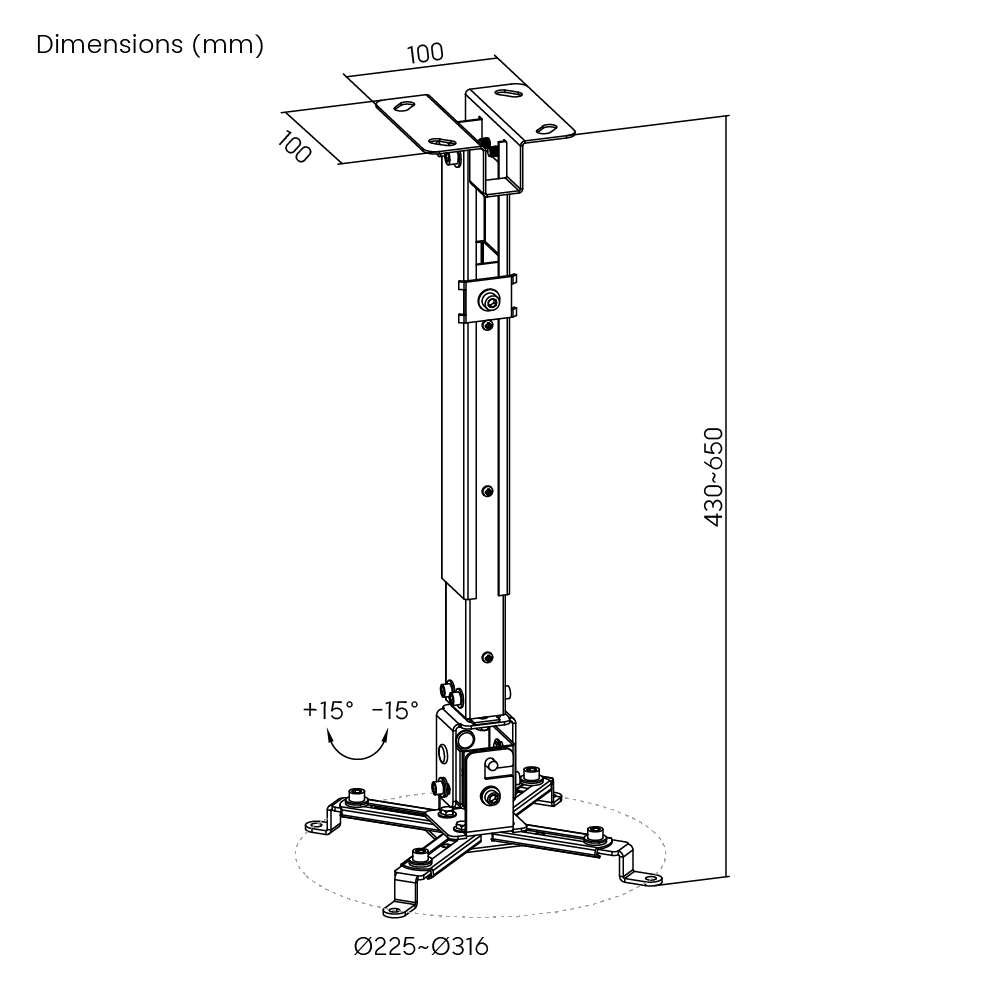

  • Dimension drawing of the Lumi PRB-2 projector mount showing overall size and mounting dimensions
1 3

Lumi PRB-2: Height Adjustable Ceiling Projector Bracket, up to 20 kg

Model PRB-2

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 20 kg (44 lbs)
  • Tilt range of +15° to -15°
  • Swivel range of +10° to -10°
  • Extension range of 430 to 650 mm (16.9 to 25.6 inch)
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi PRB-2 is a projector mount rated for projectors weighing up to 20 kg (44 lbs). It offers tilt of +15° to -15°, swivel of +10° to -10° and extension range of 430 to 650 mm (16.9 to 25.6 inch). It supports these installation options: ceiling mounted.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the PRB-2 on its own or as part of a complete projection system, including site survey, mounting, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 20 kg (44 lbs)
  • Tilt range of +15° to -15°
  • Swivel range of +10° to -10°
  • Extension range of 430 to 650 mm (16.9 to 25.6 inch)
  • Built-in cable management
Why choose the PRB-2
Choose the PRB-2 for a secure, adjustable projector position that suits the throw distance of the room. It is rated for 20 kg (44 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the PRB-2 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 20 kg (44 lbs)

Tilt range of +15° to -15°

Swivel range of +10° to -10°

Extension range of 430 to 650 mm (16.9 to 25.6 inch)

Built-in cable management

Use Cases

Ideal Applications

Meeting rooms and boardrooms with a ceiling or wall projector

Classrooms and training rooms

Auditoriums and conference halls

Showrooms and event spaces

Technical Details

Technical Specifications

Compatibility & Load
Weight Capacity 20 kg (44 lbs)
Movement & Adjustment
Tilt Range +15° to -15°
Swivel Range +10° to -10°
Extension Range 430 to 650 mm (16.9 to 25.6 inch)
Mounting Range 225 to 316 mm (8.9 to 12.4 inch)
Design & Installation
Product Type Projector Mount
Dimensions (D x W x H) 237 x 203 x 650 mm (9.3 x 8 x 25.6 inch)
Installation Ceiling Mounted
Cable Management Yes
Materials & Finish
Material Steel
Surface Finish Powder Coating
Colour Matte Black, Gloss Grey, Matte White
