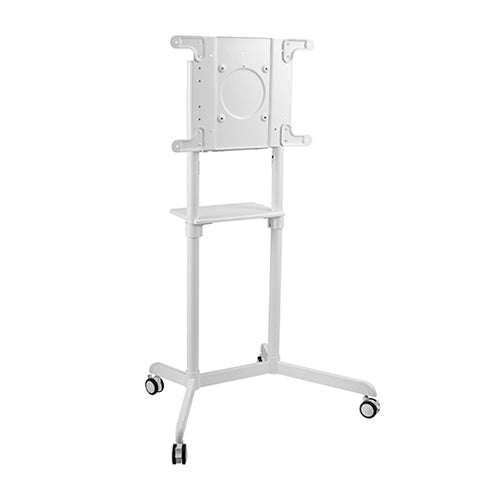

  • Lumi TTV11-46TW interactive display cart, product view, supplied in India by Corporate AV

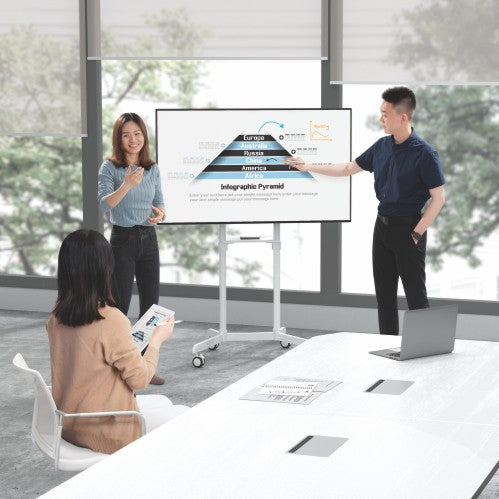

  • Lumi TTV11-46TW interactive display cart installed with a TV in a meeting or classroom setting

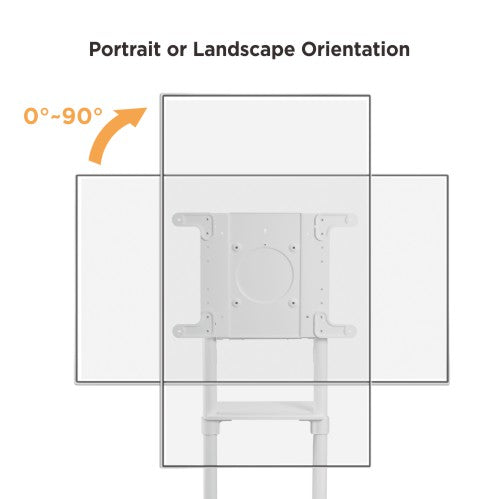

  • Lumi TTV11-46TW interactive display cart showing portrait and landscape screen rotation

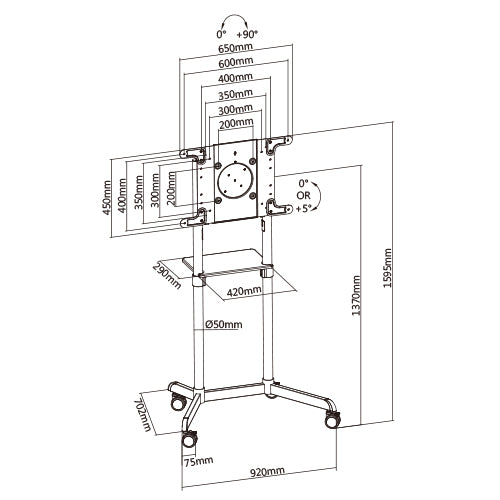

  • Dimension drawing of the Lumi TTV11-46TW interactive display cart showing overall size and mounting dimensions
1 4

Lumi TTV11-46TW: Rotating Mobile Stand for Interactive Display

Model TTV11-46TW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 70 kg (154 lbs)
  • Fits screens from 37 to 70 inches
  • Tilt range of 0° or 5°
  • Rotation of 0° to +90°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi TTV11-46TW is an interactive whiteboard cart/mobile interactive whiteboard stand for flat-panel displays from 37 to 70 inches, with a TV weight capacity of 70 kg (154 lbs). It offers tilt of 0° or 5° and rotation of 0° to +90°. It supports VESA patterns from 200 x 200 to 600 x 400 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the TTV11-46TW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 70 kg (154 lbs)
  • Fits screens from 37 to 70 inches
  • Tilt range of 0° or 5°
  • Rotation of 0° to +90°
  • VESA 600 x 400 mm compatible
Why choose the TTV11-46TW
Choose the TTV11-46TW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 70 kg (154 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the TTV11-46TW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 70 kg (154 lbs)

Fits screens from 37 to 70 inches

Tilt range of 0° or 5°

Rotation of 0° to +90°

VESA 600 x 400 mm compatible

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 70 inch
VESA Compatible 200 x 200, 400 x 200, 300 x 300, 600 x 200, 350 x 350, 400 x 400, 600 x 400 mm
TV Weight Capacity 70 kg (154 lbs)
Screen Quantity 1
Shelf Weight Capacity 5 kg (11 lbs)
Movement & Adjustment
Tilt Range 0° or 5°
Screen Rotation 0° to +90°
TV Height Adjustable No
Design & Installation
Product Type Interactive Whiteboard Cart/Mobile Interactive Whiteboard Stand
Dimensions (D x W x H) 920 x 702 x 1595 mm (36.2 x 27.6 x 62.8 inch)
Base Type Caster
Column Size (main / extension) φ50 x 1.5 x 1389 mm (φ2 x 0.059 x 54.7 inch)
Wheel Diameter 3 inch (3 inch)
Cable Management Yes
Materials & Finish
Material Steel, Plastic, MDF & Melamine
Metal Sheet Thickness VESA Panel THK=2 mm cold-rolled sheet (VESA Panel THK=0.079 inch cold-rolled sheet)
Colour Matte Black, Matte White
Accessory Colour Matte Black, Matte White
Strength Tested 4 times approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The TTV11-46TW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi TTV11-46TW support?
Lumi lists the TTV11-46TW for screens from 37 to 70 inches with a weight capacity of 70 kg (154 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi TTV11-46TW fit?
It fits VESA 200 x 200, 400 x 200, 300 x 300, 600 x 200, 350 x 350, 400 x 400, 600 x 400 mm.
How much can the Lumi TTV11-46TW tilt, swivel or extend?
Lumi lists tilt of 0° or 5° and rotation of 0° to +90° for the TTV11-46TW.
Does the Lumi TTV11-46TW include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi TTV11-46TW in India?
Yes. Corporate AV can supply the TTV11-46TW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
