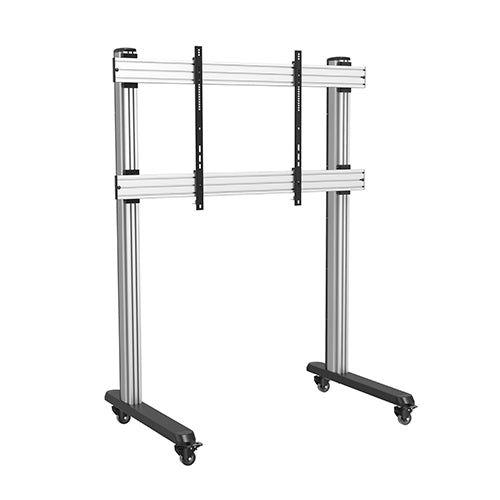

  • Lumi TTL09-812FW interactive display cart, product view, supplied in India by Corporate AV

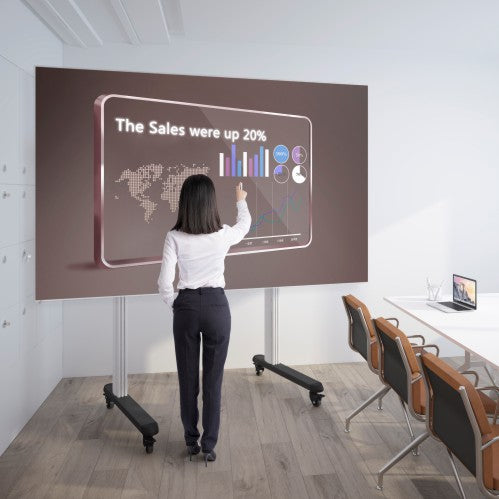

  • Lumi TTL09-812FW interactive display cart installed with a TV in a meeting or classroom setting

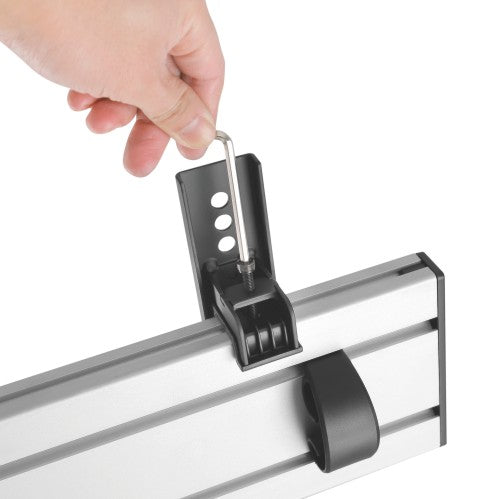

  • Lumi TTL09-812FW interactive whiteboard cart/mobile interactive whiteboard stand crank handle for height adjustment

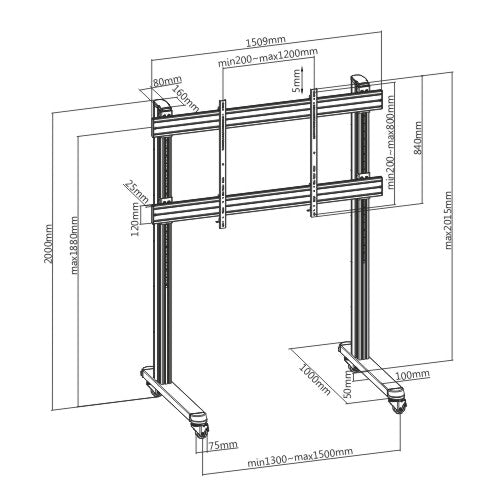

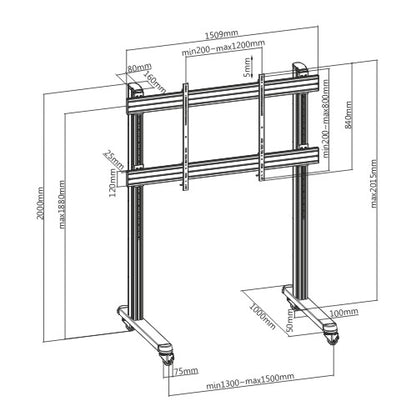

  • Dimension drawing of the Lumi TTL09-812FW interactive display cart showing overall size and mounting dimensions
1 4

Lumi TTL09-812FW: Interactive Display Carts for 70-120 Inch Screens

Model TTL09-812FW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 150 kg (330 lbs)
  • Fits screens from 70 to 120 inches
  • VESA 1200 x 800 mm compatible
  • Built-in cable management
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi TTL09-812FW is an interactive whiteboard cart/mobile interactive whiteboard stand for flat-panel displays from 70 to 120 inches, with a TV weight capacity of 150 kg (330 lbs). It supports VESA patterns from 200 x 200 to 1200 x 800 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the TTL09-812FW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 150 kg (330 lbs)
  • Fits screens from 70 to 120 inches
  • VESA 1200 x 800 mm compatible
  • Built-in cable management
  • caster base for mobility
Why choose the TTL09-812FW
Choose the TTL09-812FW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 150 kg (330 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the TTL09-812FW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 150 kg (330 lbs)

Fits screens from 70 to 120 inches

VESA 1200 x 800 mm compatible

Built-in cable management

caster base for mobility

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 70 to 120 inch
VESA Compatible 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 800 x 600, 1000 x 600, 1200 x 600, 1000 x 800, 1200 x 800 mm
TV Weight Capacity 150 kg (330 lbs)
Screen Quantity 1
Movement & Adjustment
TV Height Adjustable No
Design & Installation
Product Type Interactive Whiteboard Cart/Mobile Interactive Whiteboard Stand
Dimensions (D x W x H) 1509 x 1000 x 2000 mm (59.4 x 39.4 x 78.7 inch)
Base Type Caster
Column Size (main / extension) 136 x 80 x 2 mm (5.4 x 3.1 x 0.079 inch)
Wheel Diameter 3 inch (3 inch)
Cable Management Yes
10 Degree Slope Testing Yes
Materials & Finish
Material Aluminum, Steel, Plastic
Metal Sheet Thickness Bracket Arm THK=2 mm cold-rolled sheet (Bracket Arm THK=0.079 inch cold-rolled sheet)
Surface Finish Sand-blasted Aluminum Anodic Oxidation
Colour Fine Texture Silver & Matte Black
Accessory Colour Matte Black
Strength Tested 4 times approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The TTL09-812FW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi TTL09-812FW support?
Lumi lists the TTL09-812FW for screens from 70 to 120 inches with a weight capacity of 150 kg (330 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi TTL09-812FW fit?
It fits VESA 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 800 x 600, 1000 x 600, 1200 x 600, 1000 x 800, 1200 x 800 mm.
Does the Lumi TTL09-812FW include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi TTL09-812FW in India?
Yes. Corporate AV can supply the TTL09-812FW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
