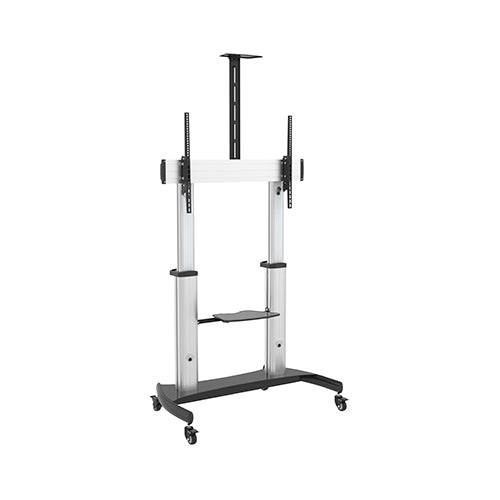

  • Lumi TTL07-610TW TV cart, product view, supplied in India by Corporate AV

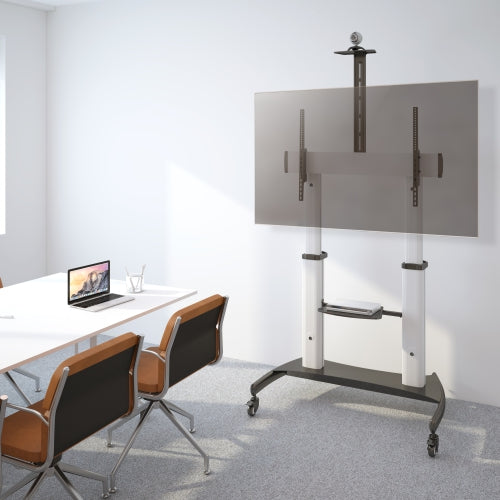

  • Lumi TTL07-610TW TV cart installed with a TV in a meeting or classroom setting

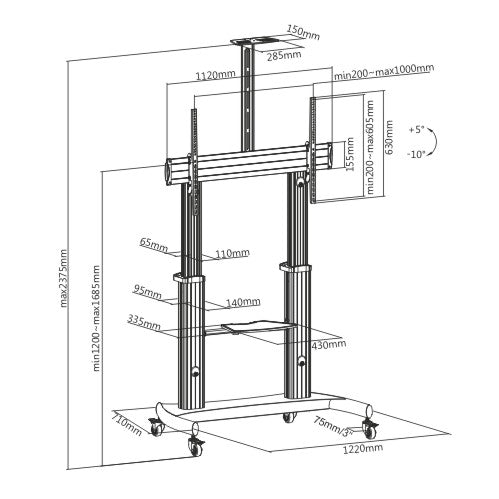

  • Dimension drawing of the Lumi TTL07-610TW TV cart showing overall size and mounting dimensions
1 3

Lumi TTL07-610TW: Aluminum Height-Adjustable TV Cart, 60-100 Inch

Model TTL07-610TW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 100 kg (220 lbs)
  • Fits screens from 60 to 100 inches
  • Height range of 1200 to 1685 mm (47.2 to 66.3 inch)
  • Tilt range of +5° to -10°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi TTL07-610TW is a TV cart for flat-panel displays from 60 to 100 inches, with a TV weight capacity of 100 kg (220 lbs). It offers tilt of +5° to -10° and a height range of 1200 to 1685 mm (47.2 to 66.3 inch). It supports VESA patterns from 400 x 400 to 1000 x 600 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the TTL07-610TW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 100 kg (220 lbs)
  • Fits screens from 60 to 100 inches
  • Height range of 1200 to 1685 mm (47.2 to 66.3 inch)
  • Tilt range of +5° to -10°
  • VESA 1000 x 600 mm compatible
Why choose the TTL07-610TW
Choose the TTL07-610TW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 100 kg (220 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the TTL07-610TW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 100 kg (220 lbs)

Fits screens from 60 to 100 inches

Height range of 1200 to 1685 mm (47.2 to 66.3 inch)

Tilt range of +5° to -10°

VESA 1000 x 600 mm compatible

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 60 to 100 inch
VESA Compatible 400 x 400, 600 x 400, 800 x 400, 800 x 600, 900 x 600, 1000 x 600 mm
TV Weight Capacity 100 kg (220 lbs)
Screen Quantity 1
Shelf Weight Capacity 5 kg (11 lbs)
Camera Rack Weight Capacity 5 kg (11 lbs)
Movement & Adjustment
Tilt Range +5° to -10°
Height Range 1200 to 1685 mm (47.2 to 66.3 inch)
TV Height Adjustable Yes
Shelf Height Adjustable Yes
Design & Installation
Product Type TV Cart
Dimensions (D x W x H) 1220 x 710 x 1890 to 2375 mm (48 x 28 x 74.4 to 93.5 inch)
Base Type Caster
Column Size (main / extension) 140 x 95 x 1.8 x 850 mm, 110 x 61 x 1.8 x 785 mm. (5.5 x 3.7 x 0.071 x 33.5 inch, 4.3 x 2.4 x 0.071 x 30.9 inch.)
Wheel Diameter 3 inch (3 inch)
Cable Management Yes
10 Degree Slope Testing Yes
Materials & Finish
Material Aluminum, Steel, Plastic
Metal Sheet Thickness Bracket Arm THK=2 mm cold-rolled sheet, Bracket Feet THK=2 mm cold-rolled sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, Bracket Feet THK=0.079 inch cold-rolled sheet)
Surface Finish Powder Coating, Sand-blasted Aluminum Anodic Oxidation
Colour Fine Texture Silver & Matte Black
Accessory Colour Silver
Strength Tested 4 times approved
Certification RoHS

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The TTL07-610TW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi TTL07-610TW support?
Lumi lists the TTL07-610TW for screens from 60 to 100 inches with a weight capacity of 100 kg (220 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi TTL07-610TW fit?
It fits VESA 400 x 400, 600 x 400, 800 x 400, 800 x 600, 900 x 600, 1000 x 600 mm.
How much can the Lumi TTL07-610TW tilt, swivel or extend?
Lumi lists tilt of +5° to -10° and a height range of 1200 to 1685 mm (47.2 to 66.3 inch) for the TTL07-610TW.
How high can the TV be positioned on the Lumi TTL07-610TW?
Lumi lists a height range of 1200 to 1685 mm (47.2 to 66.3 inch) with height adjustment of the TV. Corporate AV can help match the height to the room and seating.
Does the Lumi TTL07-610TW include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi TTL07-610TW in India?
Yes. Corporate AV can supply the TTL07-610TW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
