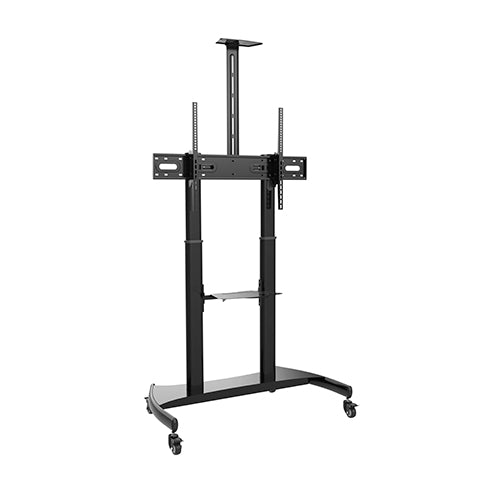

  • Lumi TTL06-610TW TV cart, product view, supplied in India by Corporate AV

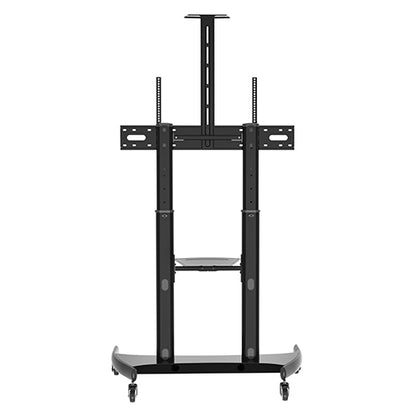

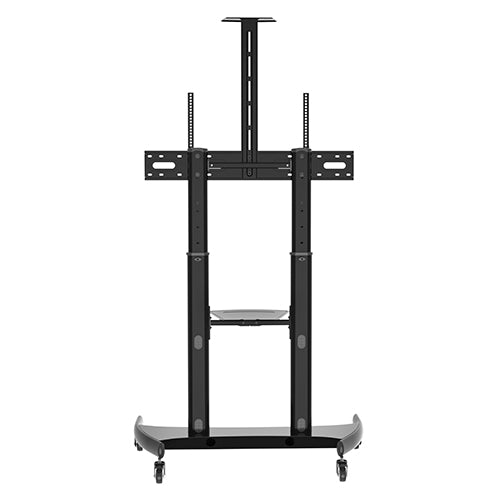

  • Lumi TTL06-610TW TV cart, alternate angle view

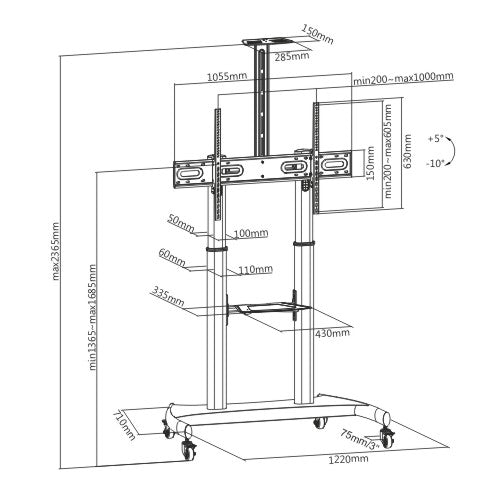

  • Dimension drawing of the Lumi TTL06-610TW TV cart showing overall size and mounting dimensions
1 3

Lumi TTL06-610TW: Telescopic Height-Adjustable TV Cart, 60-100 Inch

Model TTL06-610TW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 100 kg (220 lbs)
  • Fits screens from 60 to 100 inches
  • Height range of 1365 to 1685 mm (53.7 to 66.3 inch)
  • Tilt range of +5° to -10°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi TTL06-610TW is a TV cart for flat-panel displays from 60 to 100 inches, with a TV weight capacity of 100 kg (220 lbs). It offers tilt of +5° to -10° and a height range of 1365 to 1685 mm (53.7 to 66.3 inch). It supports VESA patterns from 400 x 400 to 1000 x 600 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the TTL06-610TW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 100 kg (220 lbs)
  • Fits screens from 60 to 100 inches
  • Height range of 1365 to 1685 mm (53.7 to 66.3 inch)
  • Tilt range of +5° to -10°
  • VESA 1000 x 600 mm compatible
Why choose the TTL06-610TW
Choose the TTL06-610TW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 100 kg (220 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the TTL06-610TW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 100 kg (220 lbs)

Fits screens from 60 to 100 inches

Height range of 1365 to 1685 mm (53.7 to 66.3 inch)

Tilt range of +5° to -10°

VESA 1000 x 600 mm compatible

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 60 to 100 inch
VESA Compatible 400 x 400, 600 x 400, 800 x 400, 800 x 600, 900 x 600, 1000 x 600 mm
TV Weight Capacity 100 kg (220 lbs)
Screen Quantity 1
Shelf Weight Capacity 5 kg (11 lbs)
Camera Rack Weight Capacity 5 kg (11 lbs)
Movement & Adjustment
Tilt Range +5° to -10°
Height Range 1365 to 1685 mm (53.7 to 66.3 inch)
TV Height Adjustable Yes
Shelf Height Adjustable Yes
Design & Installation
Product Type TV Cart
Dimensions (D x W x H) 1220 x 710 x 2045 to 2365 mm (48 x 28 x 80.5 to 93.1 inch)
Base Type Caster
Column Size (main / extension) 110 x 60 x 2 x 990 mm, 100 x 50 x 2 x 745 mm (4.3 x 2.4 x 0.079 x 39 inch, 3.9 x 2 x 0.079 x 29.3 inch)
Wheel Diameter 3 inch (3 inch)
Cable Management Yes
10 Degree Slope Testing Yes
Materials & Finish
Material Steel, Plastic
Metal Sheet Thickness Bracket Arm THK=2 mm cold-rolled sheet, VESA Panel THK=2.5 mm pickling sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, VESA Panel THK=0.098 inch pickling sheet)
Surface Finish Powder Coating
Colour Matte Black
Accessory Colour Matte Black
Strength Tested 3 times approved
Certification CA 65, RoHS

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The TTL06-610TW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi TTL06-610TW support?
Lumi lists the TTL06-610TW for screens from 60 to 100 inches with a weight capacity of 100 kg (220 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi TTL06-610TW fit?
It fits VESA 400 x 400, 600 x 400, 800 x 400, 800 x 600, 900 x 600, 1000 x 600 mm.
How much can the Lumi TTL06-610TW tilt, swivel or extend?
Lumi lists tilt of +5° to -10° and a height range of 1365 to 1685 mm (53.7 to 66.3 inch) for the TTL06-610TW.
How high can the TV be positioned on the Lumi TTL06-610TW?
Lumi lists a height range of 1365 to 1685 mm (53.7 to 66.3 inch) with height adjustment of the TV. Corporate AV can help match the height to the room and seating.
Does the Lumi TTL06-610TW include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi TTL06-610TW in India?
Yes. Corporate AV can supply the TTL06-610TW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
