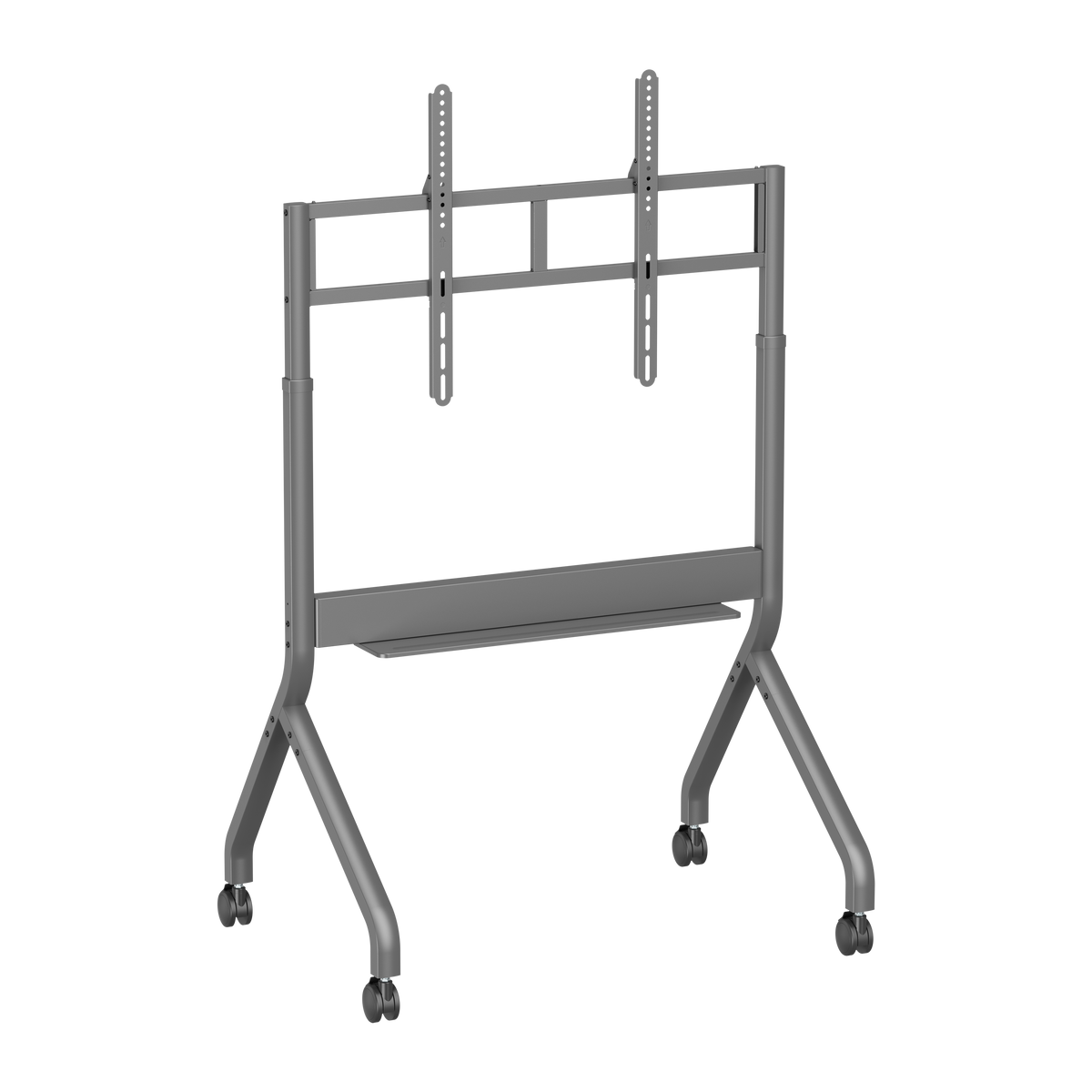

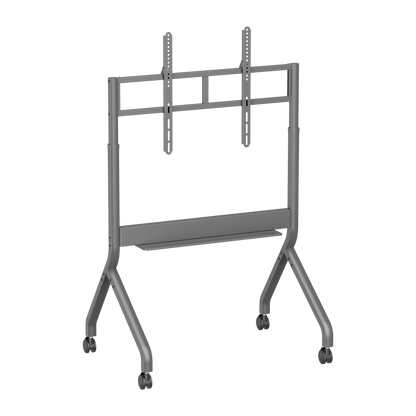

  • Lumi TTF19S-69FW TV cart, product view, supplied in India by Corporate AV

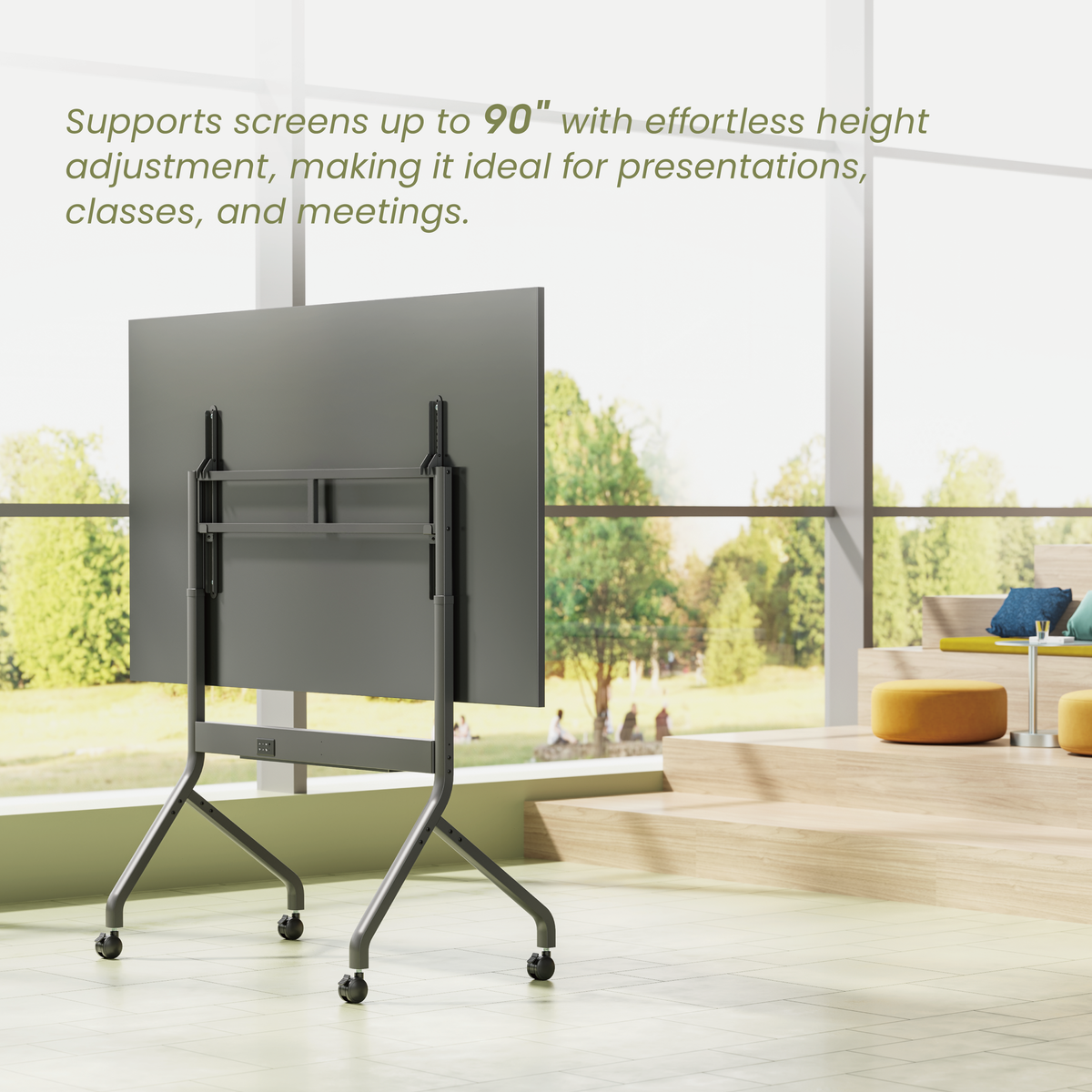

  • Lumi TTF19S-69FW TV cart installed with a TV in a meeting or classroom setting

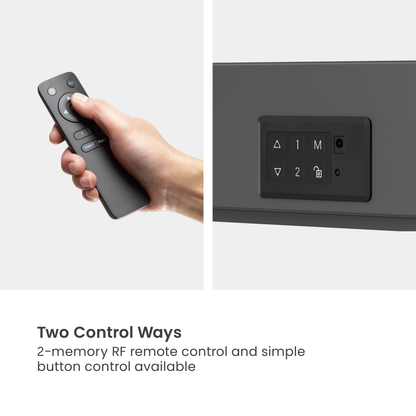

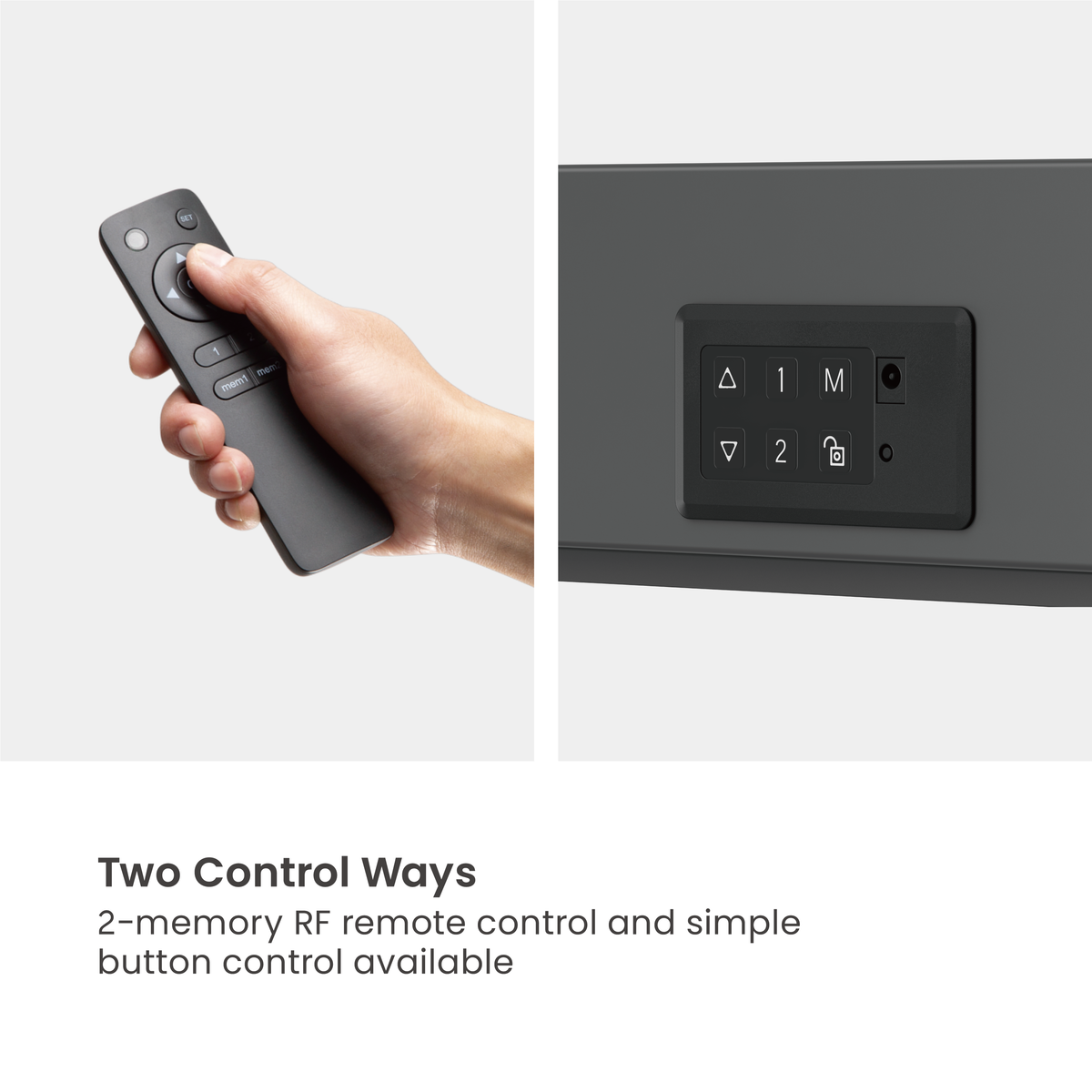

  • Lumi TTF19S-69FW TV cart operated with a remote control

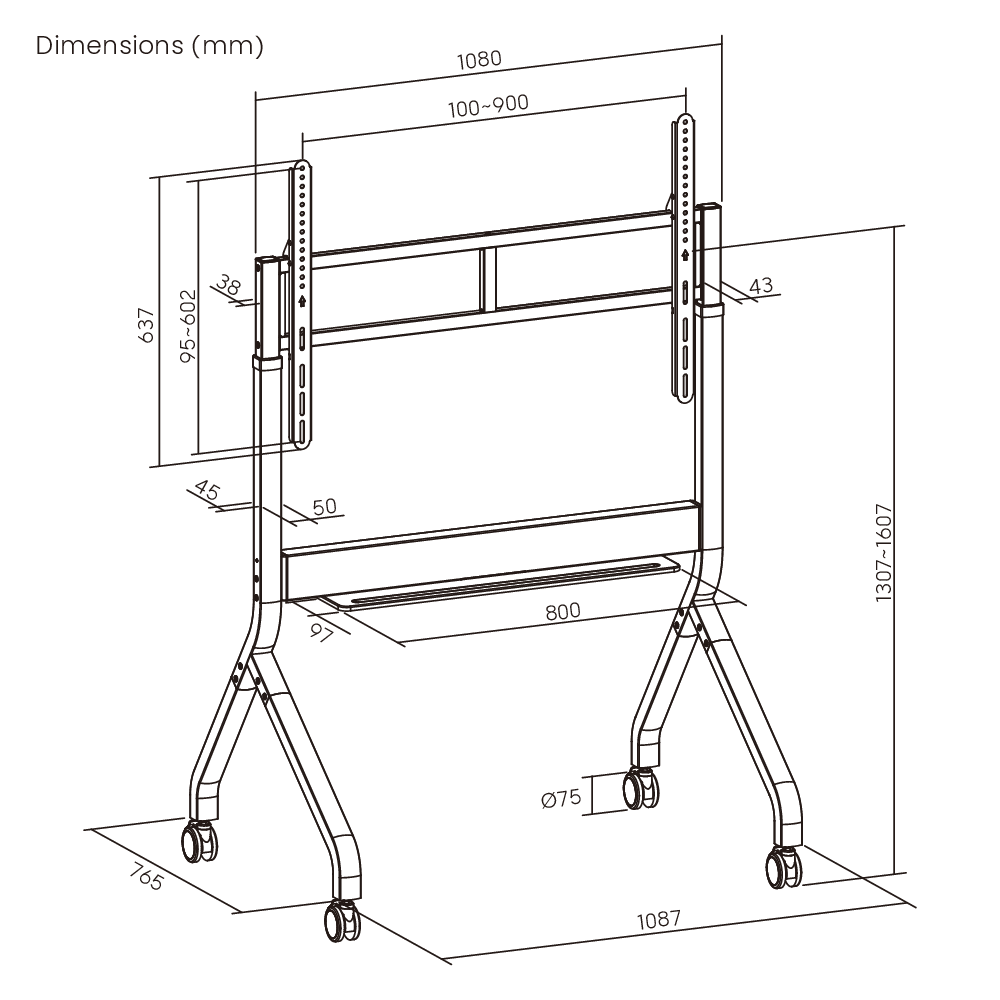

  • Dimension drawing of the Lumi TTF19S-69FW TV cart showing overall size and mounting dimensions
1 4

Lumi TTF19S-69FW: SlimLift Motorized Lift TV Cart, 55-90 Inch

Model TTF19S-69FW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 90 kg (198 lbs)
  • Fits screens from 55 to 90 inches
  • Height range of 1307 to 1607 mm (51.5 to 63.3 inch)
  • VESA 900 x 600 mm compatible
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi TTF19S-69FW is a TV cart for flat-panel displays from 55 to 90 inches, with a TV weight capacity of 90 kg (198 lbs). It offers a height range of 1307 to 1607 mm (51.5 to 63.3 inch). It supports VESA patterns from 100 x 100 to 900 x 600 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the TTF19S-69FW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 90 kg (198 lbs)
  • Fits screens from 55 to 90 inches
  • Height range of 1307 to 1607 mm (51.5 to 63.3 inch)
  • VESA 900 x 600 mm compatible
  • Equipment shelf rated for 3 kg (6.6 lbs)
Why choose the TTF19S-69FW
Choose the TTF19S-69FW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 90 kg (198 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the TTF19S-69FW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 90 kg (198 lbs)

Fits screens from 55 to 90 inches

Height range of 1307 to 1607 mm (51.5 to 63.3 inch)

VESA 900 x 600 mm compatible

Equipment shelf rated for 3 kg (6.6 lbs)

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 55 to 90 inch
VESA Compatible 100 x 100, 200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400, 800 x 400, 600 x 600, 800 x 600, 900 x 600 mm
TV Weight Capacity 90 kg (198 lbs)
Screen Quantity 1
Shelf Weight Capacity 3 kg (6.6 lbs)
Movement & Adjustment
Height Range 1307 to 1607 mm (51.5 to 63.3 inch)
TV Height Adjustable Yes
Shelf Height Adjustable No
Design & Installation
Product Type TV Cart
Dimensions (D x W x H) 1087 x 801 x 1626 to 1926 mm (42.8 x 31.5 x 64 to 75.8 inch)
Base Type Caster
Column Size (main / extension) 50 x 45 x 1.5 mm/43 x 38 x 1.5 mm (2 x 1.8 x 0.059 inch/1.7 x 1.5 x 0.059 inch)
Wheel Diameter 3 inch (3 inch)
Cable Management No
10 Degree Slope Testing Yes
Controller Type Radio Frequency (RF) Remote
Materials & Finish
Material Steel, Plastic
Metal Sheet Thickness Bracket Arm THK=2 mm cold-rolled sheet (Bracket Arm THK=0.079 inch cold-rolled sheet)
Surface Finish Powder Coating
Colour Gunmetal Grey
Strength Tested 3 Times Approved
Certification AS/NZS Report for National Differences, CE, ErP, FCC

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The TTF19S-69FW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi TTF19S-69FW support?
Lumi lists the TTF19S-69FW for screens from 55 to 90 inches with a weight capacity of 90 kg (198 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi TTF19S-69FW fit?
It fits VESA 100 x 100, 200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400, 800 x 400, 600 x 600, 800 x 600, 900 x 600 mm.
How much can the Lumi TTF19S-69FW be adjusted?
Lumi lists a height range of 1307 to 1607 mm (51.5 to 63.3 inch) for the TTF19S-69FW.
How high can the TV be positioned on the Lumi TTF19S-69FW?
Lumi lists a height range of 1307 to 1607 mm (51.5 to 63.3 inch) with height adjustment of the TV. Corporate AV can help match the height to the room and seating.
Does the Lumi TTF19S-69FW include cable management?
Cable management: No. (Per the Lumi specification.)
Does Corporate AV install the Lumi TTF19S-69FW in India?
Yes. Corporate AV can supply the TTF19S-69FW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
