Lumi PLB-M0748DS: Electric TV Ceiling Mount with Swivel, 43-86 Inch
Model PLB-M0748DS
Request a Quote
Availability: Out of Stock
- Weight capacity of 45 kg (99 lbs)
- Fits screens from 43 to 86 inches
- Profile of 177 mm (7 inch)
- Tilt range of 0 to -75°
Product Overview
Overview

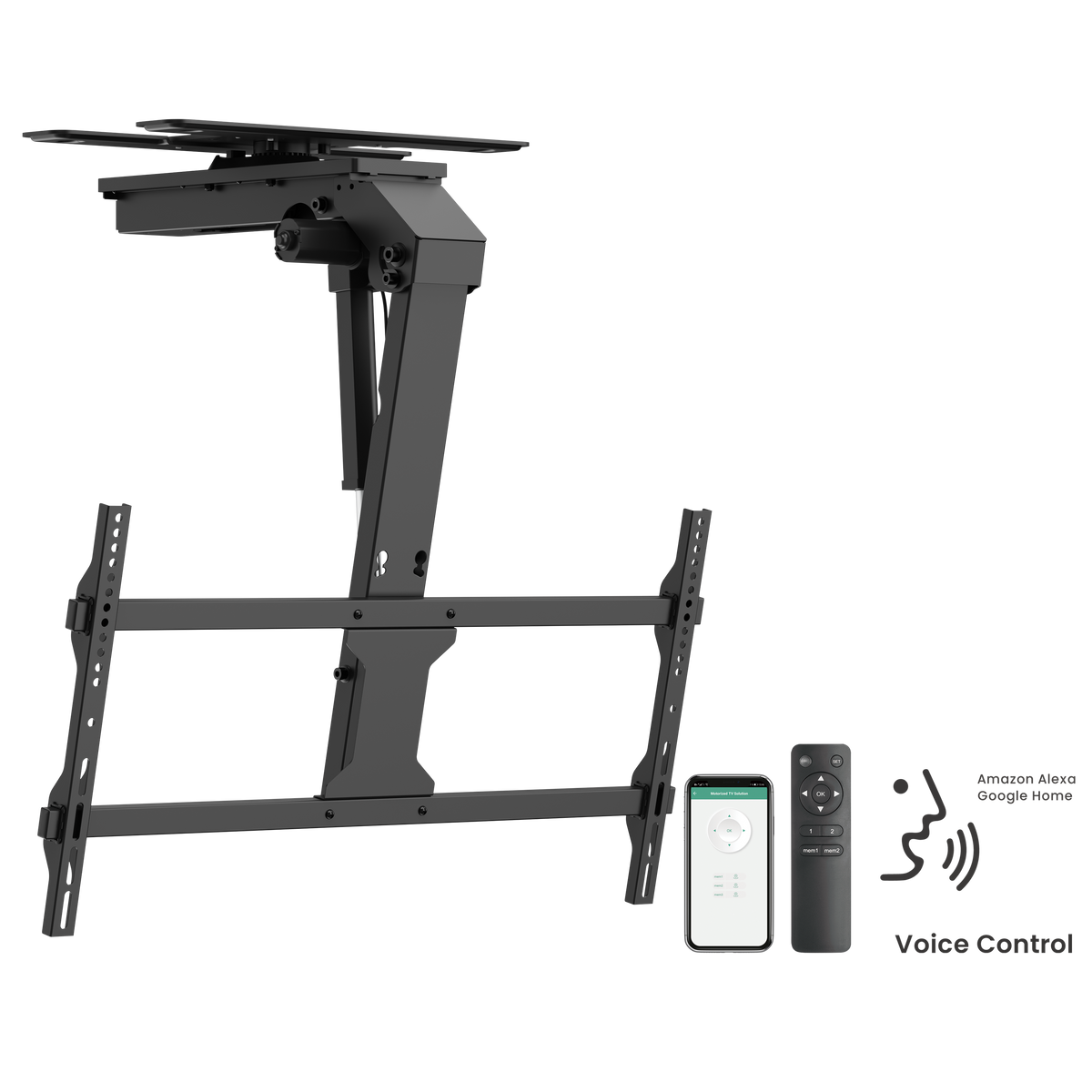

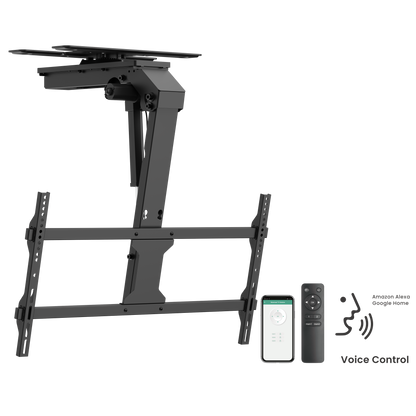

The Lumi PLB-M0748DS is a motorized TV ceiling mount for flat-panel TVs from 43 to 86 inches, with a weight capacity of 45 kg (99 lbs). It has a profile of 177 mm (7 inch). It offers tilt of 0 to -75° and swivel of +90° to -90°. It supports VESA patterns up to 800 x 400.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the PLB-M0748DS on its own or as part of a complete display installation, including site survey, ceiling structure checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 45 kg (99 lbs)
- Fits screens from 43 to 86 inches
- Profile of 177 mm (7 inch)
- Tilt range of 0 to -75°

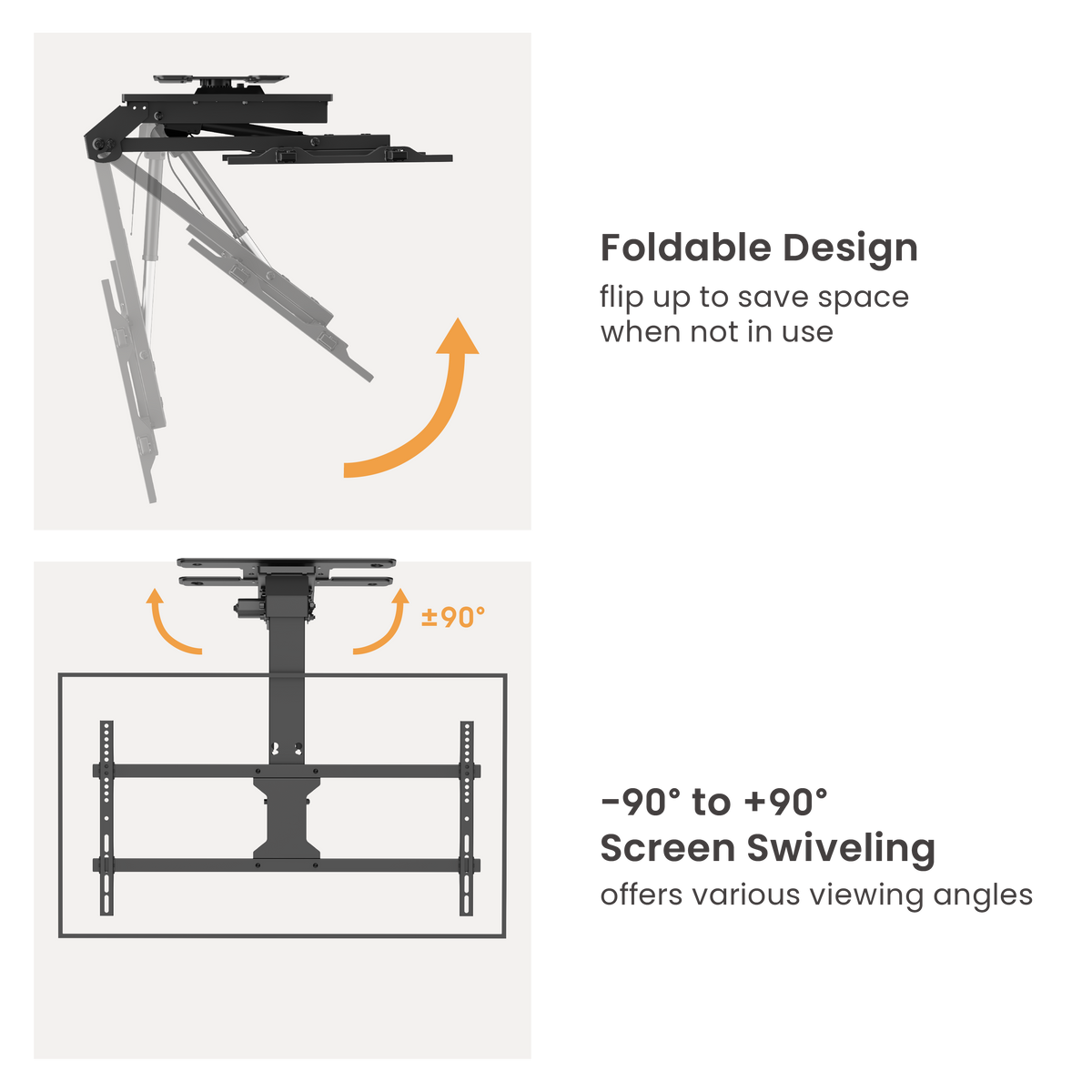

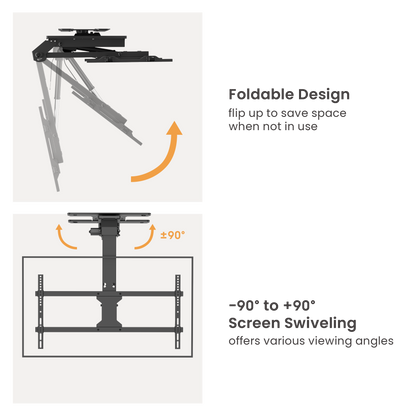

- Swivel range of +90° to -90°
Why choose the PLB-M0748DS
Choose the PLB-M0748DS when wall space is not available and the screen needs to hang from the ceiling at a set height. It is rated for 45 kg (99 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the PLB-M0748DS is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 45 kg (99 lbs)
Fits screens from 43 to 86 inches
Profile of 177 mm (7 inch)
Tilt range of 0 to -75°
Swivel range of +90° to -90°
Use Cases
Ideal Applications

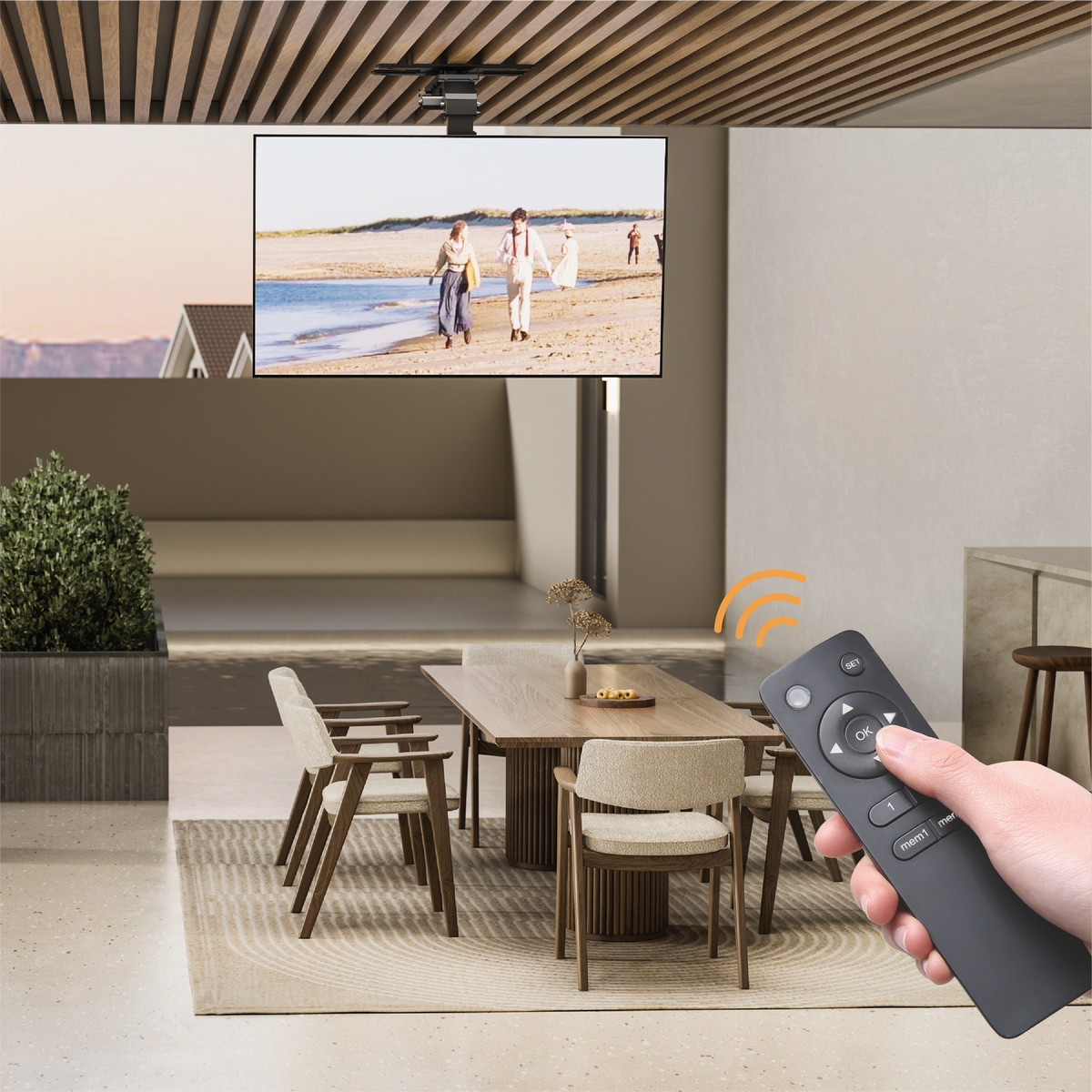

Ceiling-hung TVs in meeting rooms, waiting areas and lobbies
Retail and showroom screens
Hospitality and restaurant displays
Training rooms where wall space is limited
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
43 to 86 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400, 800 x 400 mm
Max. Mounting Hole
800 x 400 mm
Weight Capacity
45 kg (99 lbs)
Movement & Adjustment
Tilt Range
0 to -75°
Swivel Range
+90° to -90°
Screen Level
+2° to -2°
Design & Installation
Product Type
Motorized TV Ceiling Mount
Dimensions (D x W x H)
872 x 864 x 503 mm (34.3 x 34 x 19.8 inch)
Profile
177 mm (7 inch)
Installation
Dual Stud (406 mm), Ceiling Mounted
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
Yes
Bubble Level
No
Anti-theft
No
AV Component Shelf
No
Power Supply
Input:AC 100 to 240V, 50/60Hz;Output:DC 29V, 1A
Power Cord Length
3 m (9.8 ft)
Controller Type
Application Control, Radio Frequency (RF) Remote
Materials & Finish
Material
Steel, Plastic, Aluminum
Metal Sheet Thickness
Bracket Arm THK=1.5 mm cold-rolled sheet, VESA Panel THK=1.5 mm cold-rolled sheet (Bracket Arm THK=0.059 inch cold-rolled sheet, VESA Panel THK=0.059 inch cold-rolled sheet)
Surface Finish
Powder Coating
Colour
Matte Black
Strength Tested
4 Times Approved
Certification
CE, ErP, EU Cybersecurity , FCC, RoHS
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PLB-M0748DS From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi PLB-M0748DS support?
Lumi lists the PLB-M0748DS for screens from 43 to 86 inches with a weight capacity of 45 kg (99 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi PLB-M0748DS fit?
It fits VESA 200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 600 x 200, 400 x 400, 600 x 300, 600 x 400, 800 x 400 mm, with 800 x 400 as the maximum mounting hole pattern.
How much can the Lumi PLB-M0748DS tilt, swivel or extend?
Lumi lists tilt of 0 to -75° and swivel of +90° to -90° for the PLB-M0748DS.
How far does the screen sit from the wall on the PLB-M0748DS?
Lumi lists a profile of 177 mm (7 inch) for the PLB-M0748DS.
What surfaces can the Lumi PLB-M0748DS be installed on?
Lumi lists the following installation options for the PLB-M0748DS: dual stud (406 mm), ceiling mounted. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi PLB-M0748DS work with curved TVs?
Yes. Lumi lists the PLB-M0748DS as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi PLB-M0748DS in India?
Yes. Corporate AV can supply the PLB-M0748DS on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
