Lumi PLB-M0546: Motorized Flip Down TV Ceiling Mount, 32-70 Inch
Model PLB-M0546
Request a Quote
Availability: Out of Stock
- Weight capacity of 35 kg (77 lbs)
- Fits screens from 32 to 70 inches
- Profile of 108 mm (4.3 inch)
- Tilt range of 0 to -75°
Product Overview
Overview
The Lumi PLB-M0546 is a motorized TV ceiling mount for flat-panel TVs from 32 to 70 inches, with a weight capacity of 35 kg (77 lbs). It has a profile of 108 mm (4.3 inch). It offers tilt of 0 to -75°. It supports VESA patterns up to 600 x 400.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the PLB-M0546 on its own or as part of a complete display installation, including site survey, ceiling structure checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 35 kg (77 lbs)
- Fits screens from 32 to 70 inches
- Profile of 108 mm (4.3 inch)
- Tilt range of 0 to -75°
- VESA compatible up to 600 x 400
Why choose the PLB-M0546
Choose the PLB-M0546 when wall space is not available and the screen needs to hang from the ceiling at a set height. It is rated for 35 kg (77 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the PLB-M0546 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 35 kg (77 lbs)
Fits screens from 32 to 70 inches
Profile of 108 mm (4.3 inch)
Tilt range of 0 to -75°
VESA compatible up to 600 x 400
Use Cases
Ideal Applications
Ceiling-hung TVs in meeting rooms, waiting areas and lobbies
Retail and showroom screens
Hospitality and restaurant displays
Training rooms where wall space is limited
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
32 to 70 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA Only
VESA Compatible
200 x 100, 200 x 200, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
Max. Mounting Hole
600 x 400 mm
Weight Capacity
35 kg (77 lbs)
Movement & Adjustment
Tilt Range
0 to -75°
Screen Level
+2° to -2°
Screen Freely Tilting
No
Design & Installation
Product Type
Motorized TV Ceiling Mount

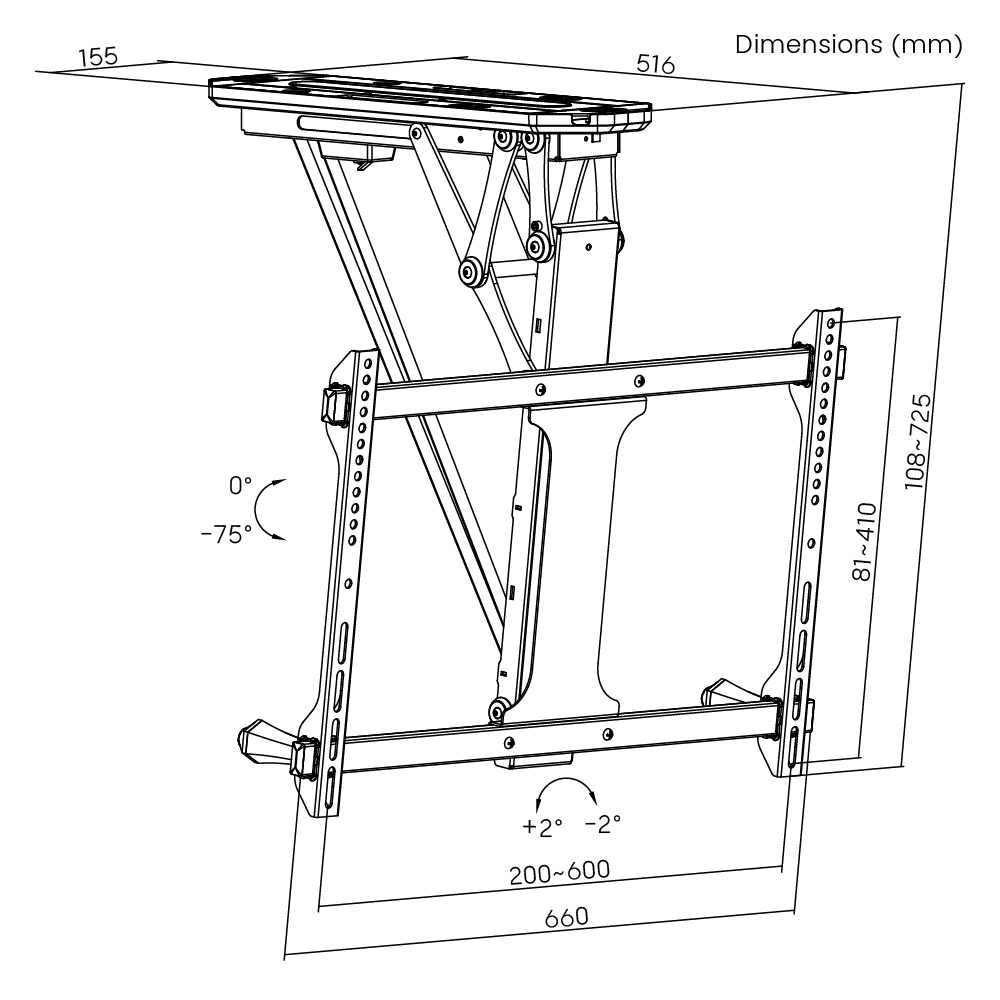

Dimensions (D x W x H)
725 x 664 x 516 mm (28.5 x 26.1 x 20.3 inch)
Profile
108 mm (4.3 inch)
Installation
Ceiling Mounted
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
Yes
Bubble Level
No
Anti-theft
No
AV Component Shelf
No
Power Supply
Input:AC 100 to 240V, 50/60Hz;Output:DC 24V, 1.5A
Power Cord Length
1.5 m (4.9 ft)
Controller Type
Radio Frequency (RF) Remote
Materials & Finish
Material
Steel, Plastic
Metal Sheet Thickness
Bracket Arm THK=2 mm cold-rolled sheet, VESA Panel THK=2 mm cold-rolled sheet, Wall Plate THK=2 mm cold-rolled sheet (Bracket Arm THK=0.079 inch cold-rolled sheet, VESA Panel THK=0.079 inch cold-rolled sheet, Wall Plate THK=0.079 inch cold-rolled sheet)
Surface Finish
Powder Coating
Colour
Matte Black, Matte White
Strength Tested
3 Times Approved
Certification
AS/NZS Report for National Differences, CE, ErP, FCC, RoHS
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PLB-M0546 From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi PLB-M0546 support?
Lumi lists the PLB-M0546 for screens from 32 to 70 inches with a weight capacity of 35 kg (77 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi PLB-M0546 fit?
It fits VESA 200 x 100, 200 x 200, 300 x 200, 200 x 400, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm, with 600 x 400 as the maximum mounting hole pattern.
How much can the Lumi PLB-M0546 tilt, swivel or extend?
Lumi lists tilt of 0 to -75° for the PLB-M0546.
How far does the screen sit from the wall on the PLB-M0546?
Lumi lists a profile of 108 mm (4.3 inch) for the PLB-M0546.
What surfaces can the Lumi PLB-M0546 be installed on?
Lumi lists the following installation options for the PLB-M0546: ceiling mounted. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi PLB-M0546 work with curved TVs?
Yes. Lumi lists the PLB-M0546 as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi PLB-M0546 in India?
Yes. Corporate AV can supply the PLB-M0546 on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
