Lumi LP37-810T: Heavy-duty Tilt TV Wall Mount for 60-100 Inch Screens
Model LP37-810T
Request a Quote
Availability: Out of Stock
- Weight capacity of 100 kg (220 lbs)
- Fits screens from 60 to 100 inches
- Profile of 120 mm (4.7 inch)
- Tilt range of +15° to -15°
Product Overview
Overview

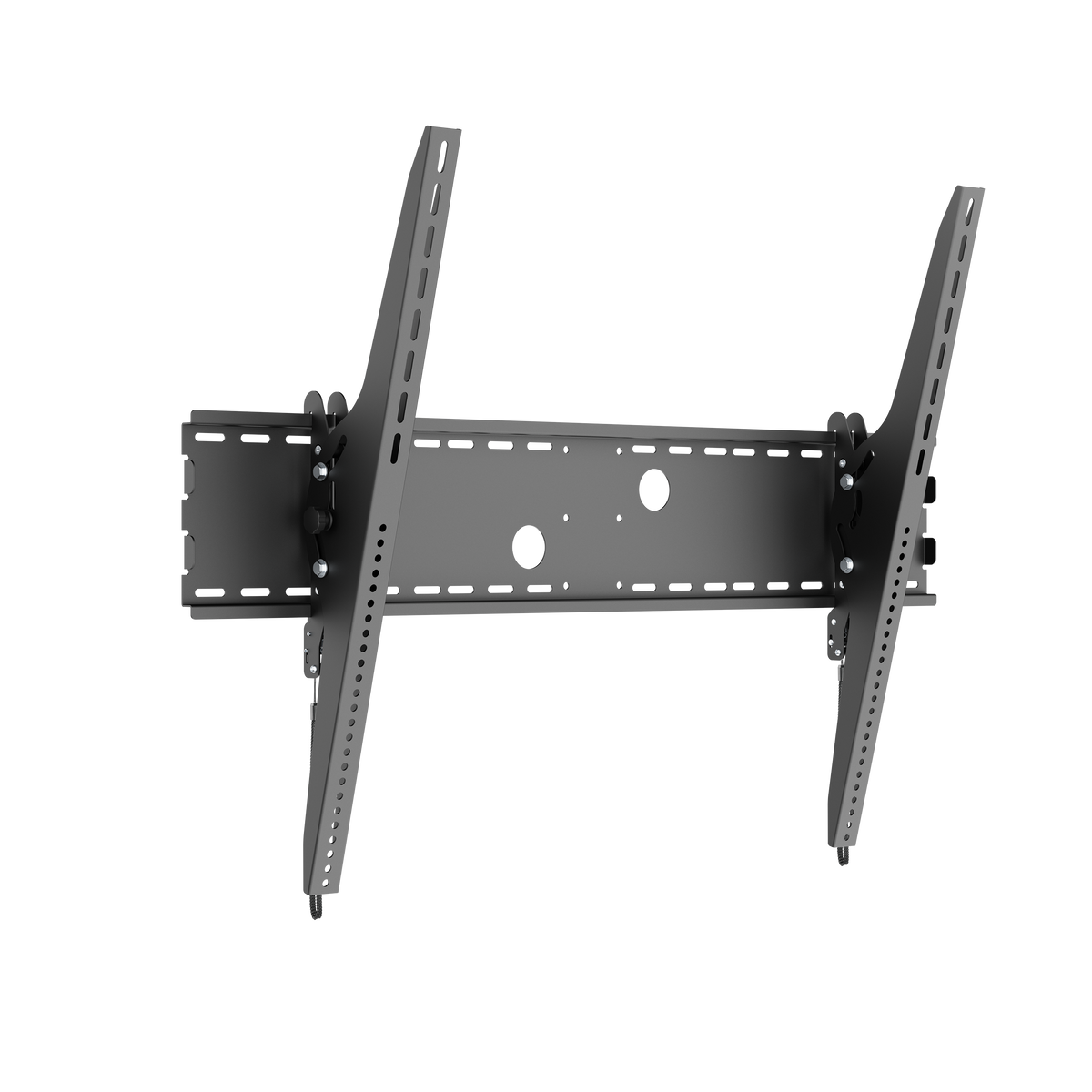

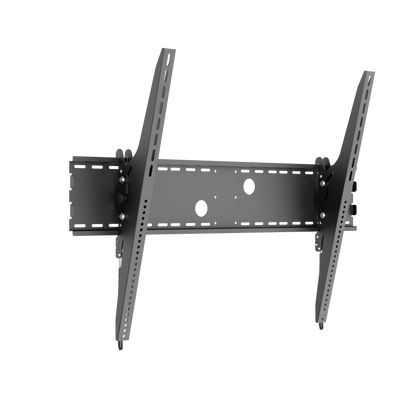

The Lumi LP37-810T is a tilt TV wall mount for flat-panel TVs from 60 to 100 inches, with a weight capacity of 100 kg (220 lbs). It has a profile of 120 mm (4.7 inch). It offers tilt of +15° to -15°. It supports VESA patterns up to 1000 x 800.
Corporate AV is an authorised Lumi importer and distributor in India. We supply the LP37-810T on its own or as part of a complete display installation, including site survey, wall checks, mounting and commissioning where the project needs it.
Key features
- Weight capacity of 100 kg (220 lbs)
- Fits screens from 60 to 100 inches
- Profile of 120 mm (4.7 inch)
- Tilt range of +15° to -15°
- VESA compatible up to 1000 x 800
Why choose the LP37-810T
Choose the LP37-810T when the screen stays on one wall position but needs a tilt adjustment (+15° to -15°) to cut glare or aim the display at viewers. It is rated for 100 kg (220 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LP37-810T is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights
Key Benefits
Weight capacity of 100 kg (220 lbs)
Fits screens from 60 to 100 inches
Profile of 120 mm (4.7 inch)
Tilt range of +15° to -15°
VESA compatible up to 1000 x 800
Use Cases
Ideal Applications

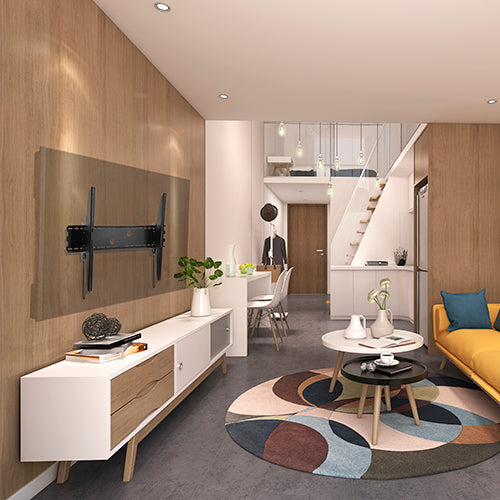

Wall-mounted TVs in meeting rooms and huddle rooms
Reception, lobby and waiting areas
Hotel rooms and hospitality spaces
Retail and showroom screens
Technical Details
Technical Specifications
Compatibility & Load
Fit Screen Size
60 to 100 inch
Curved TV Compatible
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 600 x 600, 1000 x 400, 800 x 600, 1000 x 600, 800 x 800, 1000 x 800 mm
Max. Mounting Hole
1000 x 800 mm
Weight Capacity
100 kg (220 lbs)
Movement & Adjustment

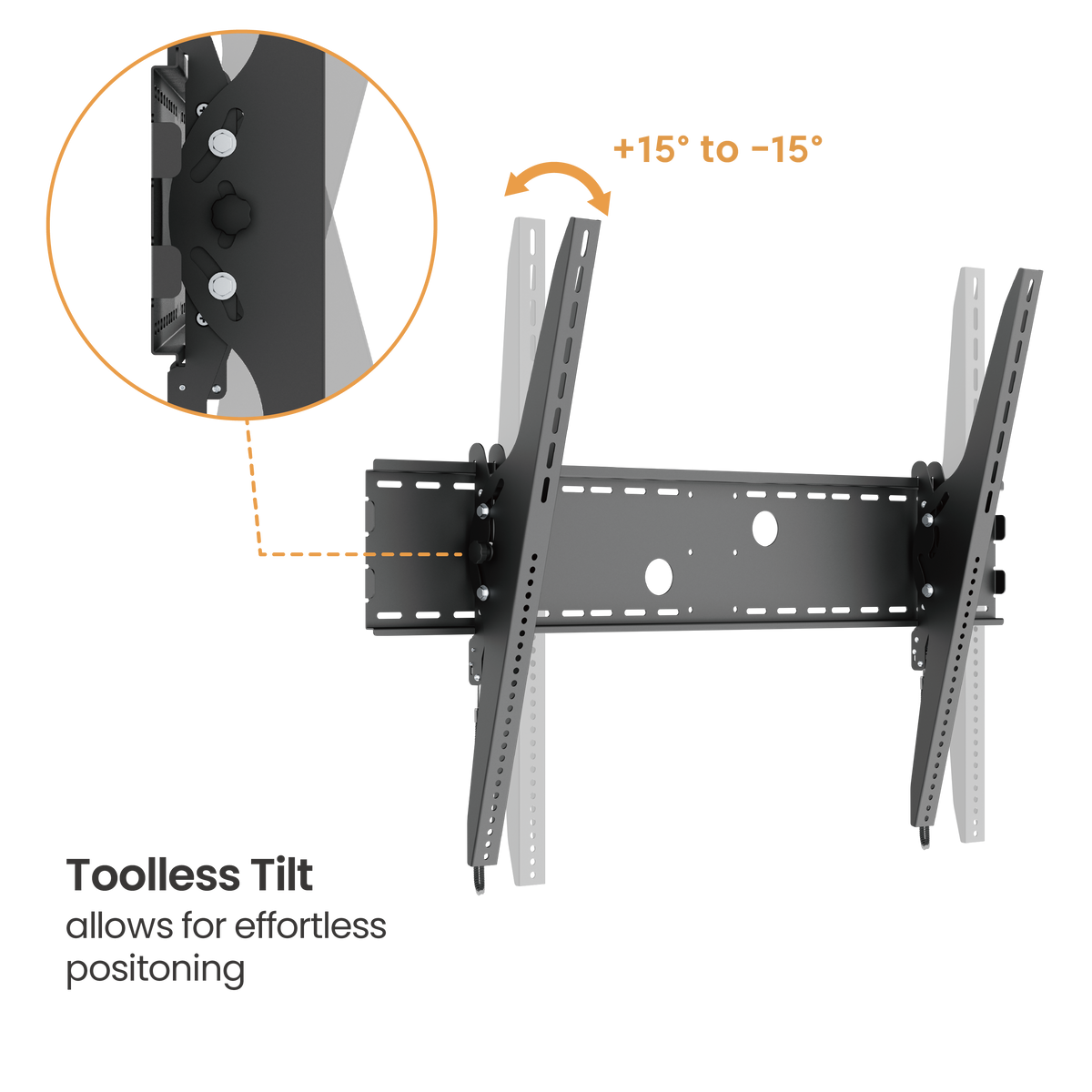

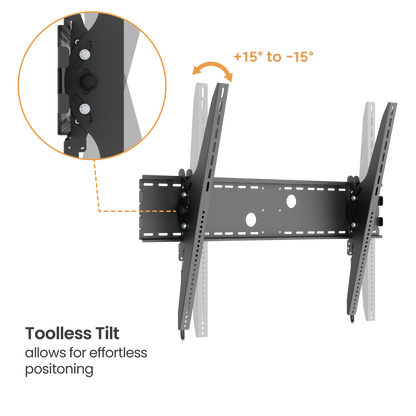

Tilt Range
+15° to -15°
Design & Installation
Product Type
Tilt TV Wall Mount

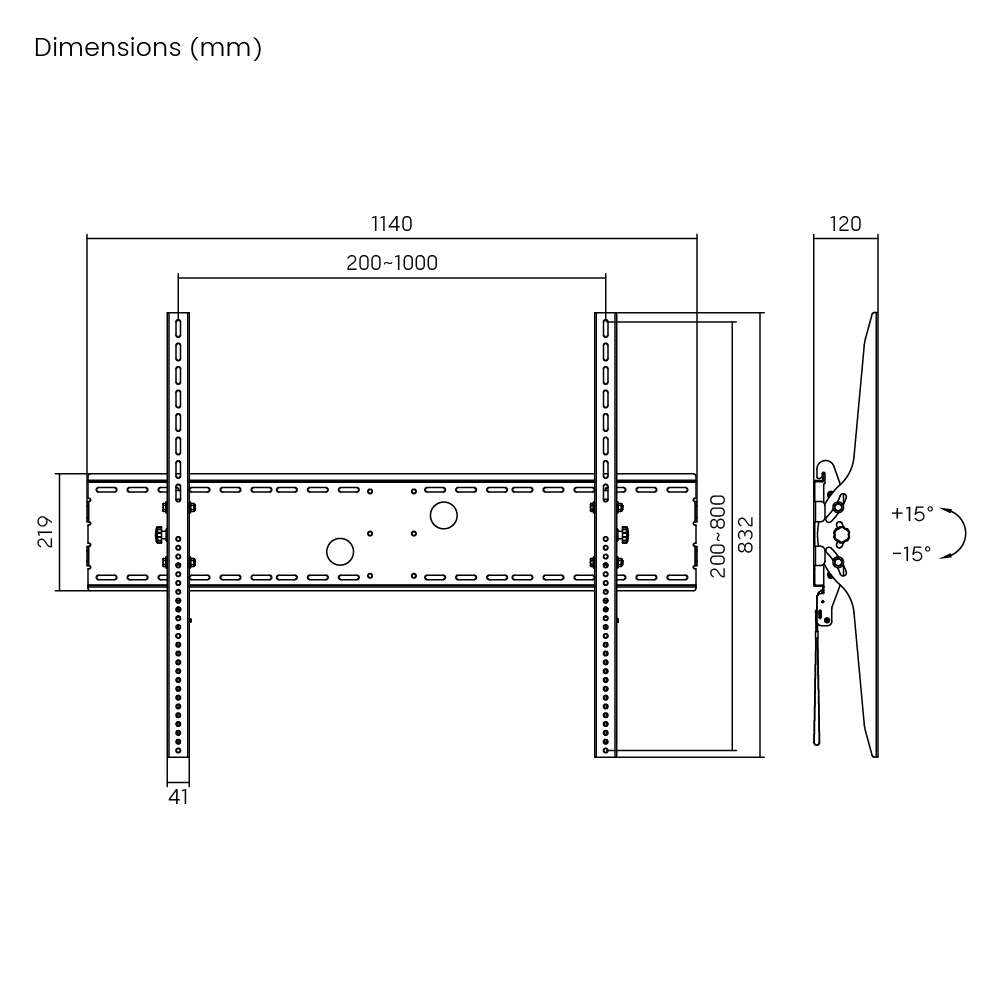

Dimensions (D x W x H)
1140 x 832 x 130 mm (44.9 x 32.8 x 5.1 inch)
Profile
120 mm (4.7 inch)
Installation
Solid Wall, Dual Stud (406 mm/450 mm/600 mm)
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
Cable Management
No
Bubble Level
No
Anti-theft
No
Materials & Finish
Material
Steel
Metal Sheet Thickness
2.0 mm (0.079 inch)
Surface Finish
Powder Coating
Colour
Fine Texture Black
Accessory Colour
Fine Texture Black
Strength Tested
4 Times Approved
Certification
UL
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LP37-810T From Corporate AV?
- Genuine Lumi stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What TV and display sizes and weights does the Lumi LP37-810T support?
Lumi lists the LP37-810T for screens from 60 to 100 inches with a weight capacity of 100 kg (220 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LP37-810T fit?
It fits VESA 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 600 x 600, 1000 x 400, 800 x 600, 1000 x 600, 800 x 800, 1000 x 800 mm, with 1000 x 800 as the maximum mounting hole pattern.
How much can the Lumi LP37-810T tilt, swivel or extend?
Lumi lists tilt of +15° to -15° for the LP37-810T.
How far does the screen sit from the wall on the LP37-810T?
Lumi lists a profile of 120 mm (4.7 inch) for the LP37-810T.
What surfaces can the Lumi LP37-810T be installed on?
Lumi lists the following installation options for the LP37-810T: solid wall, dual stud (406 mm/450 mm/600 mm). Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LP37-810T work with curved TVs?
Yes. Lumi lists the LP37-810T as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does Corporate AV install the Lumi LP37-810T in India?
Yes. Corporate AV can supply the LP37-810T on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
