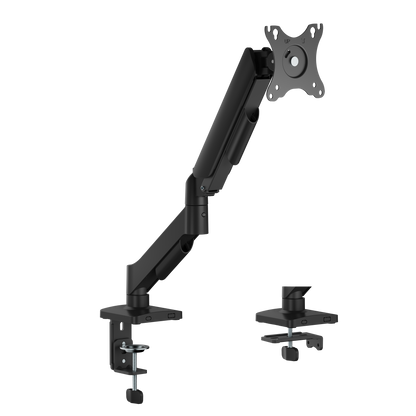

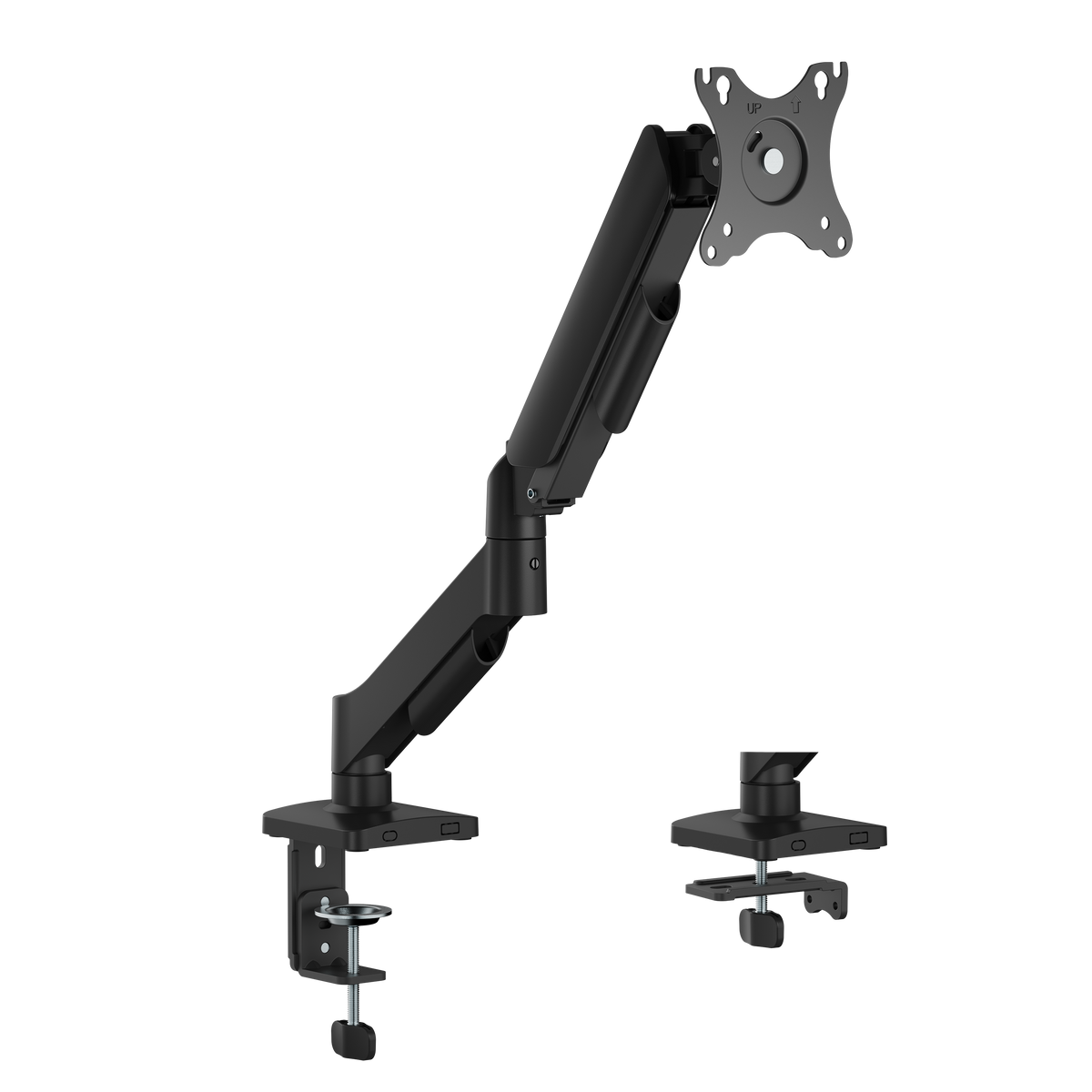

  • Lumi LDT97-C012 gas spring monitor arm, product view, supplied in India by Corporate AV

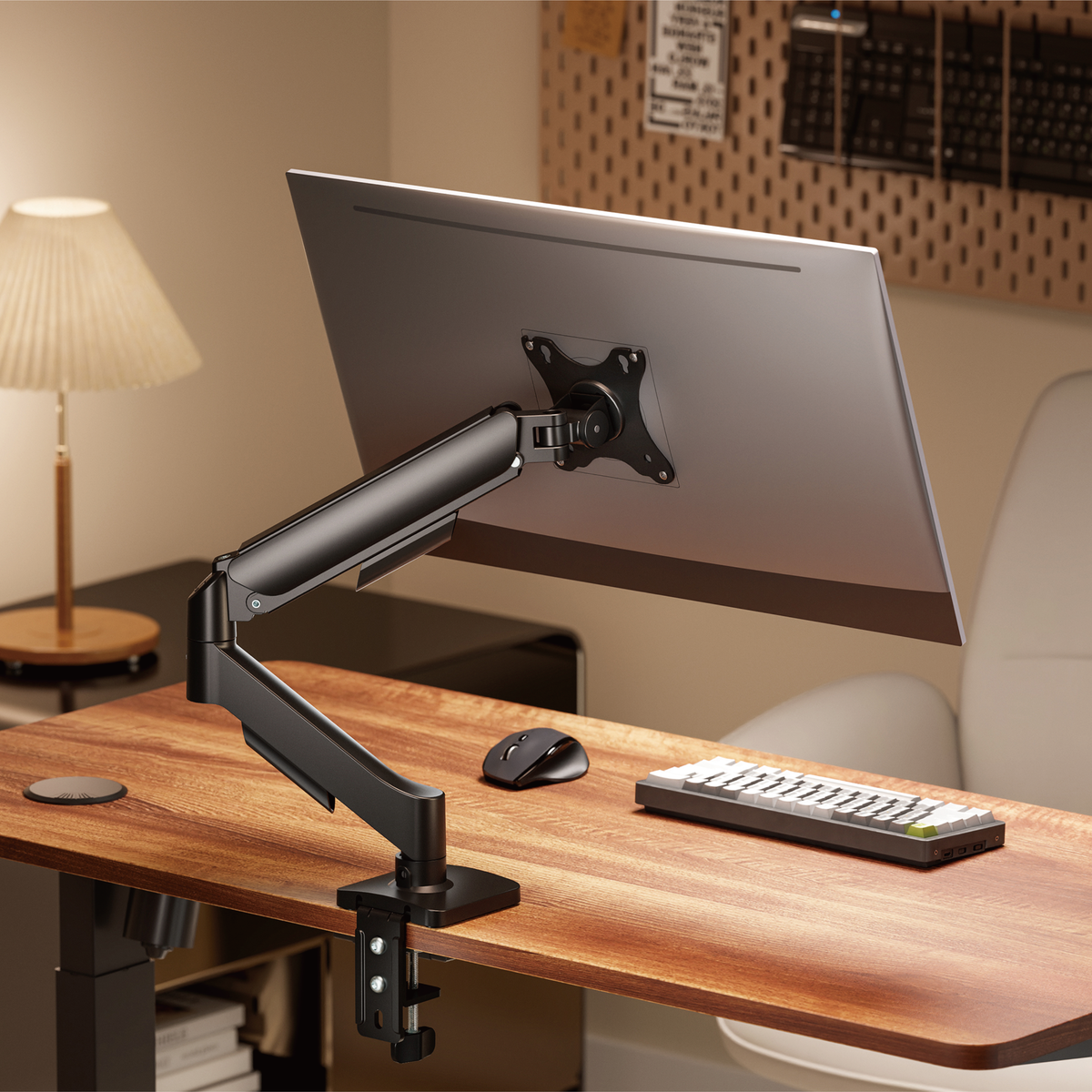

  • Lumi LDT97-C012 gas spring monitor arm installed holding a monitor on a desk in an office setup

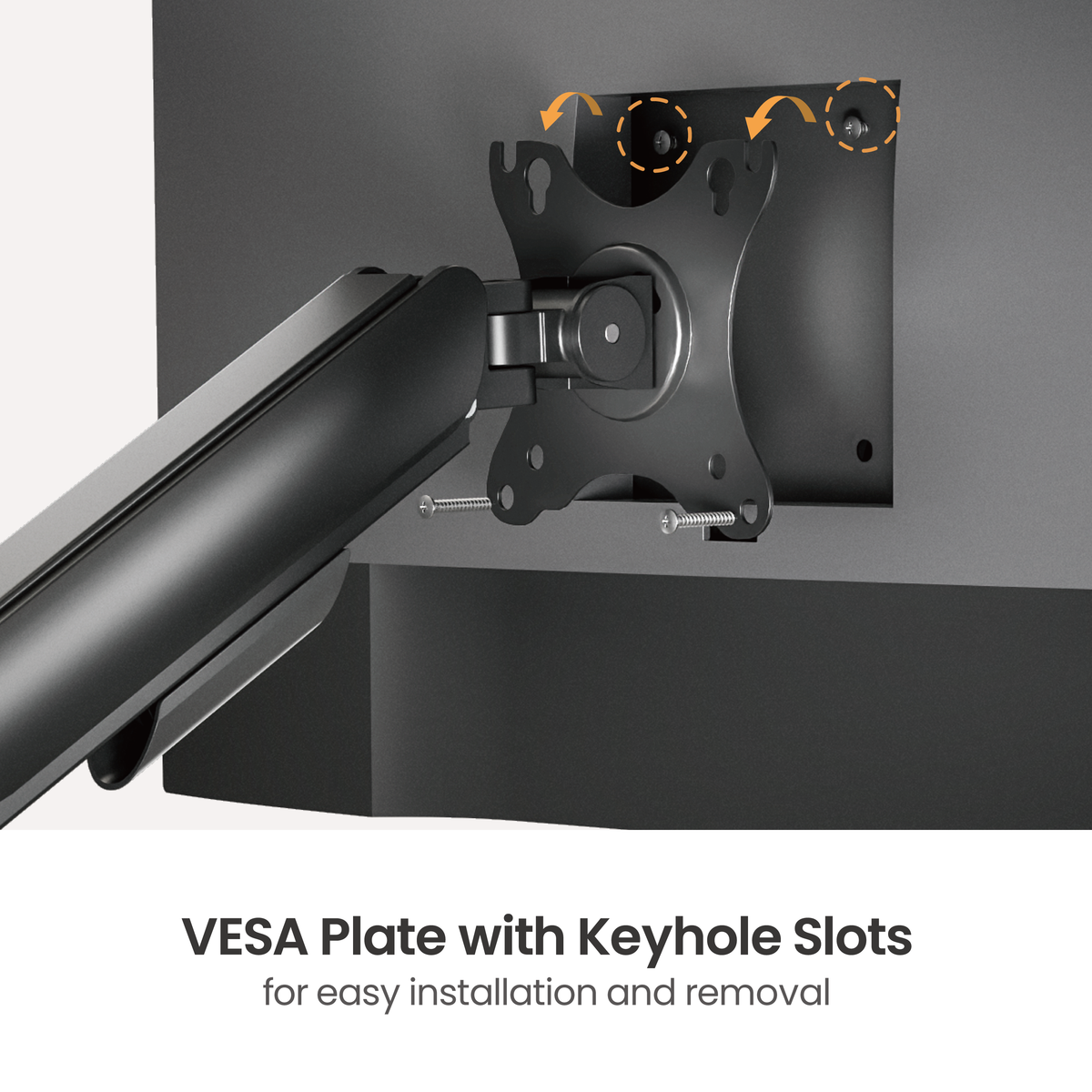

  • Lumi LDT97-C012 gas spring monitor arm VESA plate with keyhole slots for attaching a monitor

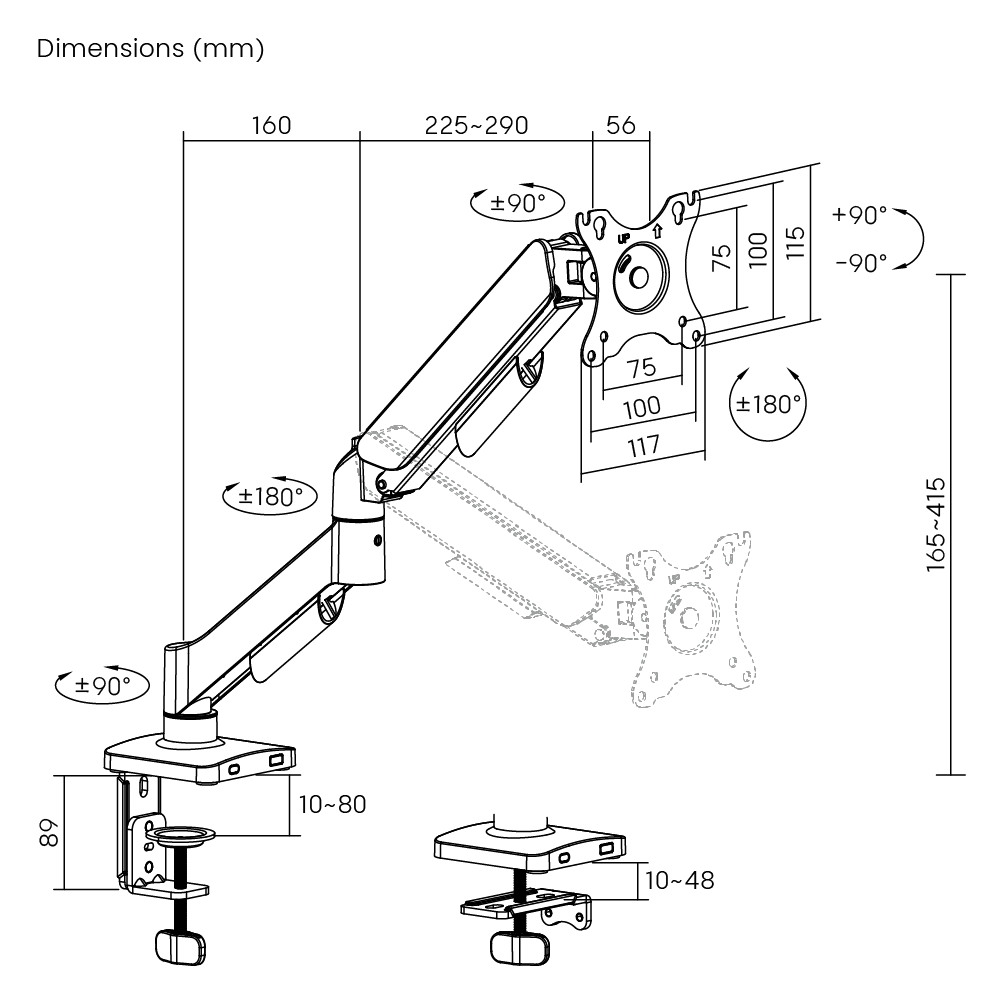

  • Dimension drawing of the Lumi LDT97-C012 gas spring monitor arm showing overall size and mounting dimensions
1 4

Lumi LDT97-C012: Super Gas Spring Monitor Arm for 17-32 Inch Monitors

Model LDT97-C012

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Load range of 2 to 9 kg (4.4 to 19.8 lbs) per screen
  • Fits monitors from 17 to 32 inches
  • Holds 1 screen
  • Tilt range of +90° to -90°
AV Installation Services in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LDT97-C012 is a gas spring monitor arm for monitors from 17 to 32 inch, with a load range of 2 to 9 kg (4.4 to 19.8 lbs) per screen. It offers tilt of +90° to -90°, swivel of +90° to -90° and rotation of +180° to -180°. It supports VESA patterns from 75 x 75 to 100 x 100 mm. It supports these installation options: clamp, grommet.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LDT97-C012 for single desks and for larger workplace rollouts, with desk checks, installation and cable tidying where the project needs it.

Key features

  • Load range of 2 to 9 kg (4.4 to 19.8 lbs) per screen
  • Fits monitors from 17 to 32 inches
  • Holds 1 screen
  • Tilt range of +90° to -90°
  • Swivel range of +90° to -90°
Why choose the LDT97-C012
Choose the LDT97-C012 to free up desk space and position a monitor at the right height and angle for the user. It is rated for 2 to 9 kg (4.4 to 19.8 lbs) per screen. Corporate AV checks the mounting surface, load and cabling during a site survey, so the LDT97-C012 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Load range of 2 to 9 kg (4.4 to 19.8 lbs) per screen

Fits monitors from 17 to 32 inches

Holds 1 screen

Tilt range of +90° to -90°

Swivel range of +90° to -90°

Use Cases

Ideal Applications

Office and workstation desks

Dual-screen and multi-screen workstations

Control room and operations desks

Hot-desking and shared workspaces

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 17 to 32 inch
Curved Monitor Compatible Yes
VESA Compatible 75 x 75, 100 x 100 mm
Weight Capacity (per screen) 2 to 9 kg (4.4 to 19.8 lbs)
Screen Quantity 1
Suggested Desktop Thickness Clamp:10 to 80 mm Grommet:10 to 48 mm (Clamp:0.39 to 3.1 inch Grommet:0.39 to 1.9 inch)
Movement & Adjustment
Tilt Range +90° to -90°
Swivel Range +90° to -90°
Screen Rotation +180° to -180°
Arm Full Extension 450 mm (17.7 inch)
Design & Installation
Product Type Gas Spring Monitor Arm
Dimensions (D x W x H) 117 x 493 x 564 mm (4.6 x 19.4 x 22.2 inch)
Installation Clamp, Grommet
Cable Management Yes
Quick Release VESA Plate No
Materials & Finish
Material Steel, Plastic
Surface Finish Electrophoresis, Powder Coating
Colour Matte Black, Matte White

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LDT97-C012 From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What sizes and weights does the Lumi LDT97-C012 support?
Lumi lists the LDT97-C012 for monitors from 17 to 32 inches, with a load of 2 to 9 kg (4.4 to 19.8 lbs) per screen. Check your monitor's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LDT97-C012 fit?
It fits VESA 75 x 75, 100 x 100 mm.
How much can the Lumi LDT97-C012 tilt, swivel or extend?
Lumi lists tilt of +90° to -90°, swivel of +90° to -90°, rotation of +180° to -180° and arm extension of 450 mm (17.7 inch) for the LDT97-C012.
What surfaces can the Lumi LDT97-C012 be installed on?
Lumi lists the following installation options for the LDT97-C012: clamp, grommet. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LDT97-C012 work with curved monitors?
Yes. Lumi lists the LDT97-C012 as compatible with curved monitors. Check the weight and VESA pattern of your specific model.
Does the Lumi LDT97-C012 include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi LDT97-C012 in India?
Yes. Corporate AV can supply the LDT97-C012 on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
