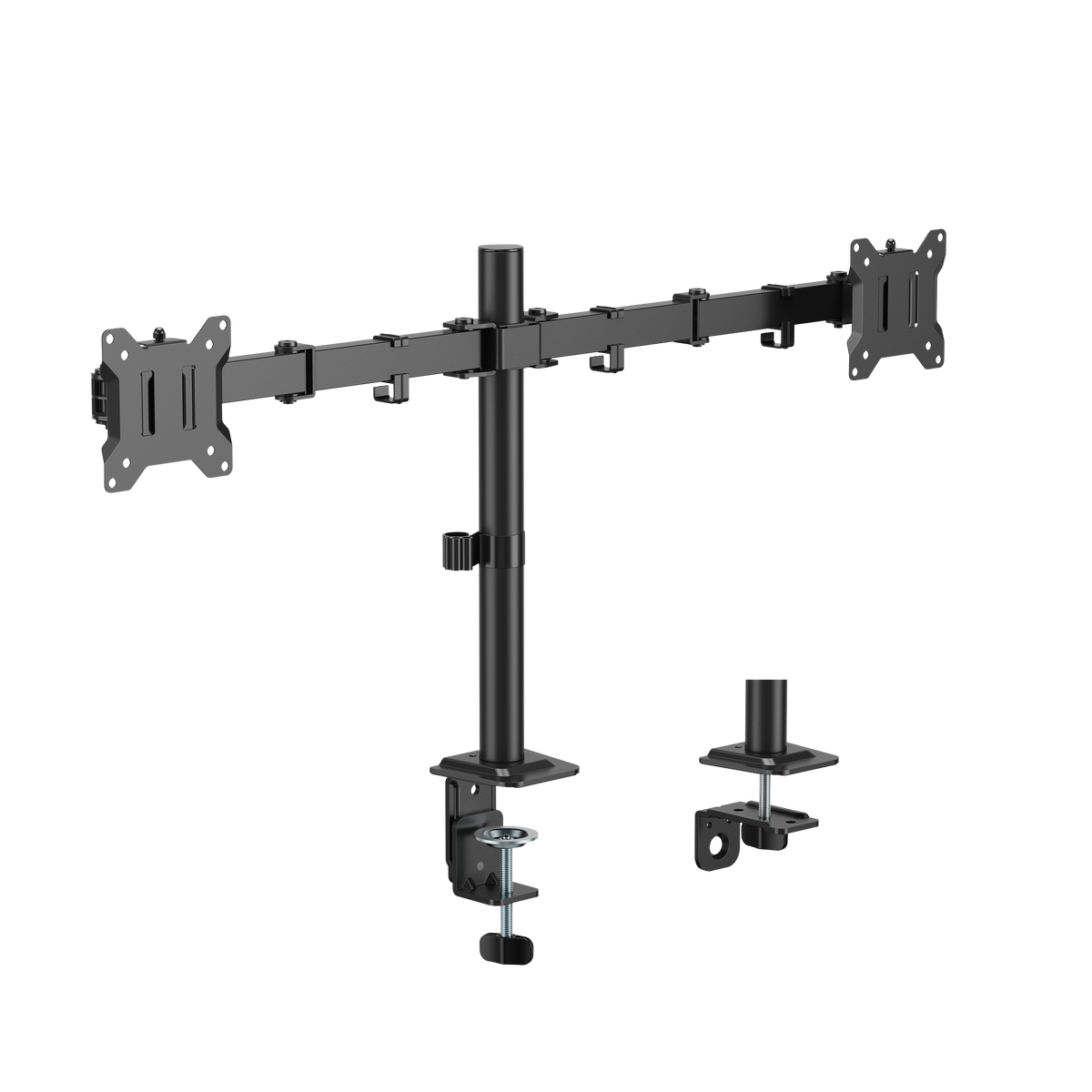

  • Lumi LDT110-C024 articulating monitor arm, product view, supplied in India by Corporate AV

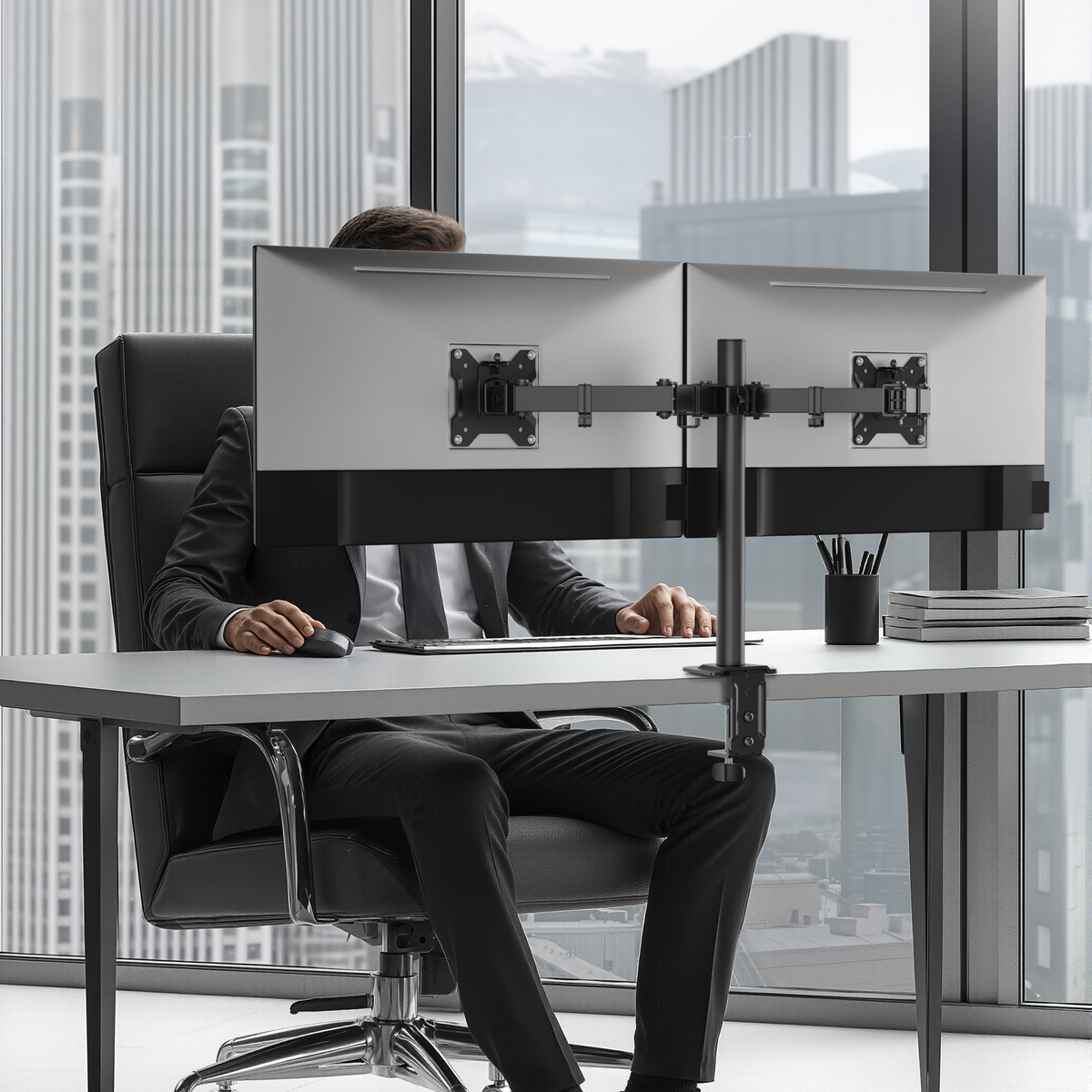

  • Lumi LDT110-C024 articulating monitor arm installed holding a monitor on a desk in an office setup

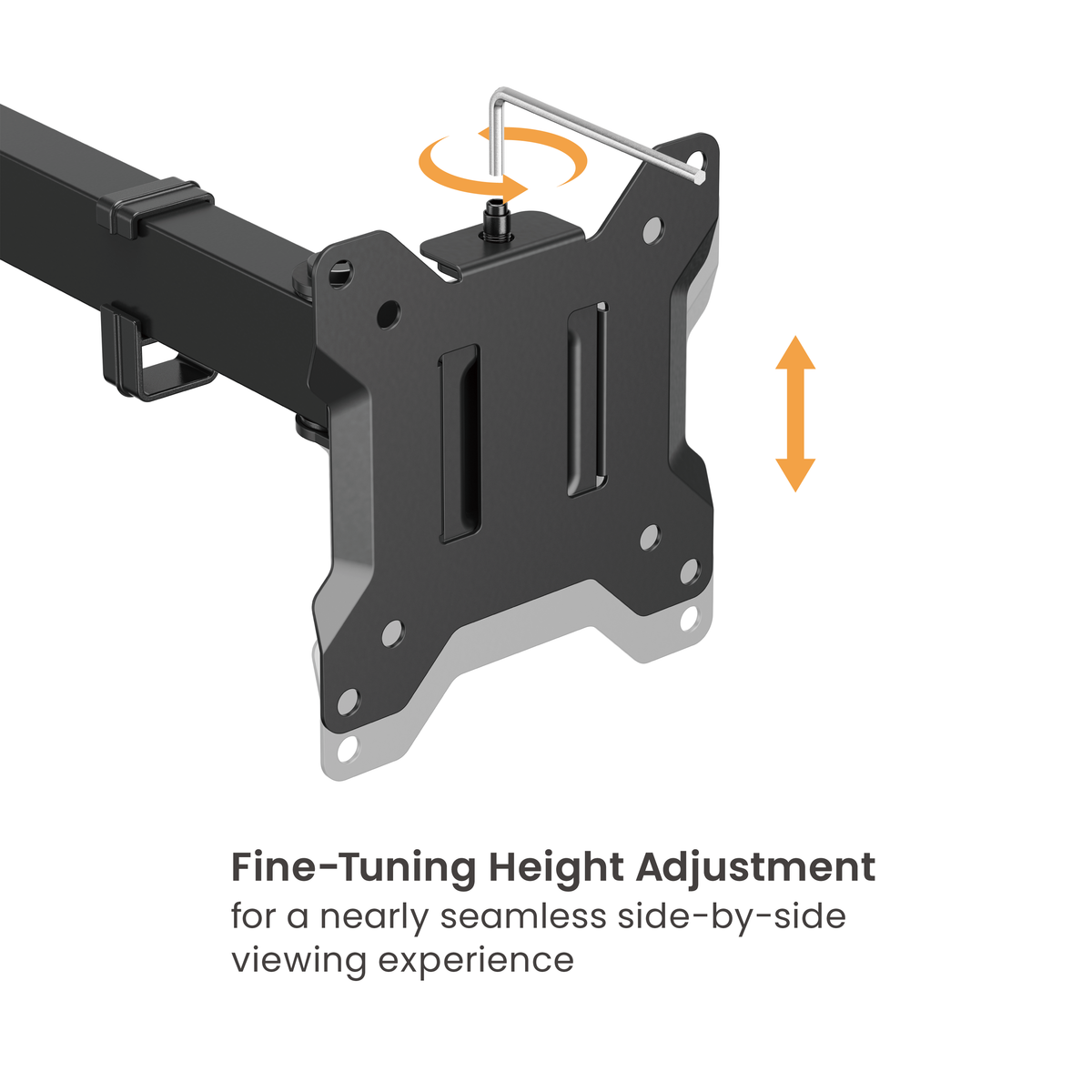

  • Lumi LDT110-C024 articulating monitor arm adjustment feature detail

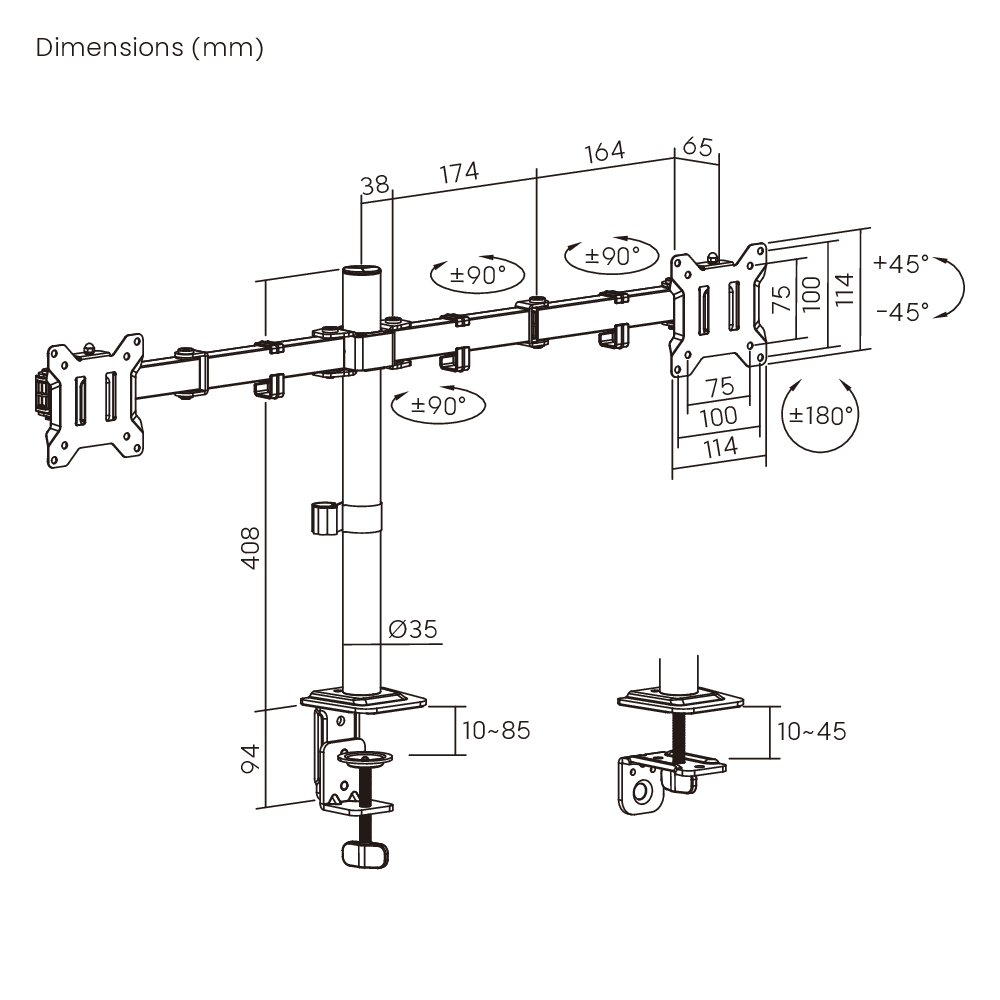

  • Dimension drawing of the Lumi LDT110-C024 articulating monitor arm showing overall size and mounting dimensions
1 4

Lumi LDT110-C024: Articulating Dual Monitor Arm, 17-32 Inch

Model LDT110-C024

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Load range of 10 kg (22 lbs) per screen
  • Fits monitors from 17 to 32 inches
  • Holds 2 screens
  • Tilt range of +45° to -45°
AV Installation Services in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LDT110-C024 is an articulating monitor arm for monitors from 17 to 32 inch, with a load range of 10 kg (22 lbs) per screen. It offers tilt of +45° to -45°, swivel of +90° to -90° and rotation of +180° to -180°. It supports VESA patterns from 75 x 75 to 100 x 100 mm. It supports these installation options: clamp, grommet.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LDT110-C024 for single desks and for larger workplace rollouts, with desk checks, installation and cable tidying where the project needs it.

Key features

  • Load range of 10 kg (22 lbs) per screen
  • Fits monitors from 17 to 32 inches
  • Holds 2 screens
  • Tilt range of +45° to -45°
  • Swivel range of +90° to -90°
Why choose the LDT110-C024
Choose the LDT110-C024 to free up desk space and position multiple monitors at the right height and angle for the user. It is rated for 10 kg (22 lbs) per screen. Corporate AV checks the mounting surface, load and cabling during a site survey, so the LDT110-C024 is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Load range of 10 kg (22 lbs) per screen

Fits monitors from 17 to 32 inches

Holds 2 screens

Tilt range of +45° to -45°

Swivel range of +90° to -90°

Use Cases

Ideal Applications

Office and workstation desks

Dual-screen and multi-screen workstations

Control room and operations desks

Hot-desking and shared workspaces

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 17 to 32 inch
VESA Compatible 75 x 75, 100 x 100 mm
Weight Capacity (per screen) 10 kg (22 lbs)
Screen Quantity 2
Suggested Desktop Thickness Clamp:10 to 85 mm Grommet:10 to 45 mm (Clamp:0.39 to 3.3 inch Grommet:0.39 to 1.8 inch)
Movement & Adjustment
Tilt Range +45° to -45°
Swivel Range +90° to -90°
Screen Rotation +180° to -180°
Arm Full Extension 376 mm (14.8 inch)
Pole Height 408 mm (16.1 inch)
Design & Installation
Product Type Articulating Monitor Arm
Dimensions (D x W x H) 866 x 106 x 548 mm (34.1 x 4.2 x 21.6 inch)
Installation Clamp, Grommet
Cable Management Yes
Quick Release VESA Plate Yes
Materials & Finish
Material Steel, Plastic
Surface Finish Powder Coating
Colour Matte Black

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LDT110-C024 From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What sizes and weights does the Lumi LDT110-C024 support?
Lumi lists the LDT110-C024 for monitors from 17 to 32 inches, with a load of 10 kg (22 lbs) per screen. Check your monitor's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LDT110-C024 fit?
It fits VESA 75 x 75, 100 x 100 mm.
How much can the Lumi LDT110-C024 tilt, swivel or extend?
Lumi lists tilt of +45° to -45°, swivel of +90° to -90°, rotation of +180° to -180° and arm extension of 376 mm (14.8 inch) for the LDT110-C024.
What surfaces can the Lumi LDT110-C024 be installed on?
Lumi lists the following installation options for the LDT110-C024: clamp, grommet. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LDT110-C024 include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi LDT110-C024 in India?
Yes. Corporate AV can supply the LDT110-C024 on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
